MagnaFlow Exhaust Products 16842 - Street Series Satin System
Couldn't load pickup availability

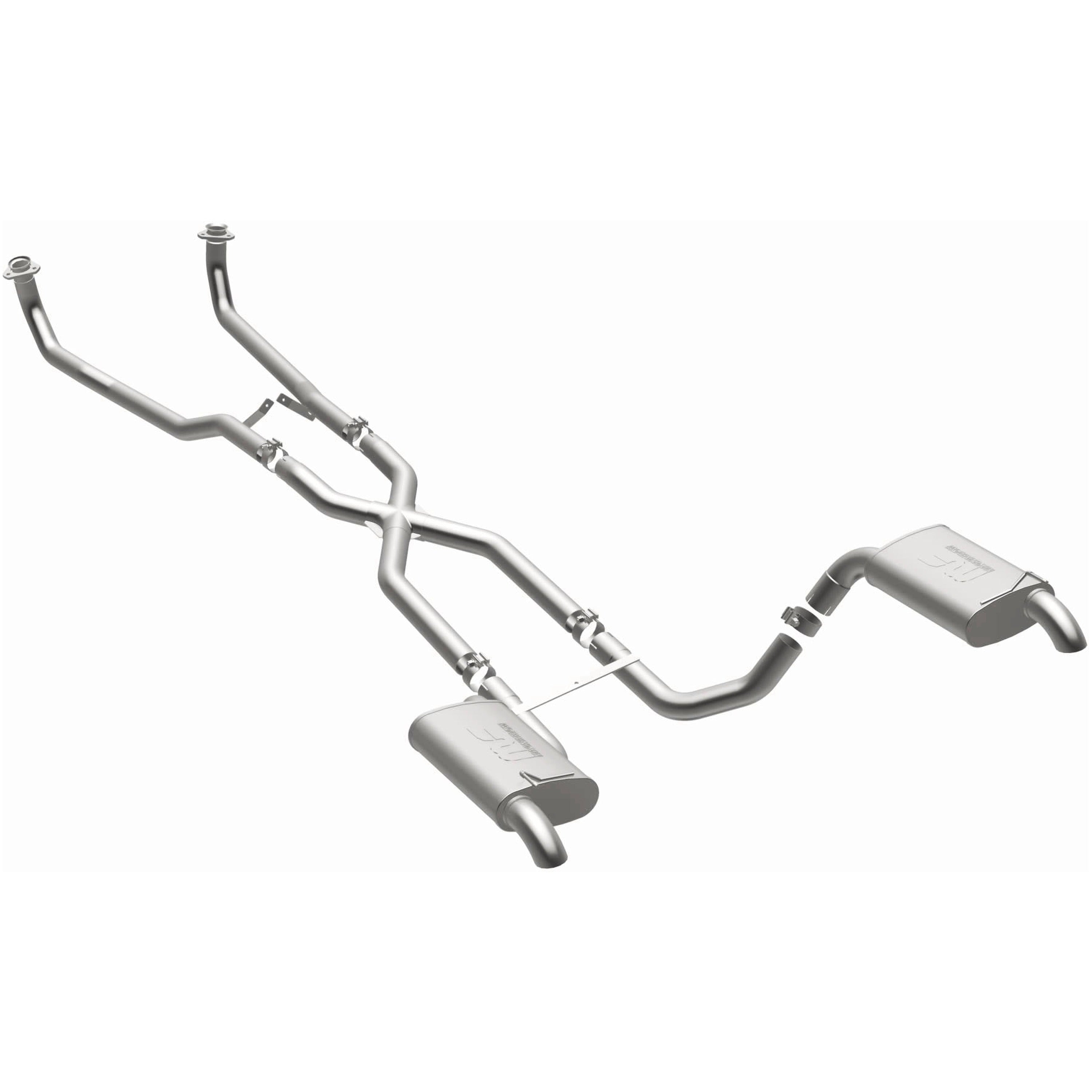

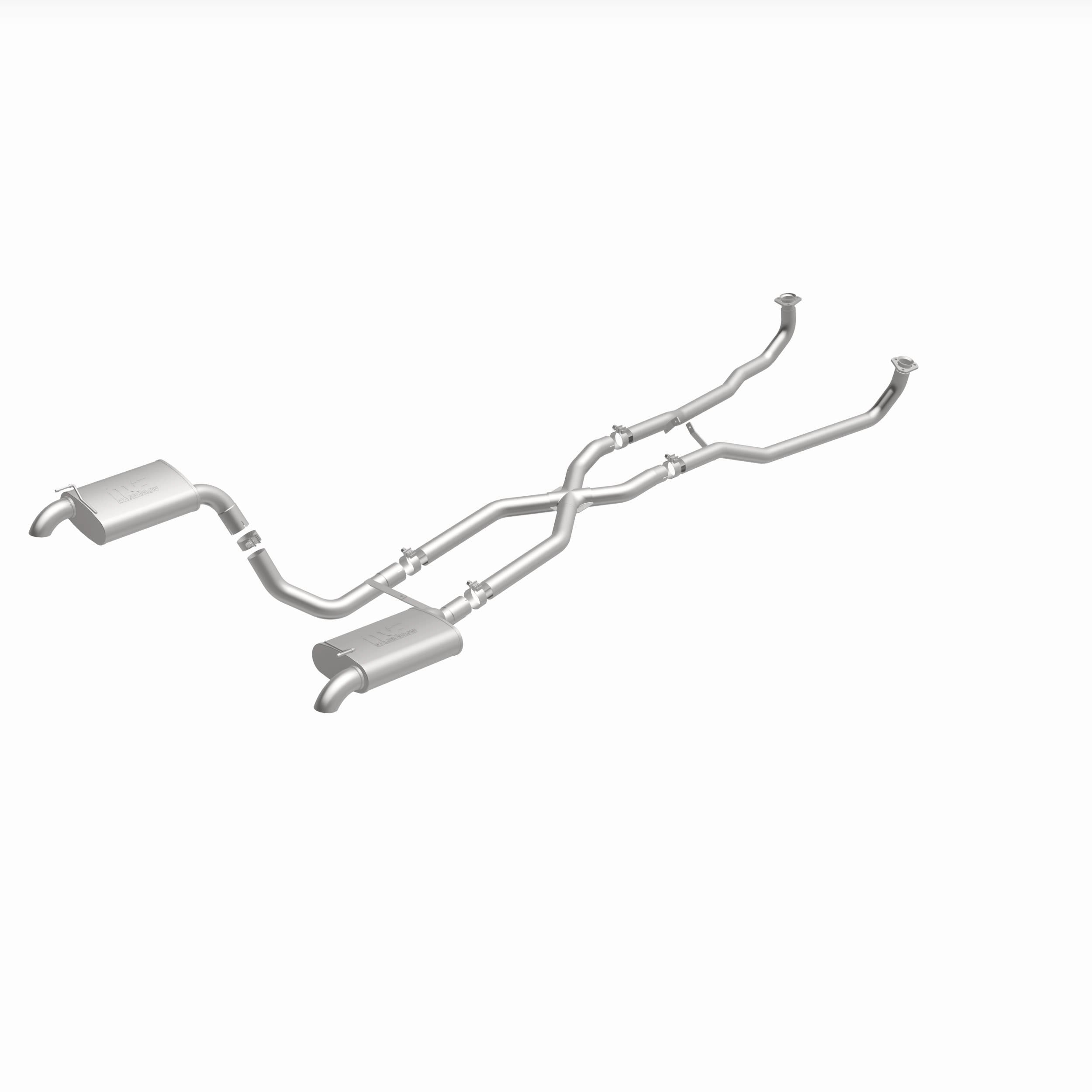

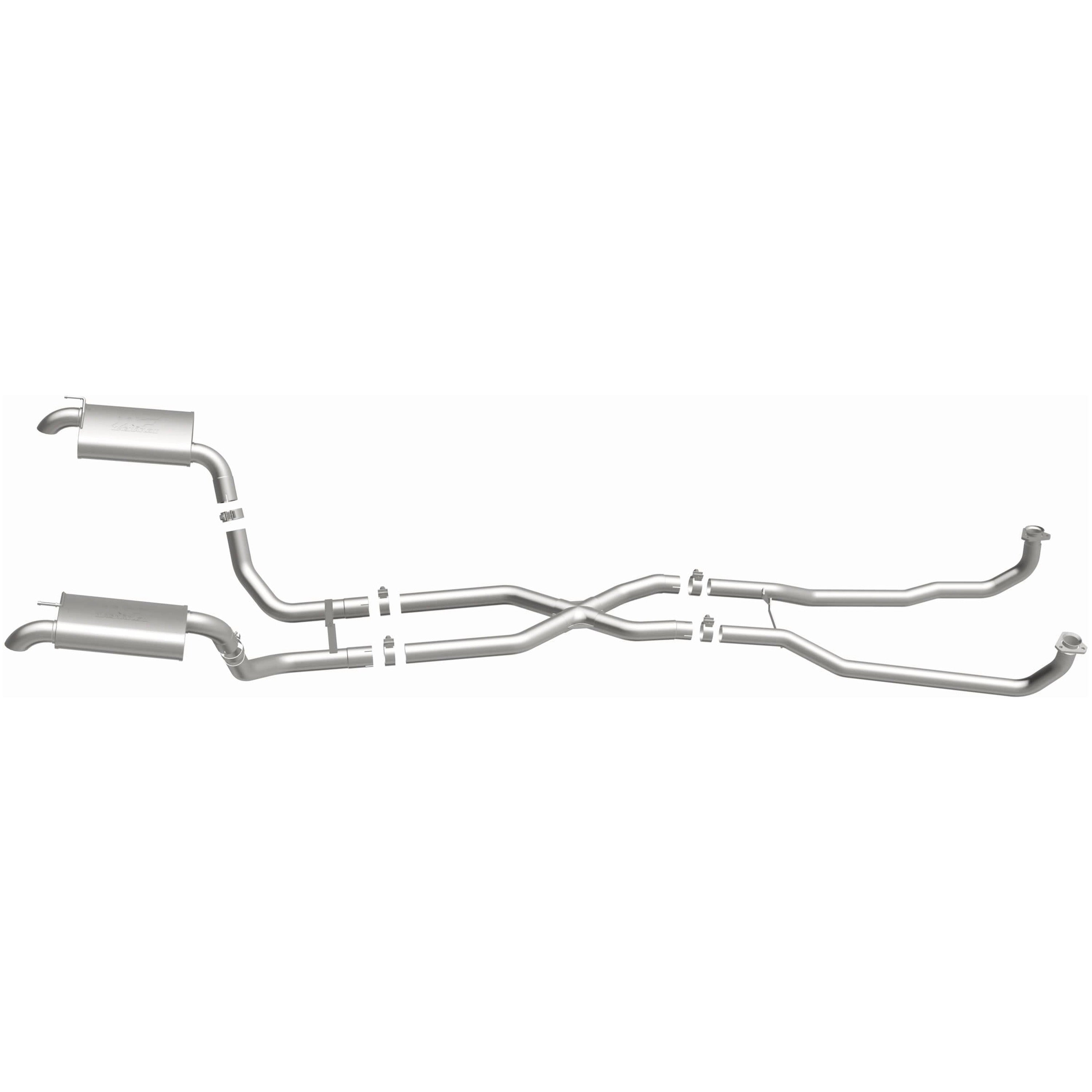

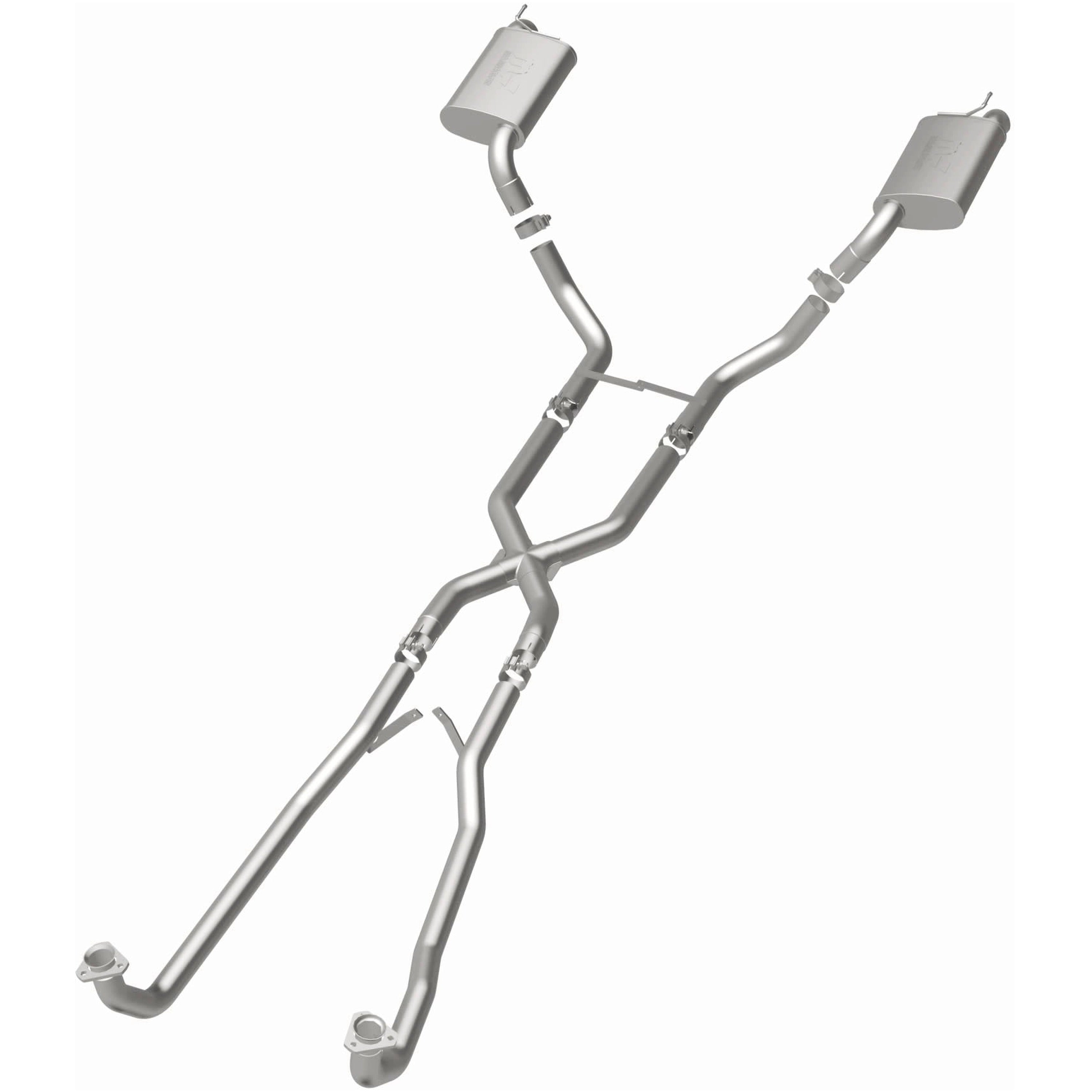

Magnaflow Street Series Stainless Crossmember-Back System
The MagnaFlow 1968-1973 Chevrolet Corvette Street Series Crossmember-Back Performance Exhaust System 16842 brings enhanced engine sound and dyno-proven performance to your 5.3L, 5.7L 1968-1973 Chevrolet Corvette with a healthy helping of our deep, resonant signature exhaust note at Moderate exterior and Mild interior sound levels. Thanks to its durable, corrosion resistant stainless steel design, this Chevrolet Corvette exhaust system will handle whatever tarmac you decide to leave your mark on. This performance exhaust kit features a crossmember-back layout designed to replace your Chevrolet Corvette's exhaust system from the crossmember on back. With its fast-flowing, mandrel bent 2.5in. main piping and 2 Straight-Through mufflers ending in a Dual Split Rear exit with 2.5in. Satin Welded-On Single Wall Turndown Cut Edge tips, your muscle car will be sounding as awesome as it looks. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 16842 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's limited lifetime construction warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Turndown |
| Exhaust Tip Diameter | 2.5 IN |
| Exhaust Tip Edge | Cut Edge |
| Exhaust Tip Finish | Satin |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4 IN |
| Muffler Body Length | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 9 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Street |
| Catalytic Converter Included | No |
| Title | MagnaFlow 1968 Chevrolet Corvette 5.3L | 1969-1973 Chevrolet Corvette 5.7L Street Series Performance Exhaust System 16842 |
| Valve Included | No |
| Clamping Type | Round Band |
Installation Guide: Download PDF
