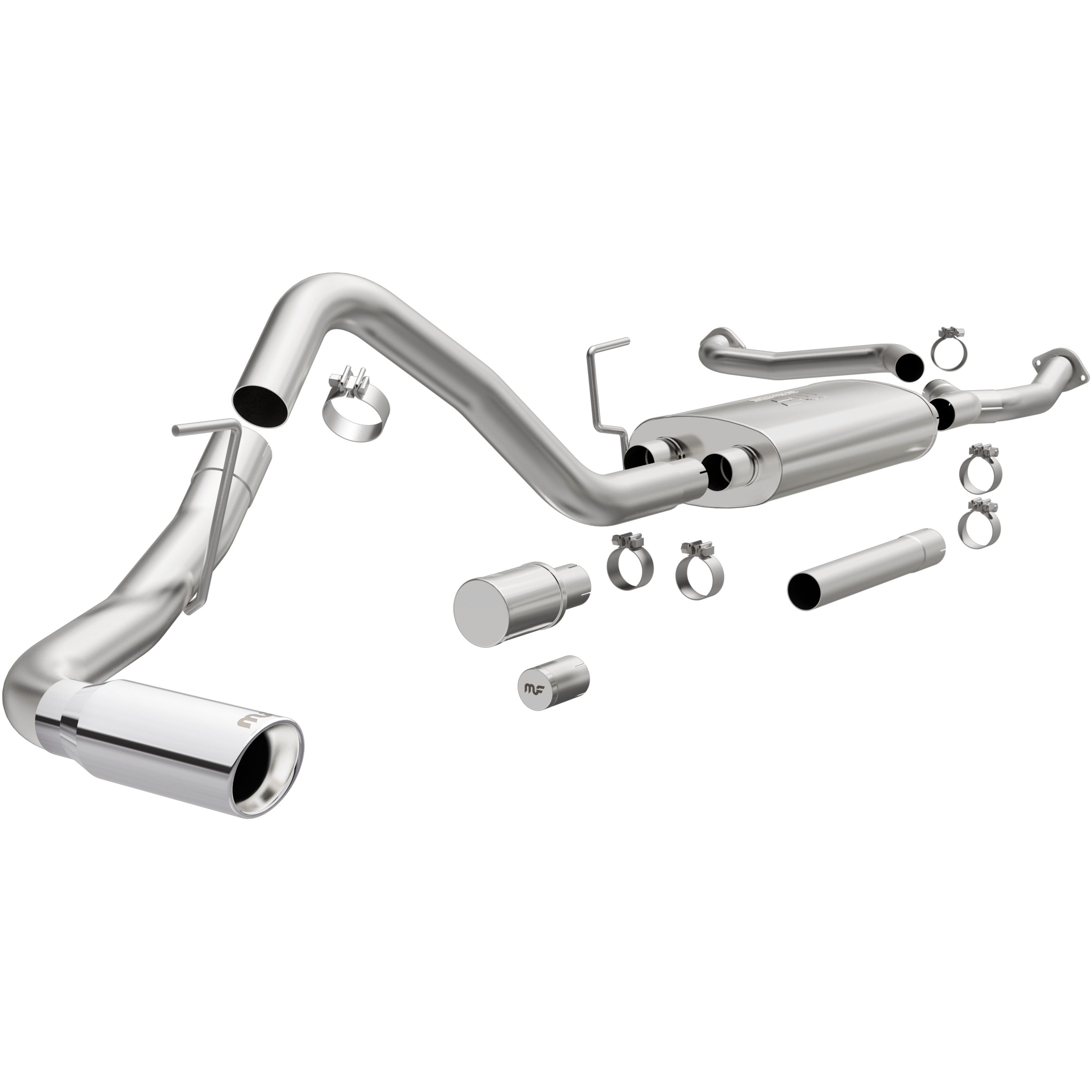

MagnaFlow Exhaust Products 19574 - Street Series Polished Cat-Back System
Couldn't load pickup availability
Magnaflow Street Series Stainless Cat-Back System
With the MagnaFlow Nissan Frontier Street Series Cat-Back Performance Exhaust System #19574 everyone else will know who rules the road once they hear that deep, resonant exhaust note that MagnaFlow is famous for. Exhaust kit #19574 features 3” main piping that passes through a straight-through muffler before terminating in a 4” single side exit with polished tip. An integrated NDT (No Drone Technology) resonator and versatile tuning of the piping and straight-through muffler ensure that this exhaust system nullifies the unwanted droning noises that can otherwise occur at freeway speeds while maintaining moderate exterior and mild interior sound levels. The exhaust system is designed to enhance your 2022-2025 Nissan Frontier Crew Cab or King Cab with dyno-proven performance gains and tuned to produce mild interior and moderate exterior sound levels. This Nissan Frontier exhaust system is produced using CNC precision robotic manufacturing techniques and durable, corrosion resistant stainless steel. #19574 is backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
Specifications
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Length | 12 IN |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Single Passenger Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Front) Body Length | 22 IN |
| Muffler (Front) Body Width | 11 IN |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 6 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler (Rear) Type | Tuned Chamber |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 22 IN |
| Muffler Body Length Position Rear | 6 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 11 IN |
| Muffler Body Width Position Rear | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Straight-Through |
| Muffler Type Position Rear | Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Street |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2022-2025 Nissan Frontier 3.8L Street Series Cat-Back Performance Exhaust System 19574 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
