MagnaFlow Exhaust Products 19595 - NEO Series Polished Tips Cat-Back System
Couldn't load pickup availability
Magnaflow NEO Series Stainless Cat-Back System

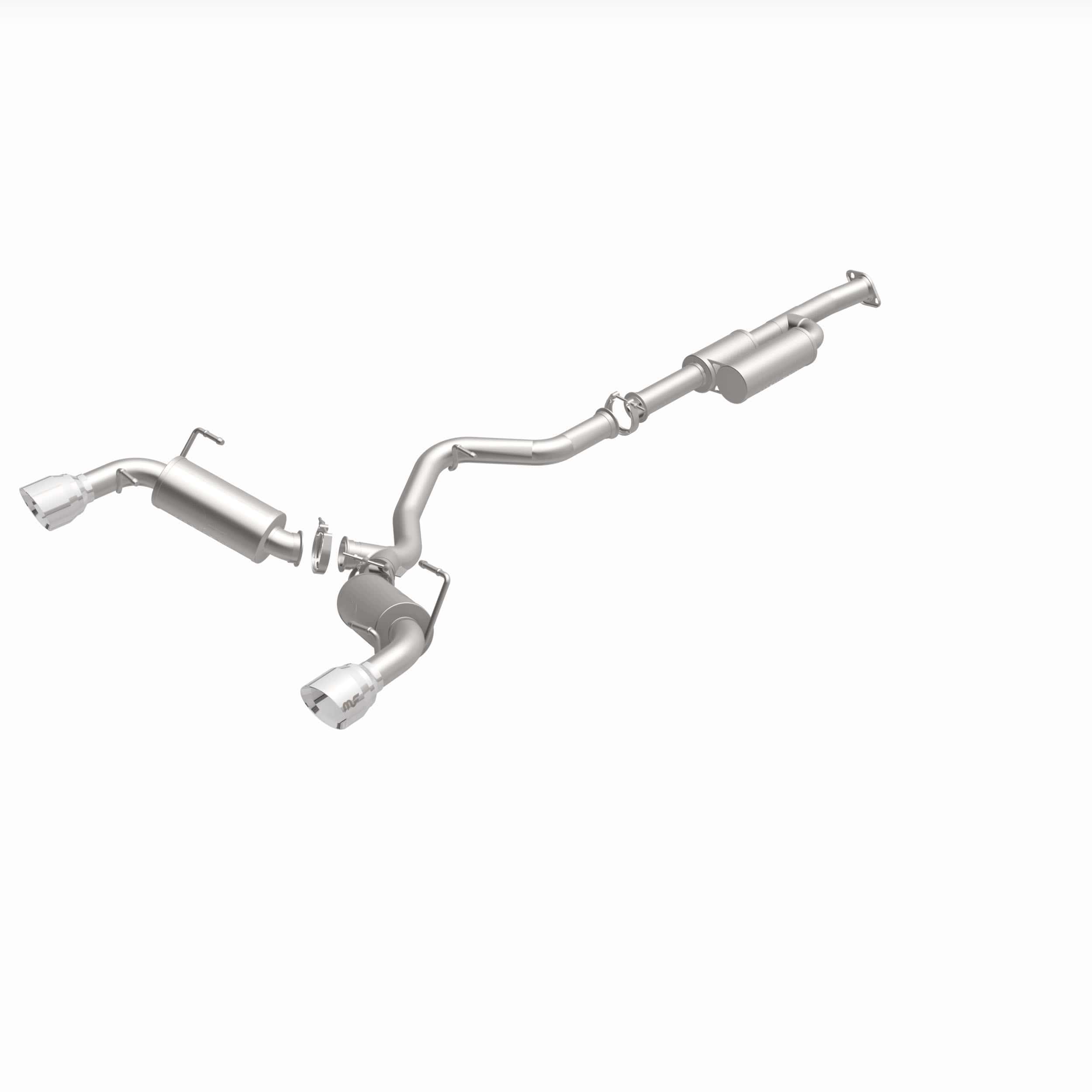

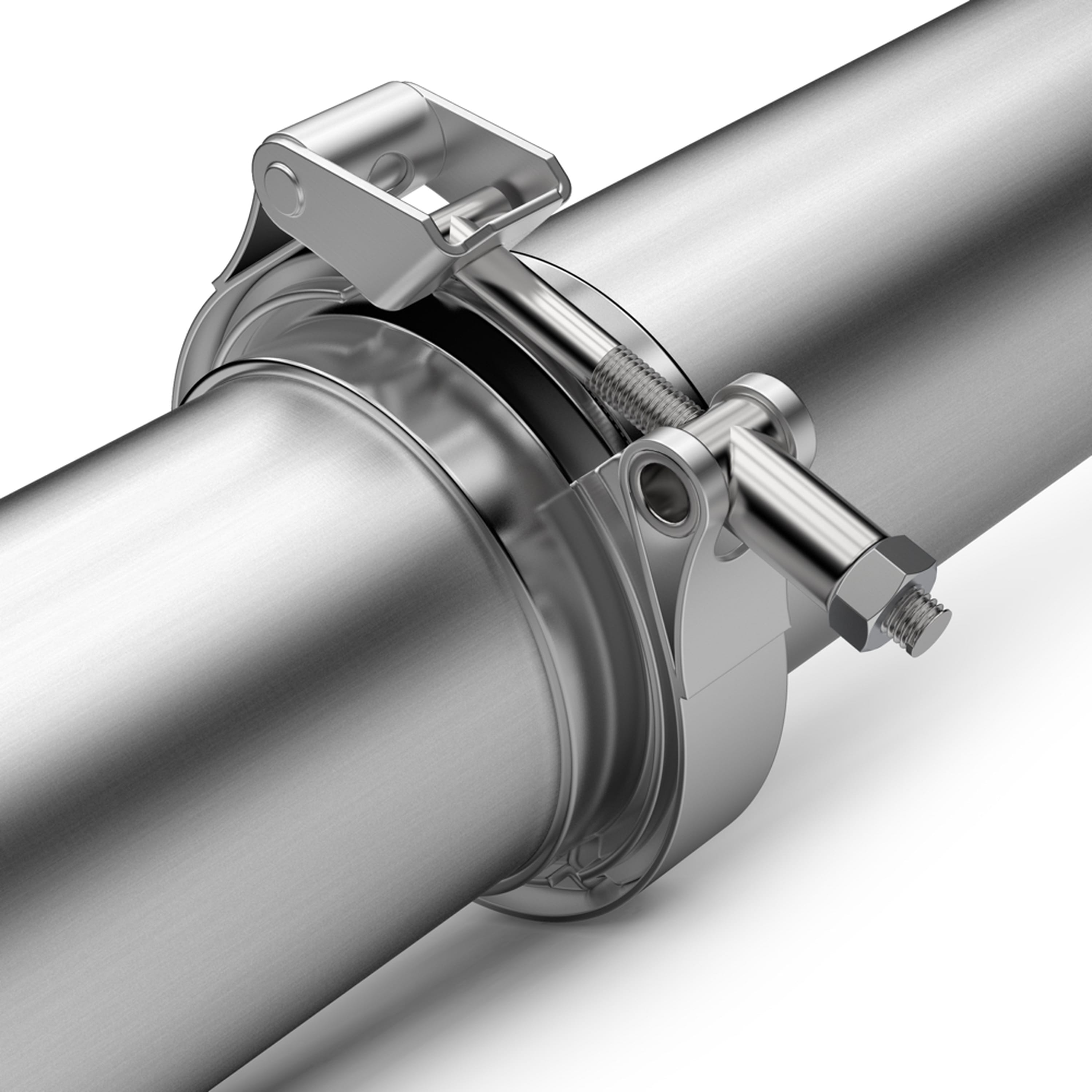

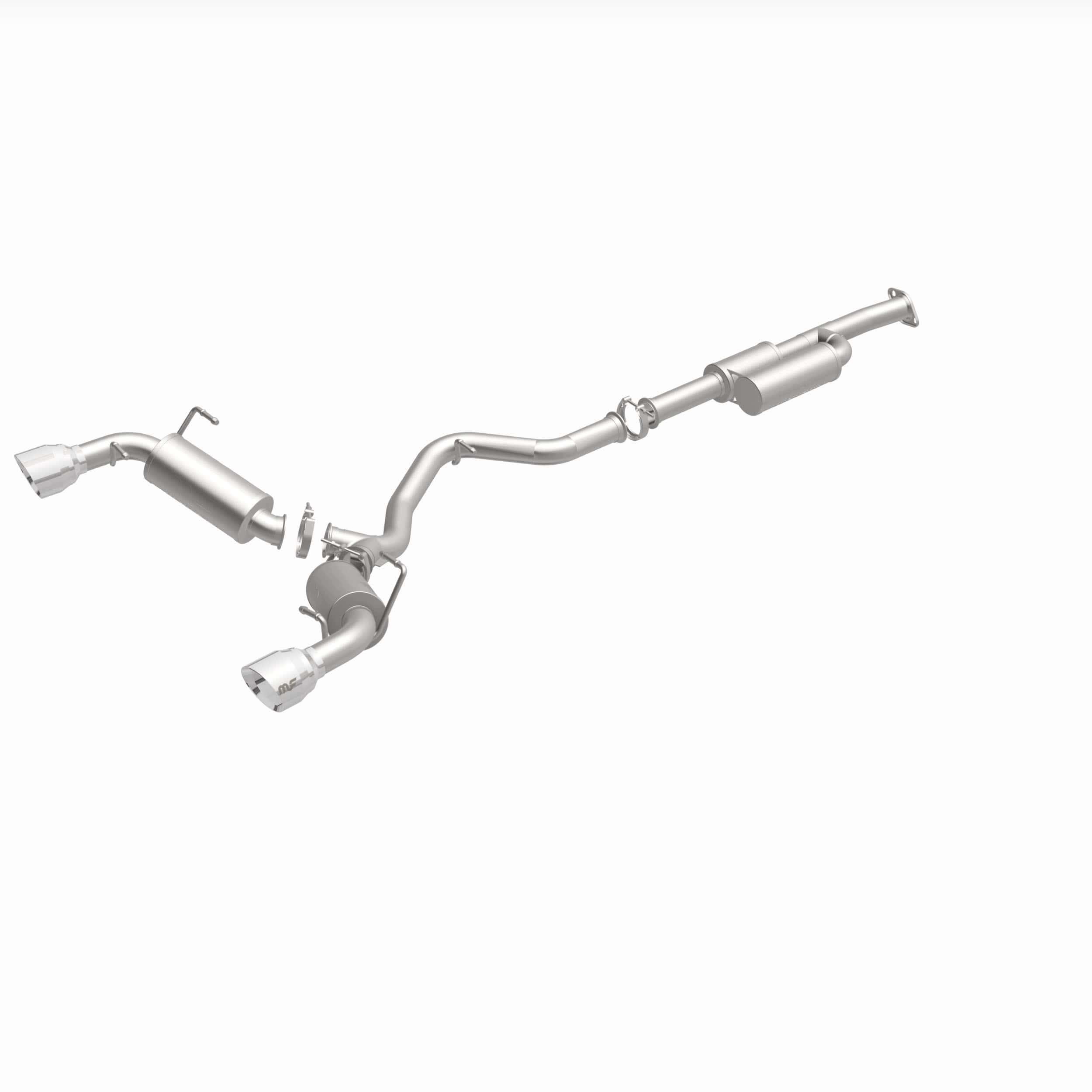

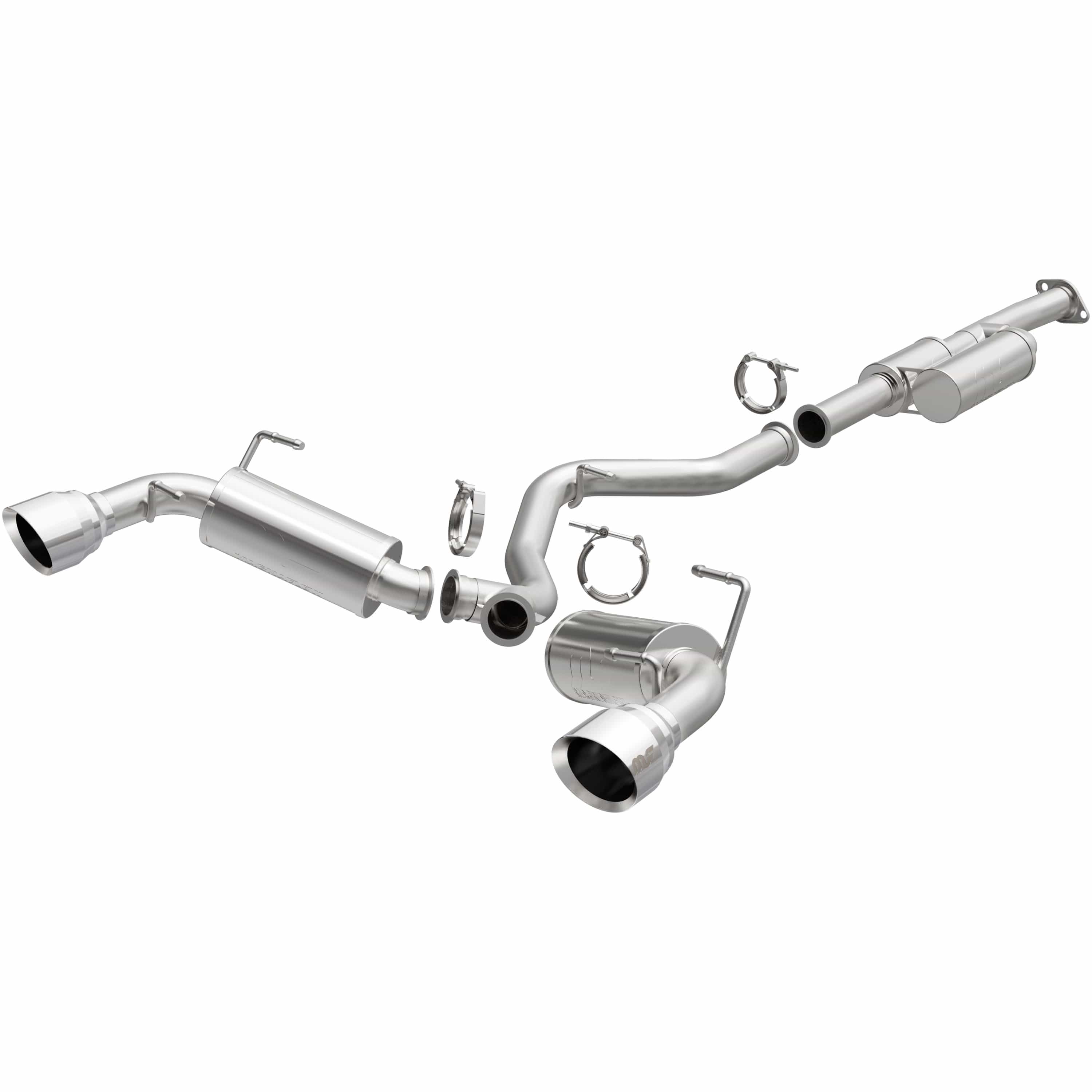

The MagnaFlow Toyota 86/Toyota GR86/Subaru BRZ/Scion FR-S NEO Series Performance Exhaust System #19595 brings dyno-proven performance and our latest exhaust advancements to your Japanese sportscar with an aggressive exterior sound and well-controlled, moderate interior sound made possible by careful integration of our No Drone Technology (NDT). By utilizing NDT in its design, exhaust kit #19595 is able to minimize the unwanted droning noise that can otherwise occur at cruising speeds. Exhaust system #19595 is compatible with 2022-2024 Toyota GR86s, 2013-2024 Subaru BRZs, 2017-2020 Toyota 86s and 2013-2016 Scion FR-Ss. This GR86/BRZ/86/FR-S exhaust system features 2.5” fast-flowing mandrel bent main piping that flows through a straight-through muffler and NDT resonator before terminating in a dual rear exit with 4.5” polished tips. The direct-fit design enables do-it-yourself installation and can be easily removed thanks to the use of racing-bred V-band clamps. #19595 is made of premium, durable and corrosion resistant stainless steel and is produced used CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- 100% Stainless Steel
- Increased Horsepower and Torque
- No-Drone-Technology allows for a quiet cabin
Specifications
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 5 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Center | Straight-Through |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | NEO |
| Title | MagnaFlow NEO Series Cat-Back Performance Exhaust System 19595 |
| Type | Cat-Back |
| Valve Included | No |
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4.5 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.75 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Center) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Tuned Chamber |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 11 IN |
| Muffler (Rear) Body Width | 5 IN |
| Muffler (Rear) Type | Straight-Through |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Center) Type | Straight-Through |
| Muffler (Center) Body Width | 4 IN |
| Muffler (Center) Body Length | 7.25 IN |
| Muffler Body Height Position Center | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Center | 7.25 IN |
| Muffler Body Length Position Front | 11 IN |
| Muffler Body Length Position Rear | 11 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Center | 4 IN |
| Catalytic Converter Included | No |
| Clamping Type | V Band |
Installation Guide: Download PDF
