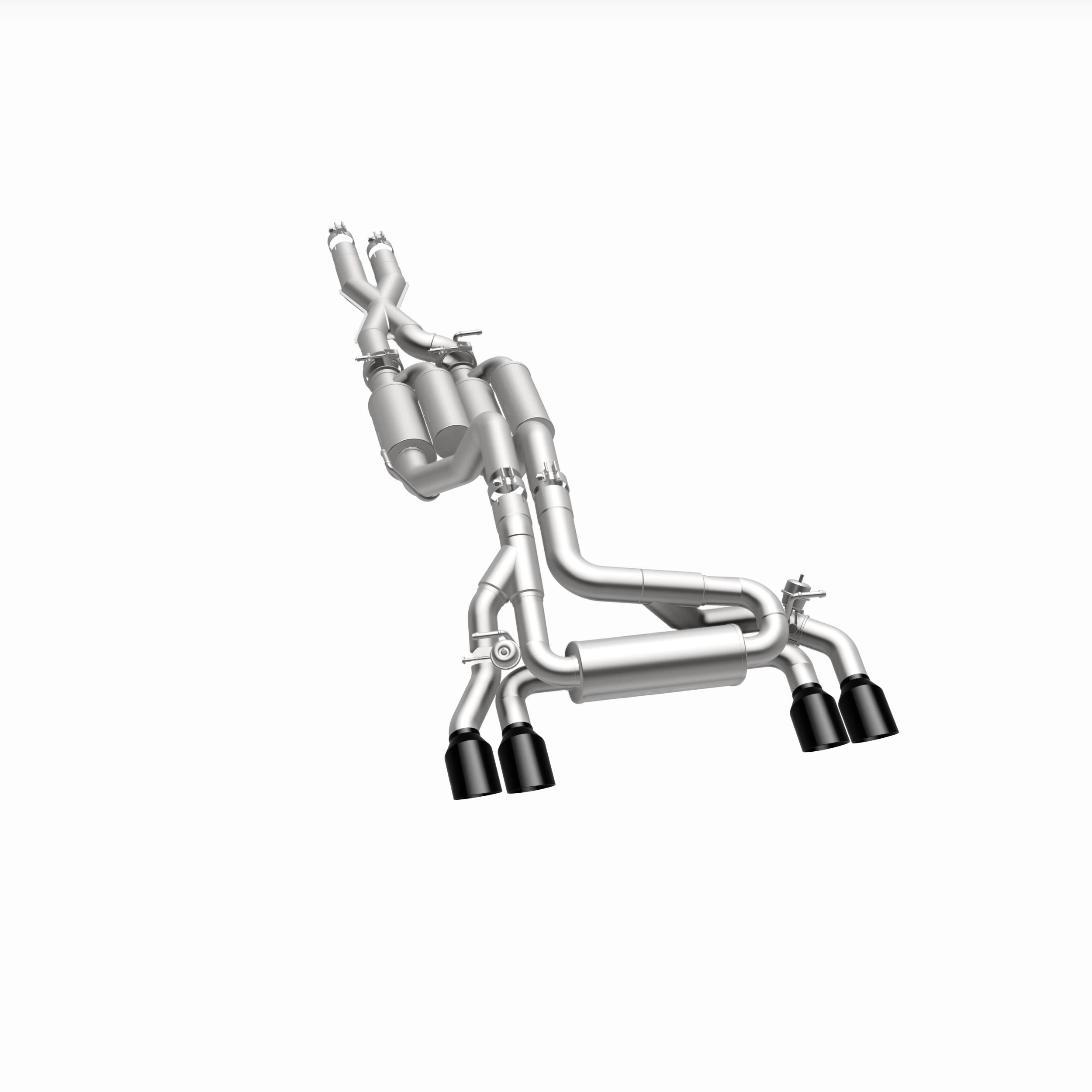

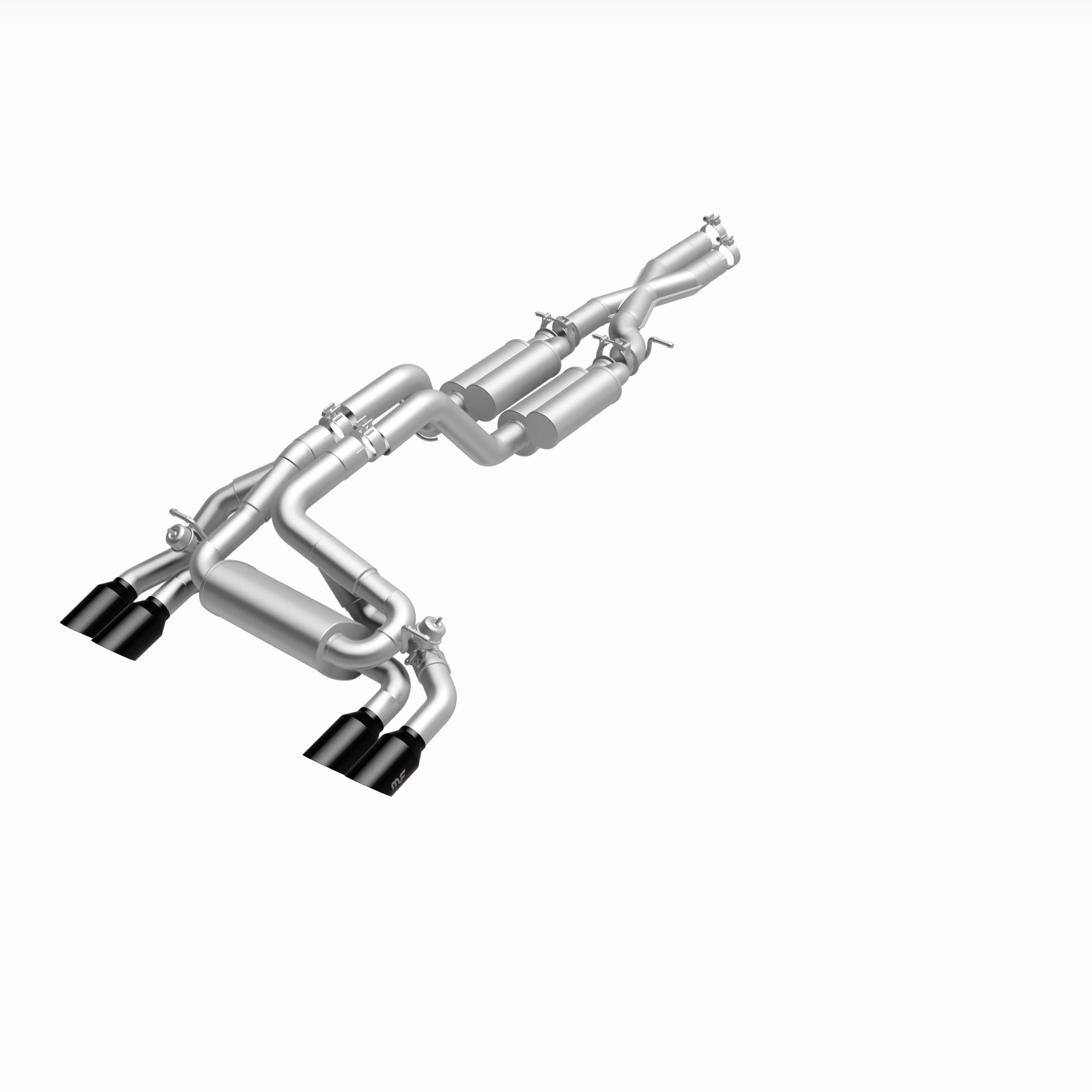

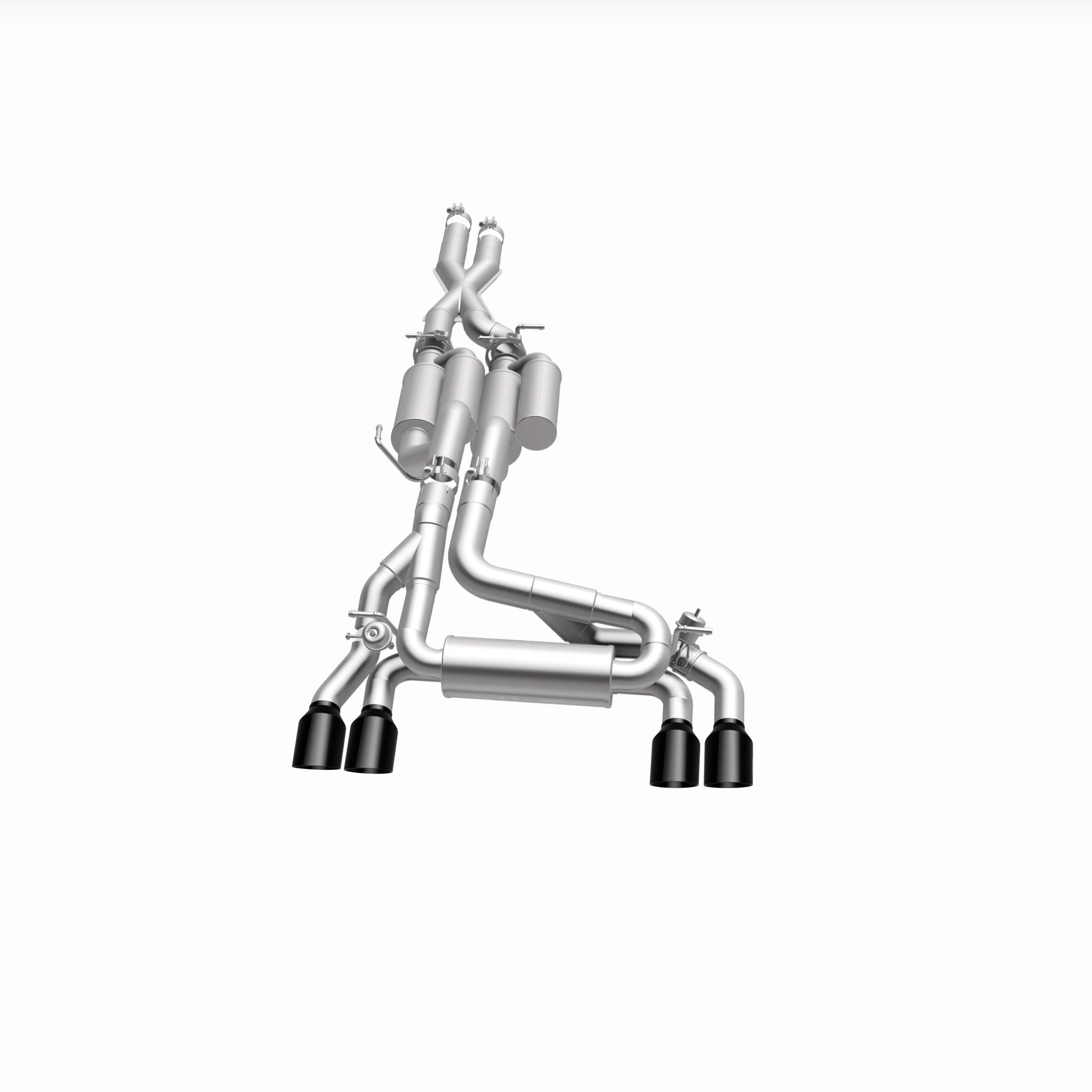

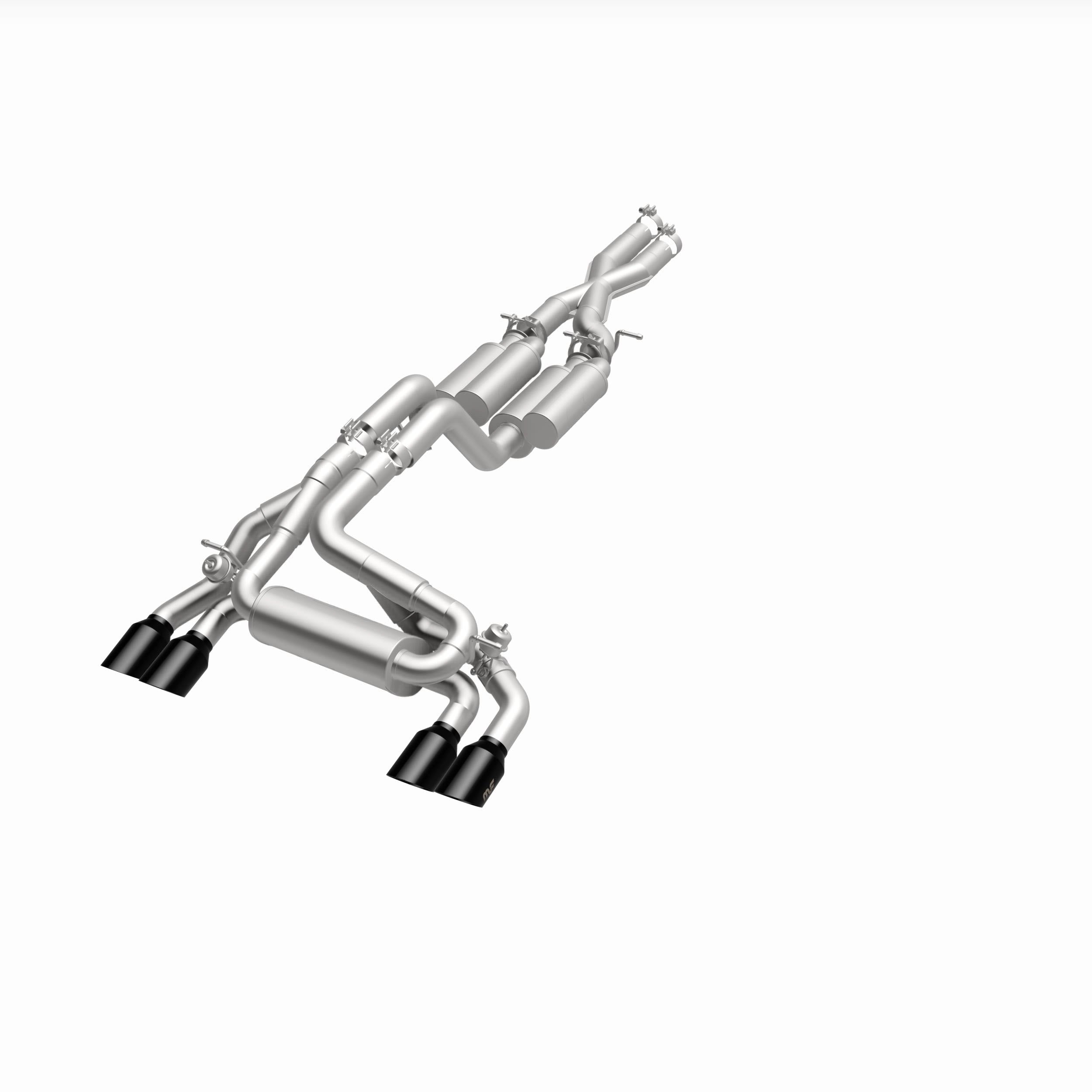

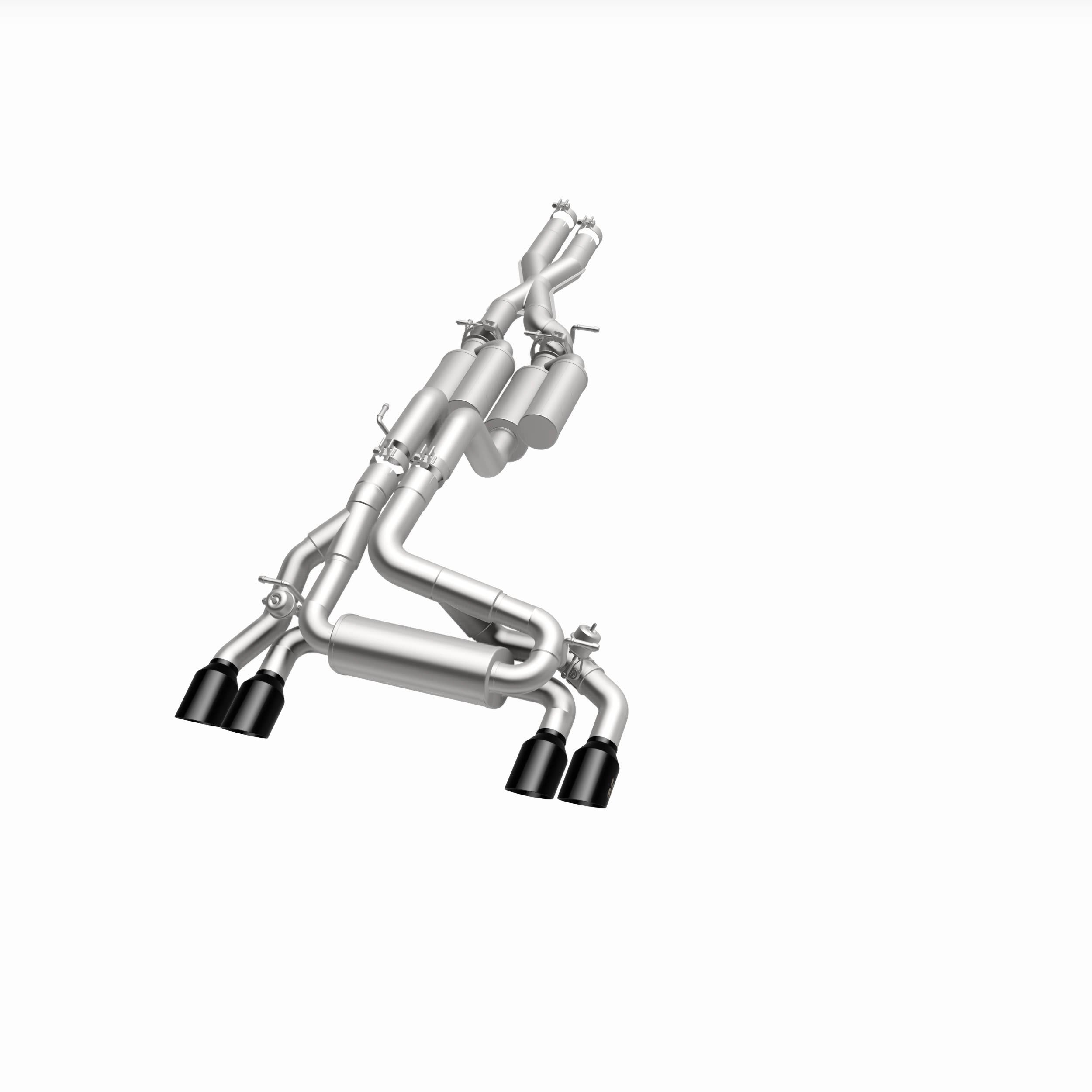

MagnaFlow Exhaust Products 19598 - Street Series Black Chrome Cat-Back System
Couldn't load pickup availability
Magnaflow Street Series Black Chrome Cat-Back System
The MagnaFlow Jeep Wrangler 392 Street Series Cat-Back Performance Exhaust System #19598 brings the latest evolution in exhaust sound and dyno-proven performance to your already capable 2021-2026 Jeep Wrangler 392. The 3” main tubing of exhaust kit #19598 flows through dual free flowing straight through mufflers and NDT (No Drone Technology) resonators before terminating in a quad rear exit with 4” black chrome tips. #19598 is tuned to produce a powerful, resonant performance exhaust tone while maintaining moderate interior sound levels. The integrated NDT technology keeps unwanted droning noises in check at lower engine speeds such as when cruising on the highway. This Jeep Wrangler 392 exhaust system is made of durable, corrosion resistant stainless steel and is produced using advanced CNC precision robotic manufacturing techniques that enable #19598 to feature a direct-fit design that you can install yourself. MagnaFlow stands by this performance exhaust kit with our 1-year finish warranty and limited lifetime construction warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- CNC precision robotic manufacturing techniques
- Dyno-proven performance
Specifications
| Catalytic Converter Included | No |
| Muffler (Front Left Inside) Body Length | 11 IN |
| Muffler (Front Left Outside) Body Length | 11 IN |
| Muffler (Front Right Inside) Body Length | 11 IN |
| Muffler (Front Right Outside) Body Length | 11 IN |
| Muffler Body Length Position Front Left Inside | 11 IN |
| Muffler Body Length Position Front Left Outside | 11 IN |
| Muffler Body Length Position Front Right Inside | 11 IN |
| Muffler Body Length Position Front Right Outside | 11 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler Body Length Position Rear | 14 IN |
| Main Piping Diameter | 3 IN |
| Muffler (Front Left Inside) Body Height | 4 IN |
| Muffler (Front Left Inside) Body Width | 4 IN |
| Muffler (Front Right Outside) Body Height | 4 IN |
| Muffler (Front Right Outside) Body Width | 4 IN |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Diameter | 4 IN |
| Muffler Body Height Position Front Left Inside | 4 IN |
| Muffler Body Height Position Front Right Outside | 4 IN |
| Muffler Body Width Position Front Left Inside | 4 IN |
| Muffler Body Width Position Front Right Outside | 4 IN |
| Muffler (Front Left Outside) Body Height | 5 IN |
| Muffler (Front Left Outside) Body Width | 5 IN |
| Muffler (Front Right Inside) Body Height | 5 IN |
| Muffler (Front Right Inside) Body Width | 5 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler Quantity | 5 |
| Muffler Body Height Position Front Left Outside | 5 IN |
| Muffler Body Height Position Front Right Inside | 5 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Width Position Front Left Outside | 5 IN |
| Muffler Body Width Position Front Right Inside | 5 IN |
| Exhaust Tip Length | 7 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Width Position Rear | 8 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Black Chrome |
| Muffler Finish | Brushed |
| Type | Cat-Back |
| Inlet Type | Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Exhaust Tip Edge | Folded Edge |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Valve Type | Passive |
| Exit Style | Quad Split Rear |
| Exhaust Tip Shape | Round |
| Exhaust Tip Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Front Left Outside) Type | Straight-Through |
| Muffler (Front Right Inside) Type | Straight-Through |
| Muffler (Rear) Type | Straight-Through |
| Muffler Type Position Front Left Outside | Straight-Through |
| Muffler Type Position Front Right Inside | Straight-Through |
| Muffler Type Position Rear | Straight-Through |
| Muffler Type | Straight-Through;Tuned Chamber |
| Series | Street |
| Muffler (Front Left Inside) Type | Tuned Chamber |
| Muffler (Front Right Outside) Type | Tuned Chamber |
| Muffler Type Position Front Left Inside | Tuned Chamber |
| Muffler Type Position Front Right Outside | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Title | MagnaFlow 2021-2026 Jeep Wrangler 6.4L Street Series Cat-Back Performance Exhaust System 19598 |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
