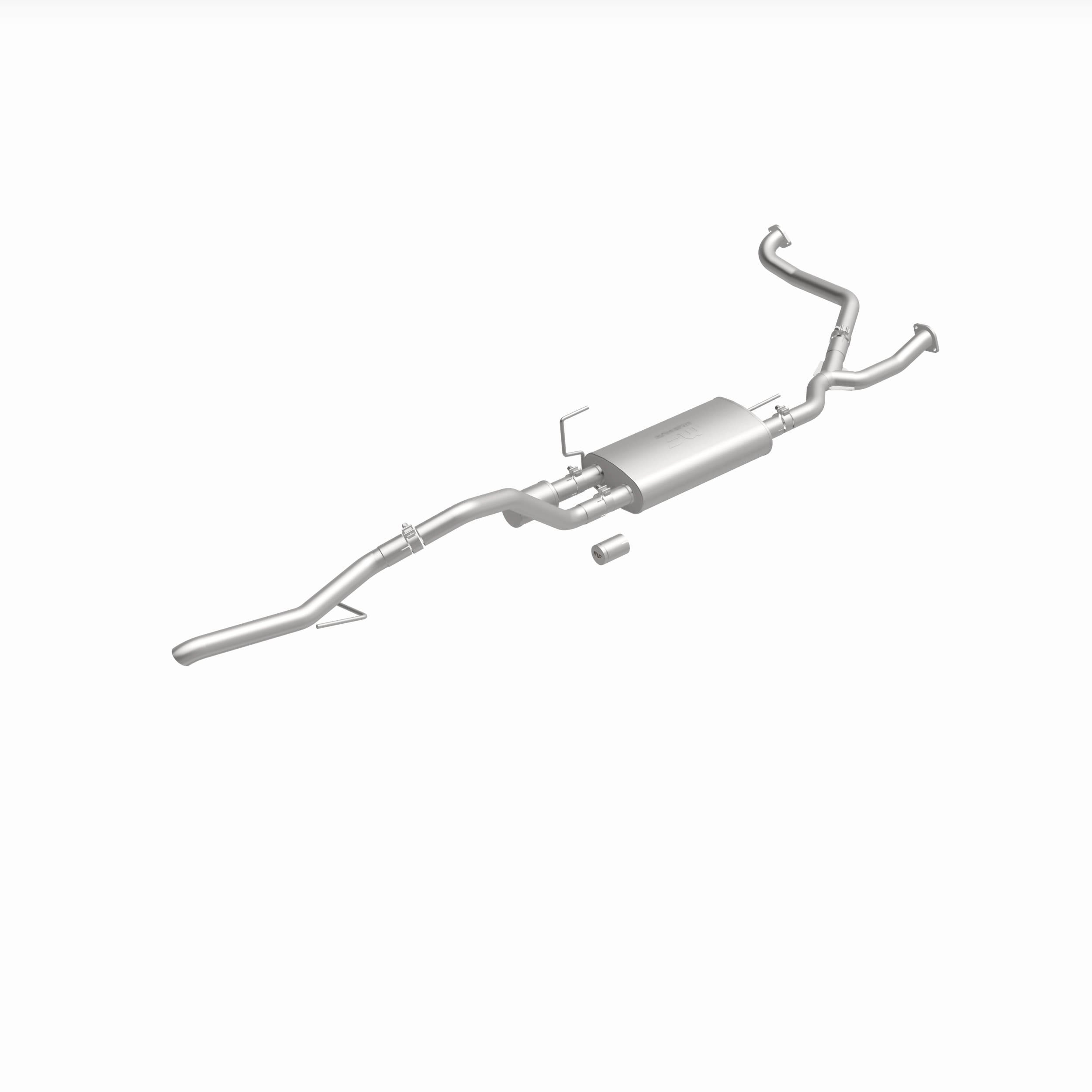

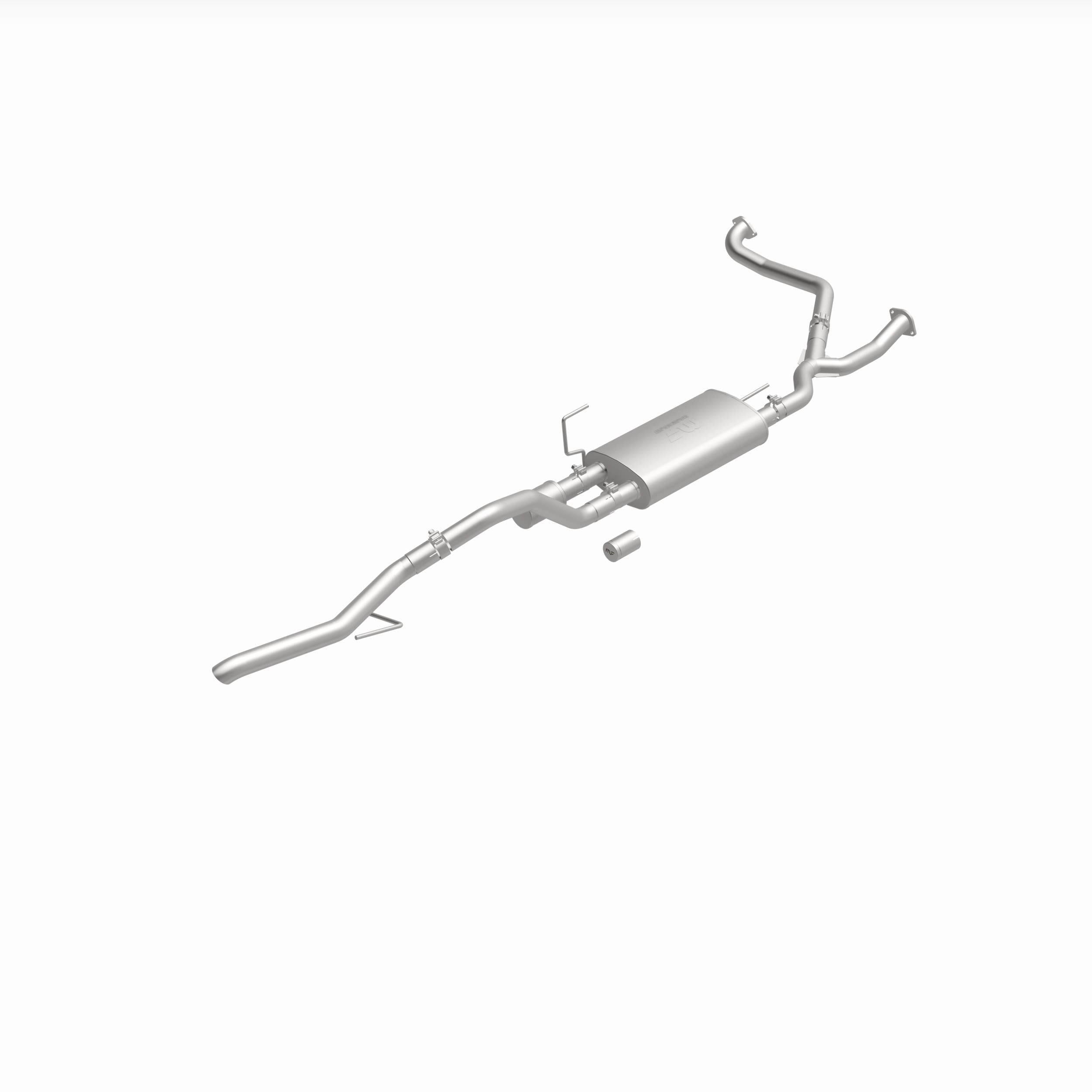

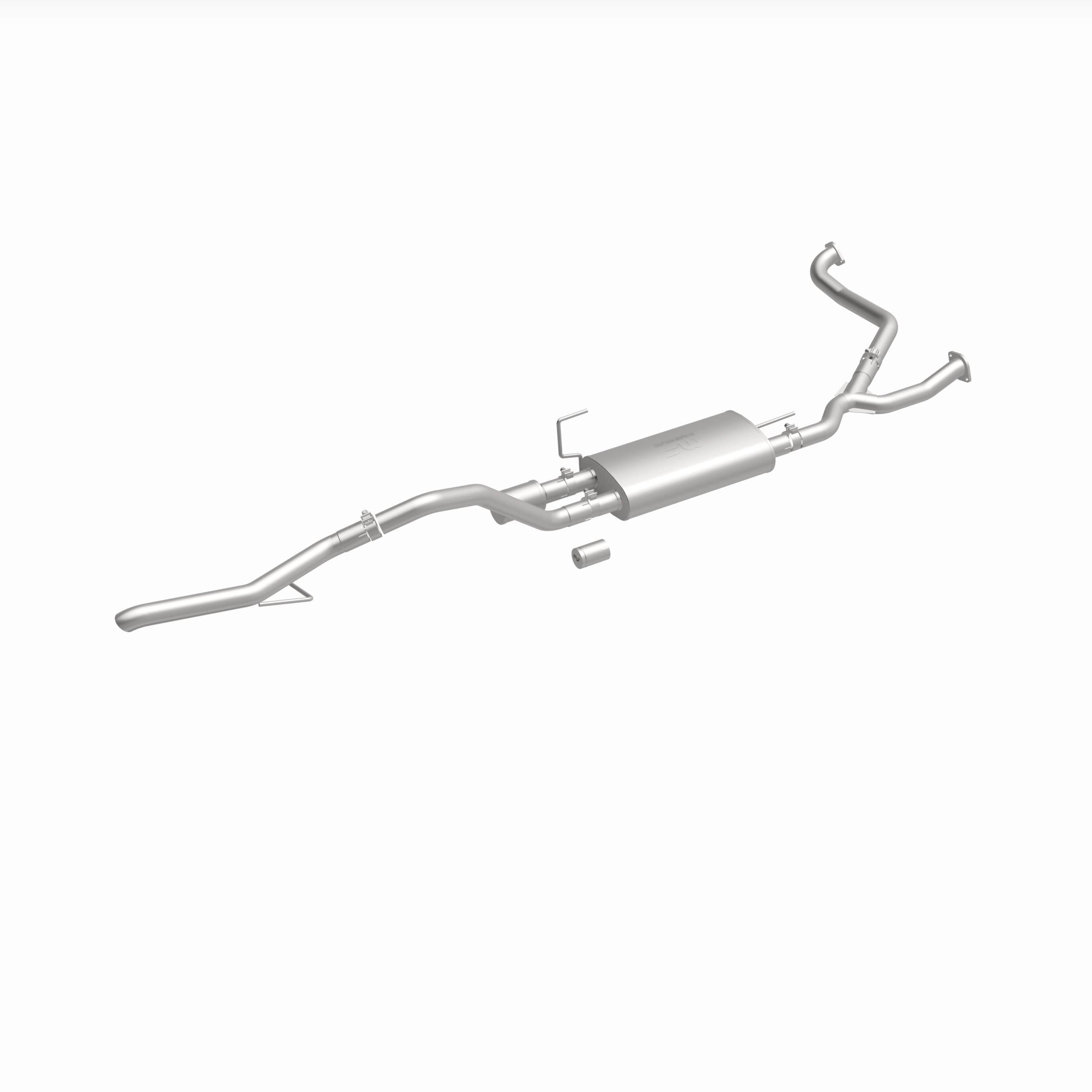

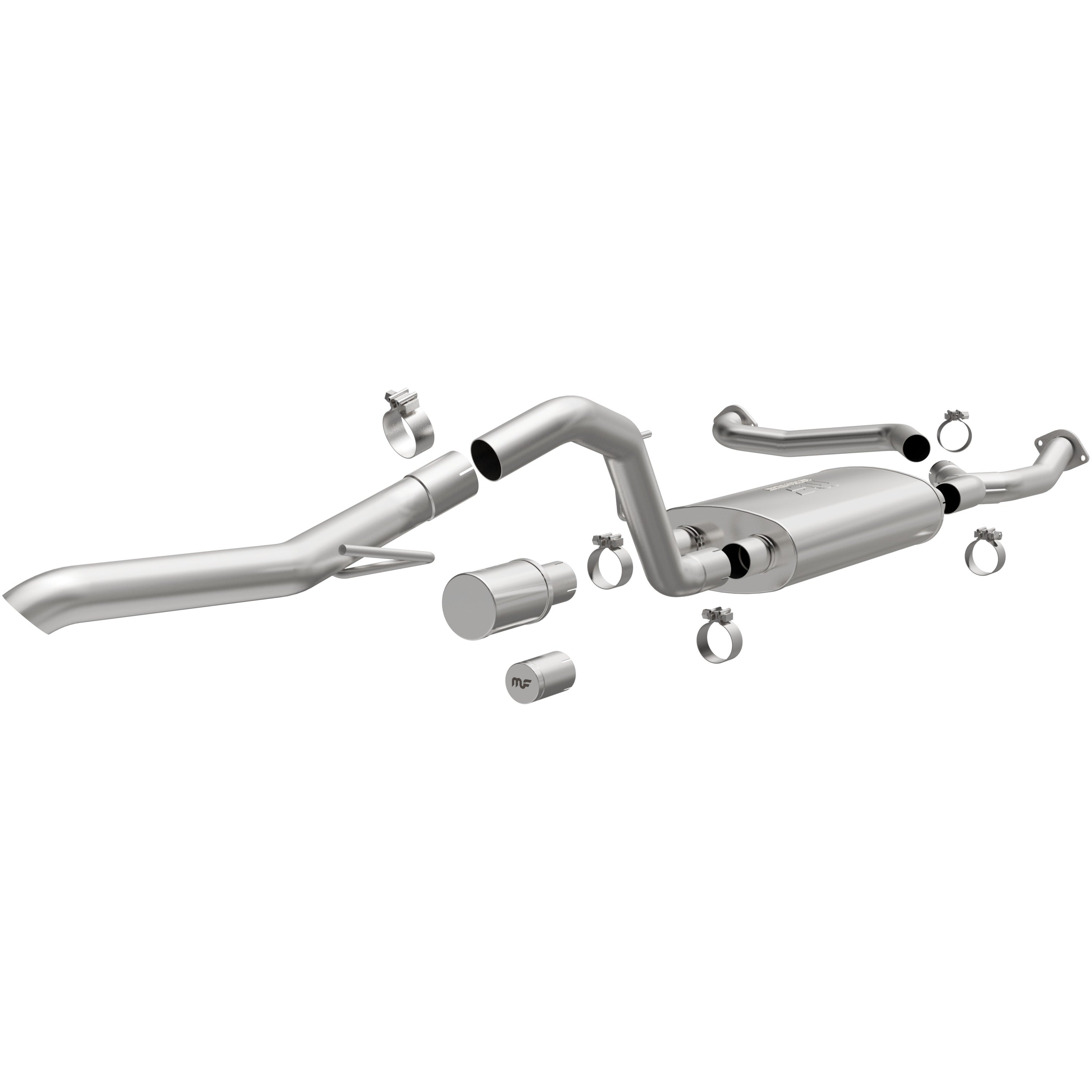

MagnaFlow Exhaust Products 19599 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System
The MagnaFlow® Nissan Frontier Overland Series™ Cat-Back Performance Exhaust System #19599 is the perfect exhaust solution when it comes to turning your dependable truck into the ultimate overland-ready rig. With 2.5” main piping that closely hugs the undercarriage of your 2022-2024 Nissan Frontier and a high clearance, 2.5” single side exit, exhaust kit #19599 simultaneously improves both ground clearance and departure angles. An integrated NDT (No Drone Technology) resonator and versatile tuning of the piping and straight-through muffler ensure that this Nissan Frontier exhaust system nullifies the unwanted droning noises that can otherwise occur at freeway speeds while maintaining moderate exterior and mild interior sound levels. This balanced approach allows you to enjoy the signature, MagnaFlow®-enhanced sound of your engine while helping maintain situational awareness when you’re out in the field. #19599 offers the dyno-proven performance that MagnaFlow® is known for and is produced using CNC precision robotic manufacturing techniques. Exhaust system #19599’s durable, corrosion resistant construction is backed by our limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
- Dyno proven performance
Specifications
| Exhaust Tip Quantity | 0 |
| Muffler (Front) Body Width | 11 IN |
| Main Piping Diameter | 2.5 IN |
| Muffler (Front) Body Length | 22 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Rear) Body Length | 6 IN |
| Inlet Type | Bolt-On |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exit Style | Single Straight Passenger Side Rear |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 22 IN |
| Muffler Body Length Position Rear | 6 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 11 IN |
| Muffler Body Width Position Rear | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Straight-Through |
| Muffler Type Position Rear | Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2022-2025 Nissan Frontier 3.8L Overland Series™ Cat-Back Performance Exhaust System 19599 |
Installation Guide: Download PDF
