MagnaFlow Exhaust Products 19605 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System

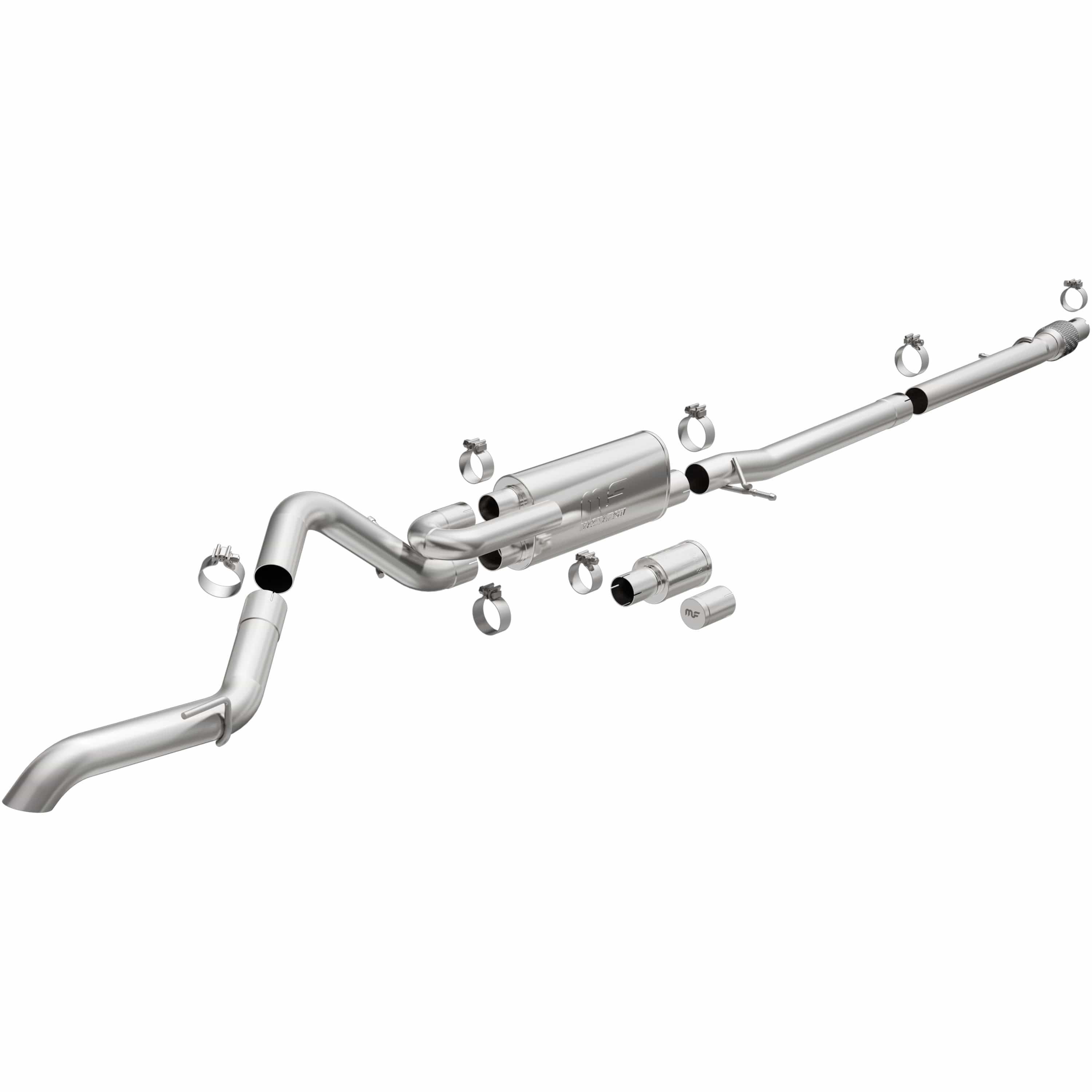

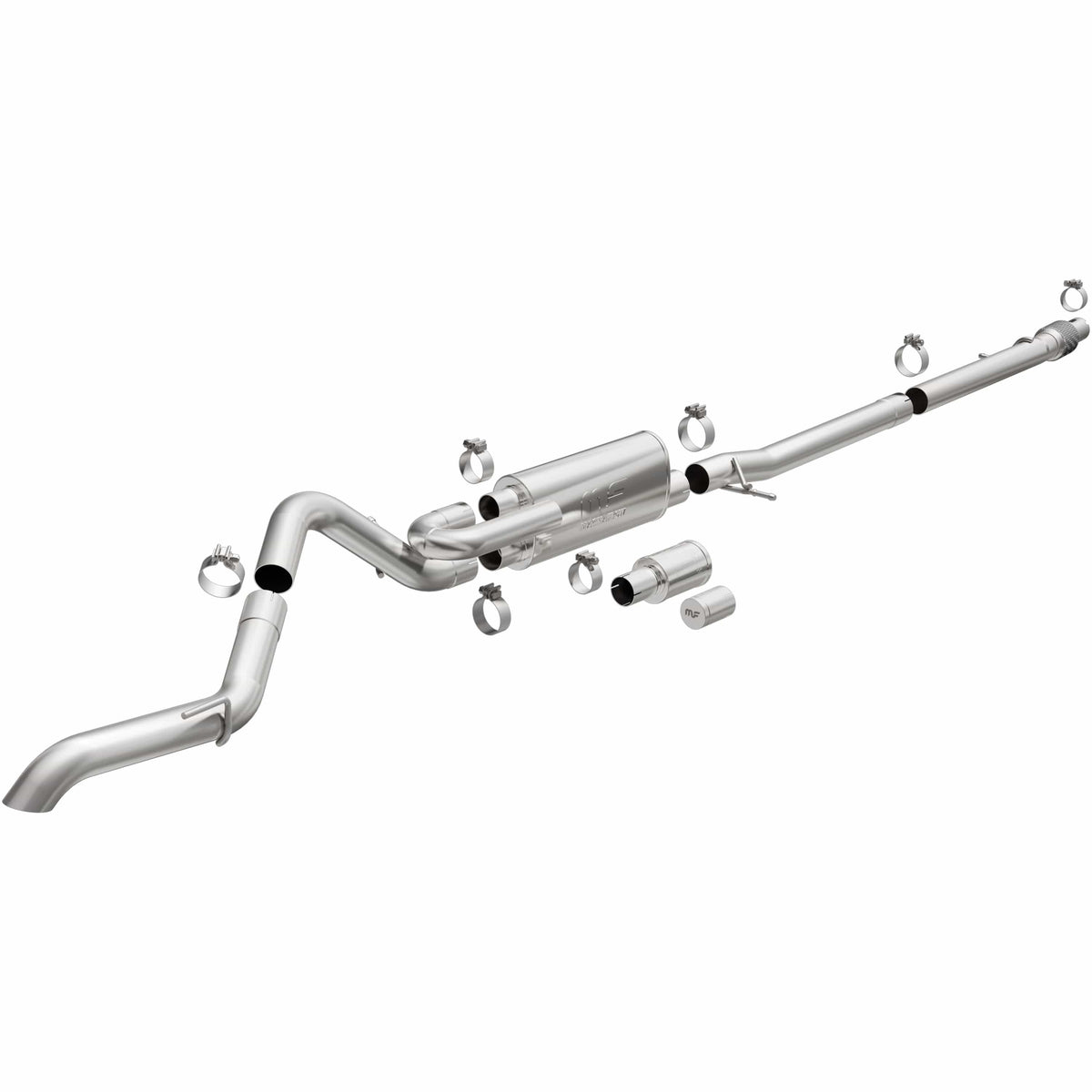

The MagnaFlow® Ford Ranger Overland Series™ Performance Exhaust System #19605 helps your truck conquer trails and obstacles that stock systems simply can’t thanks to the improved ground clearance and departure angles it brings to compatible 2019-2023 Ford Ranger models equipped with the 2.3L inline-four engine option. This improved off-road capability is largely thanks to the system’s undercarriage hugging design and tipless exit. Exhaust kit #19605 features 3” diameter, fast flowing, mandrel bent main piping that passes through a straight through offset/offset same-side 5”x8”x18” muffler before ending in a tipless, high tuck tailpipe that exits on the rear of the passenger’s side. This Ranger exhaust system replaces all your truck’s stock exhaust components from near the catalytic converter on back, enhancing it with MagnaFlow®’s signature sound and dyno-proven performance while keeping unwanted droning noises under control both on and off the trail thanks to the incorporation of our NDT (No Drone Technology) resonators. #19605 is made of durable, corrosion-resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
- Dyno proven performance
Specifications
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Front) Body Length | 18 IN |
| Muffler (Front) Body Width | 8 IN |

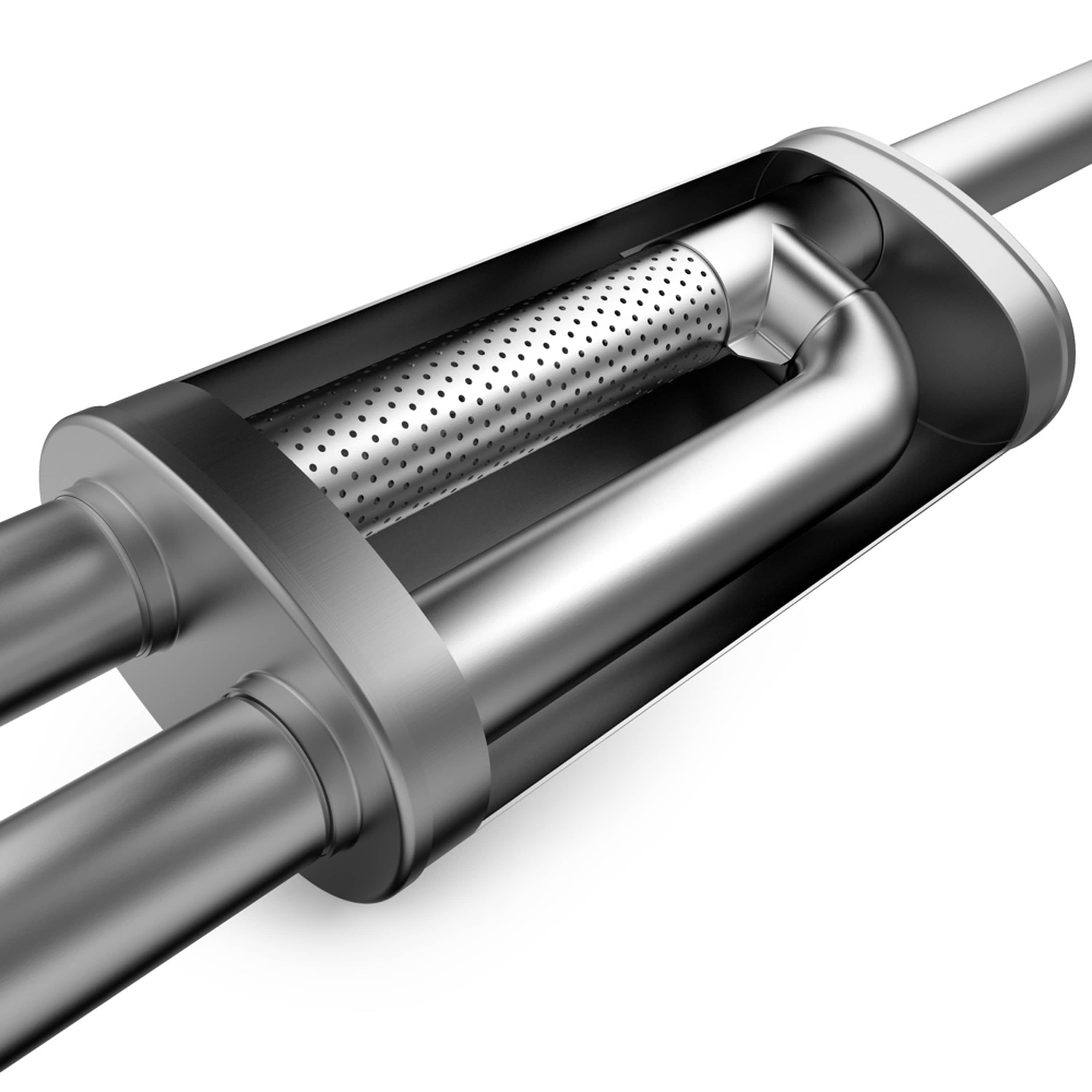

| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 6 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler (Rear) Type | Tuned Chamber |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 18 IN |
| Muffler Body Length Position Rear | 6 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 8 IN |
| Muffler Body Width Position Rear | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Straight-Through |
| Muffler Type Position Rear | Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |

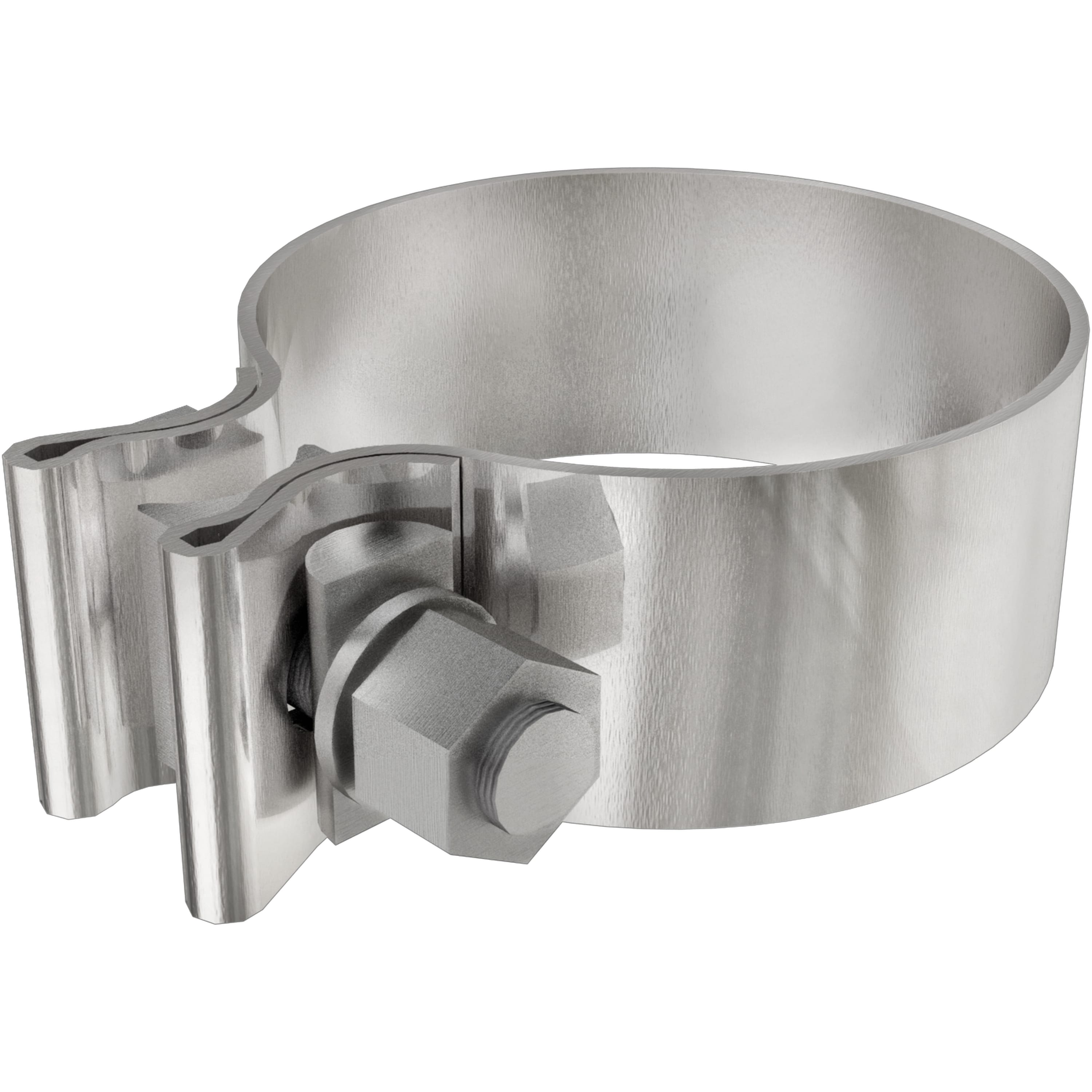

| Clamping Type | Round Band |
| Title | MagnaFlow® 2019-2023 Ford Ranger 2.3L Overland Series™ Cat-Back Performance Exhaust System 19605 |
Installation Guide: Download PDF
