Magnaflow NEO Series Carbon Fiber Tips Cat-Back System

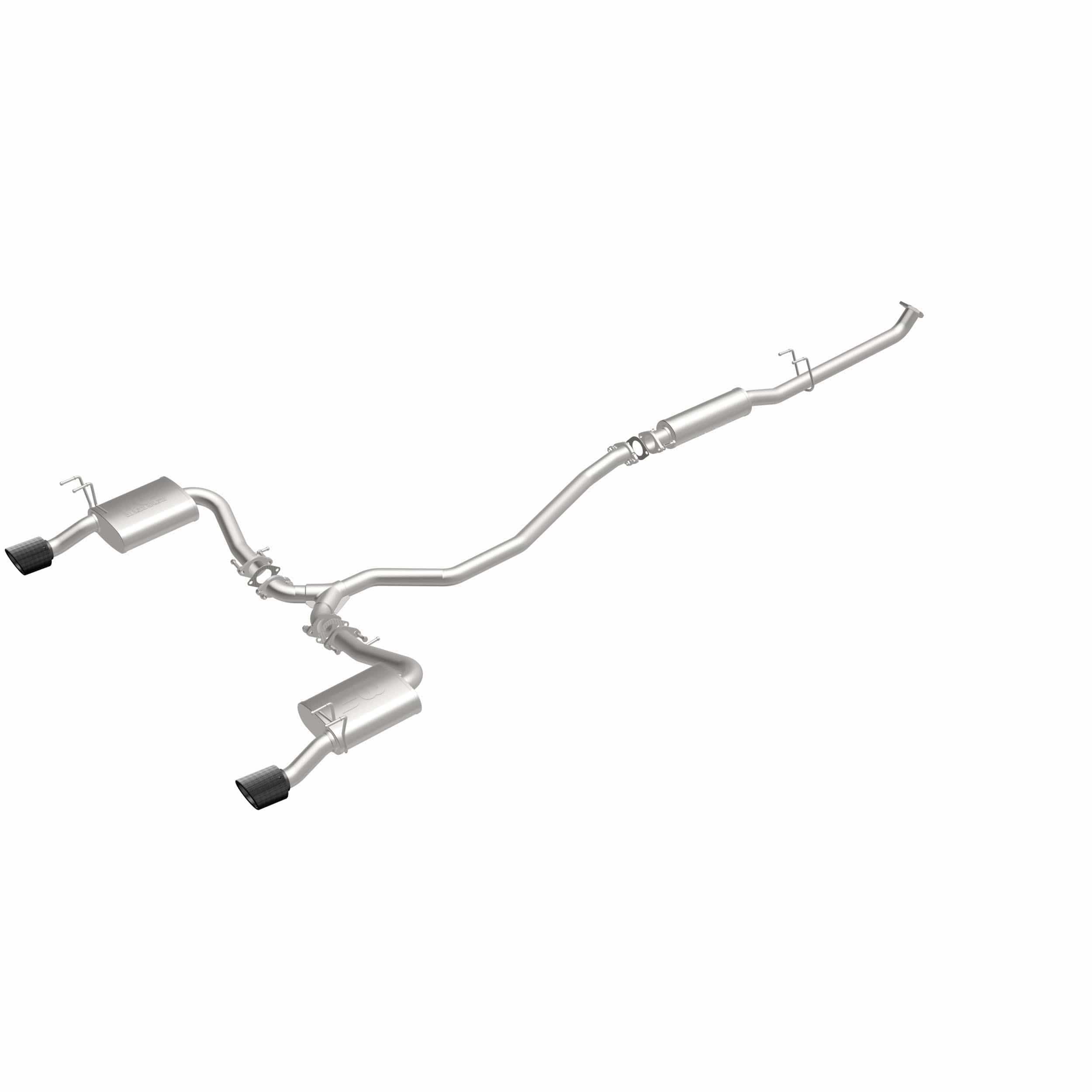

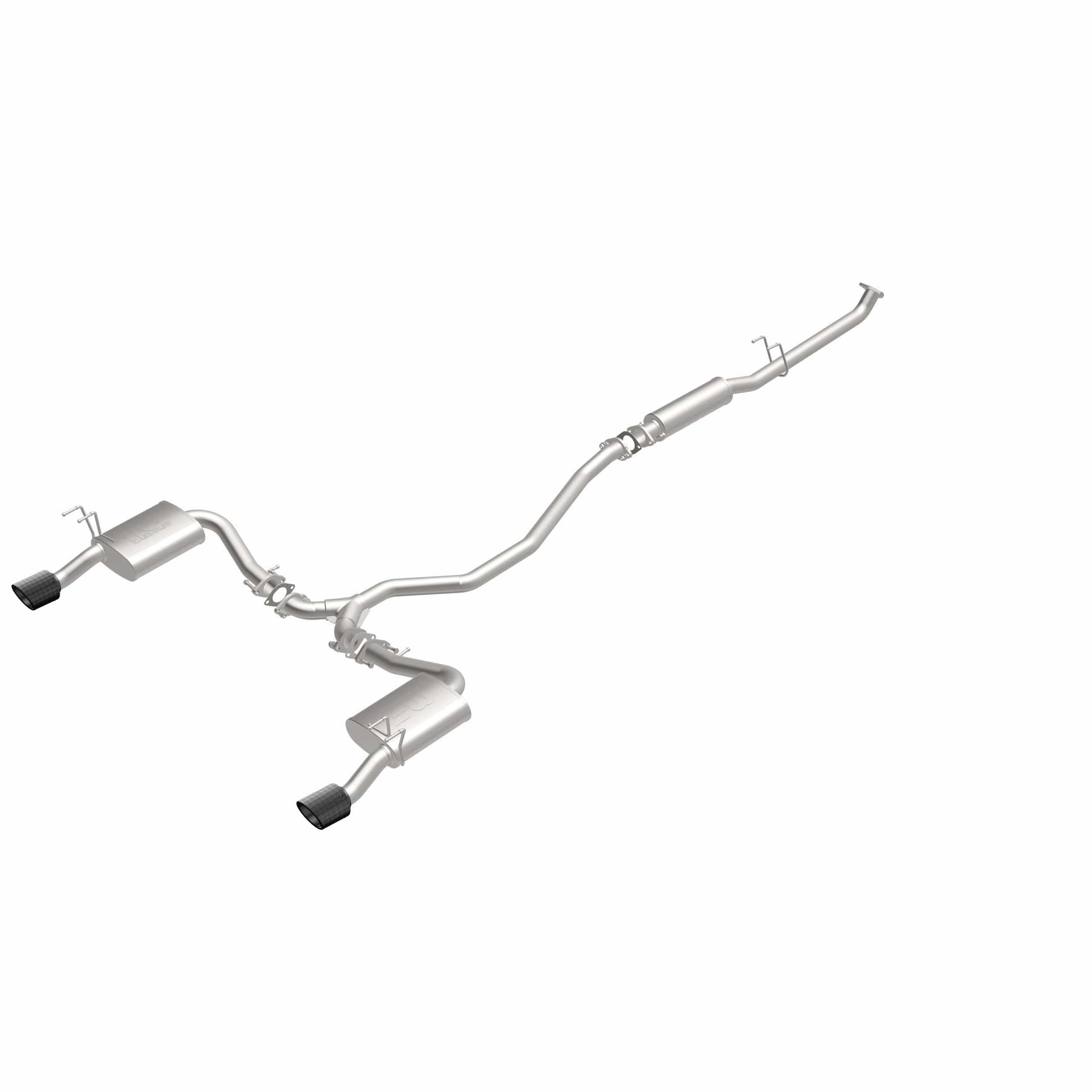

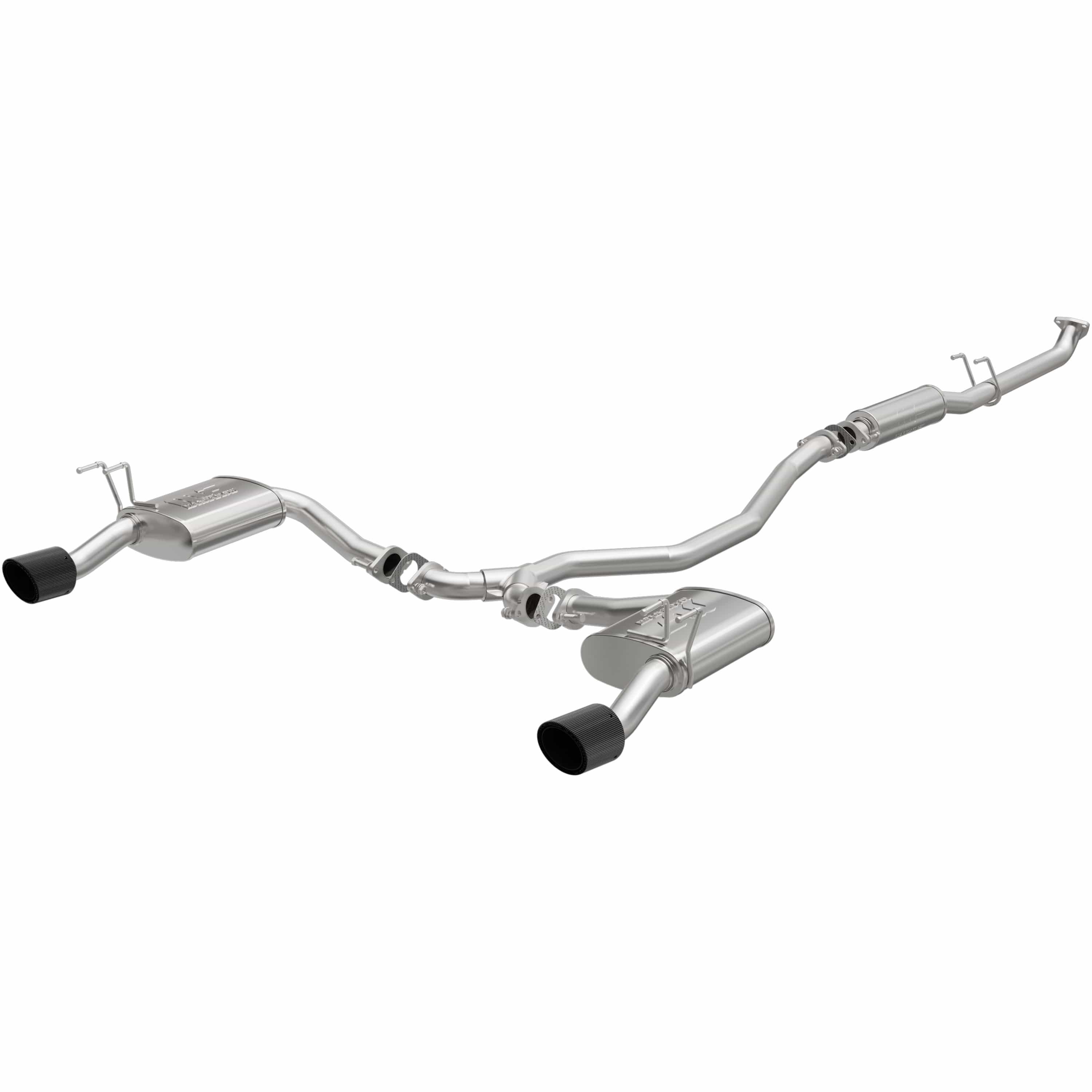

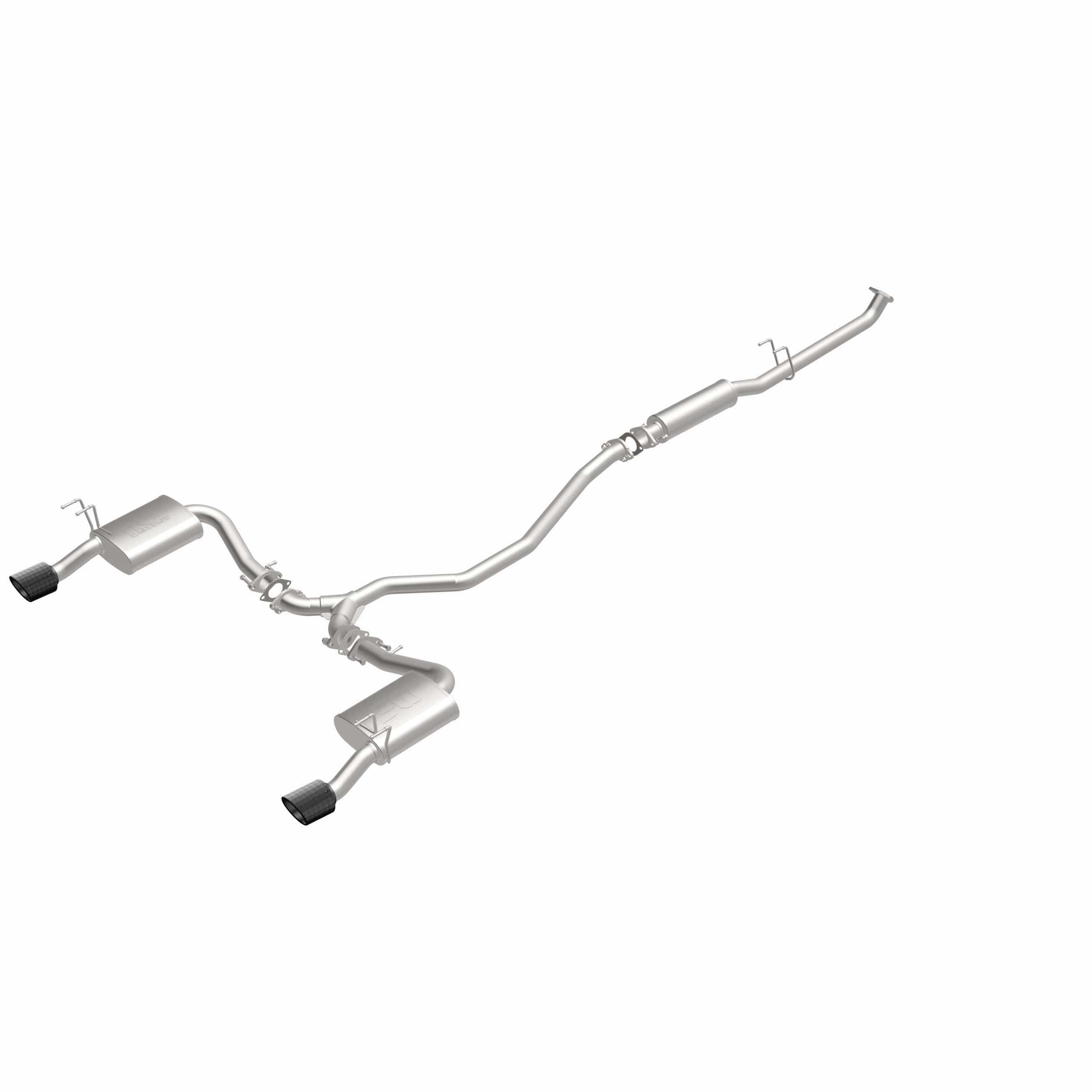

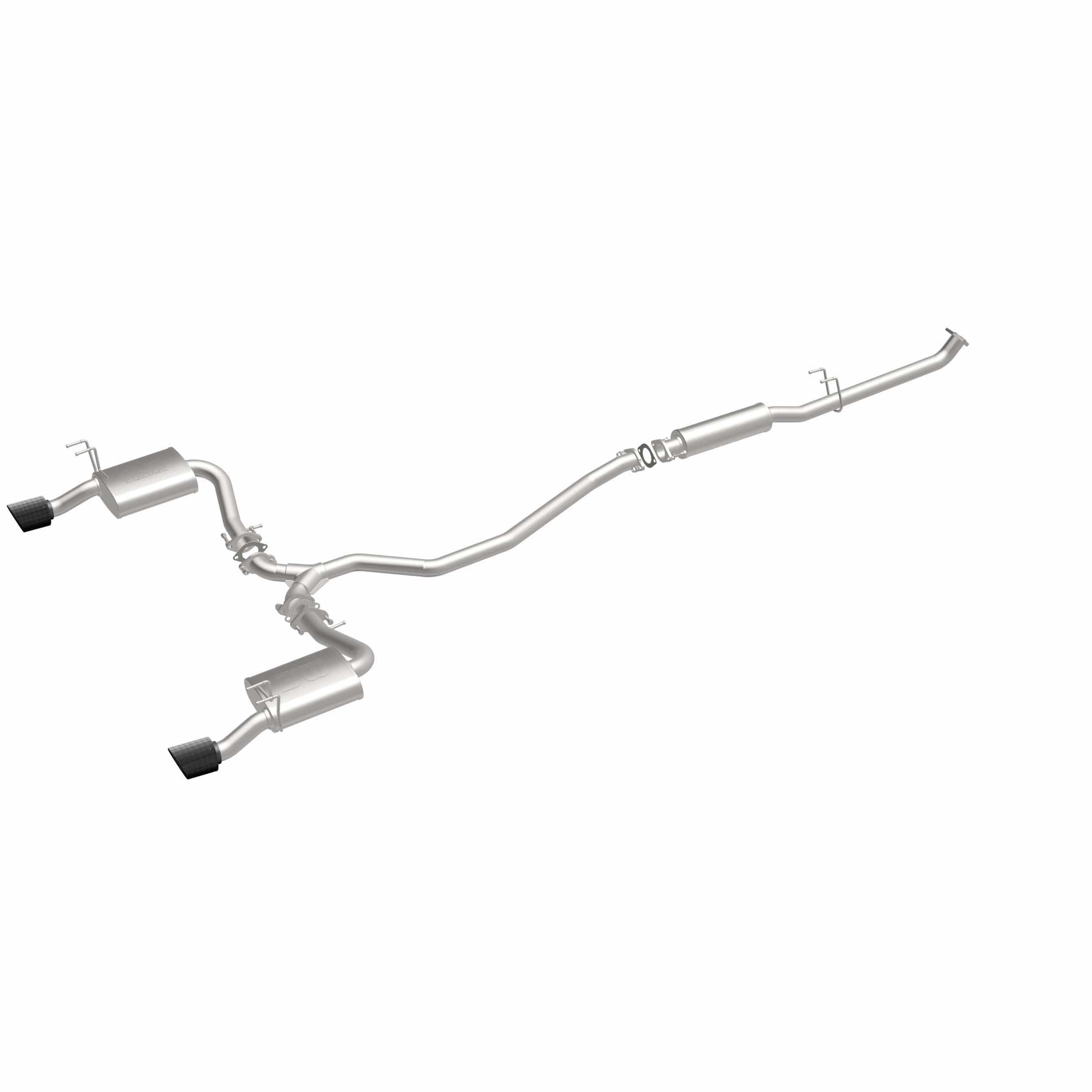

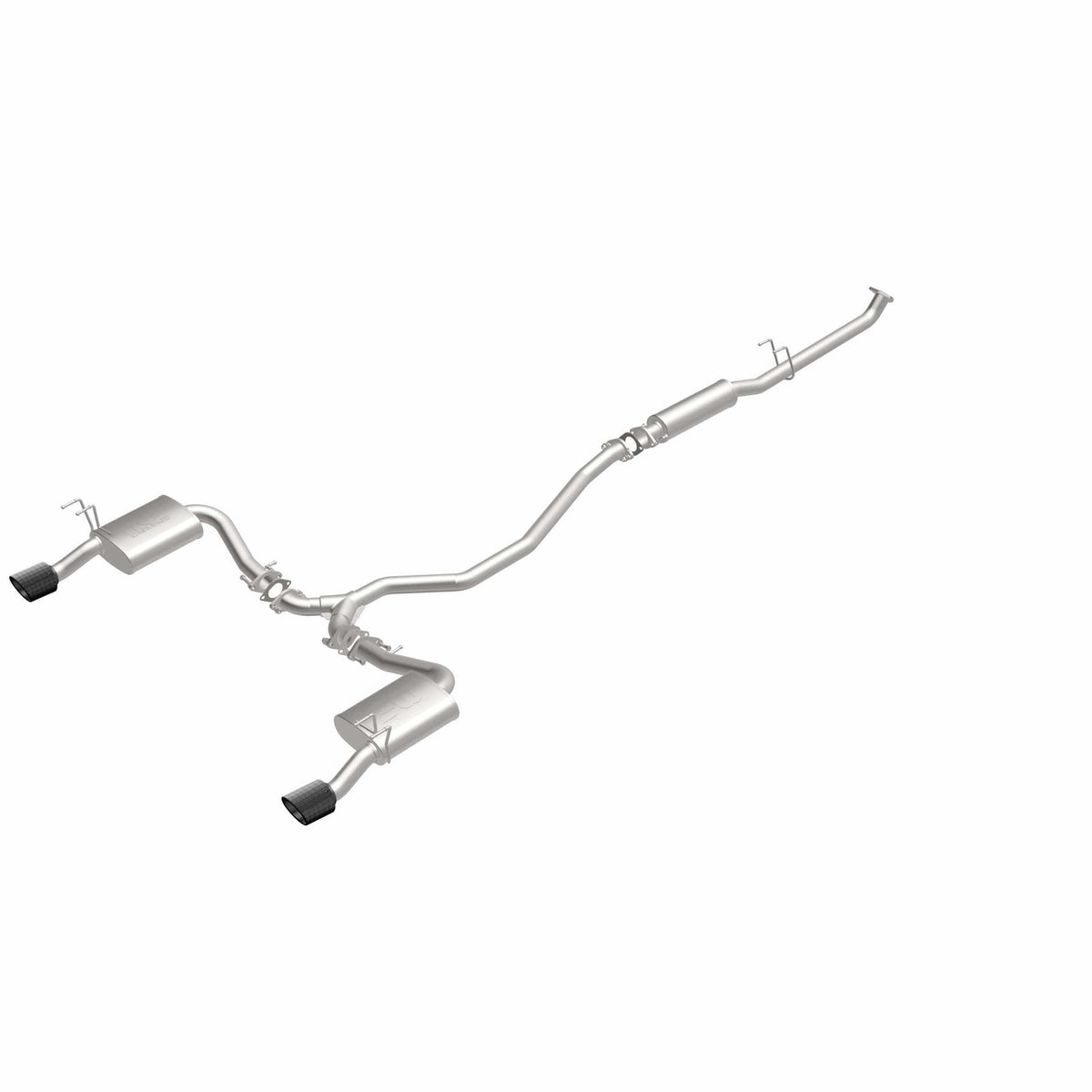

The MagnaFlow Honda Civic NEO Series Cat-Back Performance Exhaust System # 19612 upgrades your 2022-2025 Honda Civic EX or Touring’s 1.5L engine with dyno-proven performance and the latest version of our signature exhaust sound. This performance exhaust kit is designed to replace all your Civic’s OEM exhaust components from near the catalytic converter on back and utilizes an easy to install direct-fit design with all connections flanged. #19612 features 2.25” diameter mandrel bent main piping that passes through a 14” round straight-through performance muffler and two 11” straight-through oval performance mufflers before ending in a dual split rear exit with 4” double-wall angle cut dry carbon fiber tips. Each of these Honda Civic performance exhaust systems is produced using advanced CNC precision robotic manufacturing techniques and made of durable, corrosion resistant stainless steel, all backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- Increased Horsepower and Torque
- 100% Stainless Steel
Specifications
| Clamps Included | No |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.5 IN |
| Exhaust Tip Material | Carbon Fiber |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | Yes |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.25 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 11 IN |
| Muffler (Rear) Body Width | 9 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 11 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 9 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | NEO |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2022-2024 Honda Civic 1.5L NEO Series Cat-Back Performance Exhaust System 19612 |
Installation Guide: Download PDF
