MagnaFlow Exhaust Products 19617 - NEO Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability
Magnaflow NEO Series Carbon Fiber Tips Cat-Back System

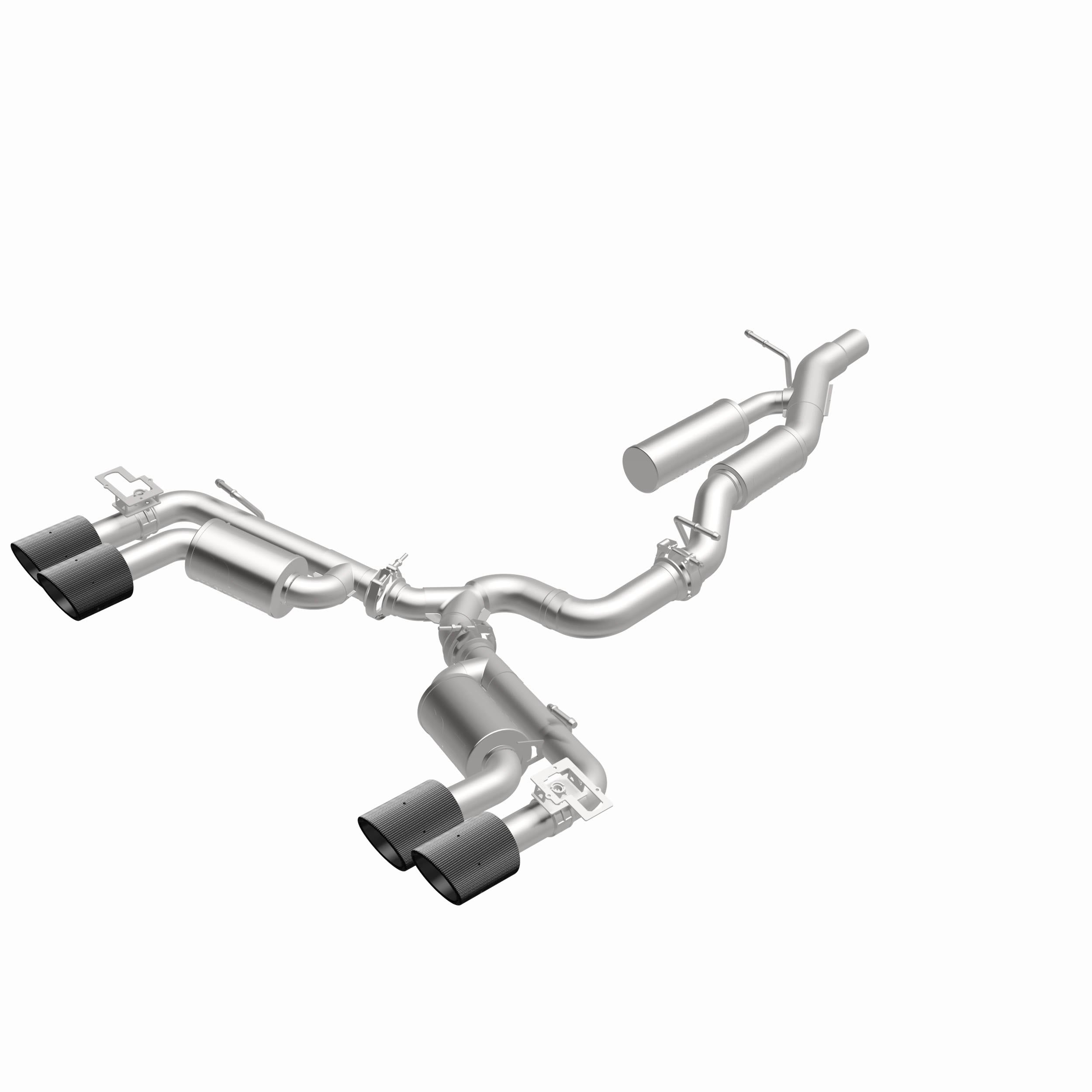

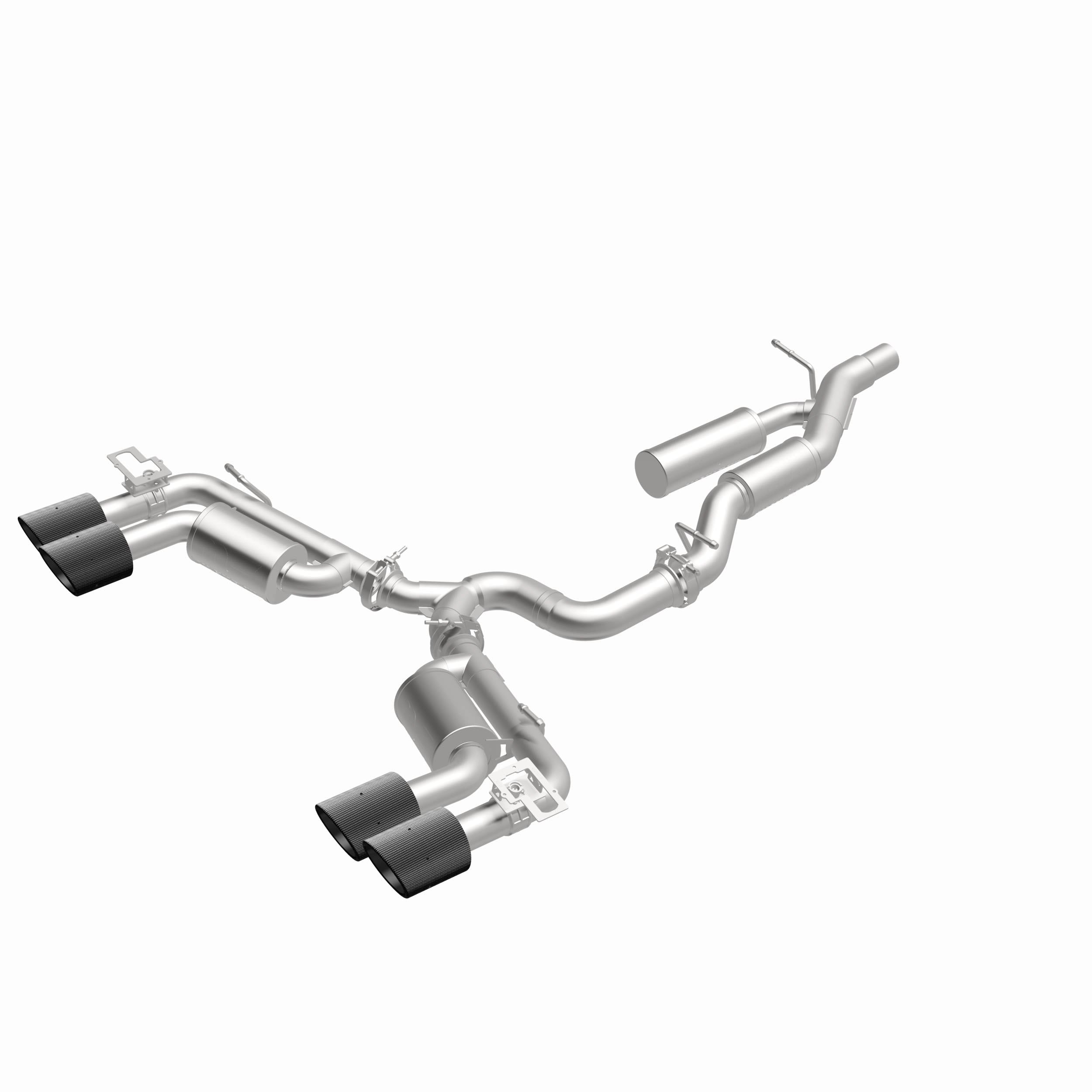

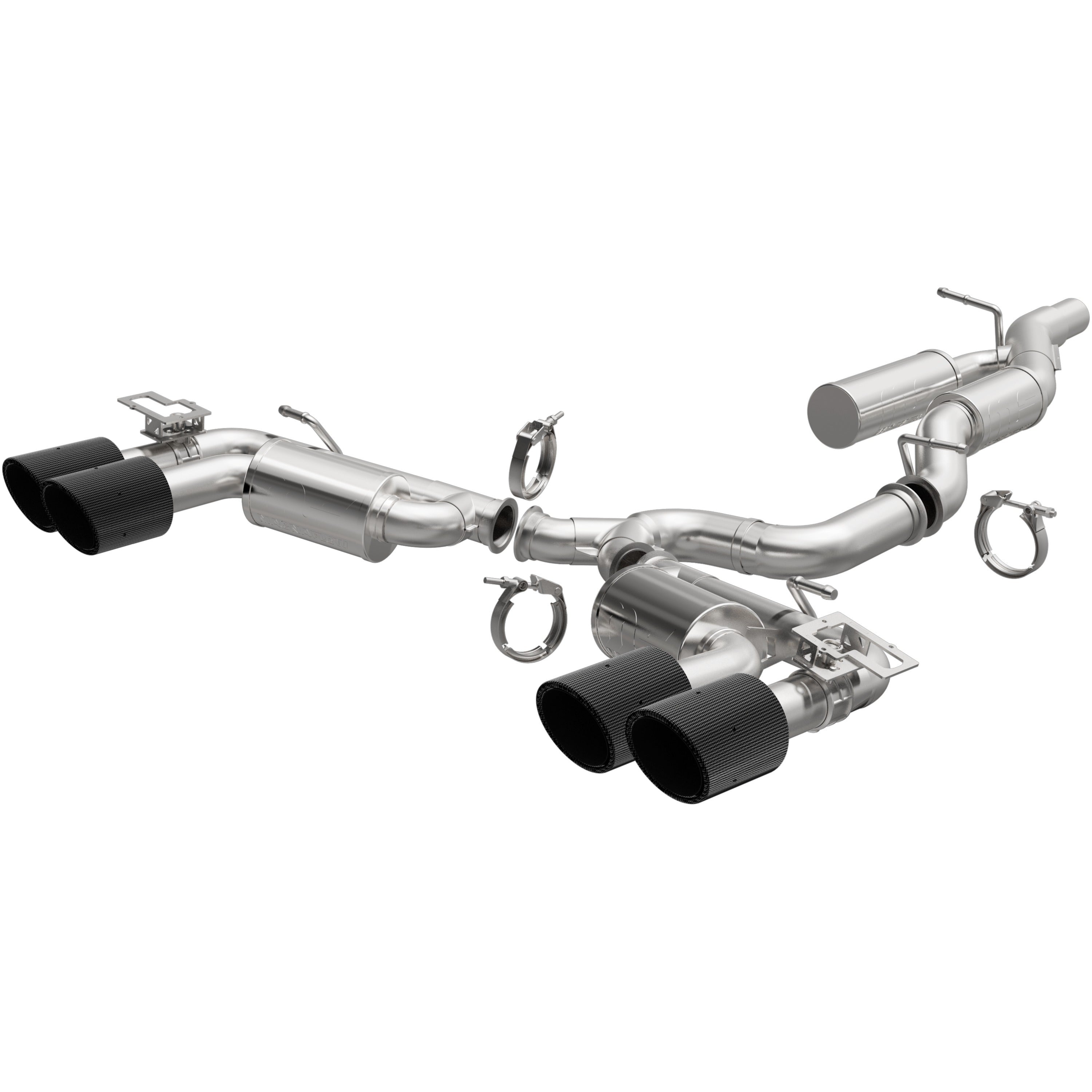

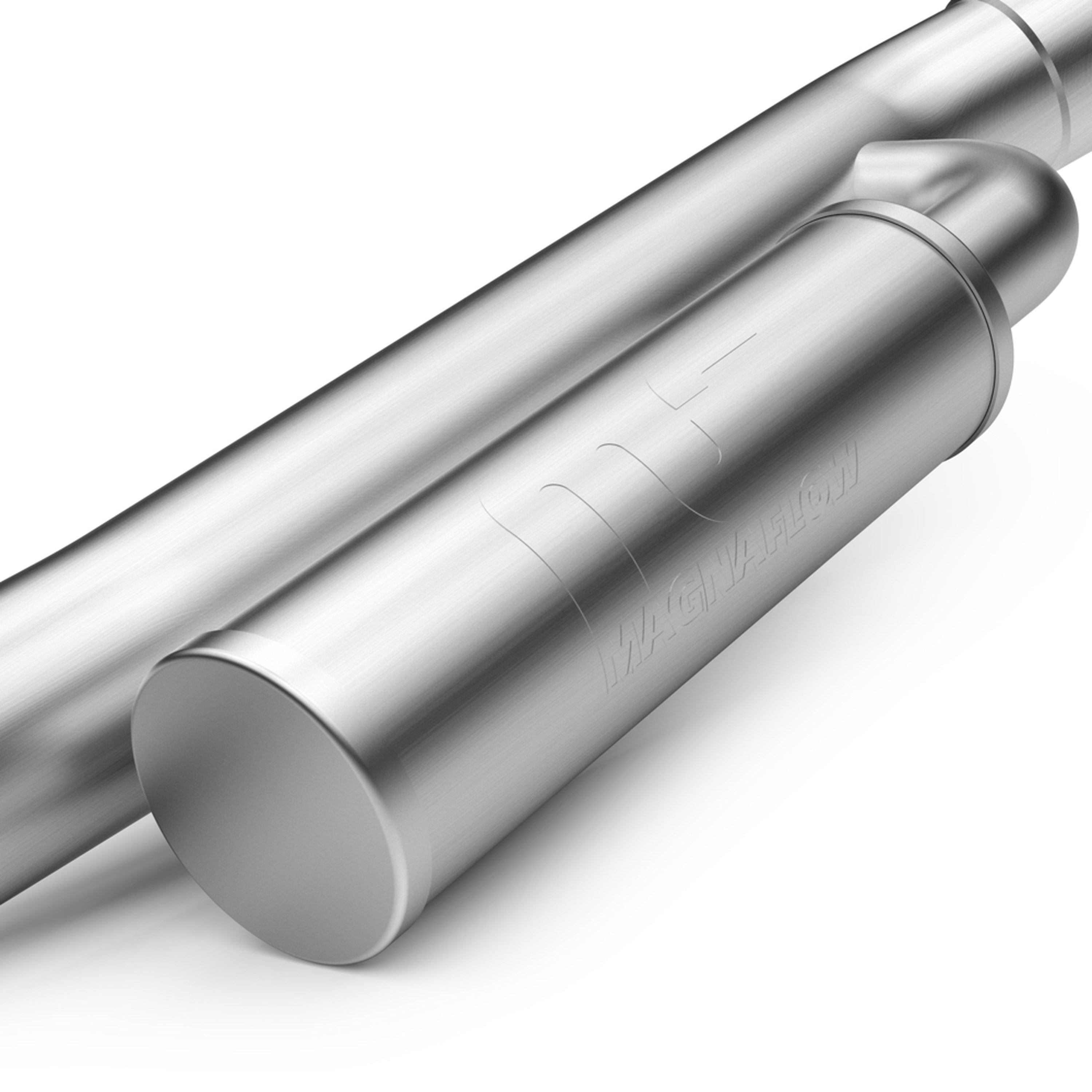

The MagnaFlow NEO Series Cat-back Volkswagen Golf R Performance Exhaust System #19617 is engineered to elevate the sound of the 2.0L I4 in your 2022-2024 Volkswagen Golf R to the next level while utilizing MagnaFlow’s No Drone Technology (NDT) technology to keep unwanted droning noises in check at cruising speeds. These NDT resonators are integrated into the performance exhaust system’s 3” mandrel bent main tubing which passes through three 4” x 4” x 8” straight-through mufflers before terminating in a quad split rear exit with 4.5” carbon fiber tips. Our Tech Center team has worked diligently to ensure that the fully functional valves in exhaust kit #19617 seamlessly integrate with the factory drive mode selections in your 2022-2024 Golf R. The direct-fit clamp-on inlet design is so easy to install that you can do it yourself and it replaces all your hot hatchback’s exhaust components from near the catalytic converter on back. The entire system is secured with quick-release racing-bred V-band clamps and made of durable, corrosion resistant stainless steel (except the carbon fiber tips), all backed by MagnaFlow’s limited lifetime construction warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- 100% Stainless Steel
- Increased Horsepower and Torque
Specifications
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Diameter | 4.5 IN |
| Exhaust Tip Length | 7.5 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Material | Carbon Fiber |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Edge | Rolled Edge |
| Clamping Type | V Band |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Quad Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Front Left) Body Height | 4 IN |
| Muffler (Front Left) Body Length | 11 IN |
| Muffler (Front Left) Body Width | 4 IN |
| Muffler (Front Left) Type | Tuned Chamber |
| Muffler (Front Right) Body Height | 4 IN |
| Muffler (Front Right) Body Length | 8 IN |
| Muffler (Front Right) Body Width | 4 IN |
| Muffler (Front Right) Type | Straight-Through |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 8 IN |
| Muffler (Rear) Body Width | 5 IN |
| Muffler (Rear) Type | Straight-Through |
| Muffler Body Height Position Front Left | 4 IN |
| Muffler Body Height Position Front Right | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front Left | 11 IN |
| Muffler Body Length Position Front Right | 8 IN |
| Muffler Body Length Position Rear | 8 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front Left | 4 IN |
| Muffler Body Width Position Front Right | 4 IN |
| Muffler Body Width Position Rear | 5 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front Left | Tuned Chamber |
| Muffler Type Position Front Right | Straight-Through |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | NEO |
| Type | Cat-Back |
| Valve Included | Yes |
| Valve Type | Actuated |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2022-2025 Volkswagen Golf R 2.0L NEO Series Cat-Back Performance Exhaust System 19617 |
Installation Guide: Download PDF
