MagnaFlow Exhaust Products 19620 - Overland Series Axle Back System
Couldn't load pickup availability

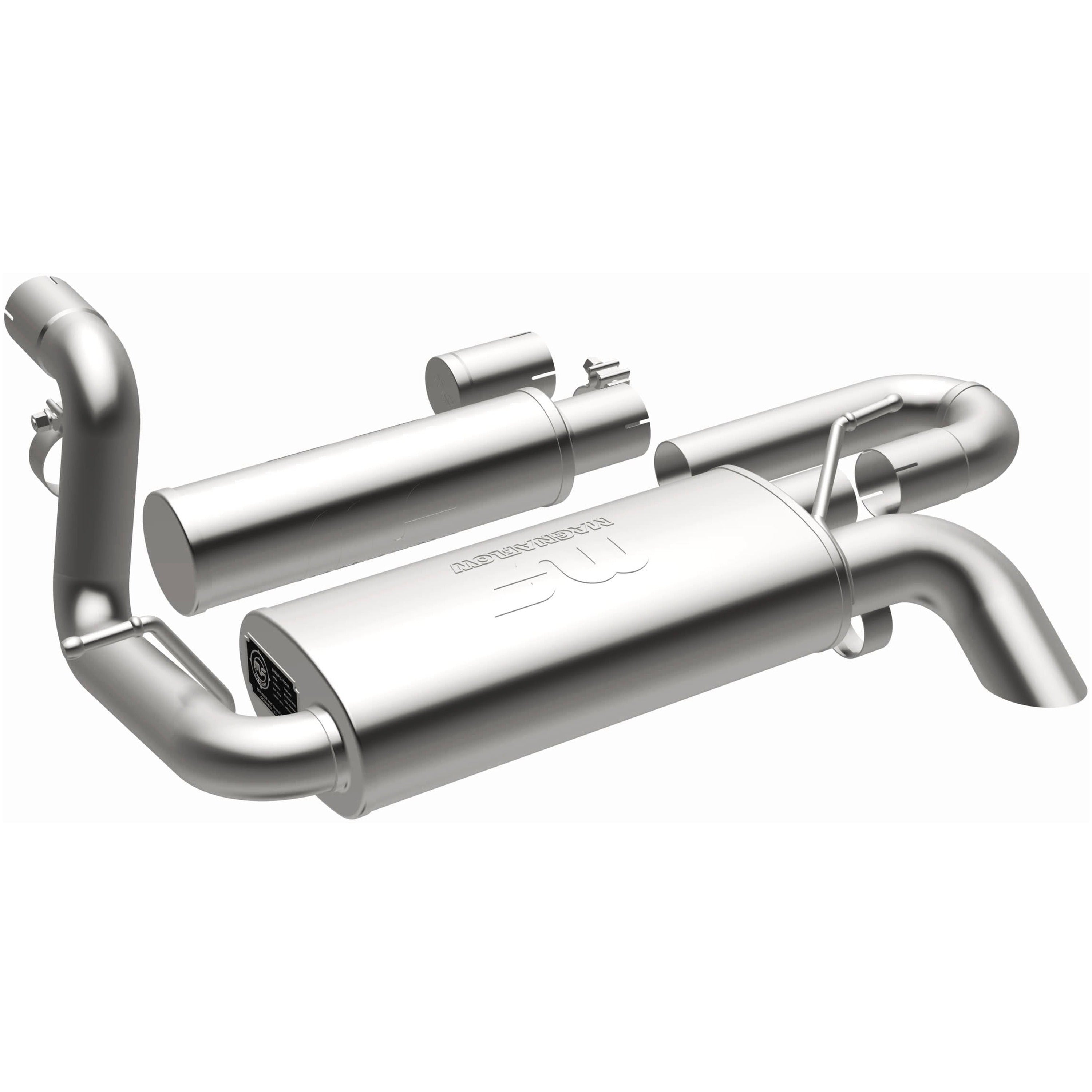

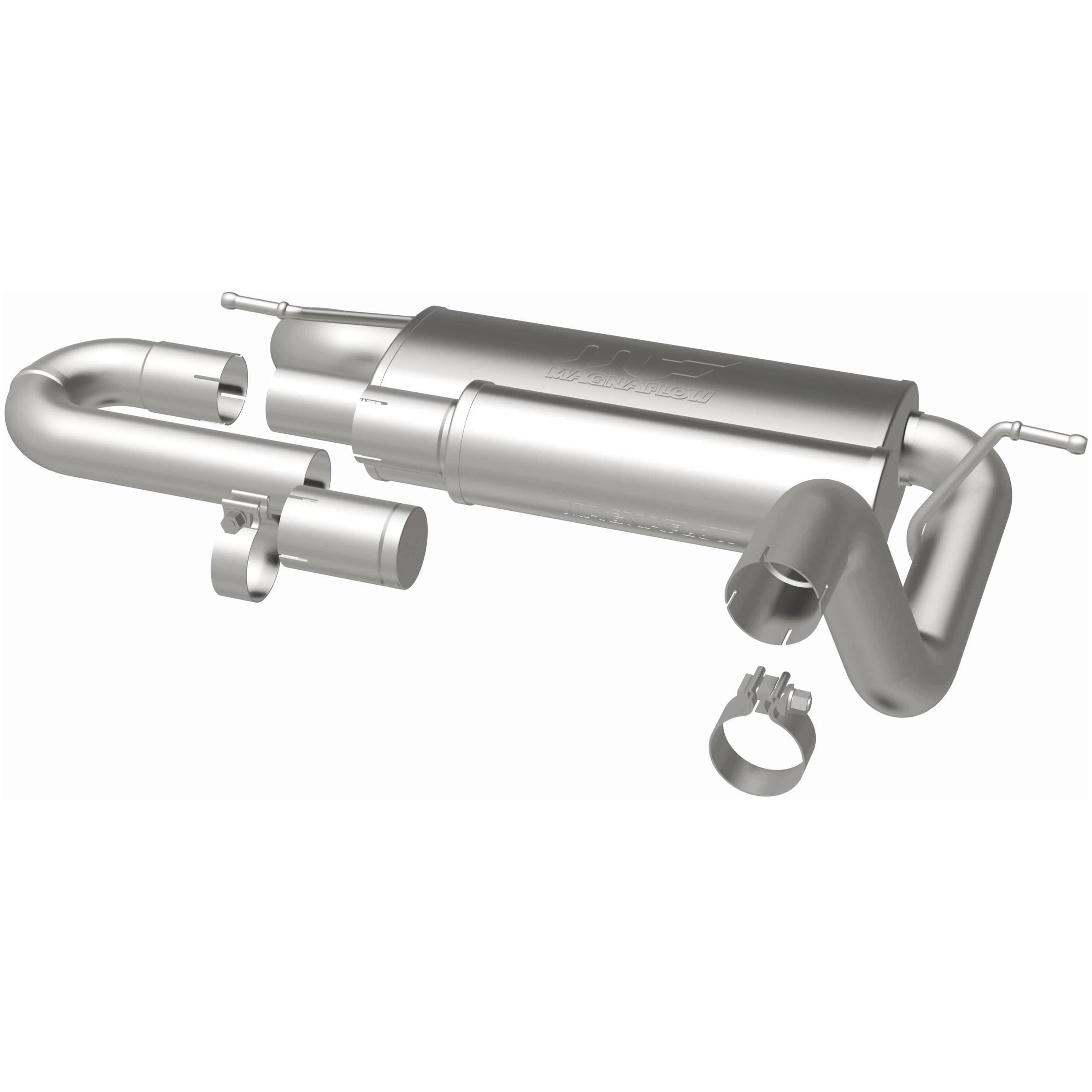

MagnaFlow Overland Series Axle Back System

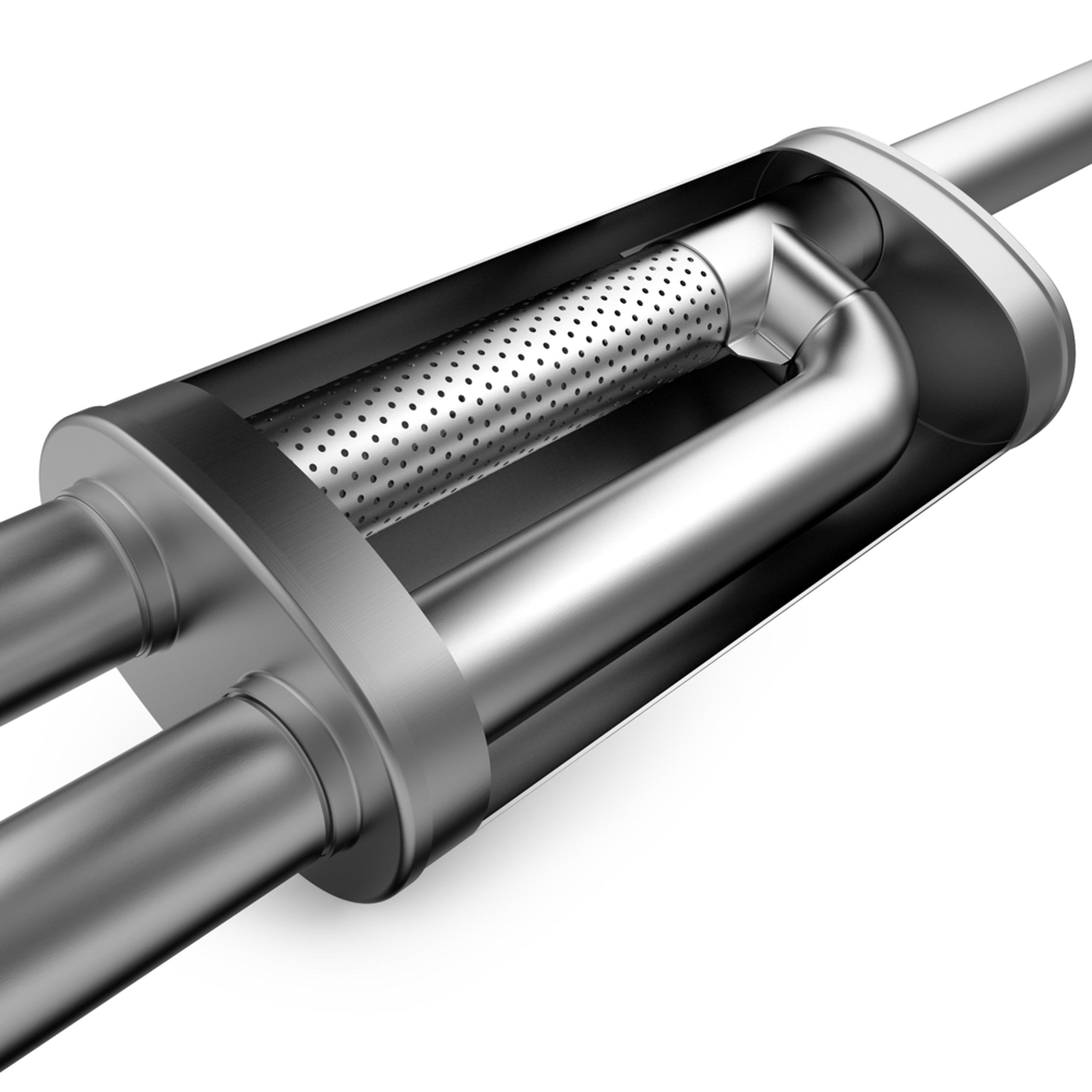

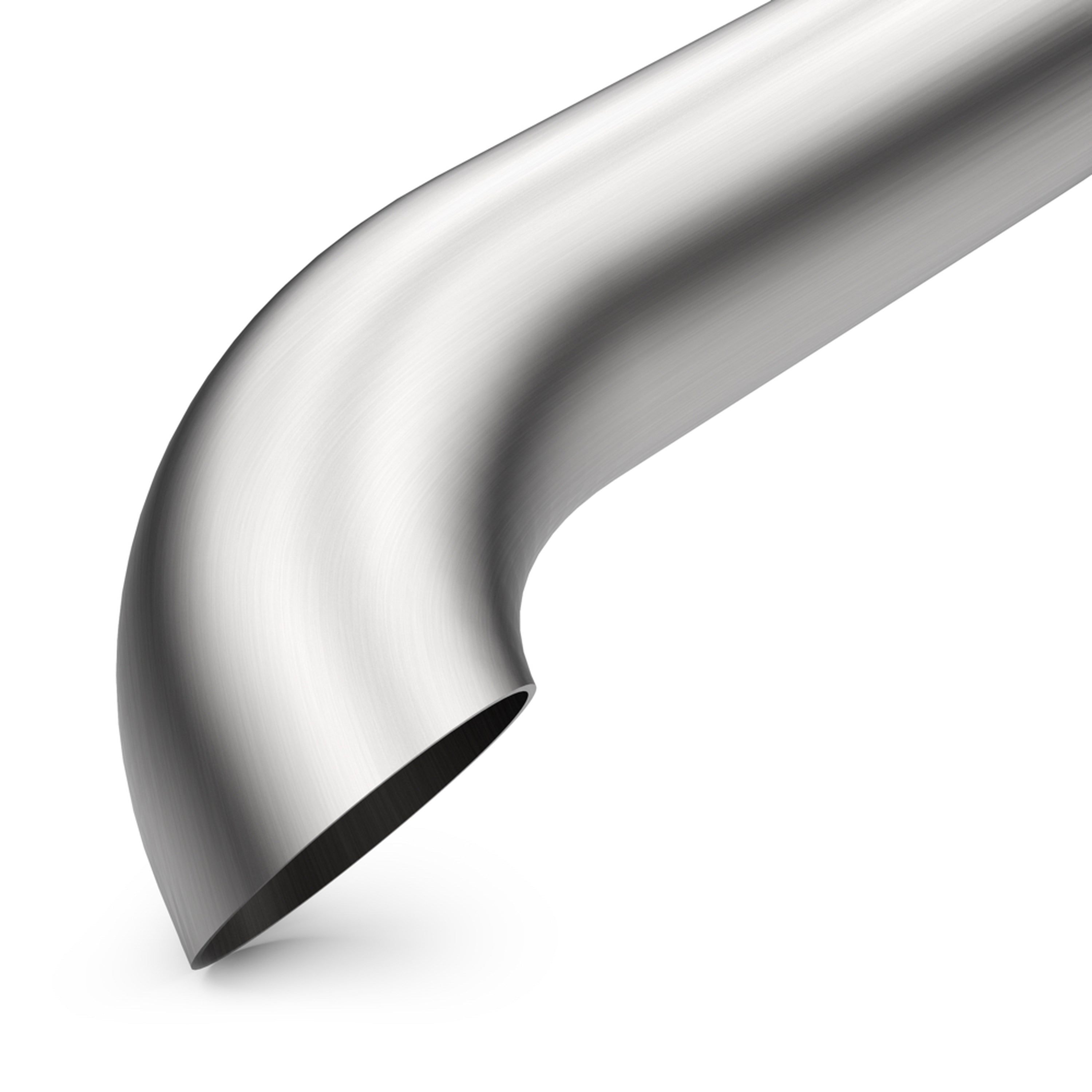

The MagnaFlow® Jeep Wrangler Overland Series™ Axle-Back Performance Exhaust System #19620 brings additional off-roading prowess, dyno-proven performance and a tunable exhaust sound to your 2018-2026 Jeep Wrangler JL equipped with the 2.0L or 3.6L engine option. The high clearance design of this exhaust system is designed to keep clear of any challenging terrain you may come across. #19620’s 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and NDT (No Drone Technology) tuned chamber before terminating in a high-clearance tucked tailpipe to the rear of the passenger side. No Drone Technology utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire kit can be tailored to your preferred exhaust tone by changing out which module is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which sound profile you choose to go with is up to you. Because the integrated overland muffler incorporates NDT technology to begin with, all configurations offer various forms of NDT benefits. Looking to minimize overall drone? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19620 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Exhaust Tip Quantity | 0 |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Rear) Body Length | 18 IN |
| Main Piping Diameter | 2.5 IN |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Width | 8 IN |
| Inlet Type | Clamp-On |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exit Style | Single Straight Passenger Side Rear |
| Muffler (Rear) Type | Straight-Through |
| Muffler (Front) Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Valve Included | No |
| Catalytic Converter Included | No |
| Type | Axle Back |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2018-2026 Jeep Wrangler 2.0L | 2018-2026 Jeep Wrangler 3.6L Overland Series™ Axle Back Performance Exhaust System 19620 |
Installation Guide: Download PDF
