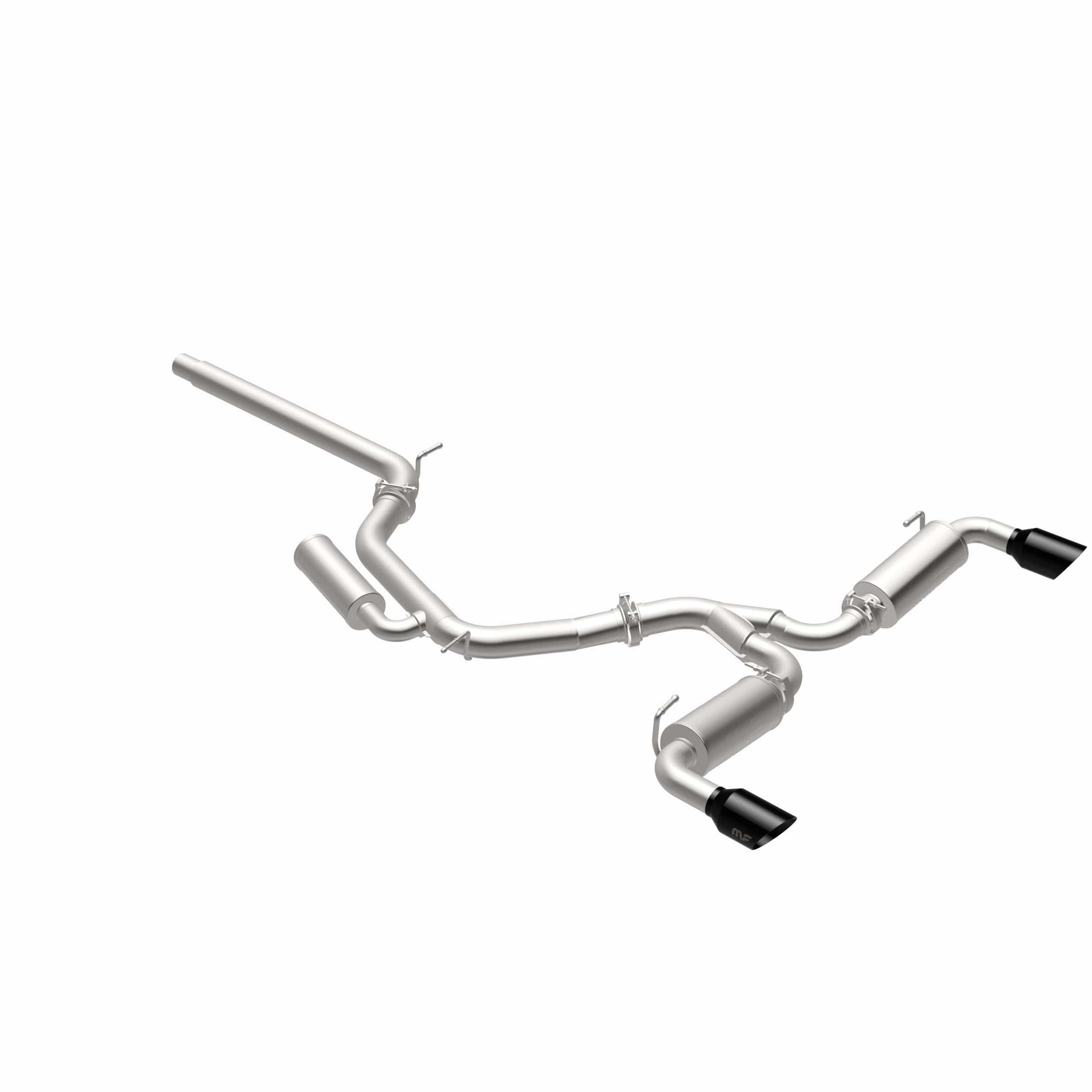

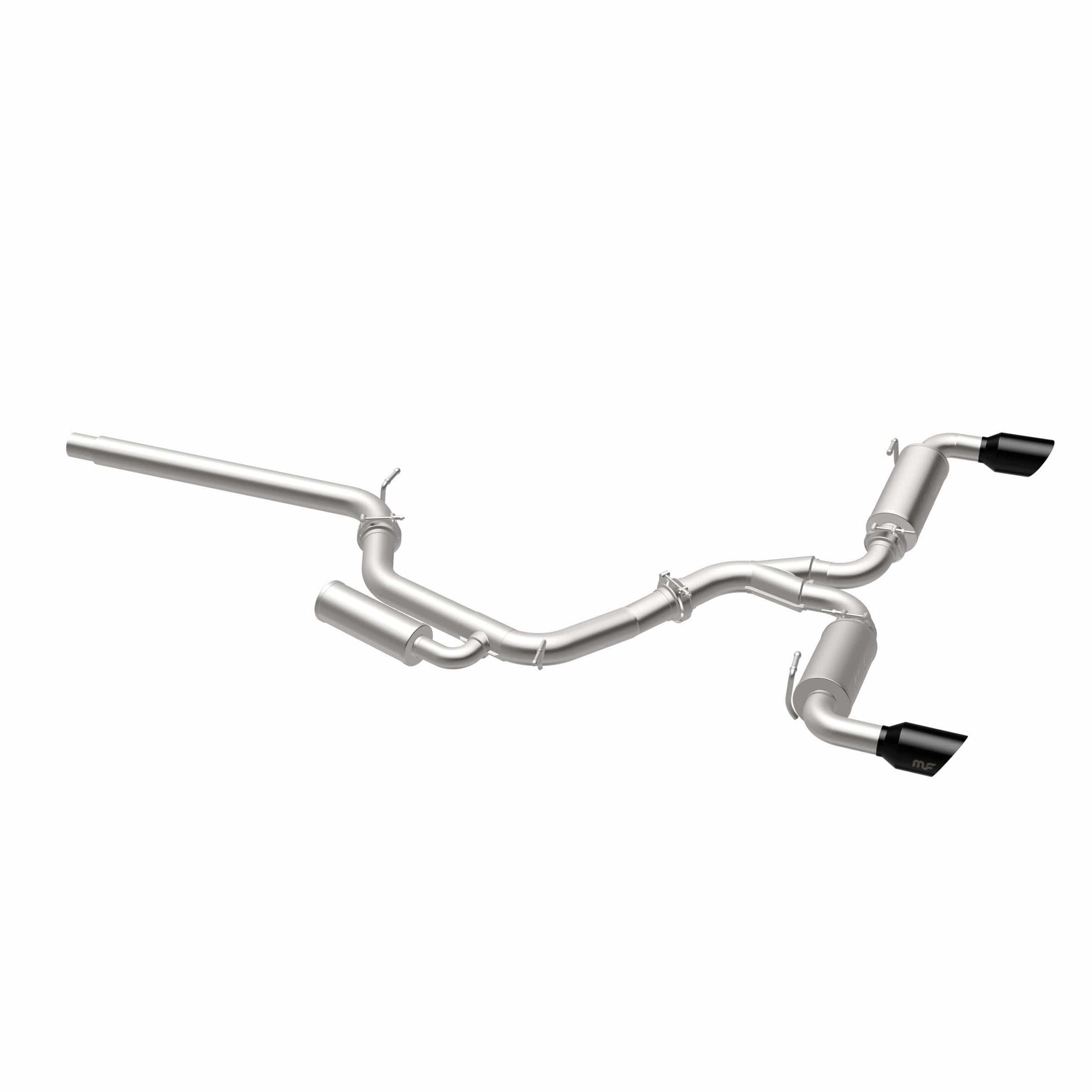

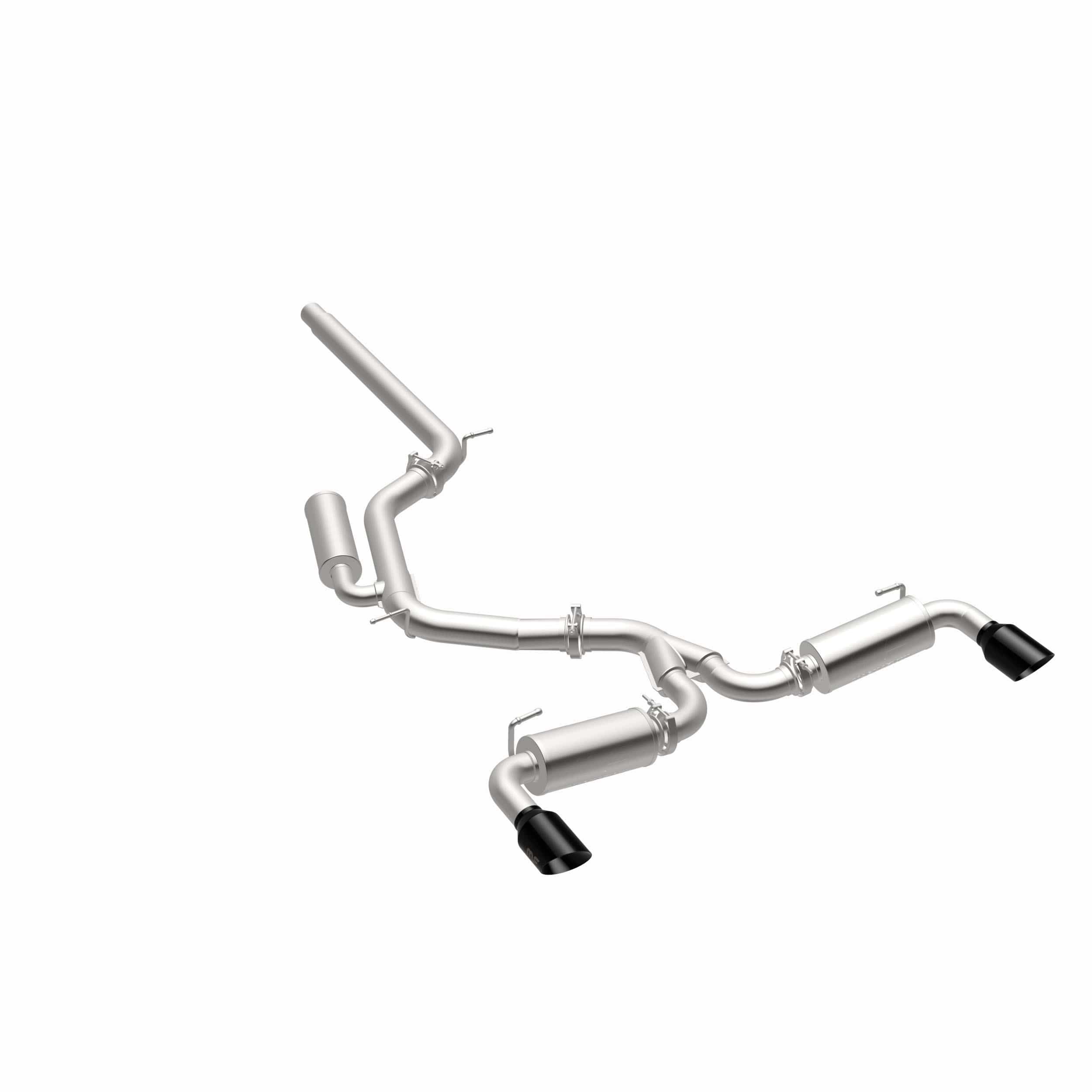

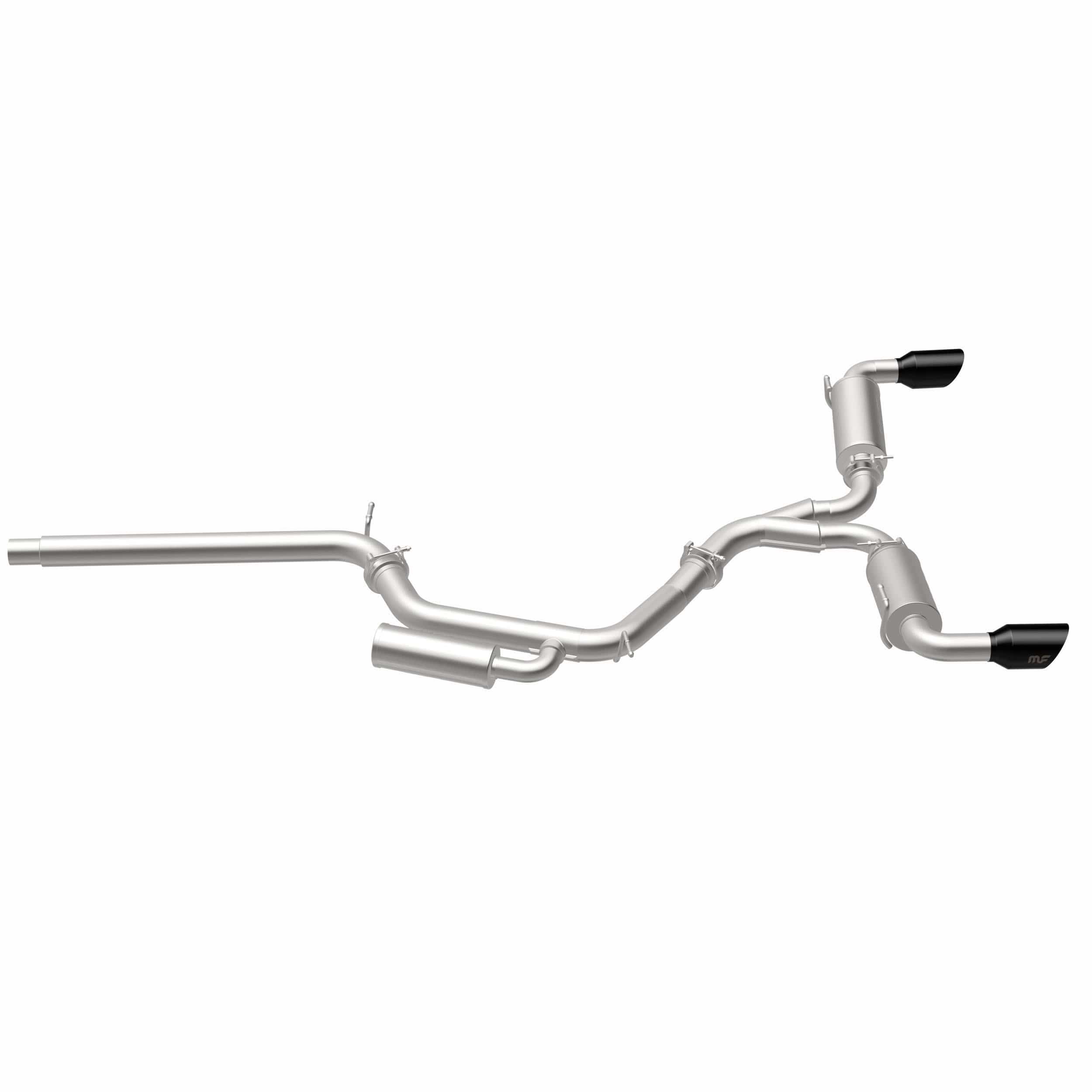

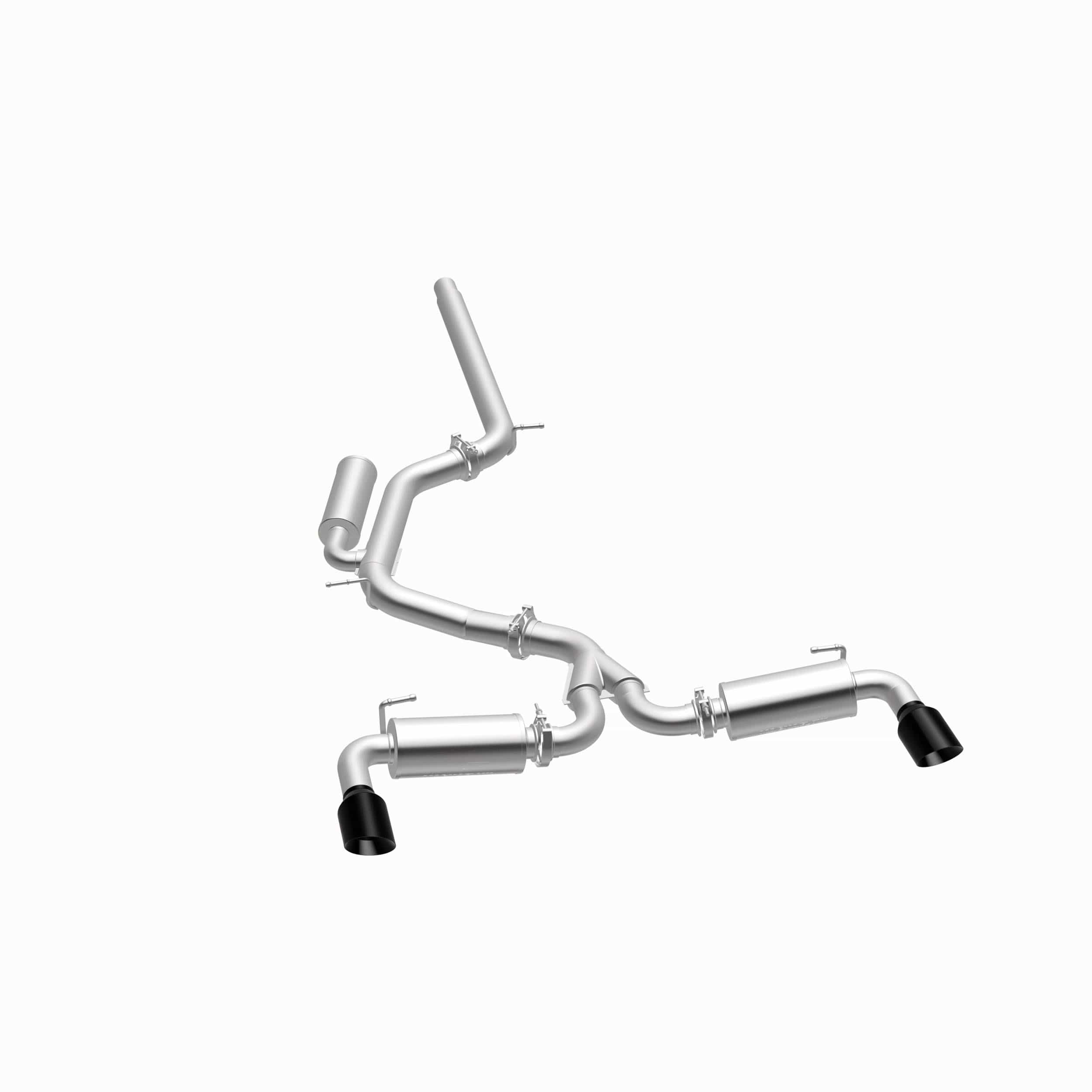

MagnaFlow Exhaust Products 19622 - NEO Series Black Chrome Tips Cat-Back System
Couldn't load pickup availability
Magnaflow NEO Series Black Chrome Tips Cat-Back System
The MagnaFlow Volkswagen GTI NEO Series Cat-Back Performance Exhaust System #19622 enhances the engine note and power of your hot hatch with dyno-proven performance gains and a refined take on our signature sound. Exhaust kit #19622 features 3” mandrel bent main tubing that passes through two 11” straight-through round mufflers and an 11” NDT tuned reflection chamber before ending in a dual split rear exit with 4” double-wall angle-cut black chrome finished tips. The integration of NDT (No Drone Technology) helps mitigate the droning noises that could otherwise occur at cruising speeds, allowing for a more refined, enjoyable exhaust note. This 2022+ Volkswagen GTI performance exhaust system utilizes racing-bred V-band clamps and replaces all OEM exhaust components from near the catalytic converter on back with an easy-to-install direct-fit design. #19622 is made of durable, corrosion resistant stainless steel and manufactured using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- Increased Horsepower and Torque
- 100% Stainless Steel
Specifications
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Length | 7 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Black Chrome |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Material | Stainless Steel |
| Clamping Type | V Band |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Tuned Chamber |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 11 IN |
| Muffler (Rear) Body Width | 5 IN |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Front) Body Height | 4 IN |
| Mounting Bracket Included | No |
| Main Piping Diameter | 3 IN |
| Inlet Type | Clamp-On |
| Muffler (Rear) Type | Straight-Through |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 11 IN |
| Muffler Body Length Position Rear | 11 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 5 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | NEO |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2022-2025 Volkswagen GTI 2.0L NEO Series Cat-Back Performance Exhaust System 19622 |
Installation Guide: Download PDF
