MagnaFlow Exhaust Products 19626 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System

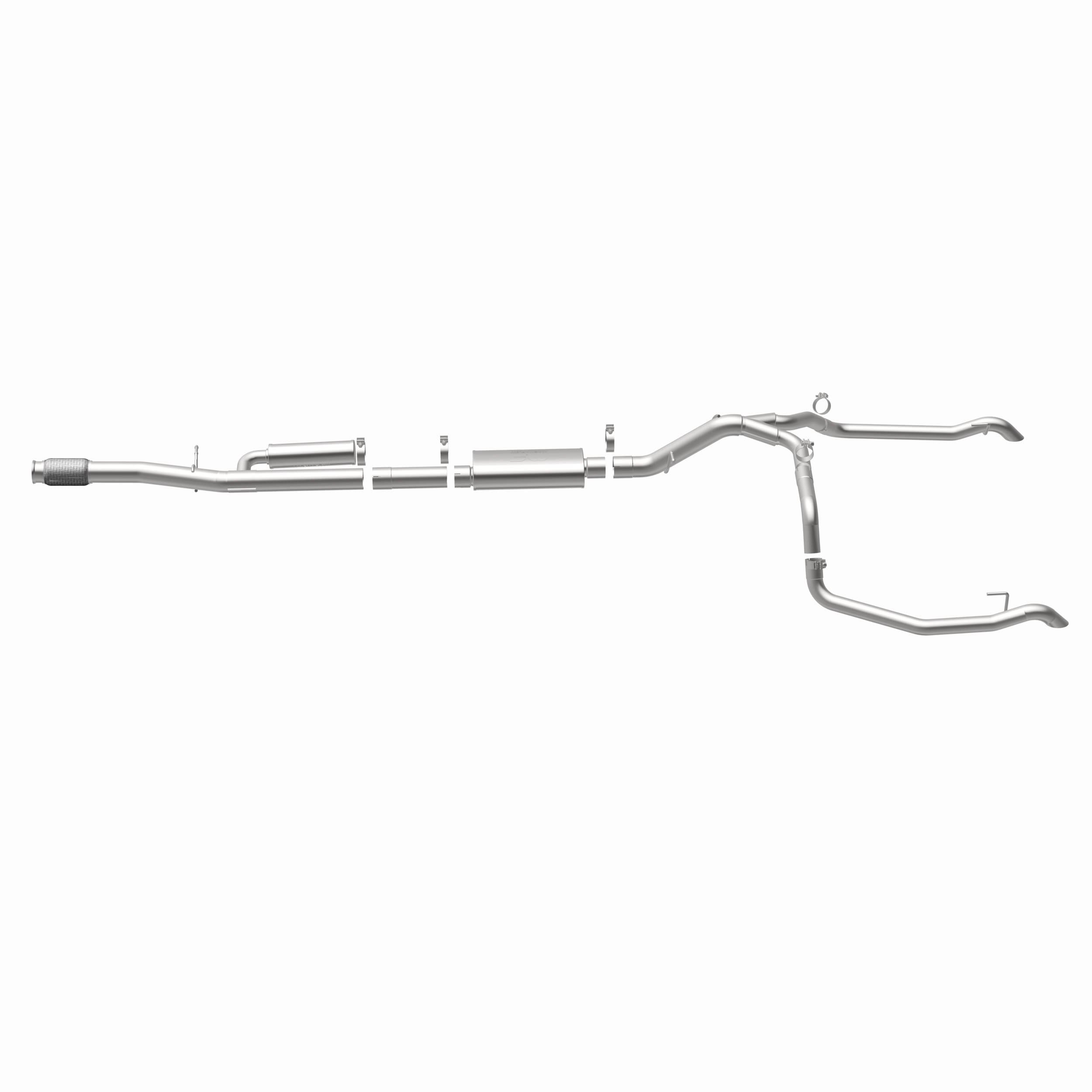

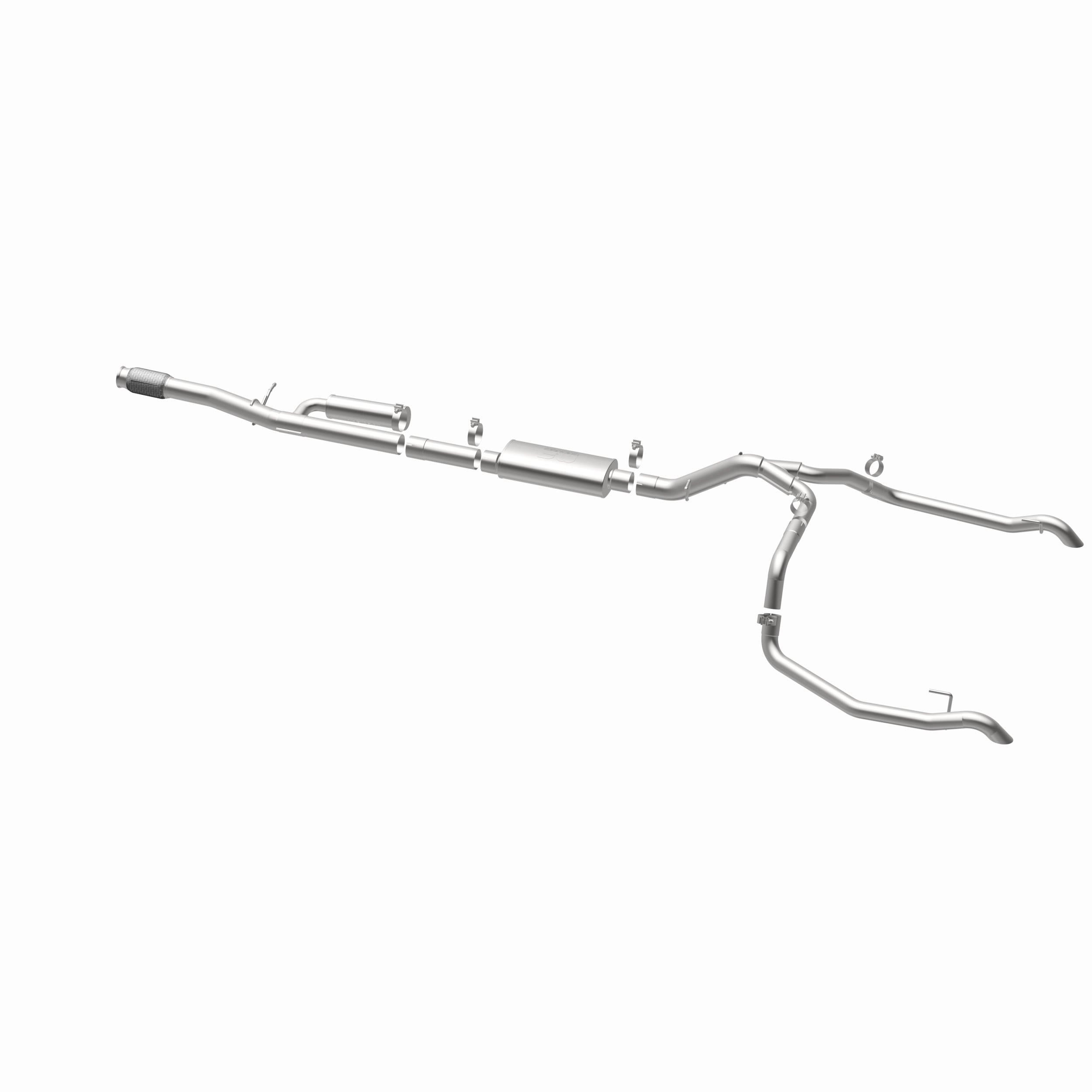

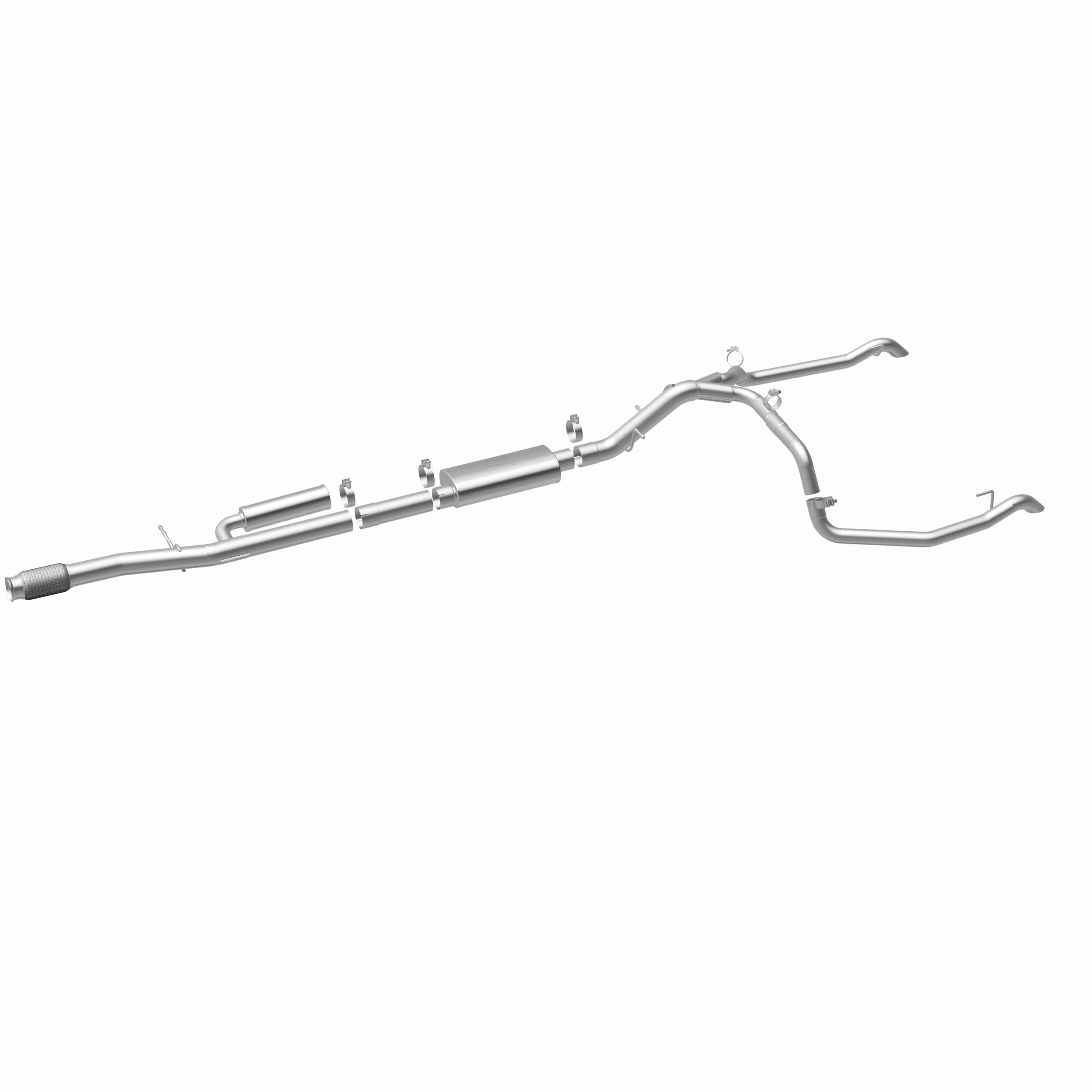

The MagnaFlow® Chevrolet Silverado 1500/GMC Sierra 1500 Overland Series™ Cat-Back Performance Exhaust System #19626 is engineered to enhance the off-road capabilities, performance and sound of your 2019-2024 Chevy Silverado 1500 or GMC Sierra 1500 equipped with the 6.2L engine option. The high clearance design of this exhaust kit increases your rig’s capacity to traverse any sort of terrain, while the incorporation of an NDT (No Drone Technology) resonator helps mitigate the droning frequencies that can otherwise occur at highway cruising speeds. #19626 features 3.5” diameter main piping that passes through an 18” oval bodied straight-through muffler and 14” NDT reflection chamber before terminating in a dual split rear exit with high clearance tailpipes. Exhaust kit #19626’s easy-to-install direct-fit design is engineered to replace all of your truck’s stock exhaust components from near the catalytic converter on back. This Chevrolet Silverado 1500/GMC Sierra 1500 performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- High clearance exit
- No-Drone-Technology allows for a quiet cabin
- Dyno proven performance
Specifications
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3.5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Type | Tuned Chamber |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler (Rear) Type | Straight-Through |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2019-2025 Chevrolet Silverado 1500 6.2L | 2019-2025 GMC Sierra 1500 6.2L Overland Series™ Cat-Back Performance Exhaust System 19626 |
Installation Guide: Download PDF
