MagnaFlow Exhaust Products 19628 - NEO Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability
Magnaflow NEO Series Carbon Fiber Tips Cat-Back System

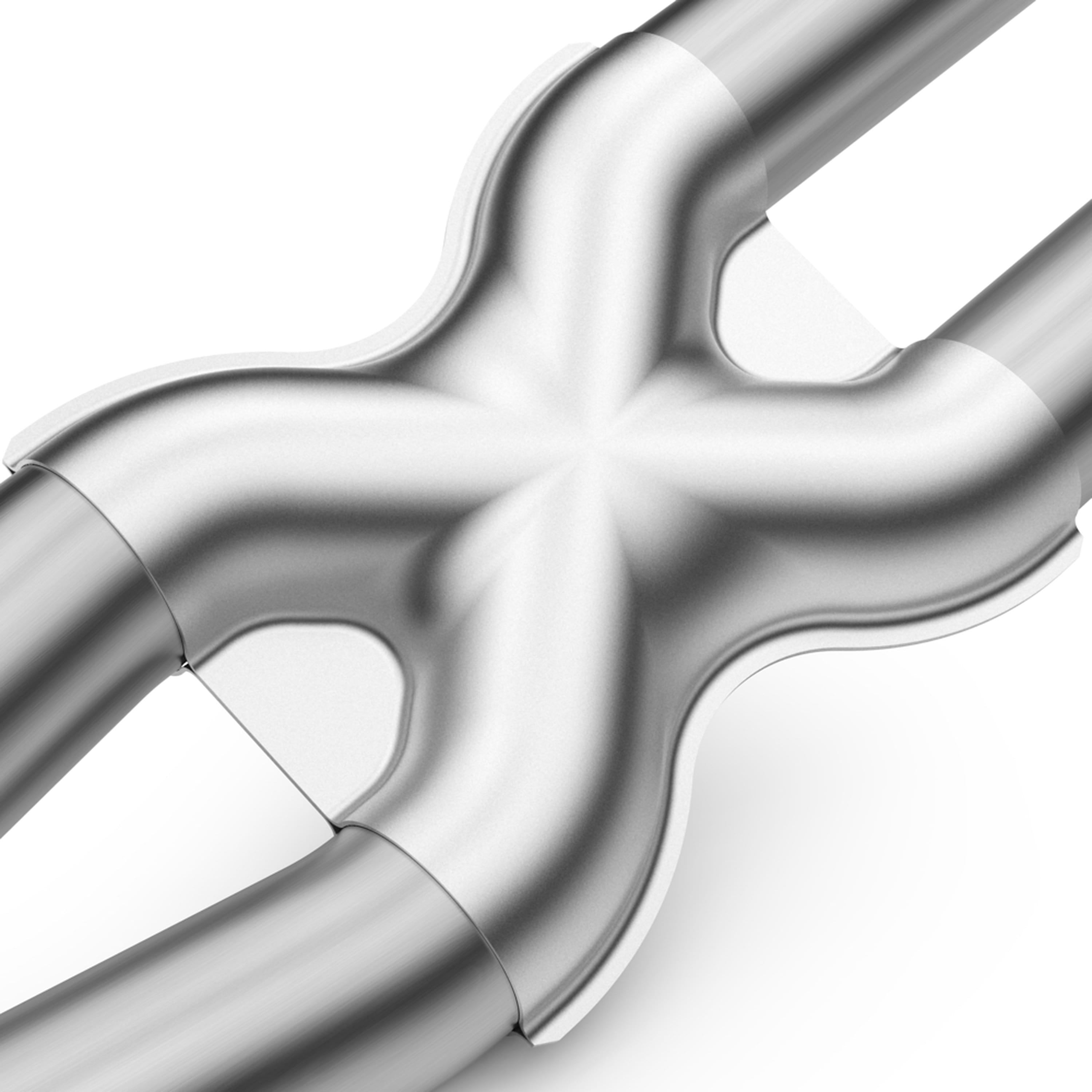

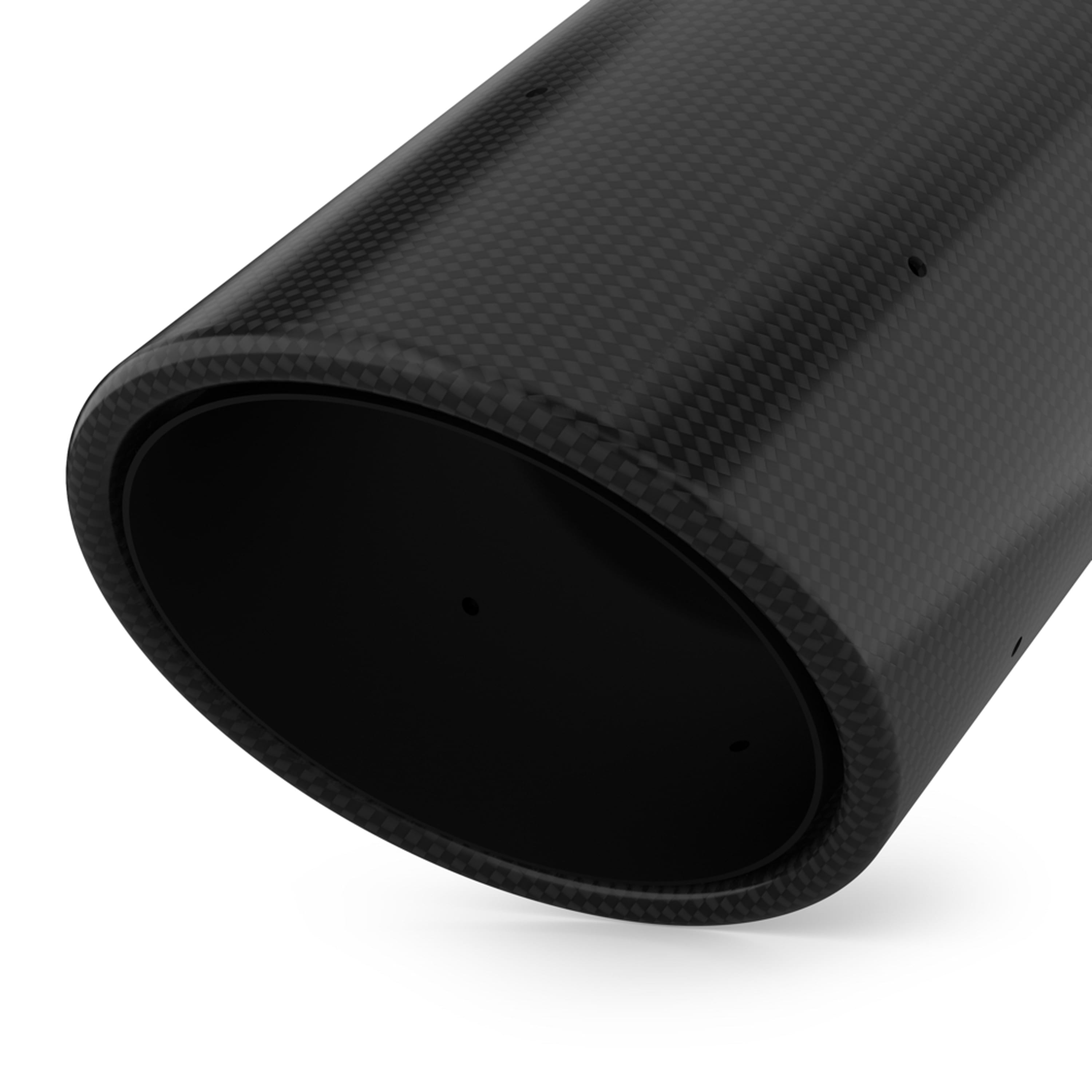

The MagnaFlow Dodge Durango NEO Series Cat-Back Performance Exhaust System #19628 adds a modern take on our signature exhaust tone and dyno-proven performance to your 2018-2024 Dodge Durango equipped with the 6.4L engine option. With this exhaust you’ll easily have the meanest SUV on the block. Exhaust kit #19628 is easy to install and replaces all your Durango’s OEM exhaust components from near the catalytic converter on back. #19628 features 3” diameter mandrel bent main piping that passes through an extended midbody X-pipe, two 14” straight-through round mufflers and two 14” straight through oval mufflers before ending in a dual split rear exit with 4.5” double-wall angle-cut rolled edge dry carbon fiber tips. This Dodge Durango exhaust kit is made of durable, corrosion resistant stainless steel and constructed using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- 100% Stainless Steel
- No-Drone-Technology allows for a quiet cabin
- Increased Horsepower and Torque
Specifications

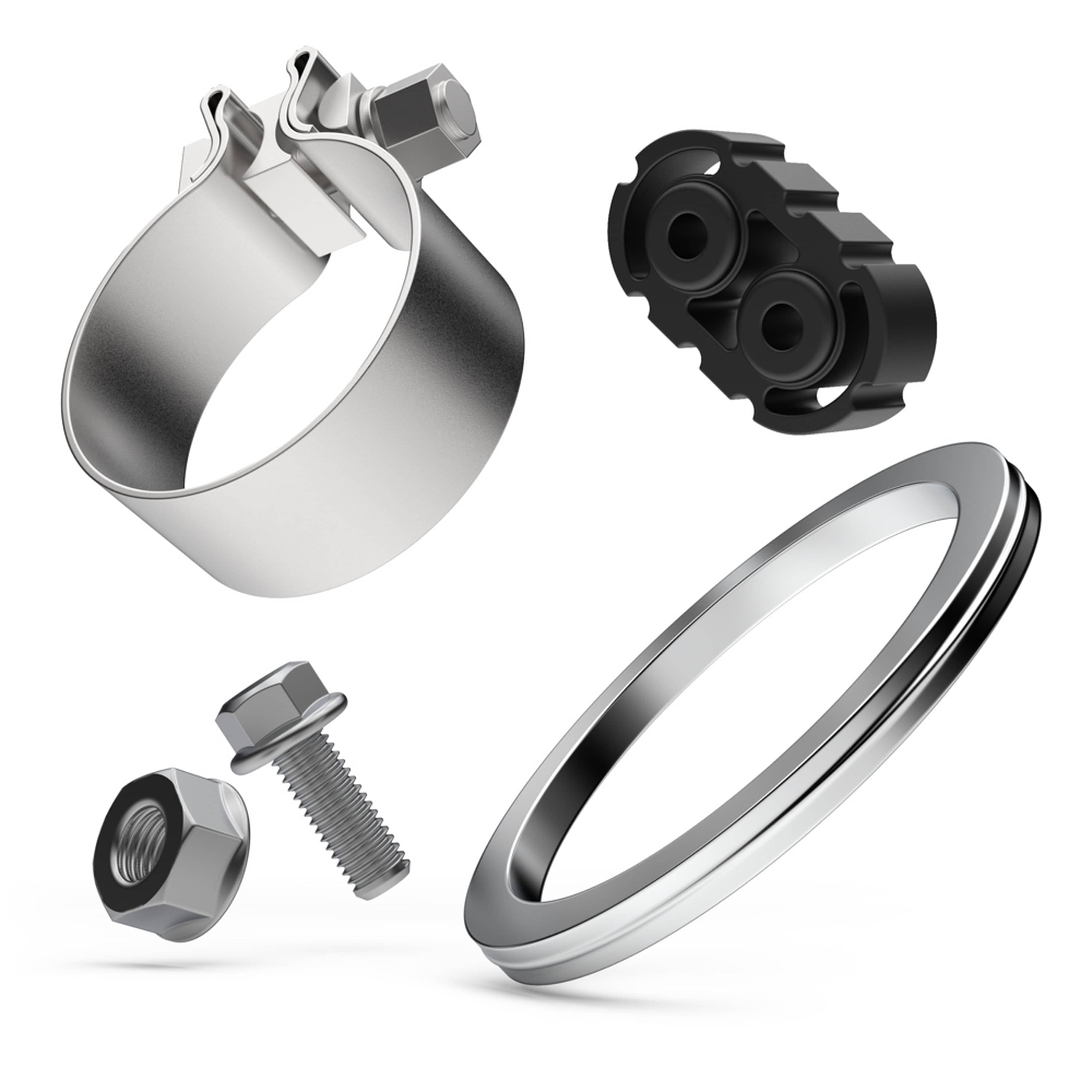

| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4.5 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 7.5 IN |
| Exhaust Tip Material | Carbon Fiber |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 5 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 5 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Height Position Front | 5 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 5 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |

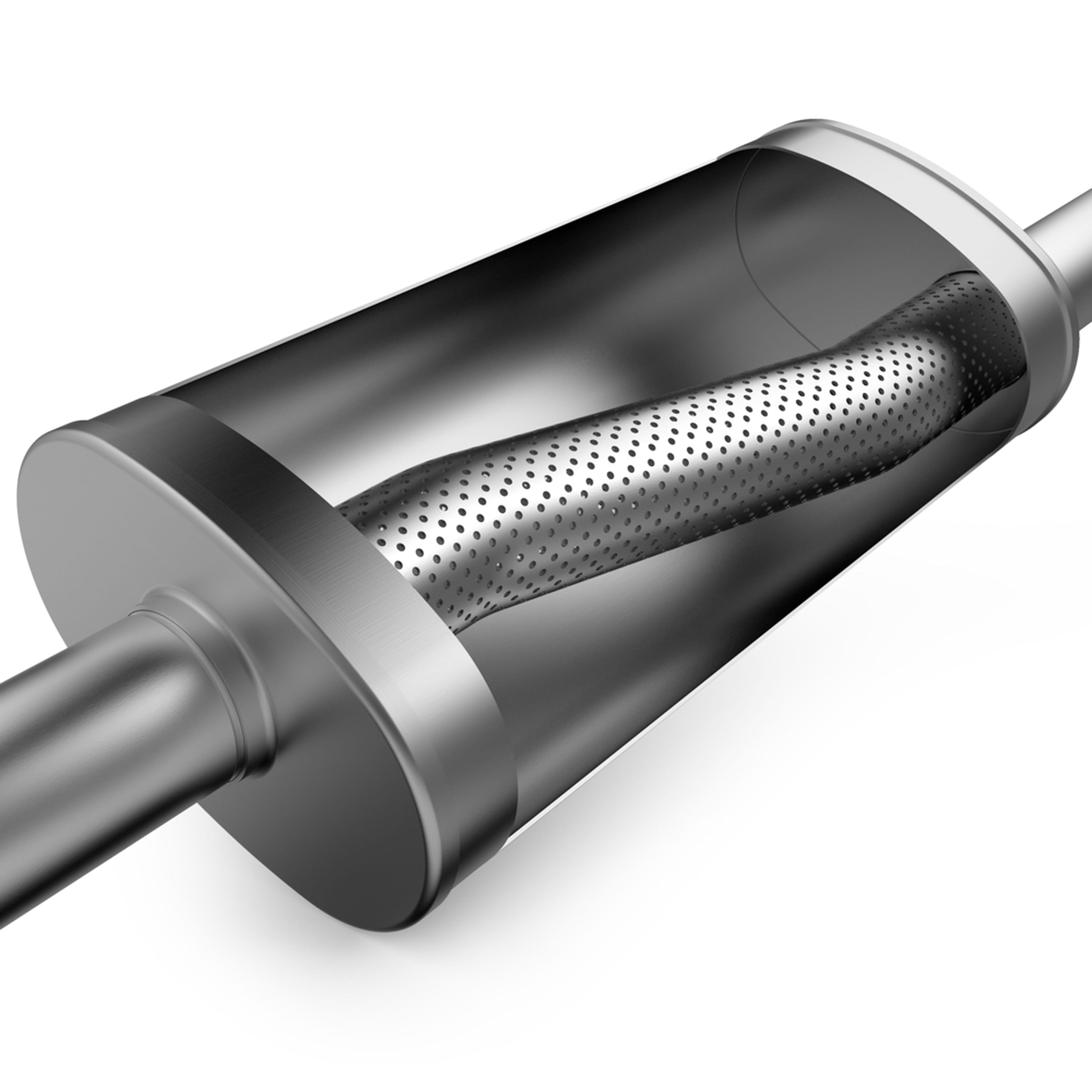

| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | NEO |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2018-2024 Dodge Durango 6.4L NEO Series Cat-Back Performance Exhaust System 19628 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
