MagnaFlow Exhaust Products 19648 - Overland Series Cat-Back System
Couldn't load pickup availability
Magnaflow Overland Series Stainless Cat-Back System

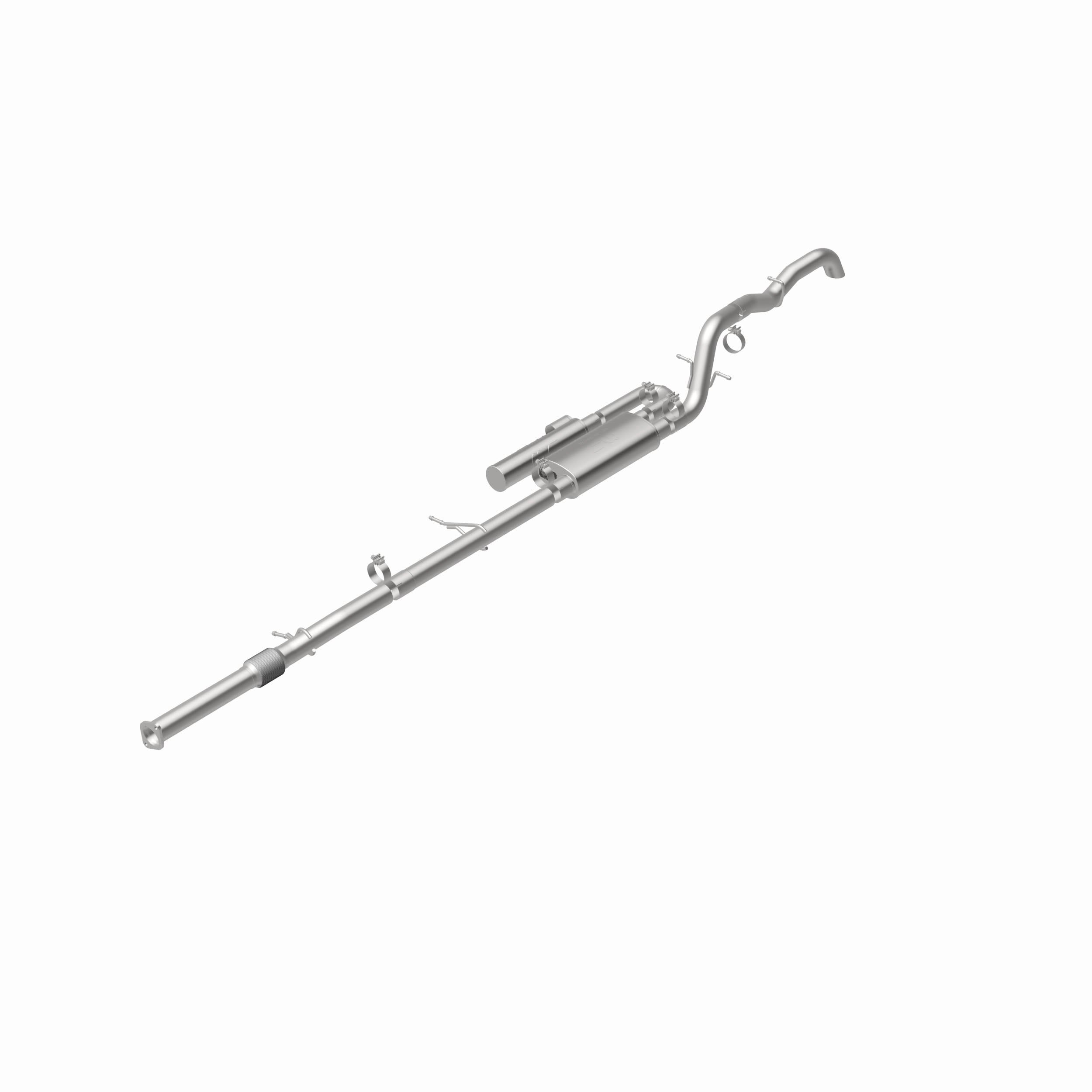

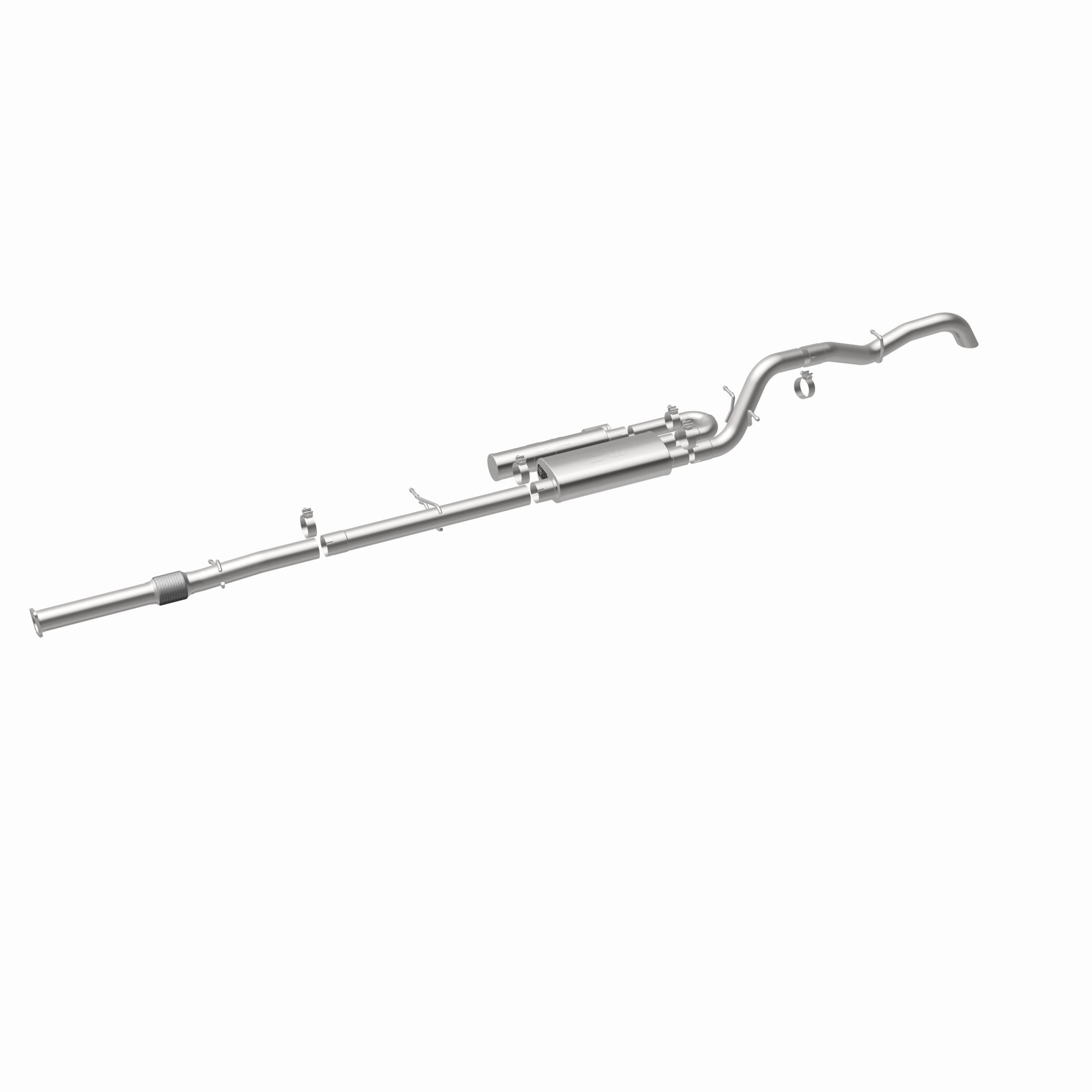

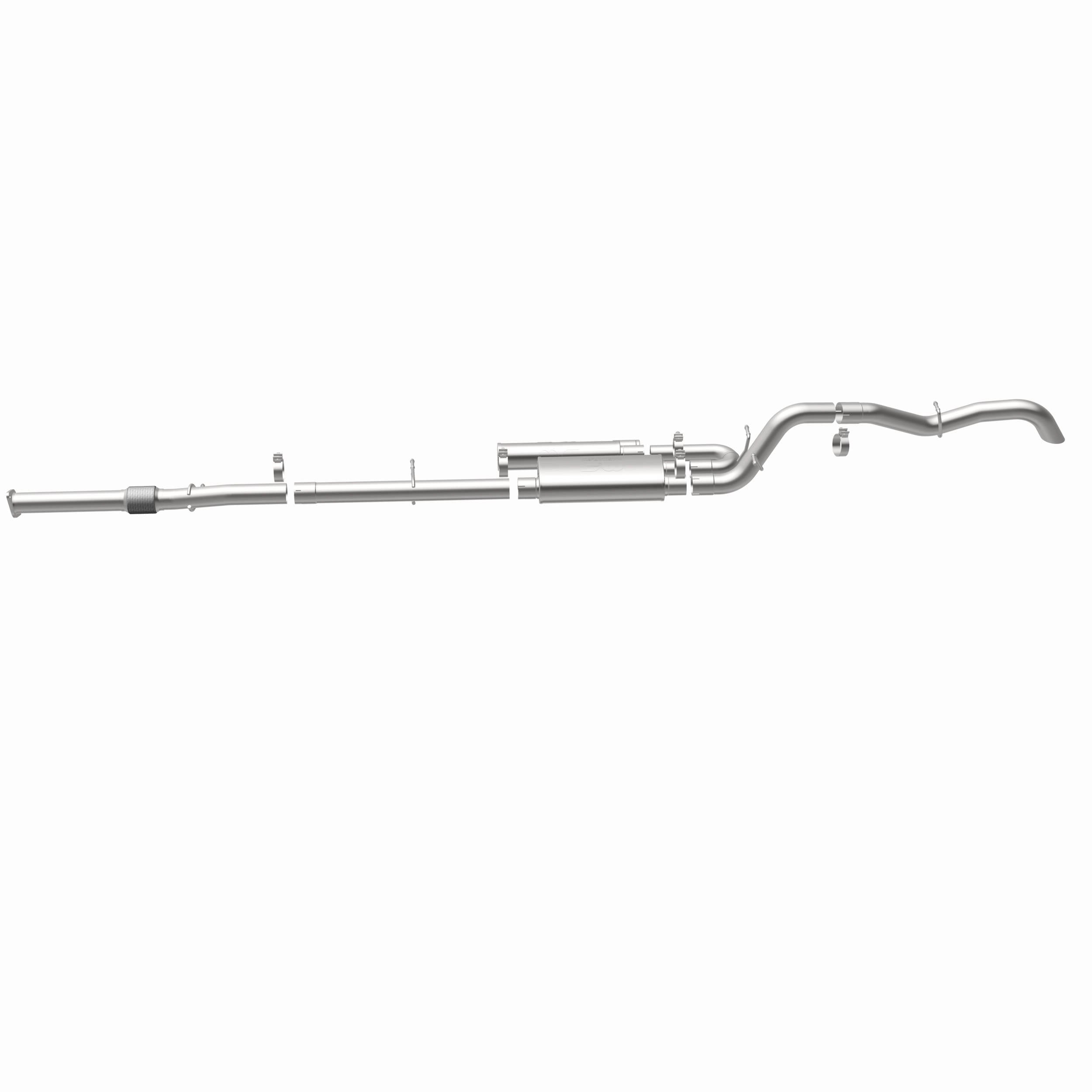

The MagnaFlow® Chevrolet Colorado / GMC Canyon Overland Series™ Cat-Back Performance Exhaust System #19648 is engineered for off-road function and built to explore further. This Chevrolet Colorado / GMC Canyon exhaust system is designed for the 2023-2024 Chevrolet Colorado and GMC Canyon equipped with the L4 2.7L engine option. The high clearance exhaust design of this kit is designed to keep your truck clear of any challenging terrain or obstacles you may come across. #19648 3” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit style. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. This truck exhaust kit can be tailored to your preferred exhaust tone by installing various exhaust modules that are integrated with the muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in different configurations to mitigate a wide range of droning frequencies. Looking for a smoother, quieter ride on the trails? Simply connect the NDT module. Prefer a more aggressive signature sound? Install the pipe cap to cover the muffler accessory port. Exhaust kit #19648 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
- Dyno proven performance
Specifications
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Passenger Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 5 IN |
| Muffler (Left) Body Length | 18 IN |
| Muffler (Left) Body Width | 8 IN |
| Muffler (Left) Type | Straight-Through |
| Muffler (Right) Body Height | 4 IN |
| Muffler (Right) Body Length | 18 IN |
| Muffler (Right) Body Width | 4 IN |
| Muffler (Right) Type | Tuned Chamber |
| Muffler Body Height Position Left | 5 IN |
| Muffler Body Height Position Right | 4 IN |
| Muffler Body Length Position Left | 18 IN |
| Muffler Body Length Position Right | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Left | 8 IN |
| Muffler Body Width Position Right | 4 IN |
| Muffler Finish | Brushed |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Left | Straight-Through |
| Muffler Type Position Right | Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2023-2025 Chevrolet Colorado 2.7L | 2023-2025 GMC Canyon 2.7L Overland Series™ Cat-Back Performance Exhaust System 19648 |
Installation Guide: Download PDF
