MagnaFlow Exhaust Products 19682 - Rock Crawler Series Black Chrome Cat-Back System
Couldn't load pickup availability

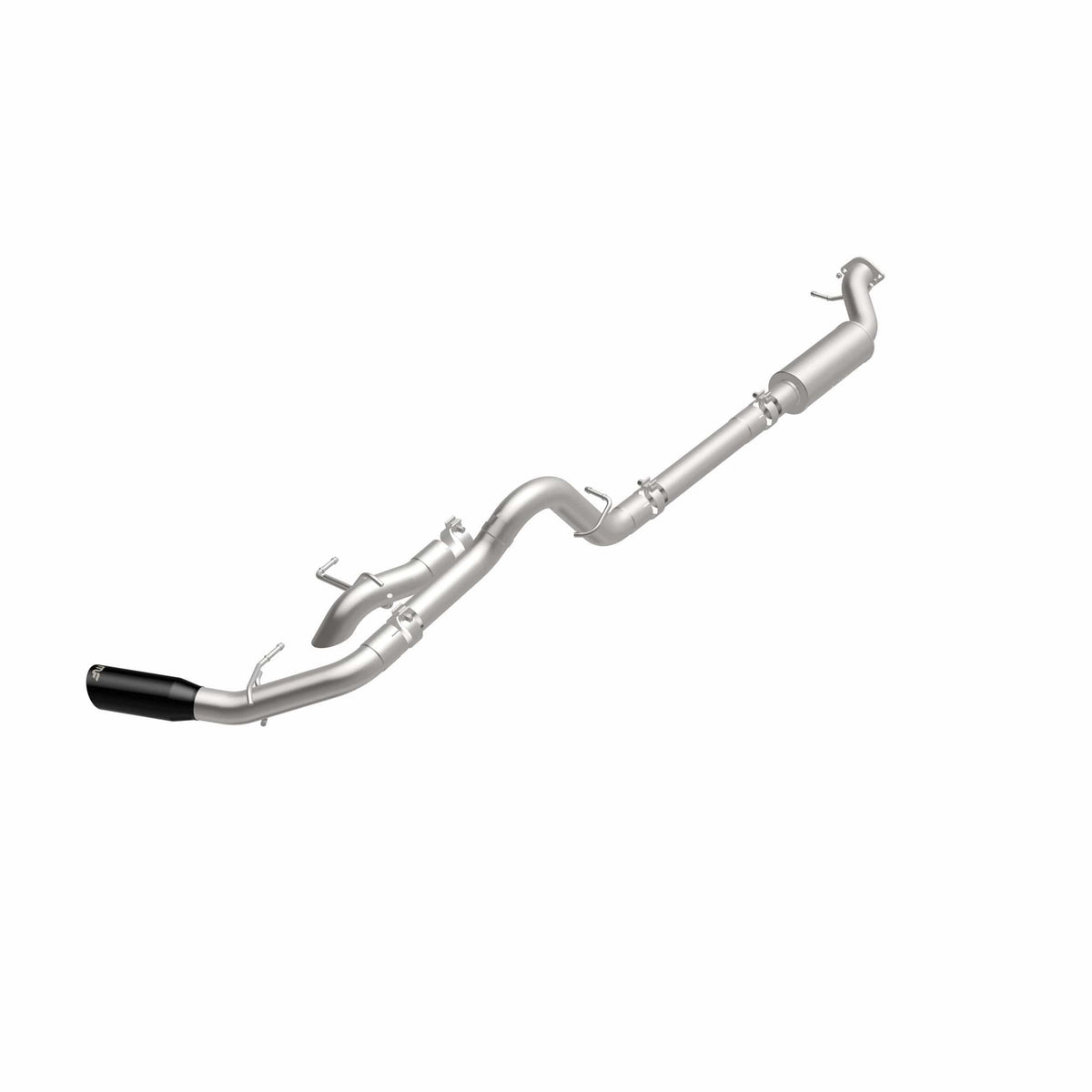

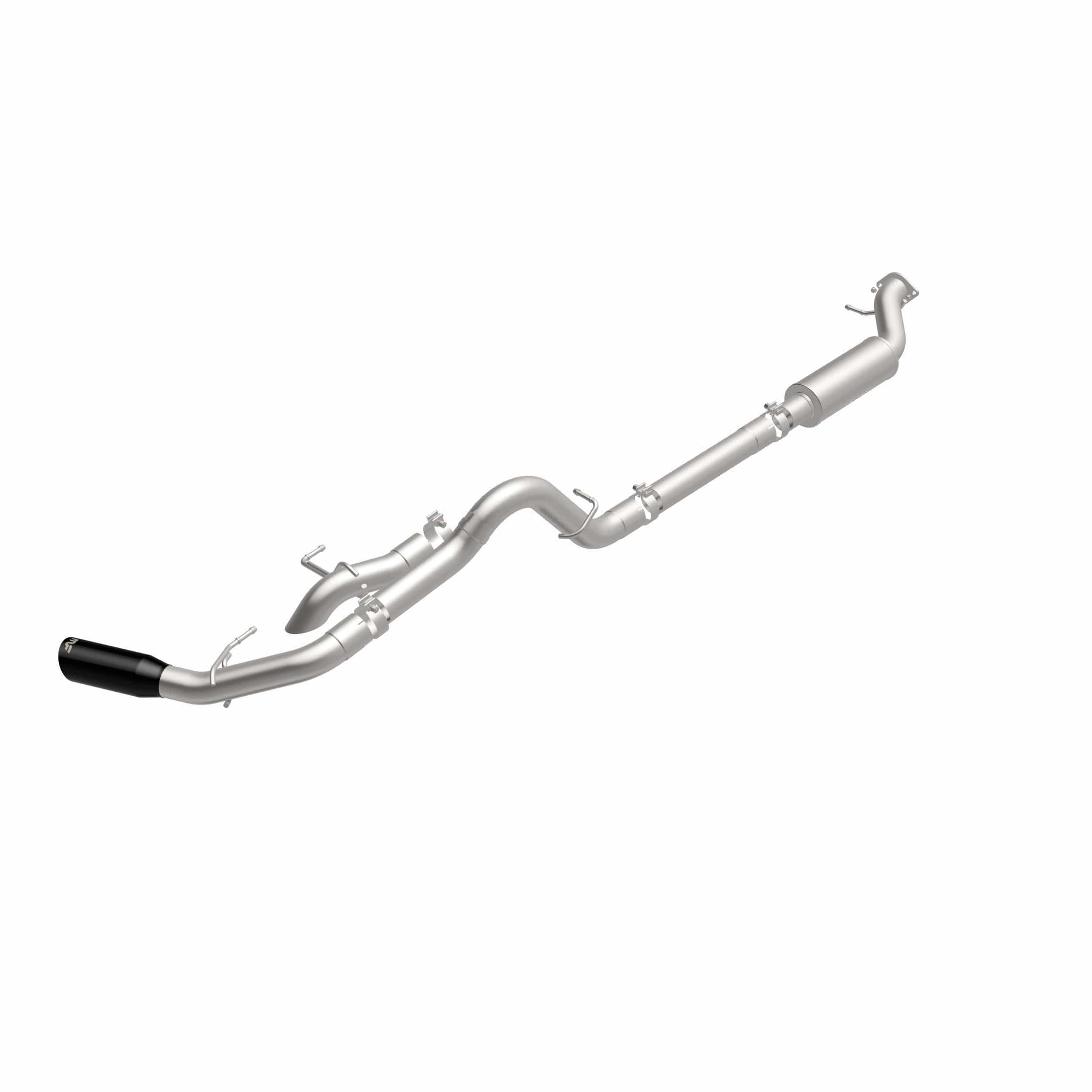

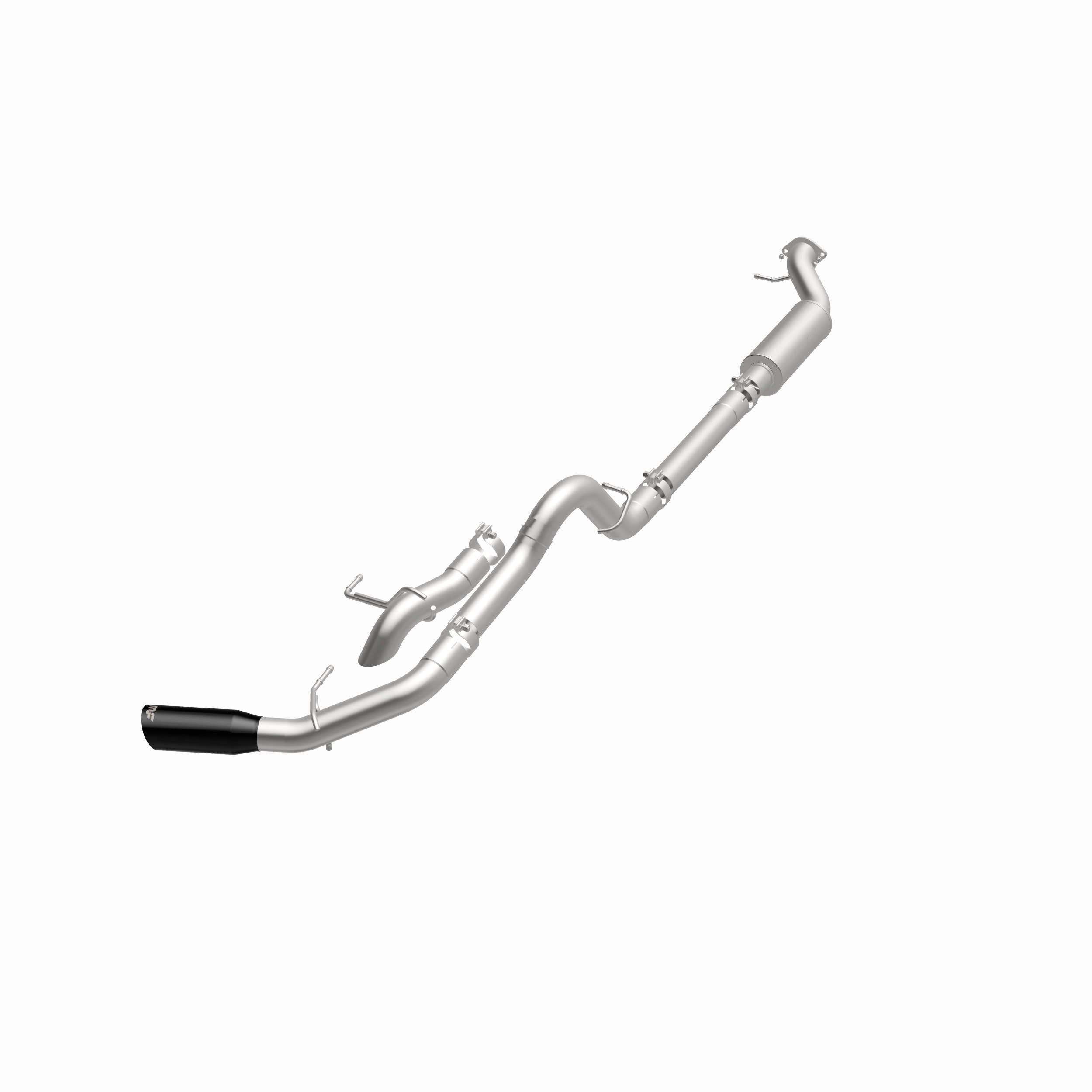

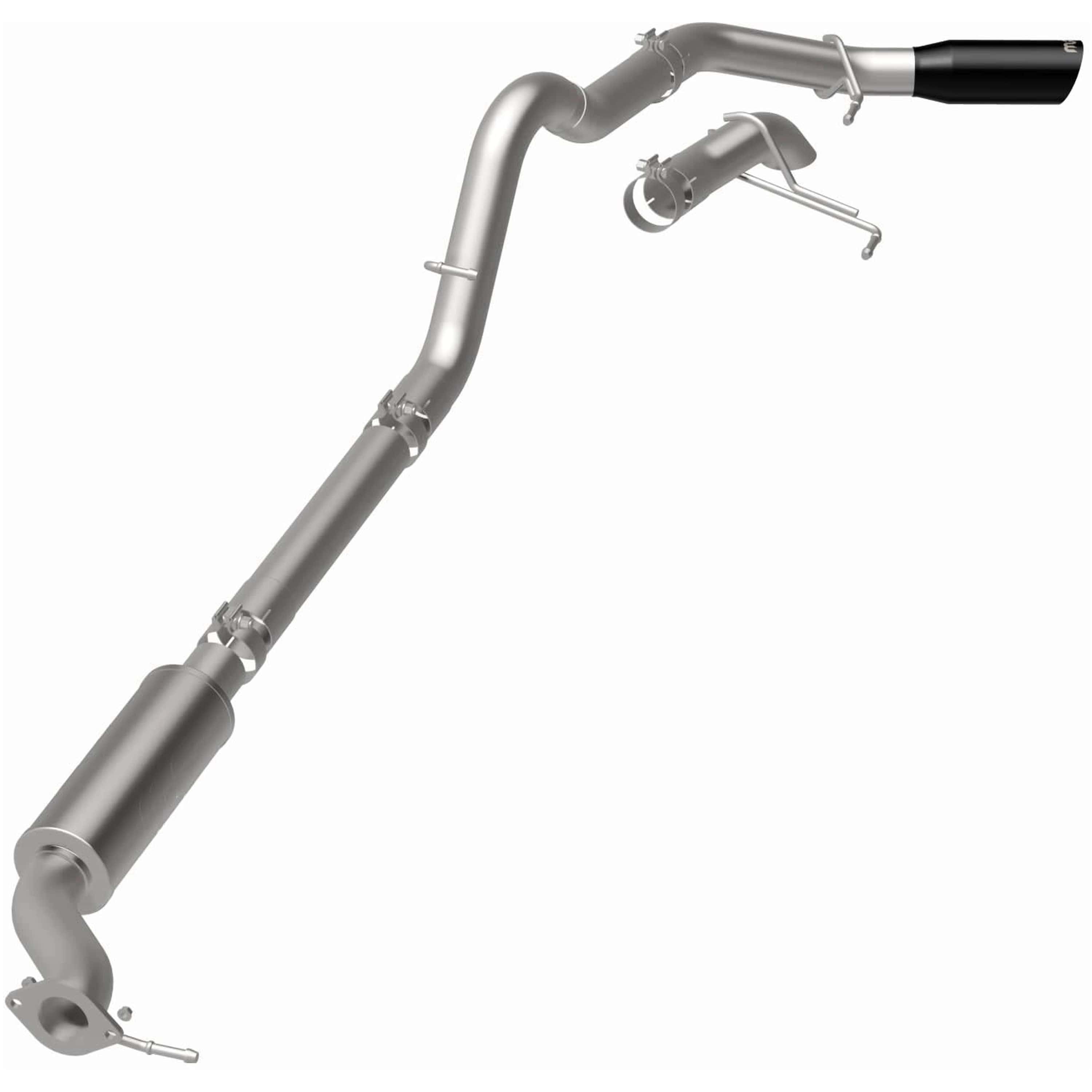

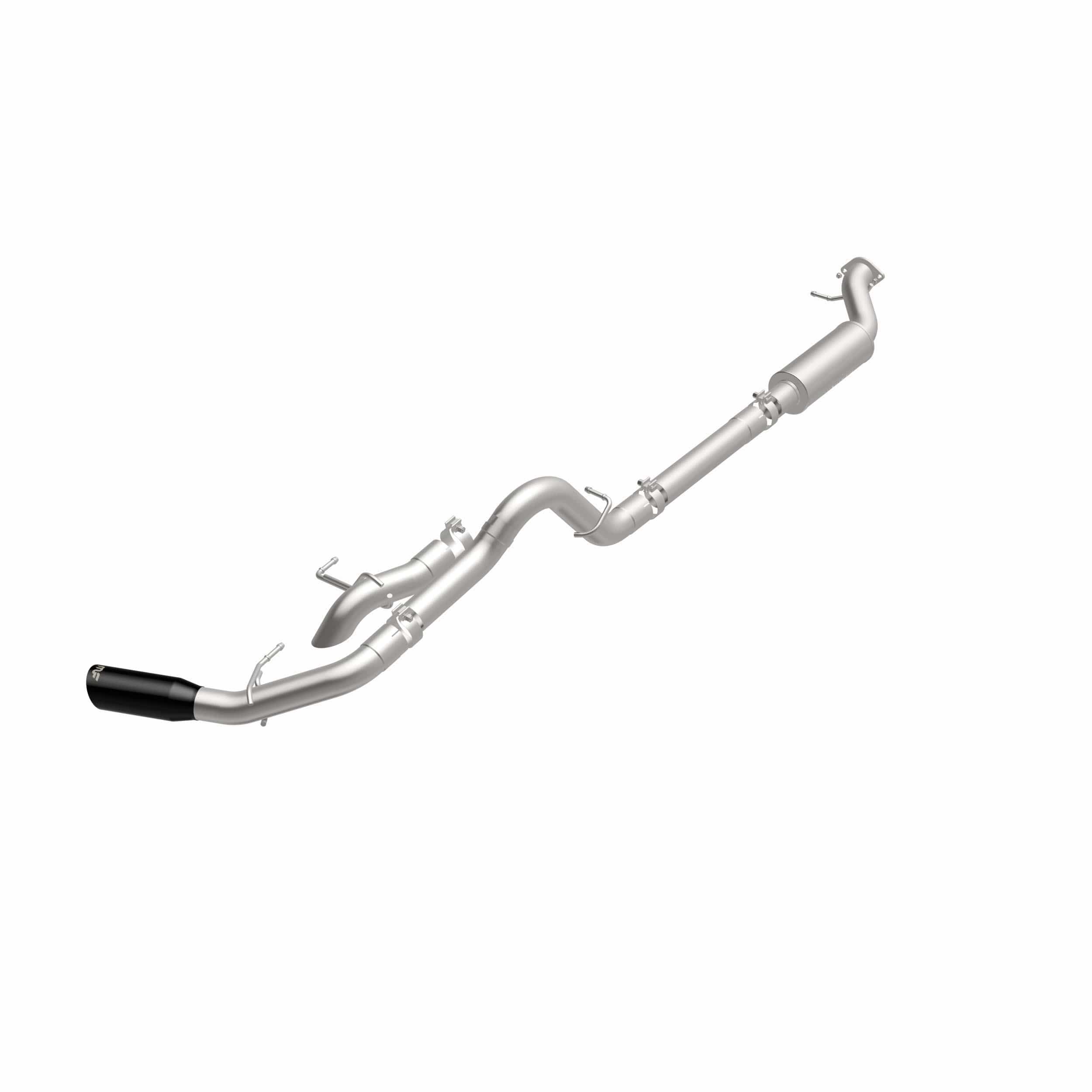

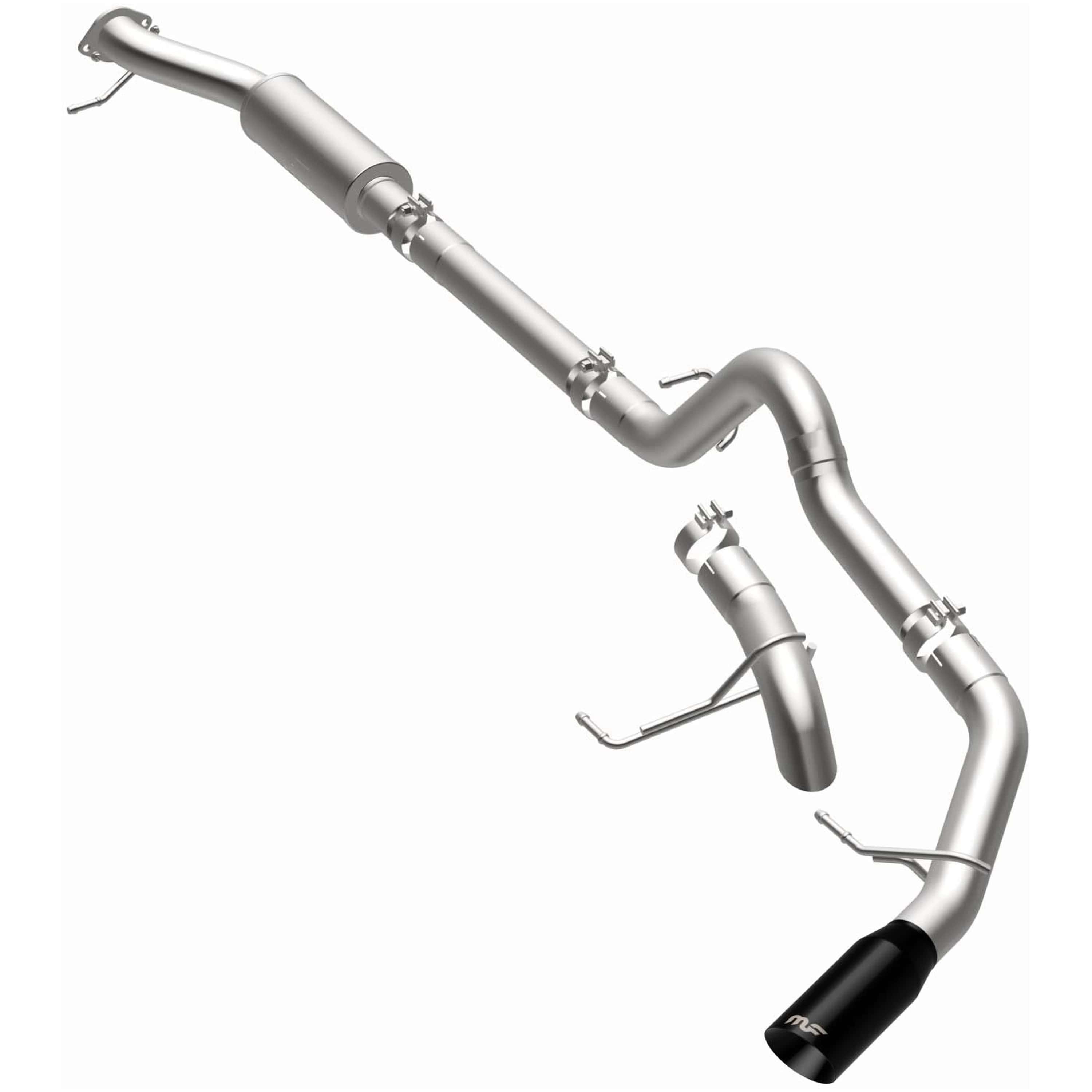

MagnaFlow Rock Crawler Series Black Chrome Cat-Back System
The MagnaFlow® 2021-2026 Ford Bronco Rock Crawler Series™ Cat-Back Performance Exhaust System 19682 brings superior boulder-climbing capabilities to your 2.7L/2.3L Ford Bronco with a weight-optimized, dyno-tested, corrosion resistant and durable stainless-steel design engineered to closely hug the undercarriage of your rig for improved ground clearance. Exhaust kit 19682 is engineered to produce our powerful, resonant signature exhaust note at aggressive exterior and moderate interior sound levels. Extensive 3D scanning was used during the development of this Ford Bronco exhaust system to create a direct-fit design, enabling a do-it-yourself installation process. 19682's emissions-legal cat-back design replaces all your rig's exhaust components from the catalytic converter on back with its 3in. diameter mandrel bent main piping that passes through 1 straight-through muffler before ending in a clamp-on single straight driver side rear exit. The turndown style tipless exit improves departure angles, allowing for more options when it comes to traversing tricky boulders and other off-road obstacles. Also included is a clamp-on tailpipe sub-assembly with a single driver side rear exit and black chrome 4” tip giving you a finished look when cruising around town. Exhaust system 19682 is produced using advanced CNC precision robotic manufacturing techniques and backed by MagnaFlow®'s limited lifetime warranty.
Features & Benefits
- Aggressive exterior sound tuning
- High clearance design
- Extensive off-road testing to meet your sound and performance needs
Specifications
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Muffler Quantity | 1 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Rock Crawler |
| Type | Cat-Back |
| Valve Included | No |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Black Chrome |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 10.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Multiple Exit Options |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler Body Height | 5 IN |
| Muffler Body Length | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 5 IN |
| Muffler Finish | Brushed |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Exhaust Tip Cut | Angle Cut |
| Title | MagnaFlow® 2021-2026 Ford Bronco 2.7L | 2021-2026 Ford Bronco 2.3L Rock Crawler Series™ Cat-Back Performance Exhaust System 19682 |
| Exhaust Tip Cut | Turndown |
Installation Guide: Download PDF
