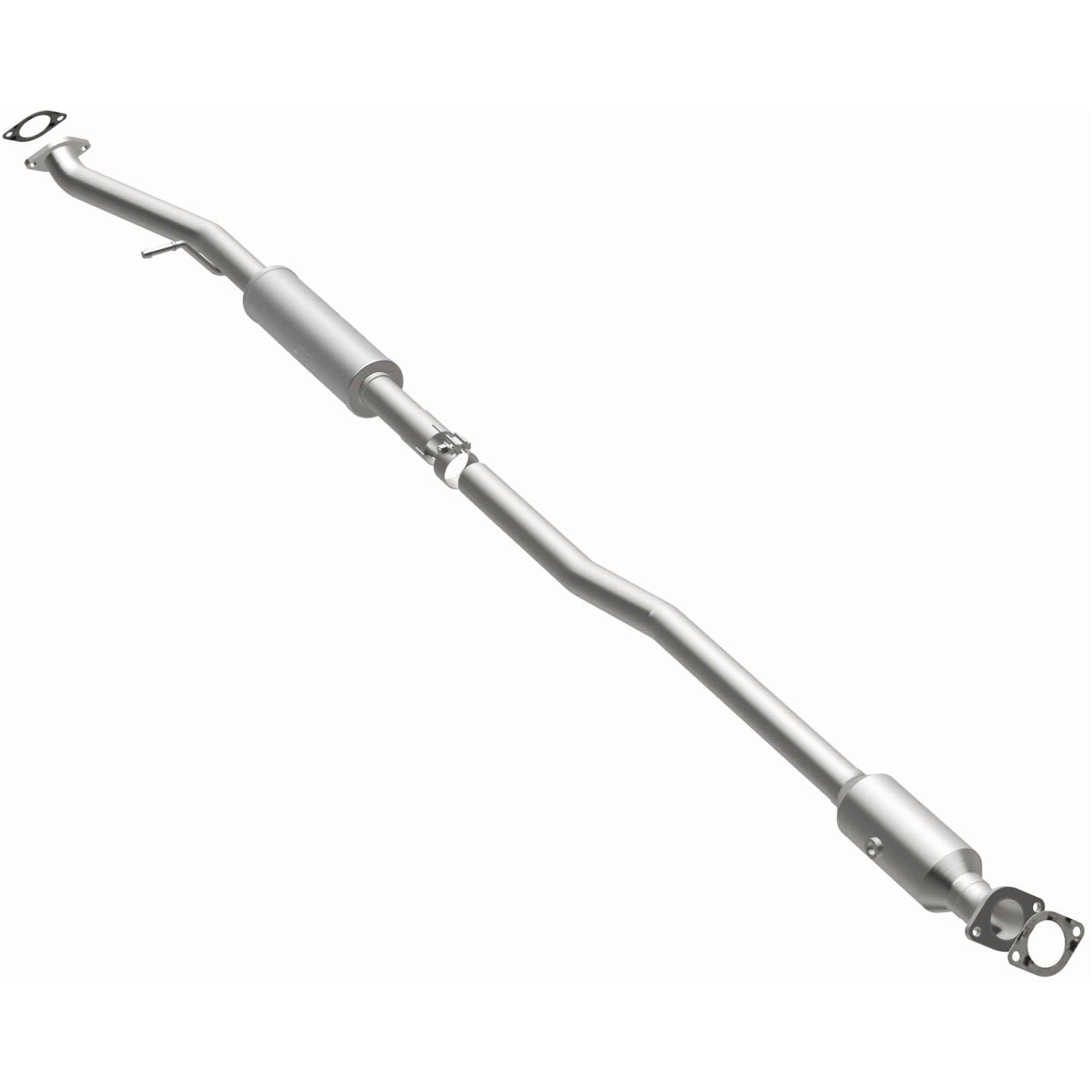

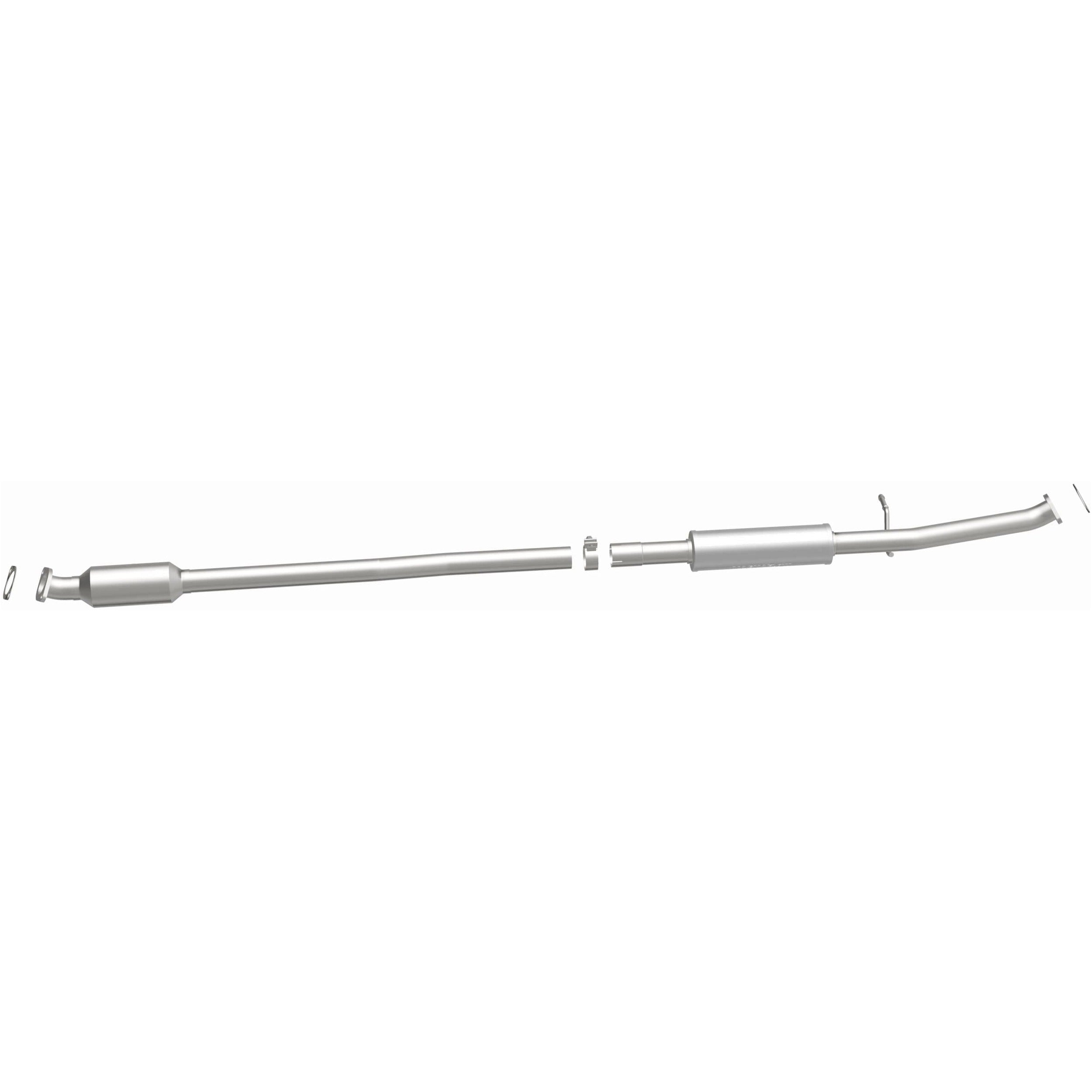

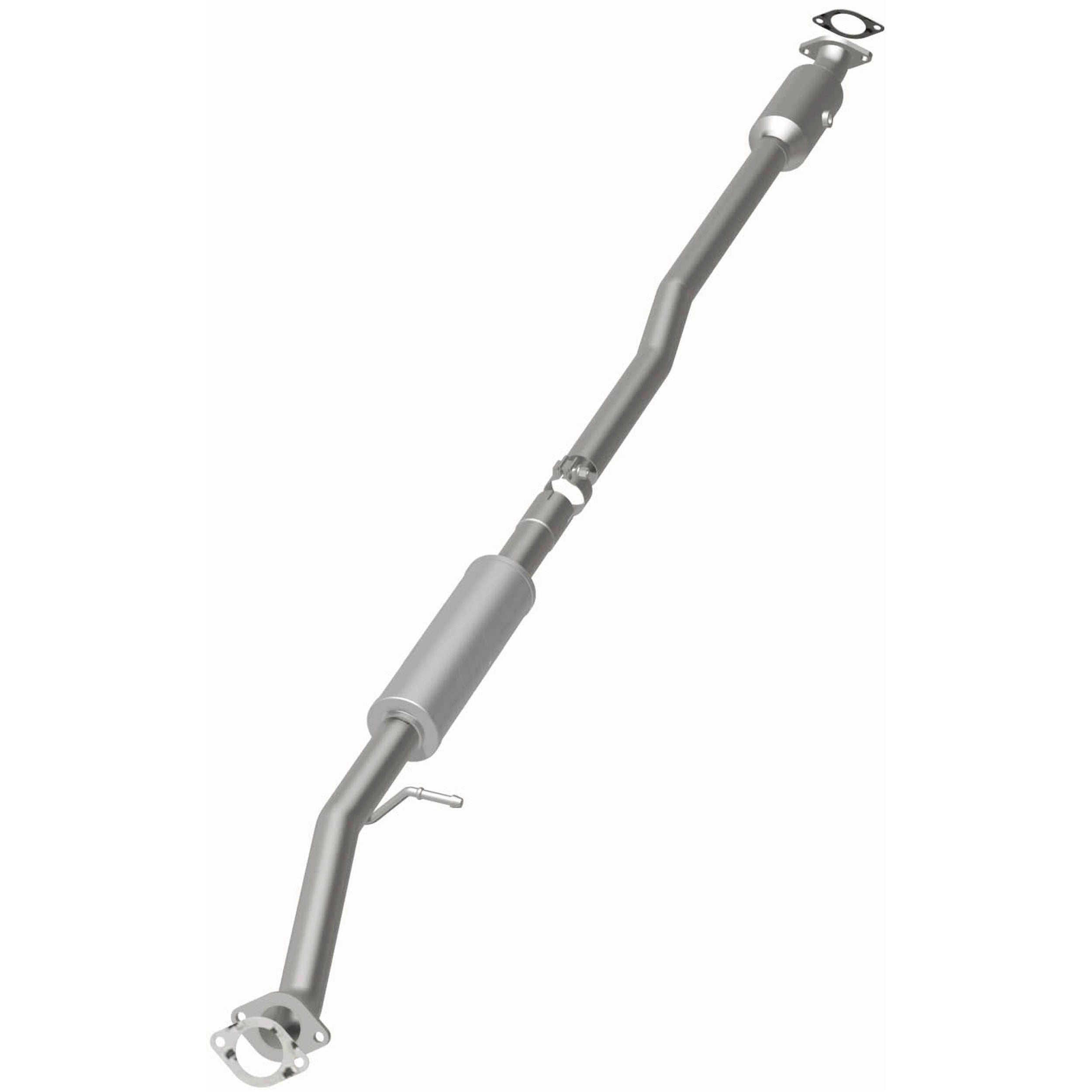

MagnaFlow Exhaust Products 5561542 - California CARB Direct-Fit Catalytic Converter
Couldn't load pickup availability
Magnaflow California Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5561542. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2016-2018 Hyundai Tucson 2.0L. MagnaFlow 5561542 includes (1) Torca Clamp, (2) Flange Gaskets. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features & Benefits
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- Durable 308 stainless steel MIG welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
Specifications
| Air Tube Adaptable | No |
| Air Tube Count | 0 |
| Body Height | 4 IN |
| Body Length | 11.25 IN |
| Body Material | Stainless Steel |
| Body Shape | Round |
| Body Type | Spun |
| Body Width | 4 IN |
| California Air Resources Board (CARB) Certified | Yes |
| Clamps Included | Yes |
| Grade Type | Regular |
| Hangers Included | Yes |
| Heat Shield Attached | No |
| Inlet Gasket Included | Yes |
| Inlet Inside Diameter | 2.25 IN |
| Inlet Mounting Hardware Included | No |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Sensor Port Count | 1 |
| Outlet Inside Diameter | 2.25 IN |
| Overall Length | 96.125 IN |
| Series | California |
| Substrate Material | Ceramic |
| CARB Executive Order Number | D-193-198 |
| Title | MagnaFlow 2016-2018 Hyundai Tucson 2.0L California Grade CARB Compliant Direct-Fit Catalytic Converter 5561542 |
| Oxygen Sensor Location | Midbed |
| Outlet Mounting Hardware Included | No |
| Finish | Stainless |
| Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Outlet Gasket Included | Yes |
| New York Certified | Yes |
| Inlet Type | Flange |
| Outlet Type | Flange |
| Universal Or Specific Fit | Specific |
