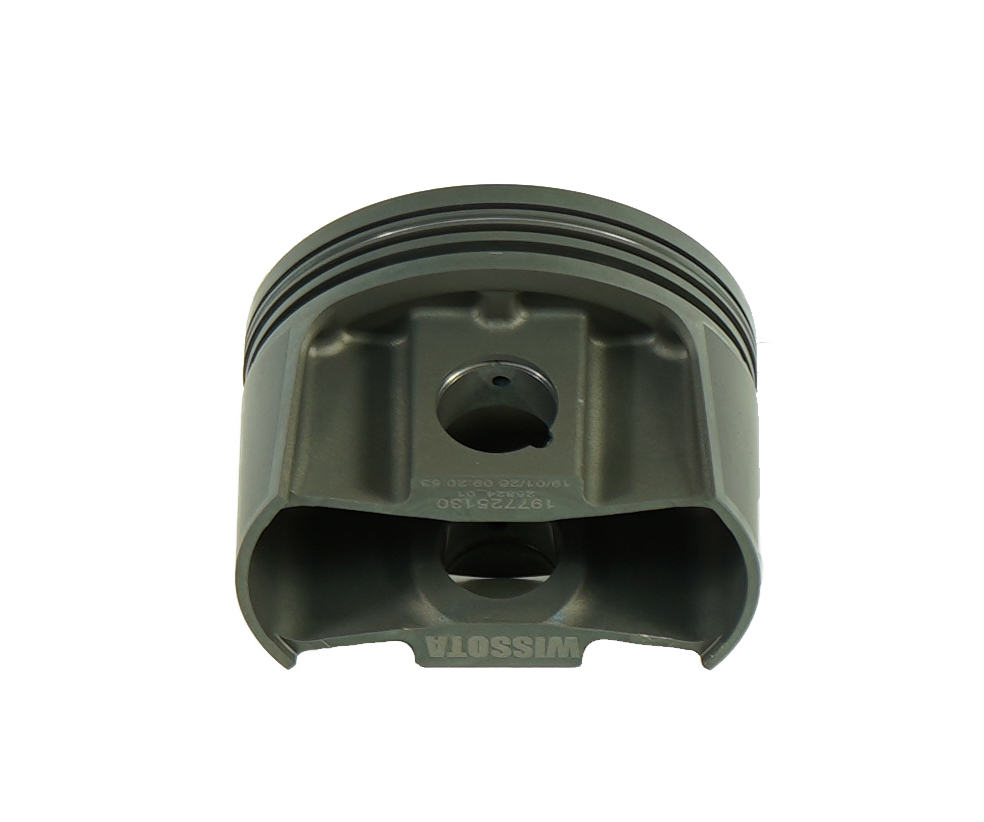

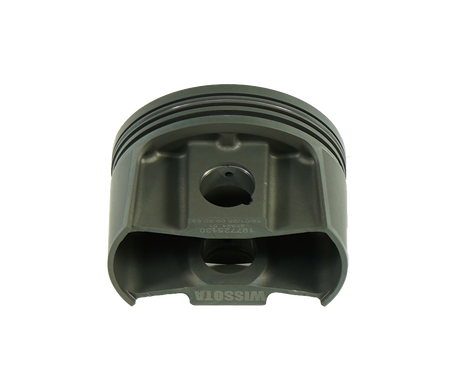

Mahle Motorsport 197725130-1 - Piston (ea) - SMALL BLOCK CHEVY WISSOTA CONCEPT ENGINE
$86.09
USD
Backorder Available
✓
This product fits
Also fits
Confirmed by selected vehicle fitment
Engine
Based on selected vehicle
Drivetrain
Based on selected vehicle
!
This product does not fit
i
No fitment data available for this product, Verify Fitment manually.
FITMENT CHECK
Will This Fit Your Vehicle?
Product Availability Request
Fill the form and our team will contact you.
Free shipping
— For USA - Up to 50lbs.
90-day returns
— free, no restocking fees
Check warranty
— from description
355cid 4.030 x 1.550CH, 3.480/3.500stroke,5.700rod,0.927pin,-5.0cc,463g,10.2CR, 4032, SINGLE PISTON
Specifications
| Crown Volume | -5.0cc |
| Pin Wall Thickness | 0.168 |
| LCR Thickness | 1.5mm |
| UCR Thickness | 1.5mm |
| Piston Ring Thickness | 1.5mm, 1.5mm, 3.0mm |
| Pin Mass | 118g |
| Pin Diameter | 23.55mm |
| OCR Thickness | 3.0mm |
| Piston Mass | 463g |
| Pin Length | 58.1mm |
| LCR Material | Cast Iron |
| OCR Material | Chrome plated stainless steel |
| UCR Material | Ductile Iron |
| Piston Style | Flattop, w/ 2 valve reliefs |
| Pin Style | Floating |
| Piston Material | Forged, 4032 |
| Title | Mahle Motorsport Piston (each) - 197725130-1 |
| Clips Included | N |
| Pins Included | N |
| Rings Included | N |
| LCR Coating | Phosphate |
| UCR Coating | Plasma Moly |
| Clip Style | Round Wire |
| Package Quantity | Sold as a set of 1 |
| OCR Tension | Standard |
| Pin Material | Steel |
| File Fit | Y |
