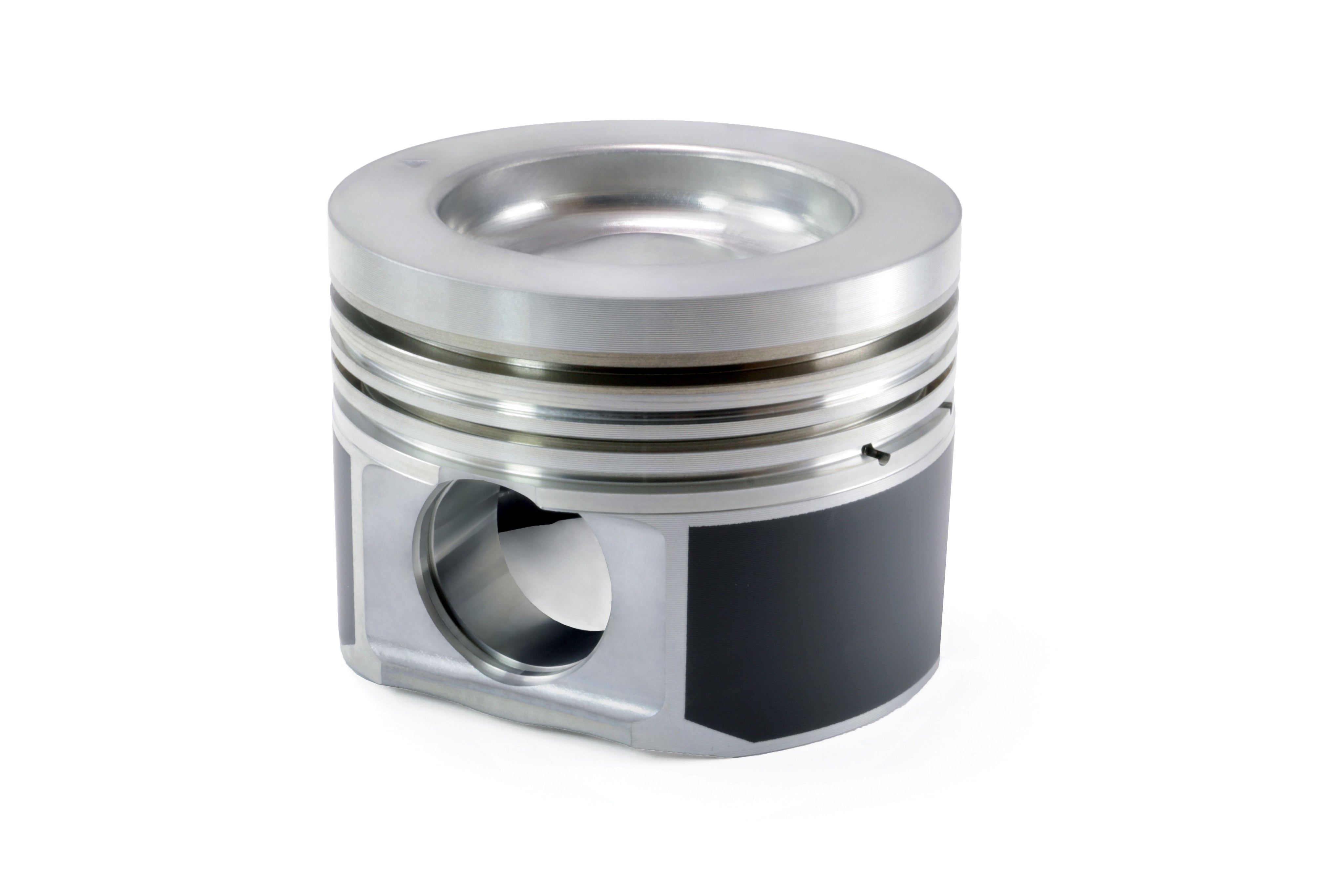

Mahle Motorsport 930036055-1 - Piston (ea) - GM 6.6L Duramax Cast Performance Pistons

Contact Us for Availability
Regular price $185.05 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Mahle Motorsport
  • SKU 930036055-1
  • Barcode NA

Do you have questions about this product?

Ask an expert!

403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,864g,16.6CR, M142, SINGLE PISTON

Specifications

Crown Volume -40.7cc
Pin Wall Thickness 0.325
LCR Thickness 2.0mm
OCR Thickness 3.0mm
UCR Thickness 3.0mm Keystone
Pin Diameter 34.5mm
Pin Mass 410g
Pin Length 77.5mm
Piston Mass 864g
LCR Material Cast Iron
Piston Material Cast, M142
LCR Coating Chrome
UCR Coating CrN PVD
Piston Style Dish, w/ NO valve reliefs
Pin Style Floating
OCR Material Gas Nitrided stainless steel
Piston Ring Thickness K.0mm, 2.0mm, 3.0mm
Title Mahle Motorsport Piston (each) - 930036055-1
Clips Included N
File Fit N
Pins Included N
Rings Included N
Clip Style Snap Ring
Package Quantity Sold as a set of 1
UCR Material Stainless Steel
OCR Tension Standard
Pin Material Steel
