Revolution Gear D35-M200-513 - Dana 35 Rear Axle Jeep Wrangler JL 5.13 Ratio Ring and Pinion Revolution Gear
Product Availability Request
Fill the form and our team will contact you.

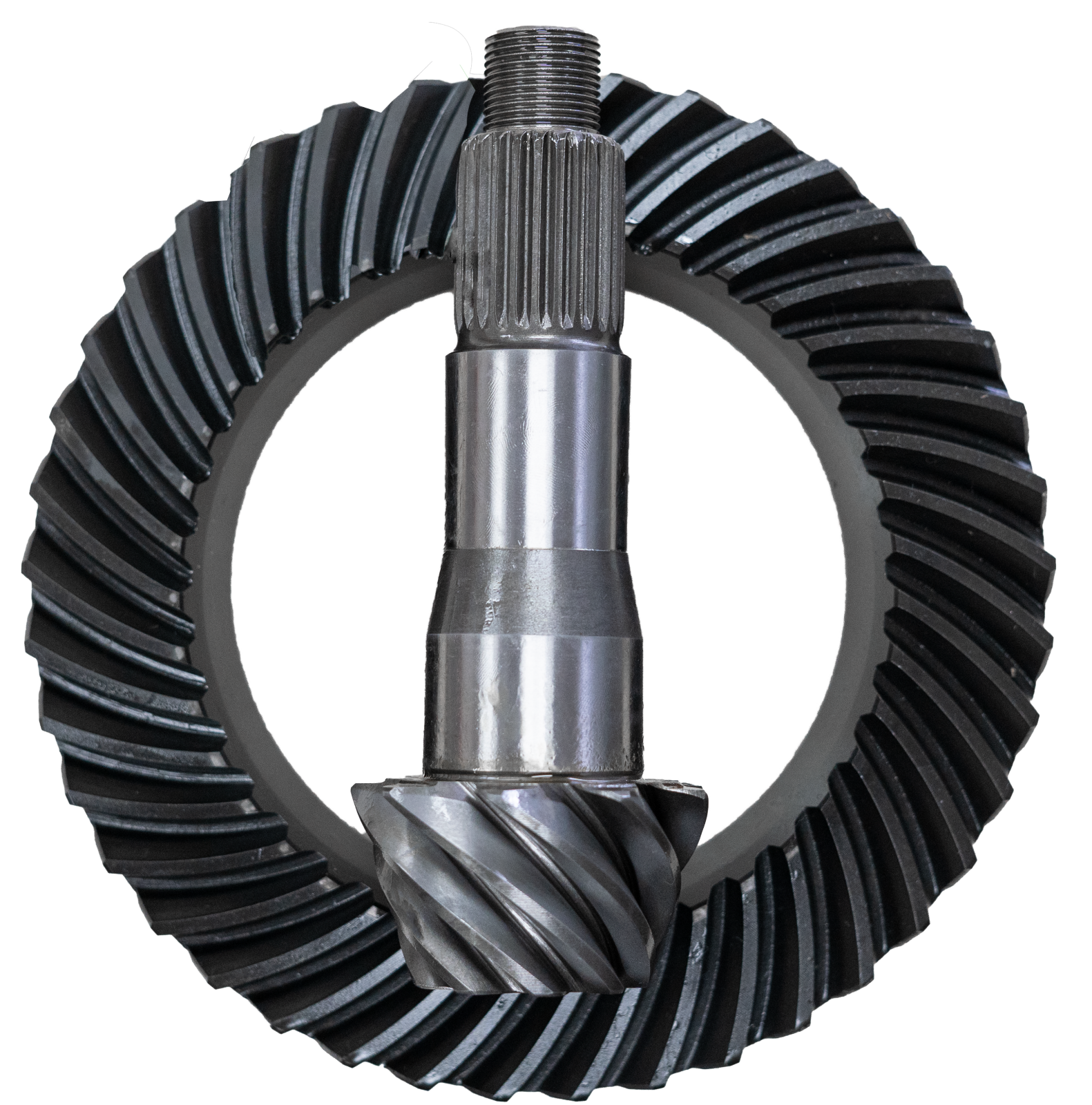

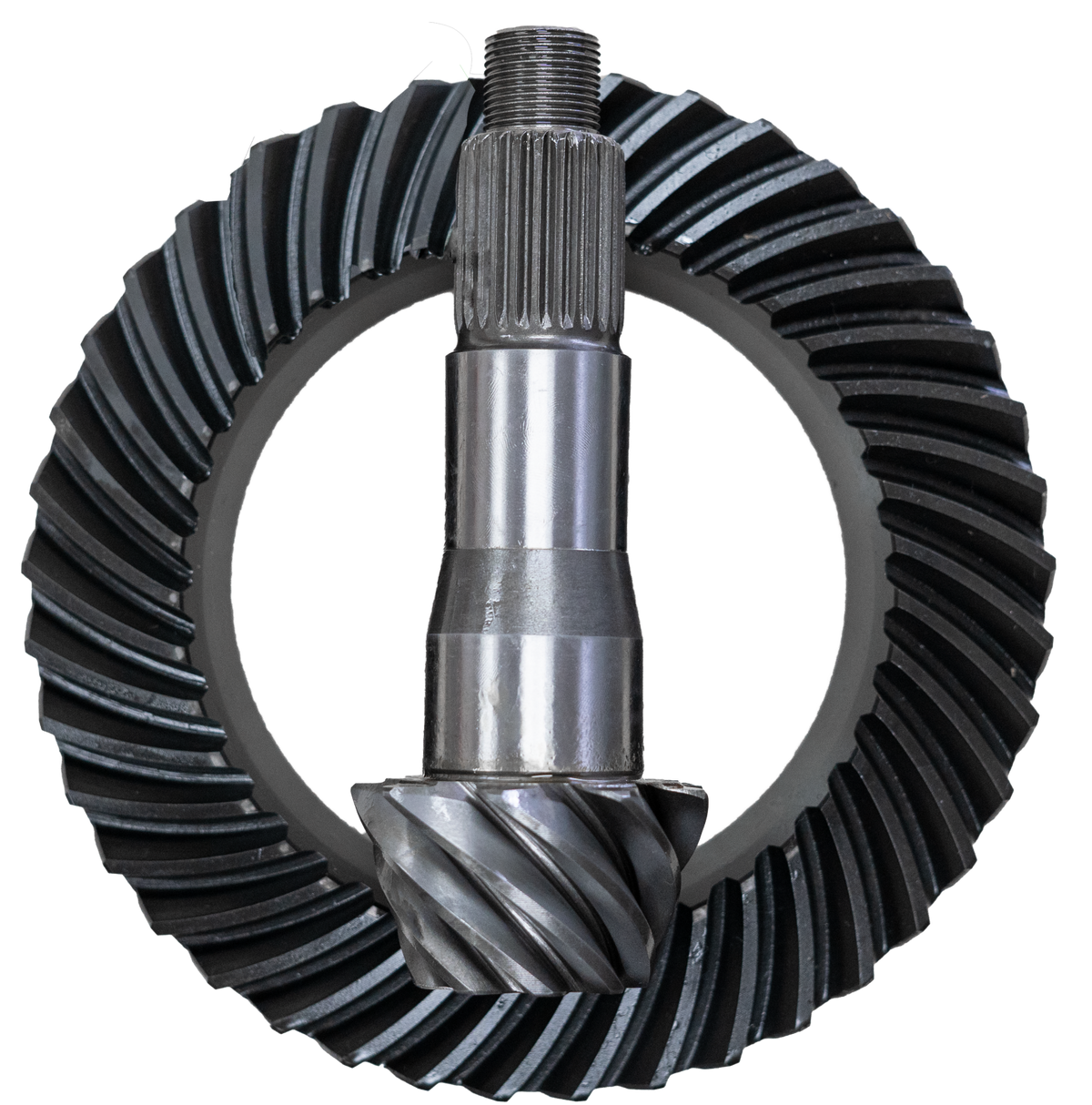

Fits the 2018-2026 Jeep Wrangler. This Revolution Gear ring and pinion gear set, part number D35-M200-513, is manufactured for Dana 200mm differentials. The precision-cut gears are made from 8620 material and engineered to improve torque delivery and traction. Installation includes the ring and pinion gear set; ring gear bolts are not included.
Fits: 2018-2026 Jeep Wrangler
- Ring gear diameter: 7.88 inch
- Differential: Dana 200mm
- Material: 8620
- Pinion splines: 24
- Ring gear rotation: Standard
- Ring gear bolt thread: 10 x 7/16 and 1/2 inch
- Carrier break: 3.54 and up
- Cover bolts: 12 bolt
Weight: 14 lb
Country of Origin: Korea
