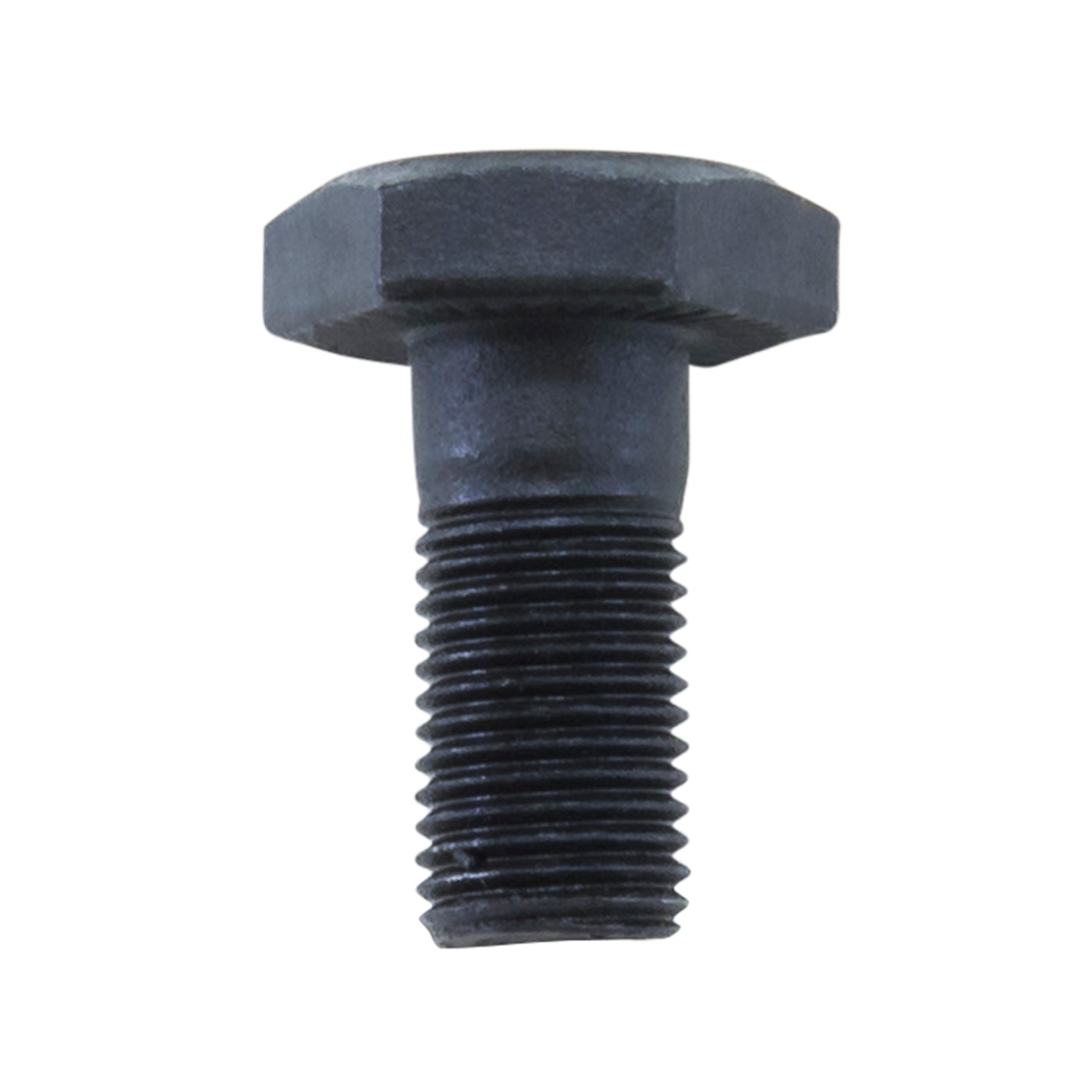

Yukon Gear and Axle YSPBLT-008 - Replacement ring gear bolt for Model 35, Dana 25, 27, 30 & 44. 3/8" x 24.

Yukon Gear & Axle manufactures a full line of top quality small parts to complete any job including ring gear bolts, crush sleeves, pinion nuts and washers, axle studs, thrust washers and much, much more. For all your differential small parts needs, look no further than Yukon.

Replacement ring gear bolt for Model 35, Dana 25, 27, 30 & 44. 3/8 inch x 24.

Features:

Ring gear bolt for Dana Spicer 25, 27, 30, 44 and AMC Model 35 3/8 inch x 24 thread

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Color: Black
• Head Drive Type: Hex
• Thread Type: Fine
• Universal Or Specific Fit: Specific

3/8-24 RH grade 8 bolts, 11/16 hex. 1.025 overall, .805 thread length.

Fitment Notes:

• Dana 44, Jaguar
• Ring Gear Bolt,-3/8 inch., Dana 30
• Ring Gear Bolt,-3/8 inch., Dana 44
• Ring Gear Bolt,-3/8 inch., Dana 44
• Standard Rotation
• Ring Gear Bolt,-3/8 inch., Dana 44
• Disconnect Design
• Ring Gear Bolt,-3/8 inch., AMC Model 35
• Standard Rotation
• Ring Gear Bolt,-3/8 inch., Dana 44, 19 Spline
• Ring Gear Bolt,-3/8 inch., Dana 27
• Ring Gear Bolt,-3/8 inch., Dana 30
• Standard Rotation
• Ring Gear Bolt,-3/8 inch., Dana 25
• Ring Gear Bolt,-3/8 inch., AMC Model 35
• Ring Gear Bolt,-3/8 inch., Dana 30
• Reverse Rotation
• Ring Gear Bolt,-3/8 inch., Dana 30
• Crush Sleeve Design
• Ring Gear Bolt,-3/8 inch., Dana 44HD
• Ring Gear Bolt,-3/8 inch., Dana Super 30
• Ring Gear Bolt,-3/8 inch., Dana 44
• Corvette
• Ring Gear Bolt,-3/8 inch., AMC Model 35
• Reverse IFS
• Ring Gear Bolt,-3/8 inch., Dana 44
• Reverse Rotation
• Straight Axle
• Ring Gear Bolt,-3/8 inch., Dana 44
• IFS
• Ring Gear Bolt,-3/8 inch.

Installation / Product Video: Watch on YouTube

Warranty: 1 Year
