Yukon Gear YA WAK-010 Drive Axle Shaft Assembly
Product Availability Request
Fill the form and our team will contact you.

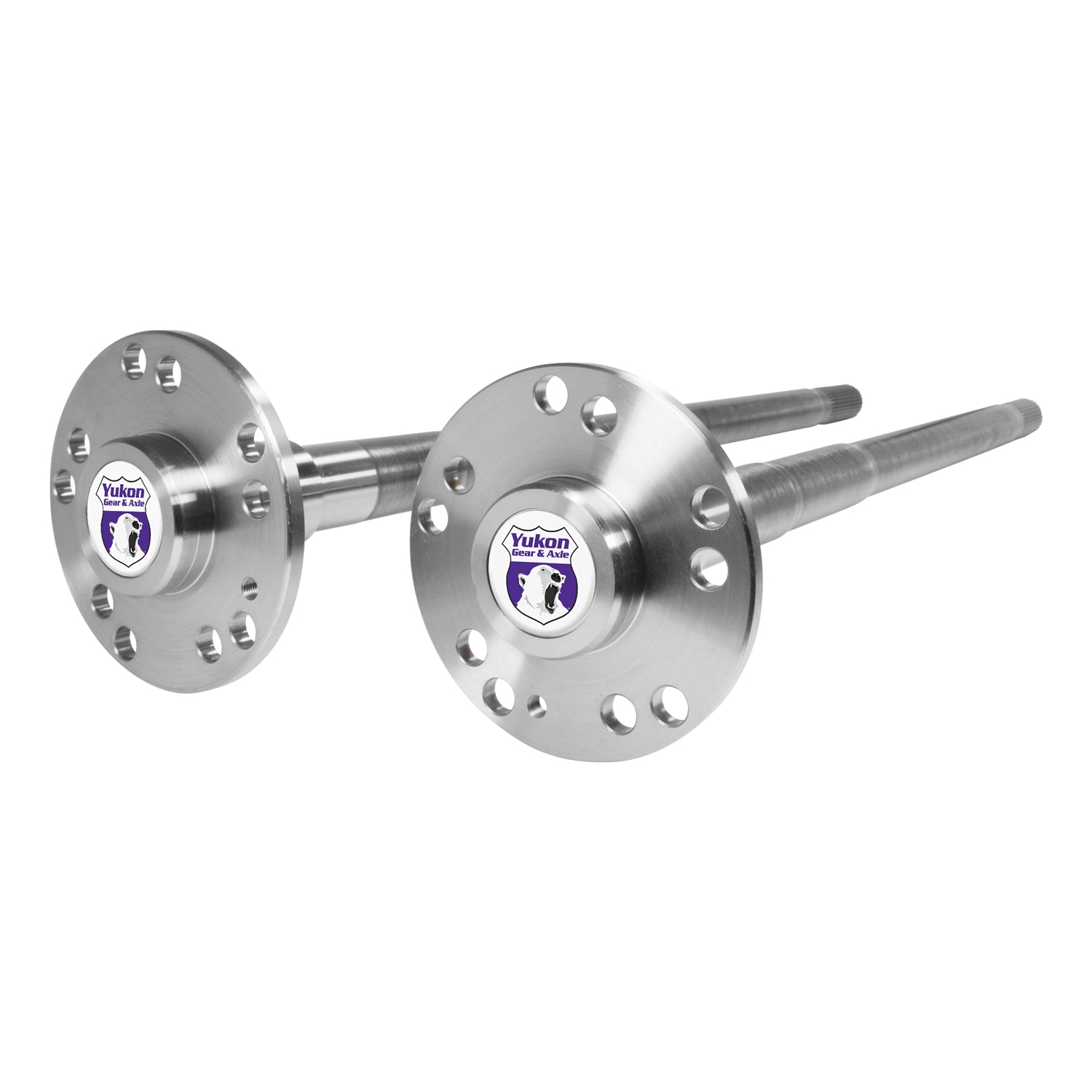

Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability.
Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features
- Fits Dana 44 differential
- 32 spline
- Length 32.2"
- Rear, Narrow Track design
- Heavy duty 4340 chromoly construction
- Double drilled for multiple bolt patterns

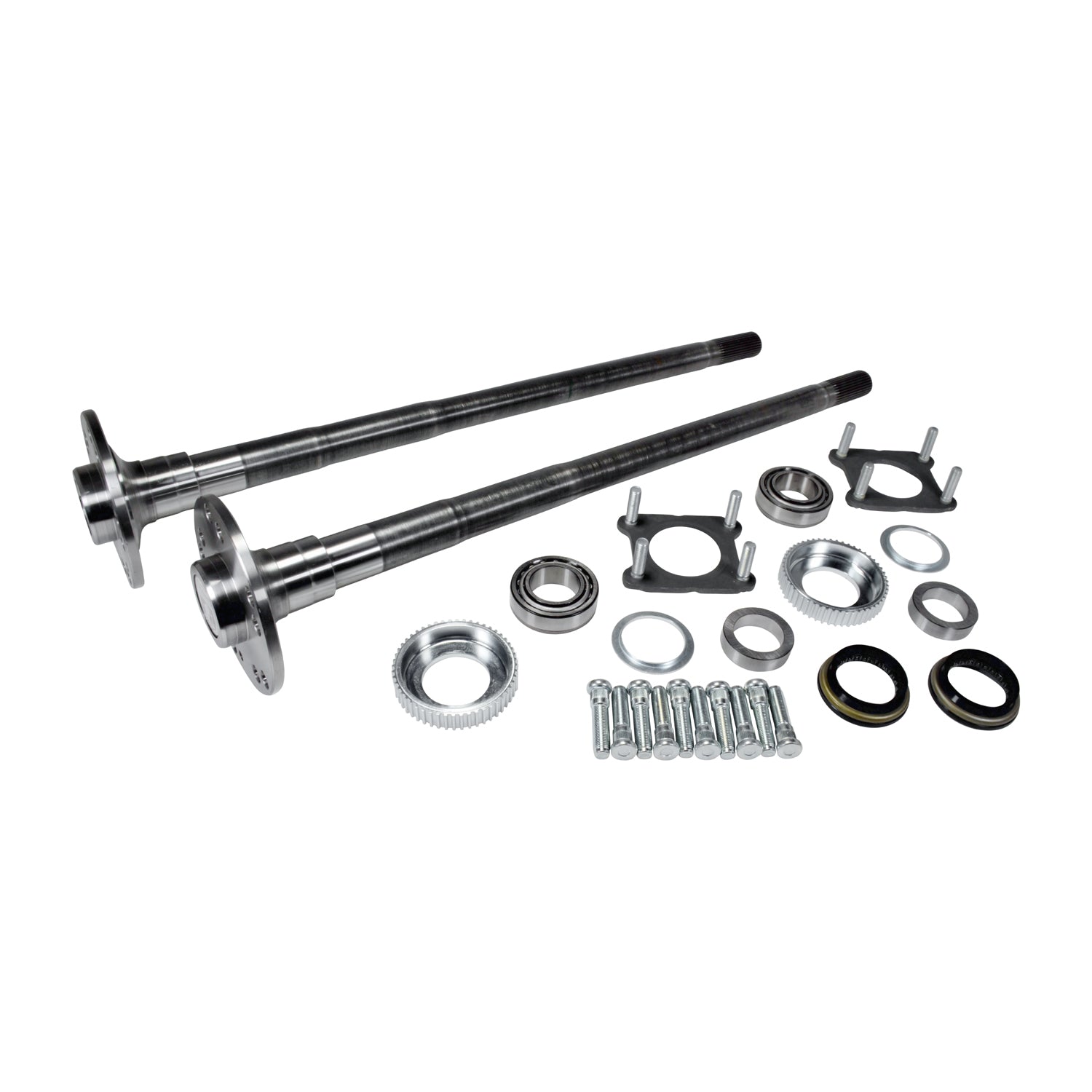

- Kit includes axle, wheel bearing, seal, studs, and lug nuts
- Fits both sides
Specifications
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| ABS Tone Ring Included | Yes |
| Axle Shaft Seal Included | Yes |
| Differential Case Design Type | Dana 220mm |
| Inboard Spline Quantity | 32 |
| Shaft Length | 32.2 IN |
| Shaft Material | 4340 Nickel Chromoly Steel |
| Wheel Bolt Pattern Size | 5x5.0 & 5x5.5 |
| Wheel Studs Included | Yes |
Short Description: 4340 Rear Axle kit
Invoice Description: YA WAK-010
Definition: Drive Axle Shaft Assembly
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2020-2023 | Jeep | Gladiator | Overland |
| 2020-2023 | Jeep | Gladiator | Sport S |
| 2020-2023 | Jeep | Gladiator | Sport |
3 applications listed.
