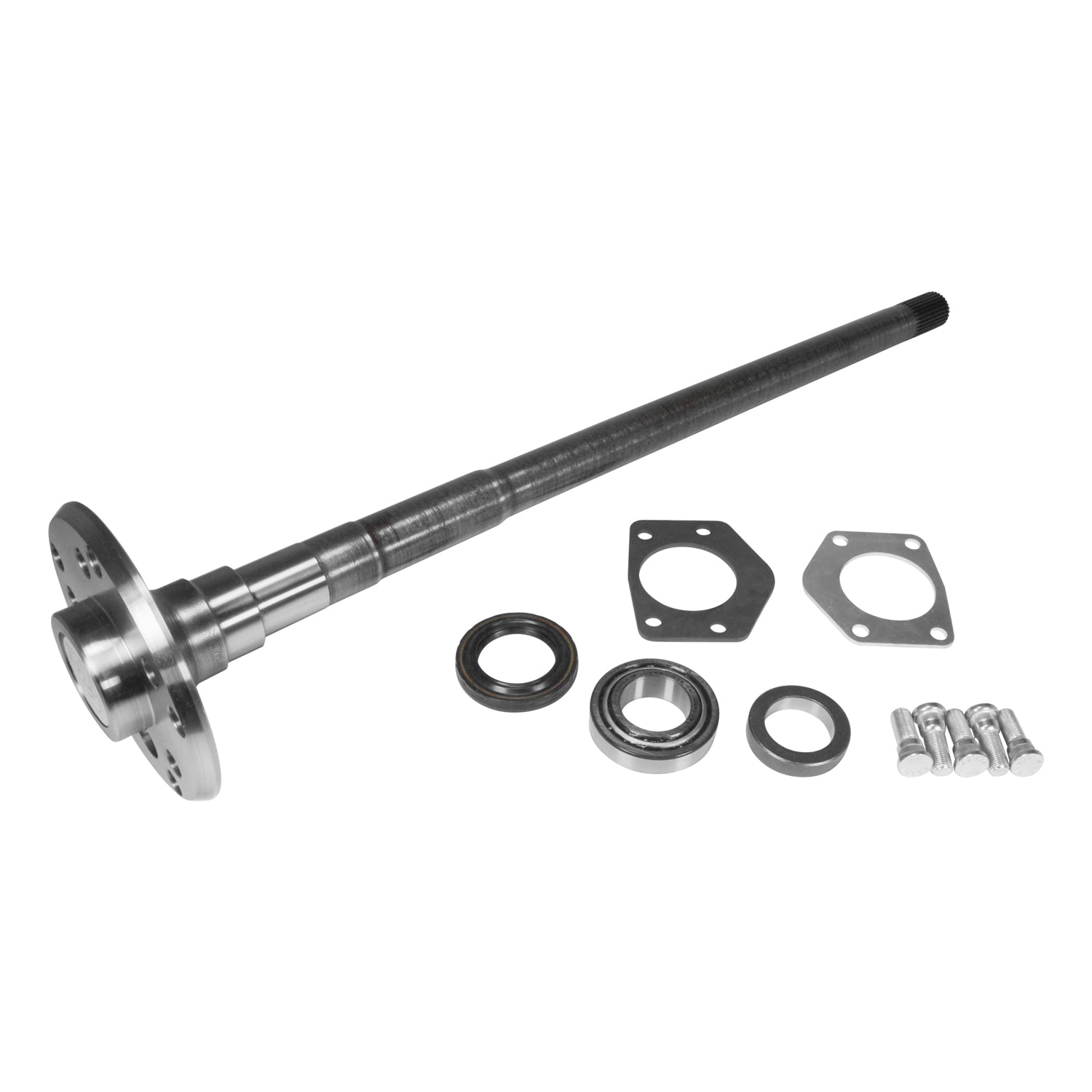

Yukon Gear YAD75786-1X Drive Axle Shaft
Product Availability Request
Fill the form and our team will contact you.
Yukon Gear and Axle offers an extensive line of general replacement and high performance axles for passenger car, truck and SUV applications. High quality alloys and the best in heat-treating technologies provide a strong axle for all uses
Yukon Gear & Axle offers an extensive line of general replacement and high-performance axles for passenger car, truck and SUV applications. High quality alloys and the latest in heat-treating technologies provide a stronger-than-stock axle for off-road, on the street, or at the track.
Features
- Fits 1997 and up Jeep TJ and XJ rear with Dana Spicer 44
- Right hand side
- 30 spline
- 29 3/4" long
- 5 x 4.5" and 5 x 5.5" bolt pattern
Specifications
| ABS Tone Ring Included | NO |
| Axle Bearing Included | YES |
| Axle Model | Dana 44 |
| Axle Shaft Seal Included | YES |
| Axle Type | Solid Axle |
| Bolt Hole Quantity | 5 |
| Full-Floating Or Semi-Floating Axle | Semi-Floating |
| Gasket Or Seals Included | YES |
| Inboard Spline Quantity | 30 |
| Lug Quantity | 5 |
| Retainer Included | YES |
| Shaft Length | 755.65 MM |
| Shaft Length | 29.75 IN |
| Shaft Material | 1541 H Alloy |
| Universal Joints Included | NO |
| Wheel Bolt Pattern Size | 5 X 4.50 |
| Wheel Nuts Included | NO |
| Wheel Studs Included | YES |
Note: FACTORY 4.10 RATIO w/ TRAC LOC had ABS, this axle does not include an ABS tone ring.
Short Description: Axle - Rear RH
Invoice Description: YA D75786-1X
Definition: Drive Axle Shaft
Installation Guide: Download PDF
Warranty: 10 Year
| Year | Make | Model |
|---|---|---|
| 1987-1993 | Jeep | Cherokee |
| 1986-1992 | Jeep | Comanche |
| 1987-1995 | Jeep | Wrangler |
| 1997-2006 | Jeep | Wrangler |
4 applications listed.
