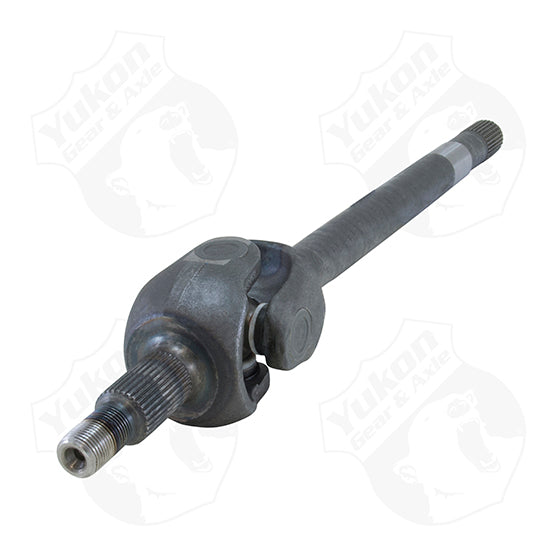

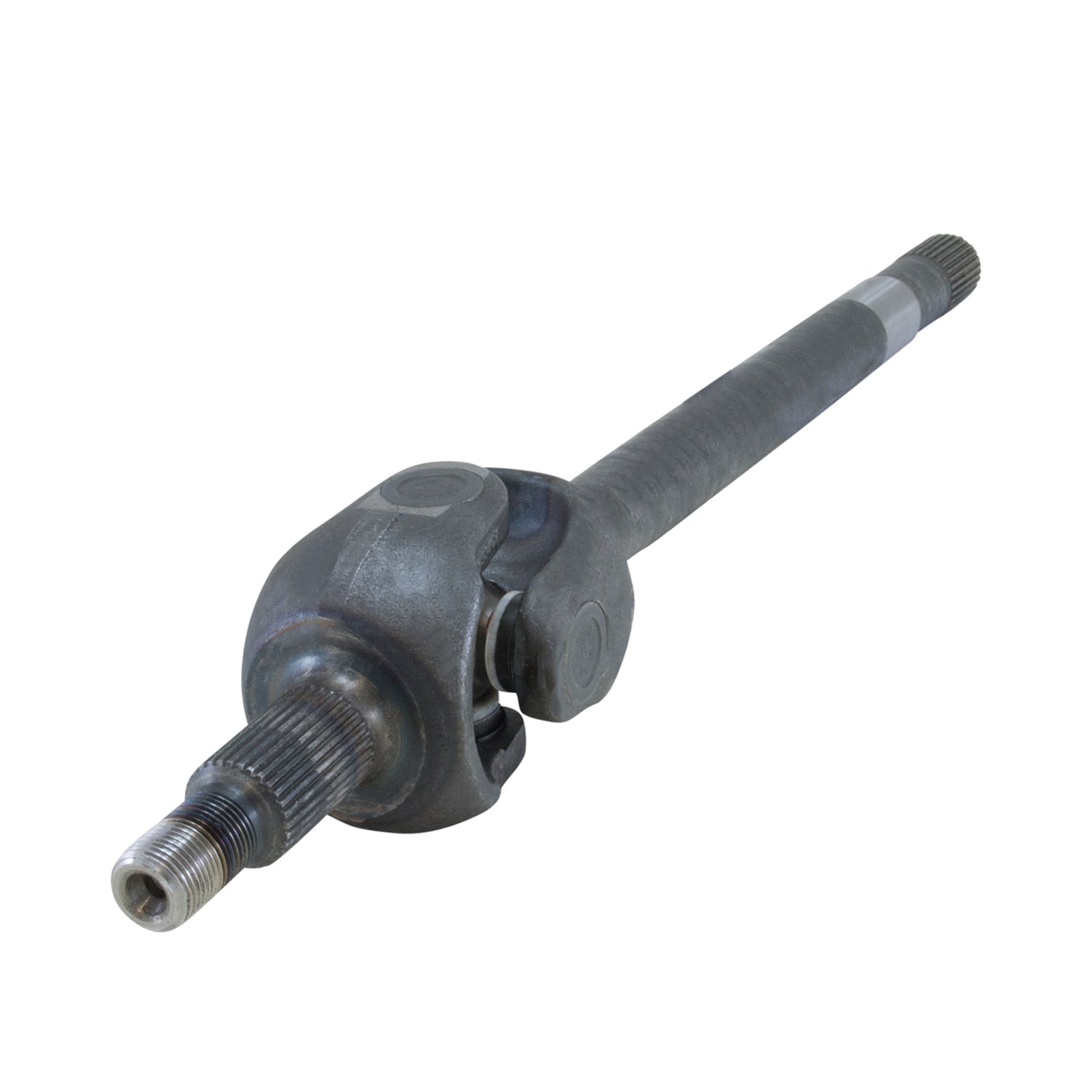

Yukon Gear YAD76812-1X Drive Axle Shaft Assembly
Product Availability Request
Fill the form and our team will contact you.
Yukon Gear and Axle offers an extensive line of general replacement and high performance axles for passenger car, truck and SUV applications. High quality alloys and the best in heat-treating technologies provide a strong axle for all uses
Yukon Gear & Axle offers an extensive line of general replacement and high-performance axles for passenger car, truck and SUV applications. High quality alloys and the latest in heat-treating technologies provide a stronger-than-stock axle for off-road, on the street, or at the track.
Features
- 15 inner and 33 spline outer
- 26.39" long
- Fits Dana Spicer 44 disconnect in 1994-2000 Dodge 1/2 ton and 3/4 ton
- Intermediate and outer assembly
- 5-760X U-joint size
Specifications
| ABS Tone Ring Included | NO |
| Axle Bearing Included | NO |
| Axle Model | Dana 44 |
| Axle Shaft Seal Included | NO |
| Axle Type | Solid Axle |
| Full-Floating Or Semi-Floating Axle | Semi-Floating |
| Gasket Or Seals Included | NO |
| Inboard Spline Quantity | 15 |
| Inner Axle Shaft Included | YES |
| Inner Shaft Length | 171.958 MM |
| Inner Shaft Length | 6.77 IN |
| Outboard Spline Quantity | 33 |
| Outer Shaft Length | 19.62 IN |
| Outer Stub Shaft Length | 498.348 MM |
| Retainer Included | NO |
| Shaft Length | 670.306 MM |
| Shaft Length | 26.39 IN |
| Shaft Material | 1541 H Alloy |
| Universal Joints Included | YES |
| Wheel Nuts Included | NO |
| Wheel Studs Included | NO |
Short Description: Axle Assembly - RH
Invoice Description: YA D76812-1X
Definition: Drive Axle Shaft Assembly
Installation Guide: Download PDF
Warranty: 10 Year
| Year | Make | Model |
|---|---|---|
| 1994-2000 | Dodge | Ram 1500 |
1 application listed.
