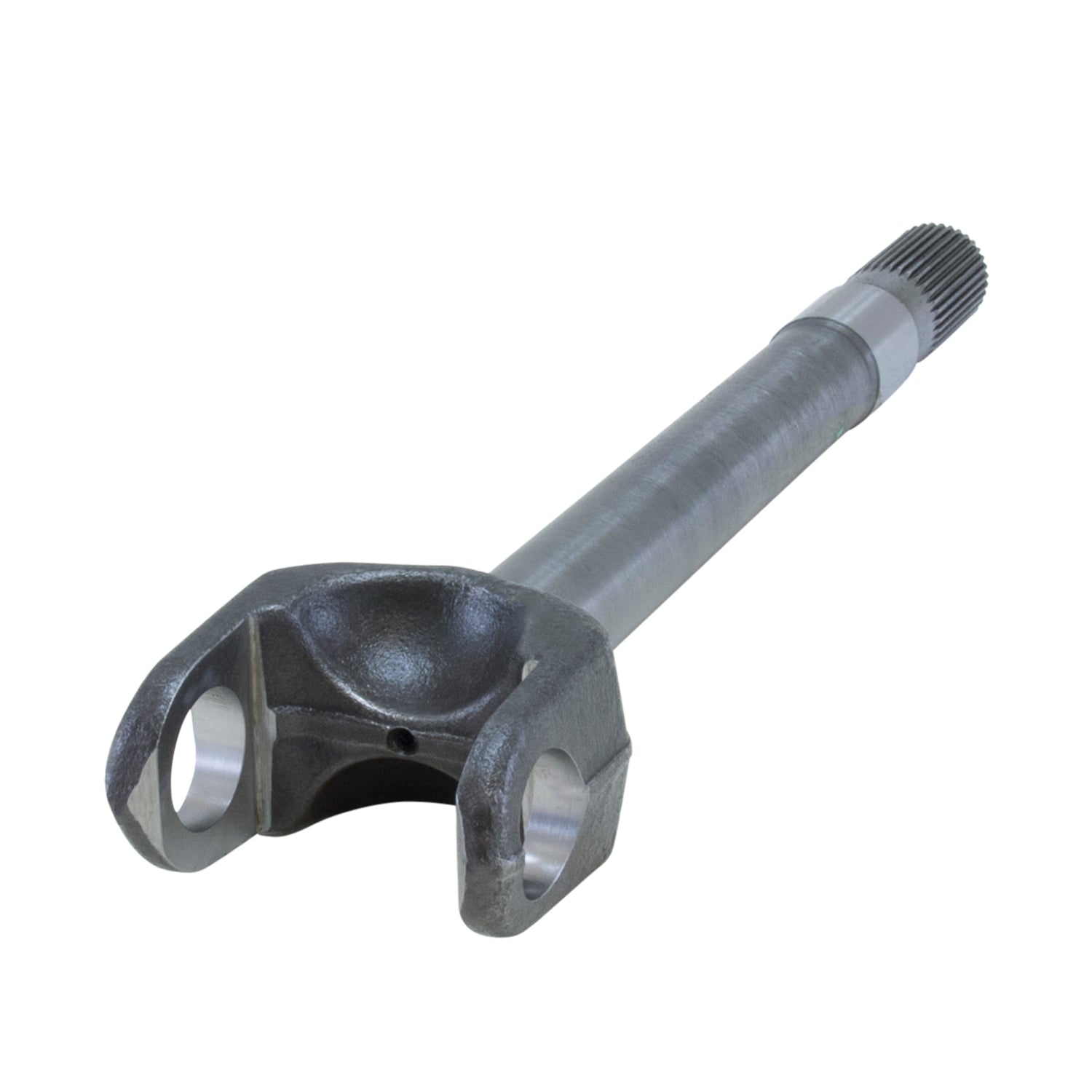

Yukon Gear YAW39252 Drive Axle Shaft
Product Availability Request
Fill the form and our team will contact you.
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability.
Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features
- Fits GM 8.5β differential
- 28 spline
- Measures 19.15β long
- Front inner axle, right-hand side
- Heavy duty 4340 chromoly construction
- Uses 5-760X Series u-joint
Specifications
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Axle Nut Included | No |
| California Proposition 65 | Not Applicable |
| CV Joints Included | No |
| Inboard Spline Quantity | 28 |
| Rust Resistant Coating | No |
| Shaft Length | 19.15 IN |
| Shaft Material | 4340 Nickel Chromoly Steel |
Note: This axle is larger in diameter than stock 28 spline axles. You will need to purchase carrier case part number YC G26010481 in order to use these axles.
Short Description: Chromoly Axle Shaft
Invoice Description: YA W39252
Definition: Drive Axle Shaft
Installation Guide: Download PDF
| Year | Make | Model |
|---|---|---|
| 1987 | Chevrolet | Blazer |
| 1979-1986 | Chevrolet | K10 Suburban |
| 1979-1986 | Chevrolet | K10 |
| 1979-1986 | Chevrolet | K20 Suburban |
| 1979-1986 | Chevrolet | K20 |
| 1979-1986 | Chevrolet | K5 Blazer |
| 1987-1988 | Chevrolet | V10 Suburban |
| 1987 | Chevrolet | V10 |
| 1987-1988 | Chevrolet | V20 Suburban |
| 1987 | Chevrolet | V20 |
| 1979-1985 | GMC | K1500 Suburban |
| 1979-1986 | GMC | K1500 |
| 1979-1986 | GMC | K2500 Suburban |
| 1979-1986 | GMC | K2500 |
| 1987 | GMC | V1500 Suburban |
| 1987 | GMC | V1500 |
| 1987 | GMC | V2500 Suburban |
| 1987 | GMC | V2500 |
18 applications listed.
