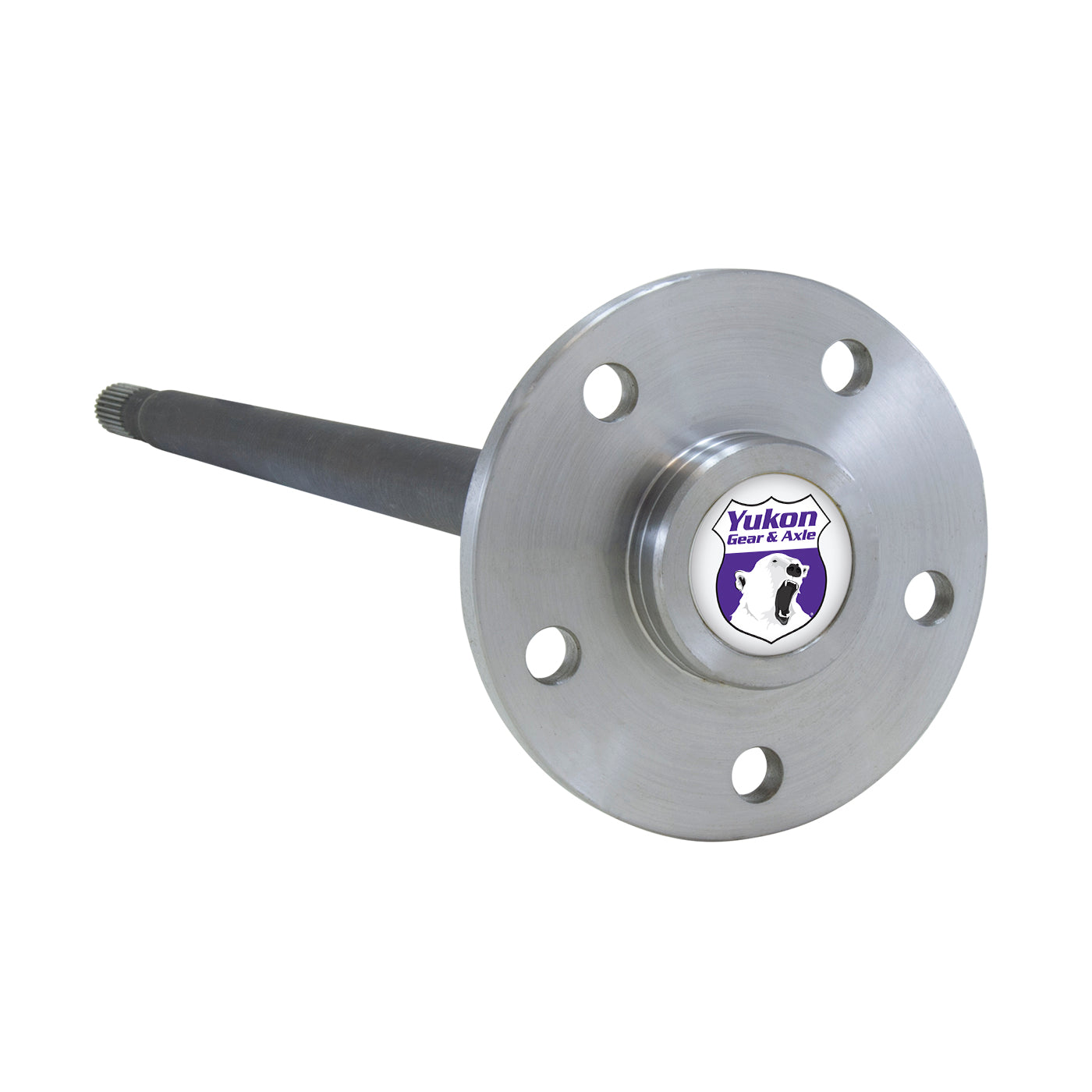

Yukon Gear YAWM35C-27-L-HD Drive Axle Shaft
Couldn't load pickup availability
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability.
Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features
- Fits Jeep AMC Model 35 with C-clips & drum brakes
- 30-11/16" long
- 27 spline
- Left hand side
- 4340 Chromoly
Specifications
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Axle Nut Included | No |
| Axle Shaft Seal Included | No |
| Axle Type | Semi-Floating |
| Brake Hardware Included | No |
| California Proposition 65 | Not Applicable |
| CV Joints Included | No |
| Inboard Spline Quantity | 27 |
| Rust Resistant Coating | No |
| Shaft Length | 30.68 IN |
| Shaft Material | 4340 Nickel Chromoly Steel |
Note: This axle does not come with ABS ring. Re-use old ABS ring. This axle requires screw-in axle studs (part number YSPSTUD-010). Double drilled flange for 5x4.5" & 5x5.5" bolt patterns
Short Description: Chromoly Axle Shaft
Invoice Description: YA WM35C-27-L-HD
Definition: Drive Axle Shaft
Installation Guide: Download PDF
