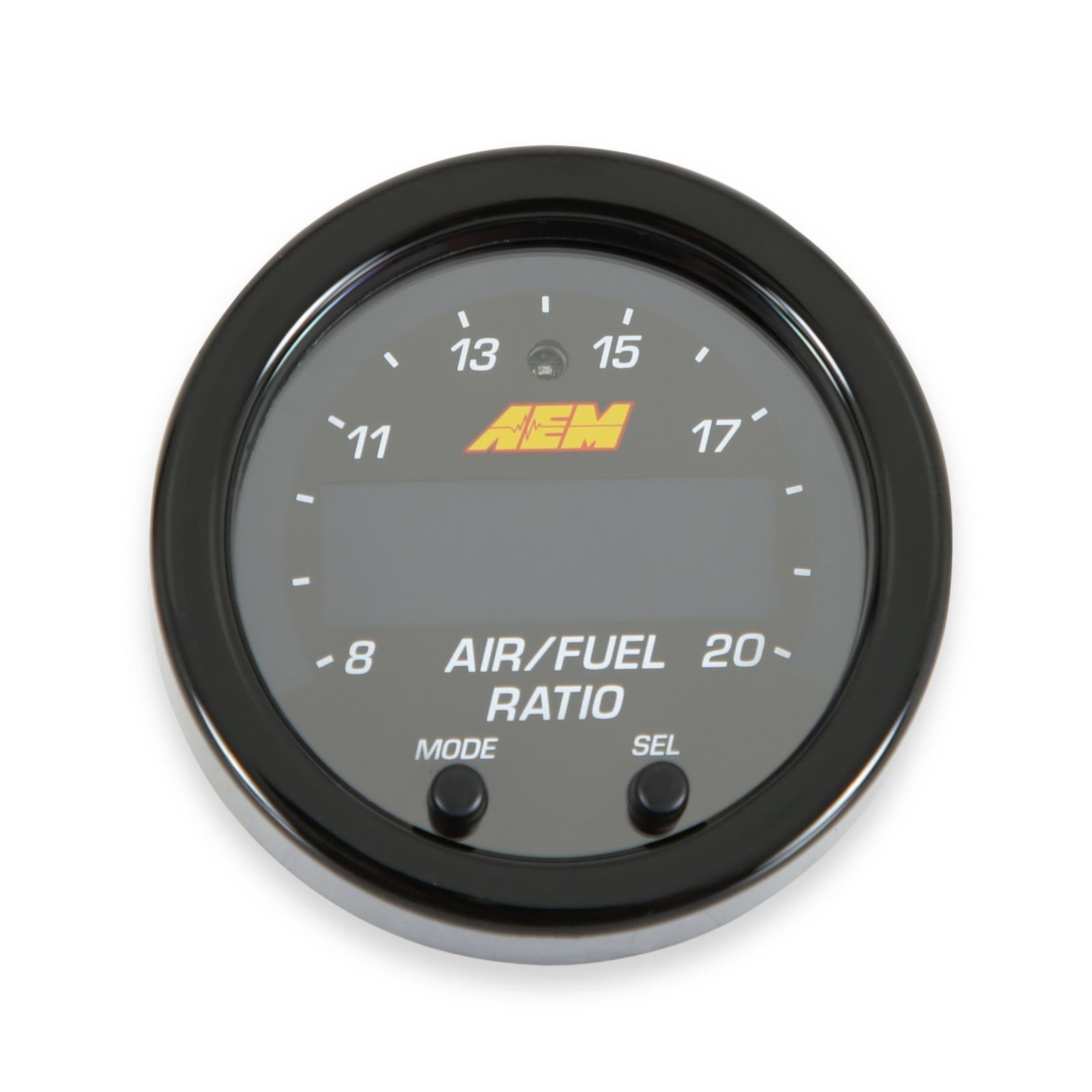

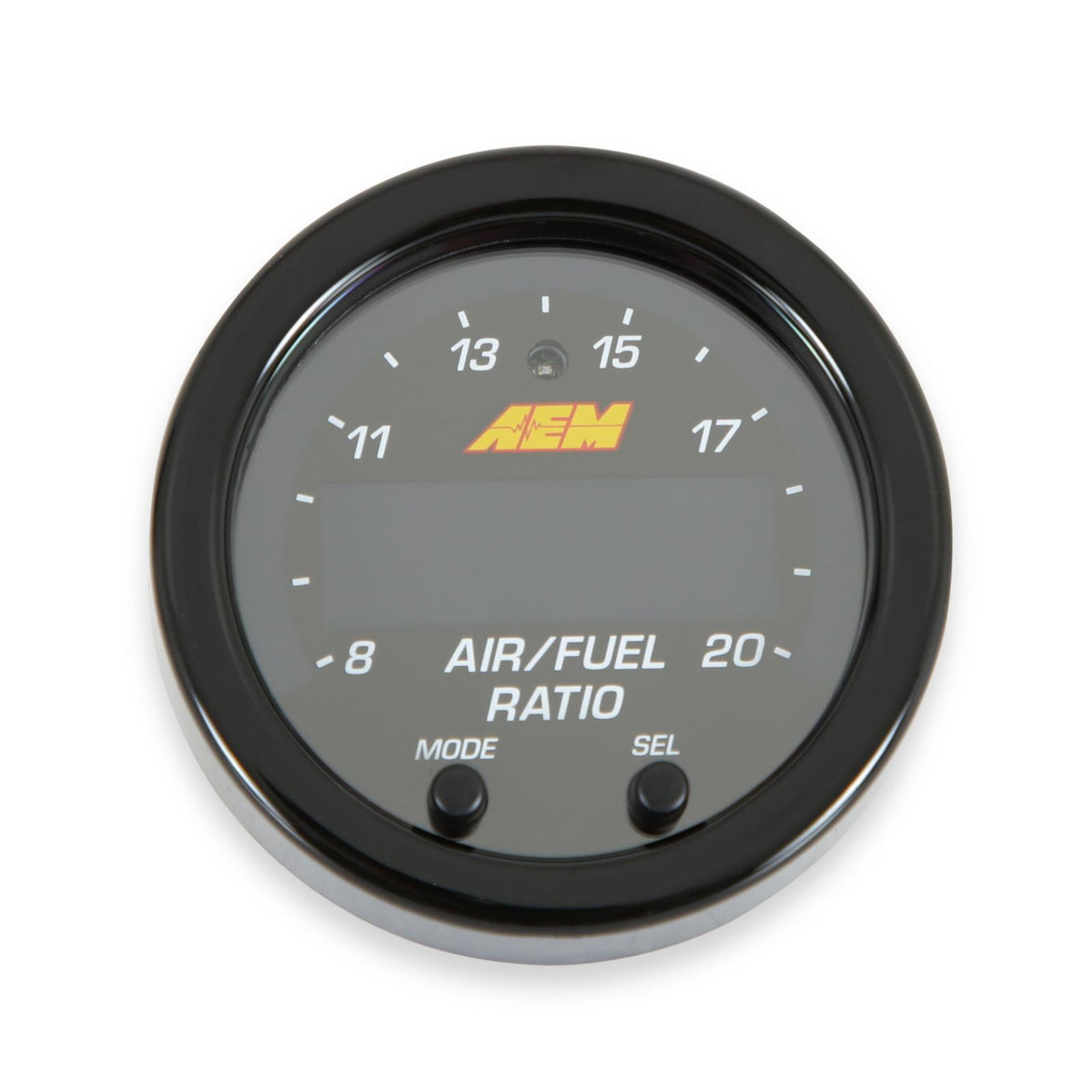

AEM Electronics 30-0300NS - X-Series Wideband UEGO AFR Gauge Only (no sensor) X-Digital Technology 8.501 to 181 AFR Scale AEM Electronics
Couldn't load pickup availability
The AEM Wideband X-Series Uego AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change AFR values for different fuels, Lambda or O2 percent, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges.
A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately).
An Auto Dimming feature is included.
Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge's durability.
- Silver bezel and white face plates kit
- Silver bezel/white gauge option
- X-Series Wideband Uego AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
- Patented X-Digital wideband technology
- Includes Bosch 4.9LSU wideband Uego sensor
- Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
- Compatible with vehicle/system voltages up to 16V
- 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
- Can display AFR values in hundredths of percent
- 52mm gauge diameter and slim 0.825 inch gauge depth
- Gauge cup depth only .200 inch deep
- Auto dimming feature
- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2 percent, and 3- or 4-digit display
Details:
- Brand: AEM
- Gauge Diameter: 2 1/16 Inch
- Warranty: Manufacturer's 1 Year Warranty
Warranty
Manufacturer's 1 Year Warranty
