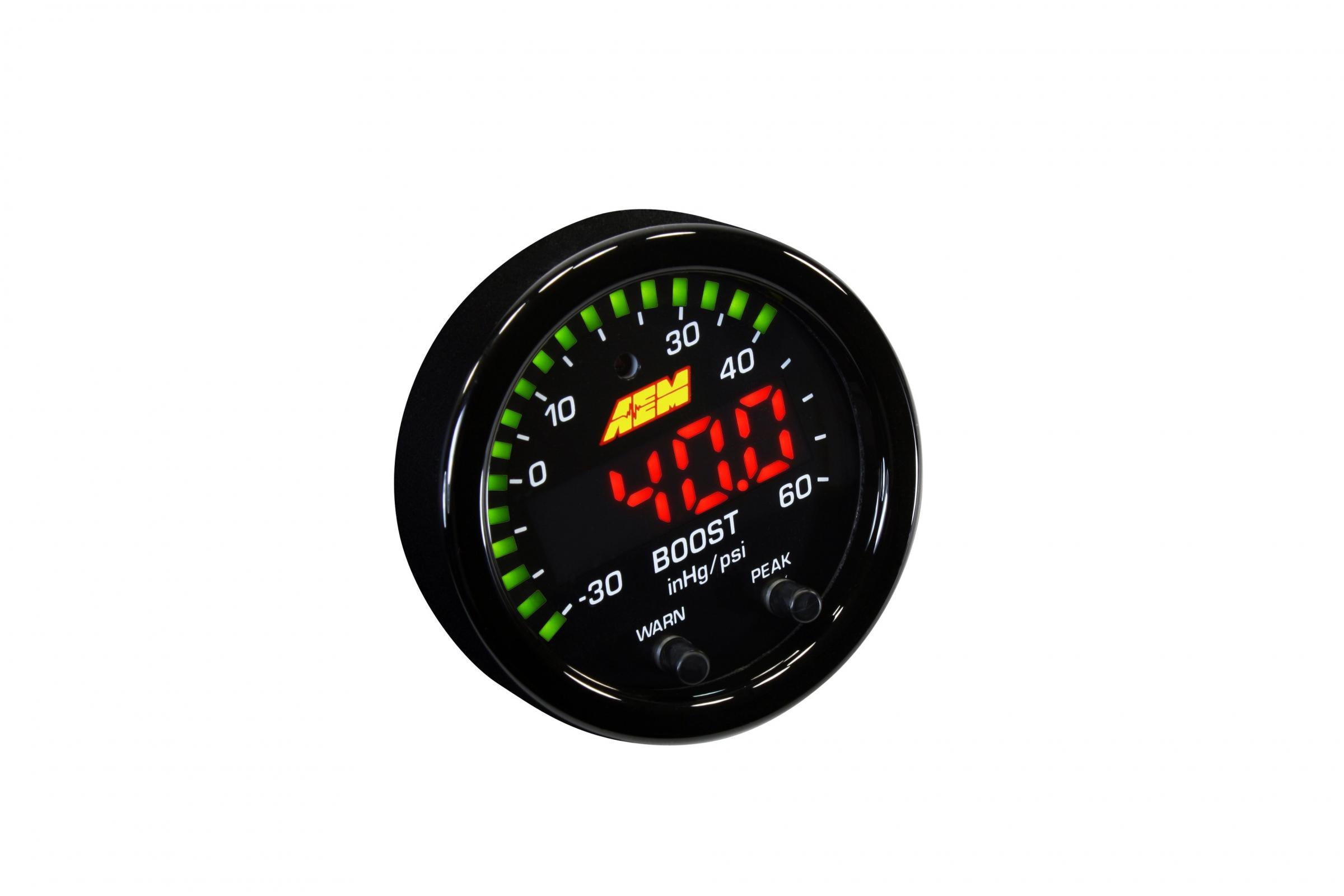

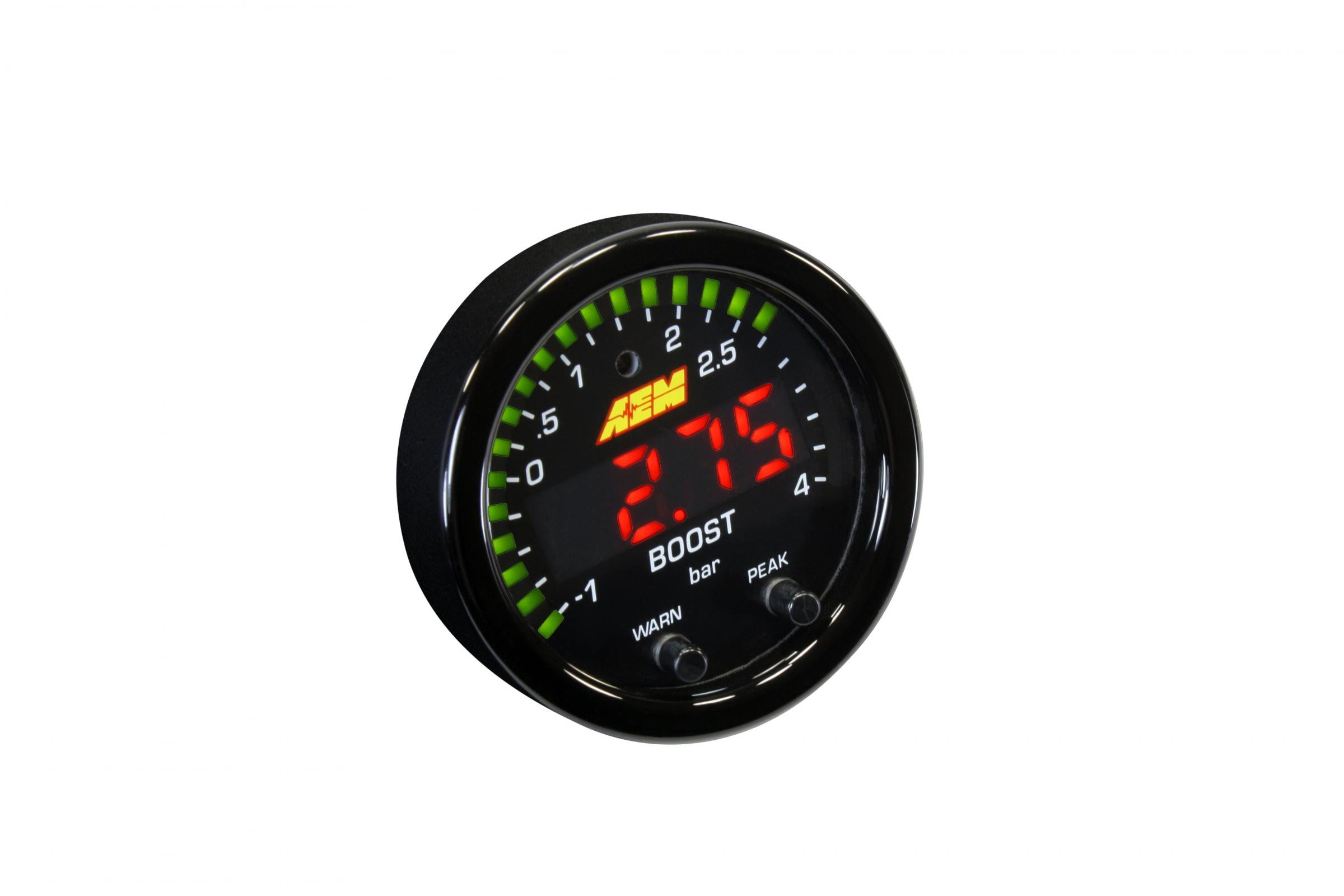

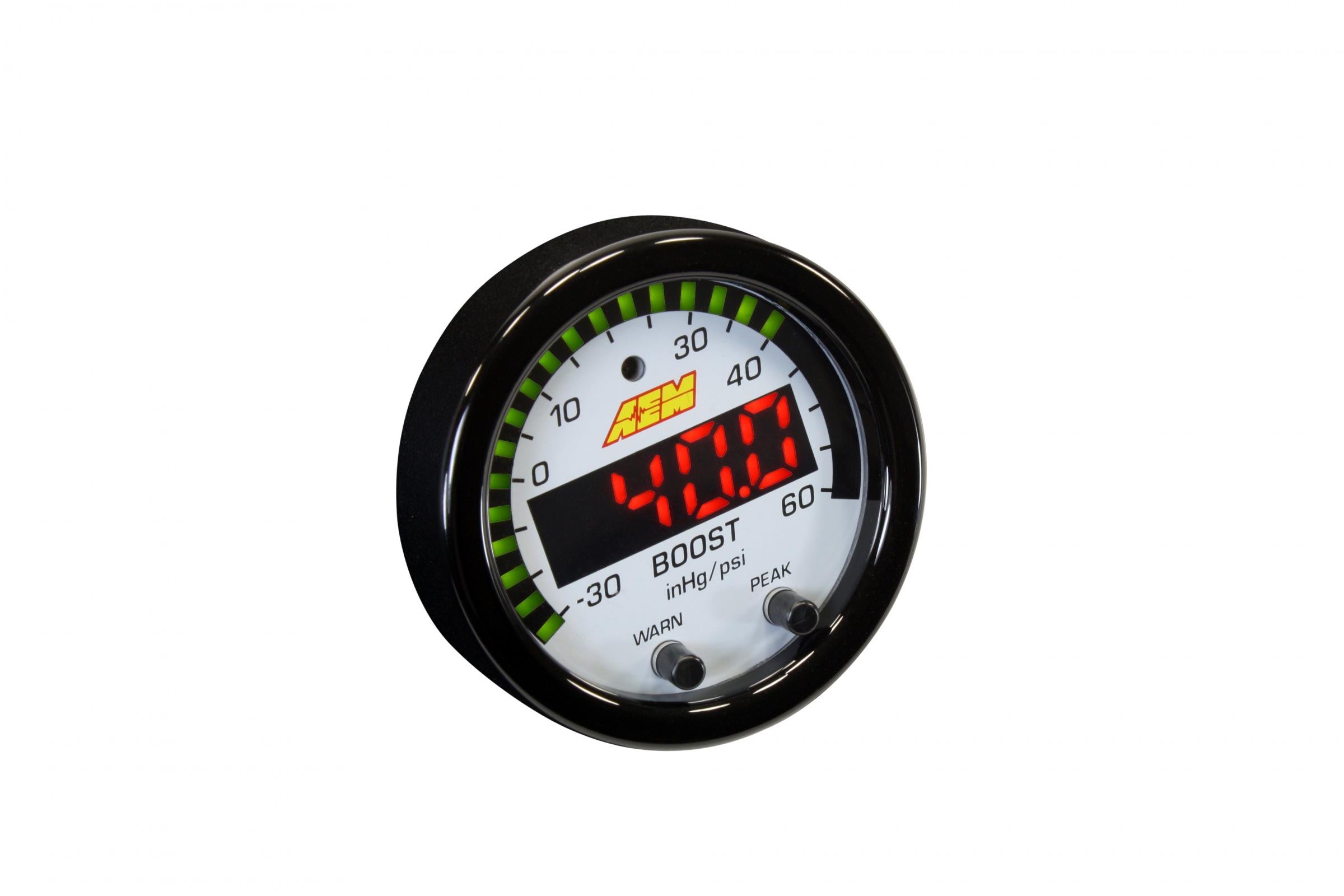

AEM Electronics 30-0308 - X-Series Boost Pressure Gauge Kit 30 in/hg to 60 PSI AEM Electronics

AEM's 30-0307 X-Series 150 PSI/10 BAR Digital Oil Pressure gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features!

It is a must for users who want highly accurate oil or fuel pressure readouts in their high performance vehicle.

• Note: The 30-0307 comes with a black bezel and black oil pressure faceplate. You will need to purchase the optional 30-0307-ACC accessory kit to get the silver bezel and white oil pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge
• Easer to read
• Visual improvements include a bright center LED display that is 87 percent larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33 percent overall increase in the gauge face display makes it easier to see at a glance
• Easier to Mount
• Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825 inch, with a cup depth of only 0.200. inch This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere
• SMARTER INTERFACE
• X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825 inch overall gauge depth and 0.200 inch cup depth - mount them virtually anywhere!
• Programmable center LED is 87 percent larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• User selectable standard or metric display (0-100 PSI/0-7 BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings

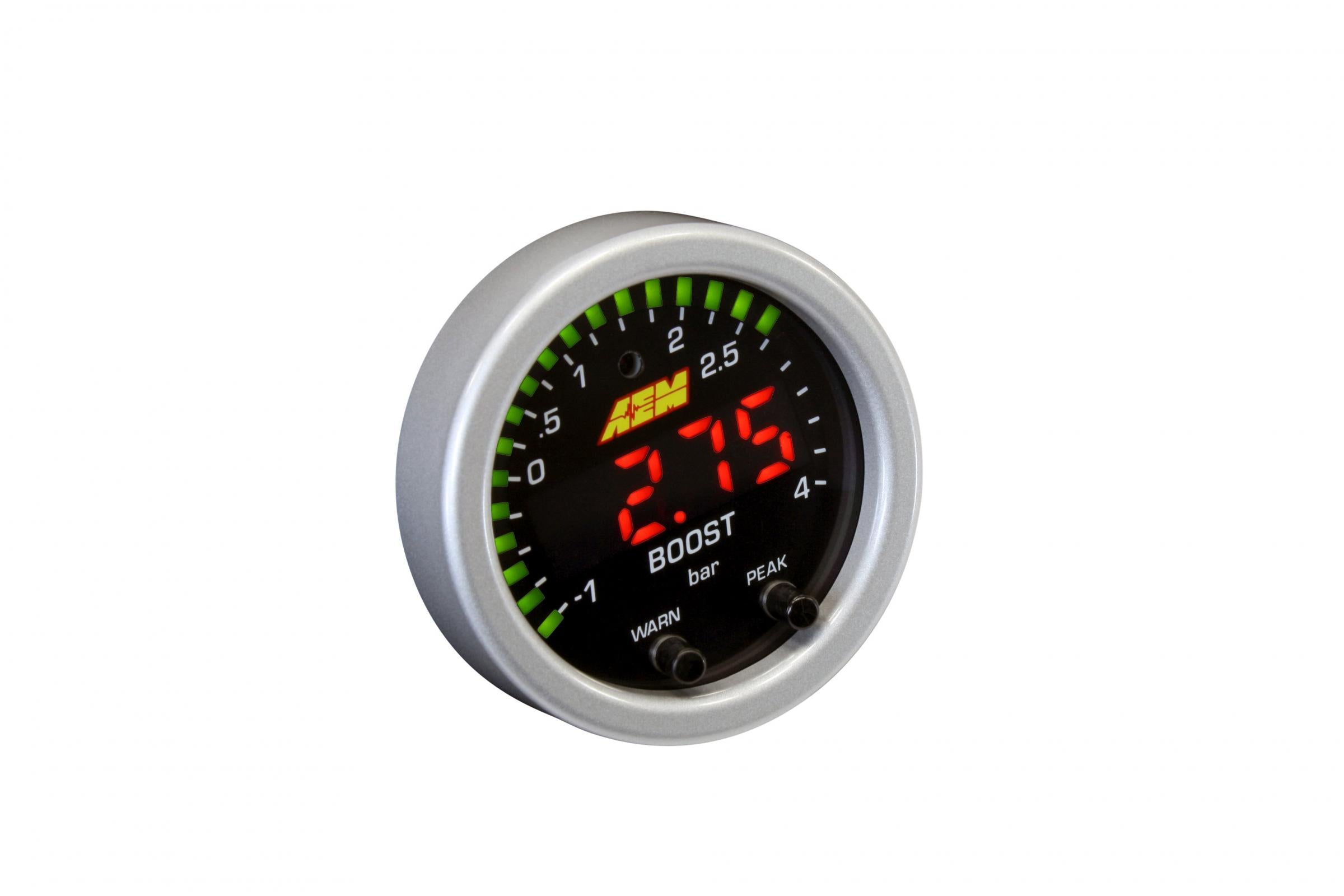

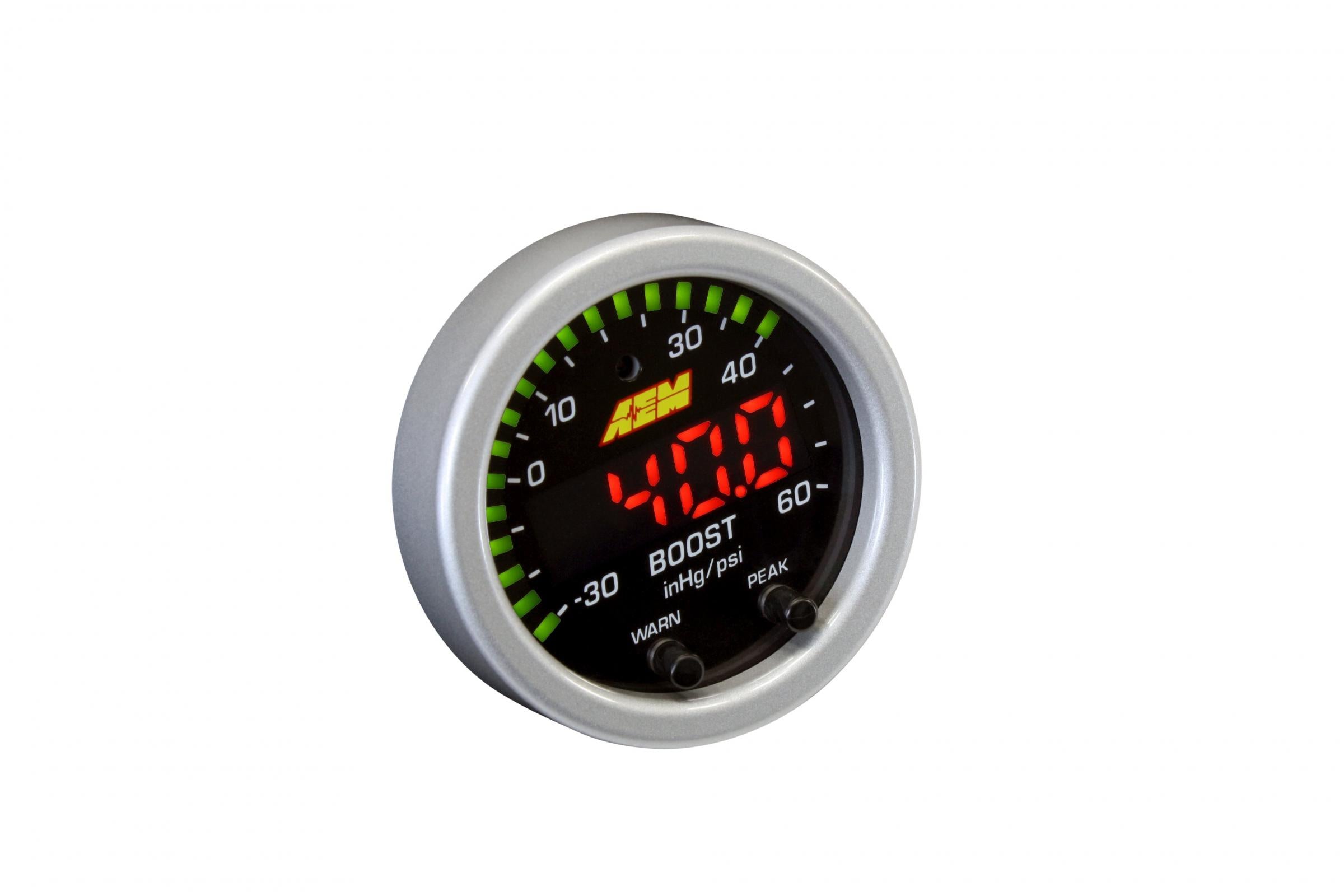

• Optional silver bezel and white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection

Details:

• Brand: AEM
• Gauge Diameter: 2 1/16 Inch
• Warranty: Manufacturer's 1 Year Warranty

Warranty

Manufacturer's 1 Year Warranty
