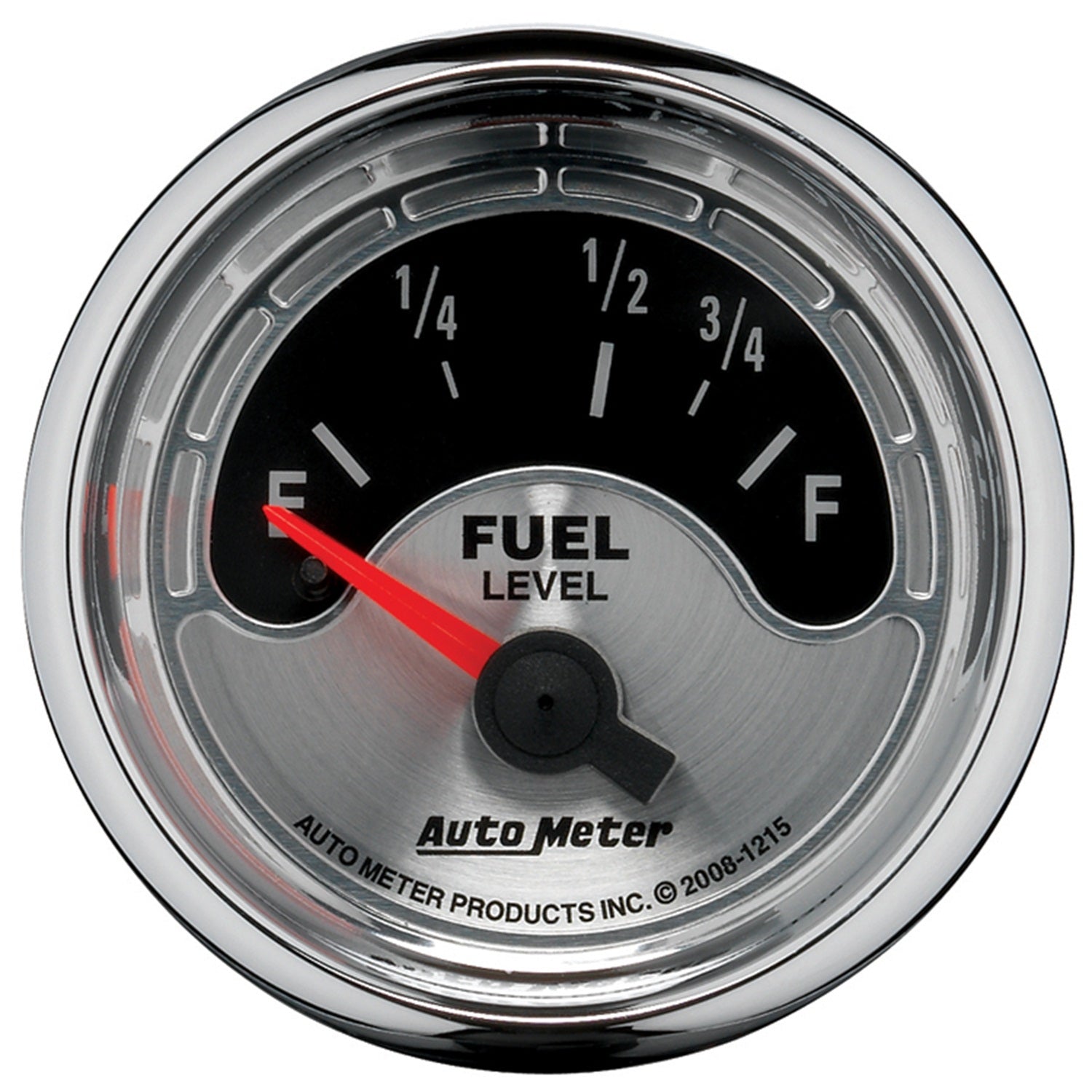

AutoMeter 1215 - GAUGE, FUEL LEVEL, 2 1/16", 73OE TO 10OF, ELEC, AMERICAN MUSCLE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" FUEL LEVEL, 73-10 Ohm, AM MUSCLE
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Features
- Highly polished chrome bezel
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Upsell | 3298, 9114, 2343, 2160 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Range | 73 O Empty / 10 O Full (NON-LINEAR) |
| Series | AMERICAN MUSCLE |
| Bezel Color | Chrome |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Cross Sell | 3298, 9114, 2343, 2160 |
| Gauge Type | Fuel Level |
| Lighting Type | LED |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Lighting Color | White |
Short Description: GA 2" FUEL 73-10 AM
Invoice Description: 2-1/16" FUEL LEVEL, 73E/ 10F, SSE, AM MU
Definition: Fuel Level Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
