AutoMeter 1236 - GAUGE, WATER TEMP, 2 1/16", 250?F, ELEC, AMERICAN MUSCLE
Product Availability Request
Fill the form and our team will contact you.

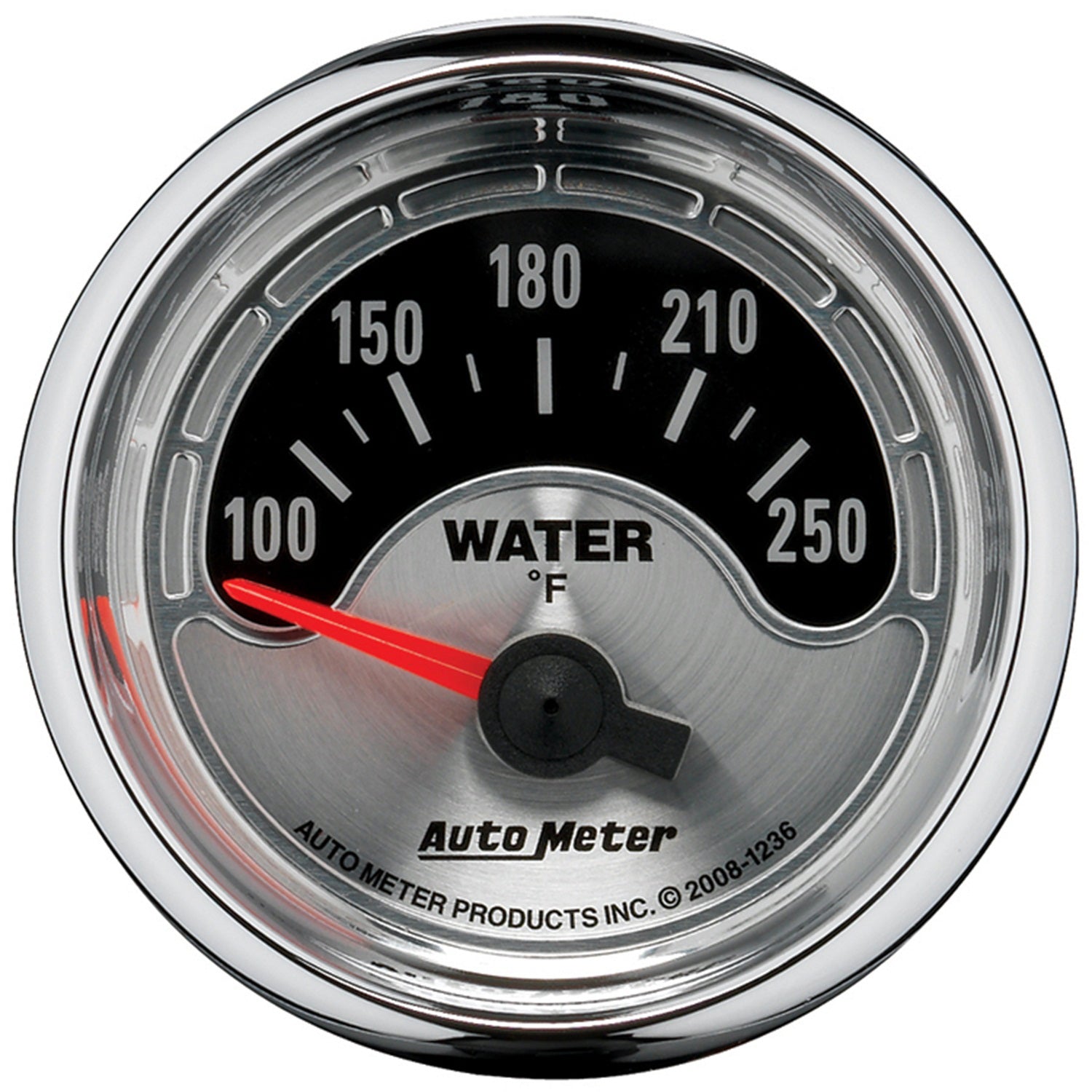

2-1/16" WATER TEMPERATURE, 100-250 F, AMERICAN MUSCLE
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.
Features
- Highly polished chrome bezel
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

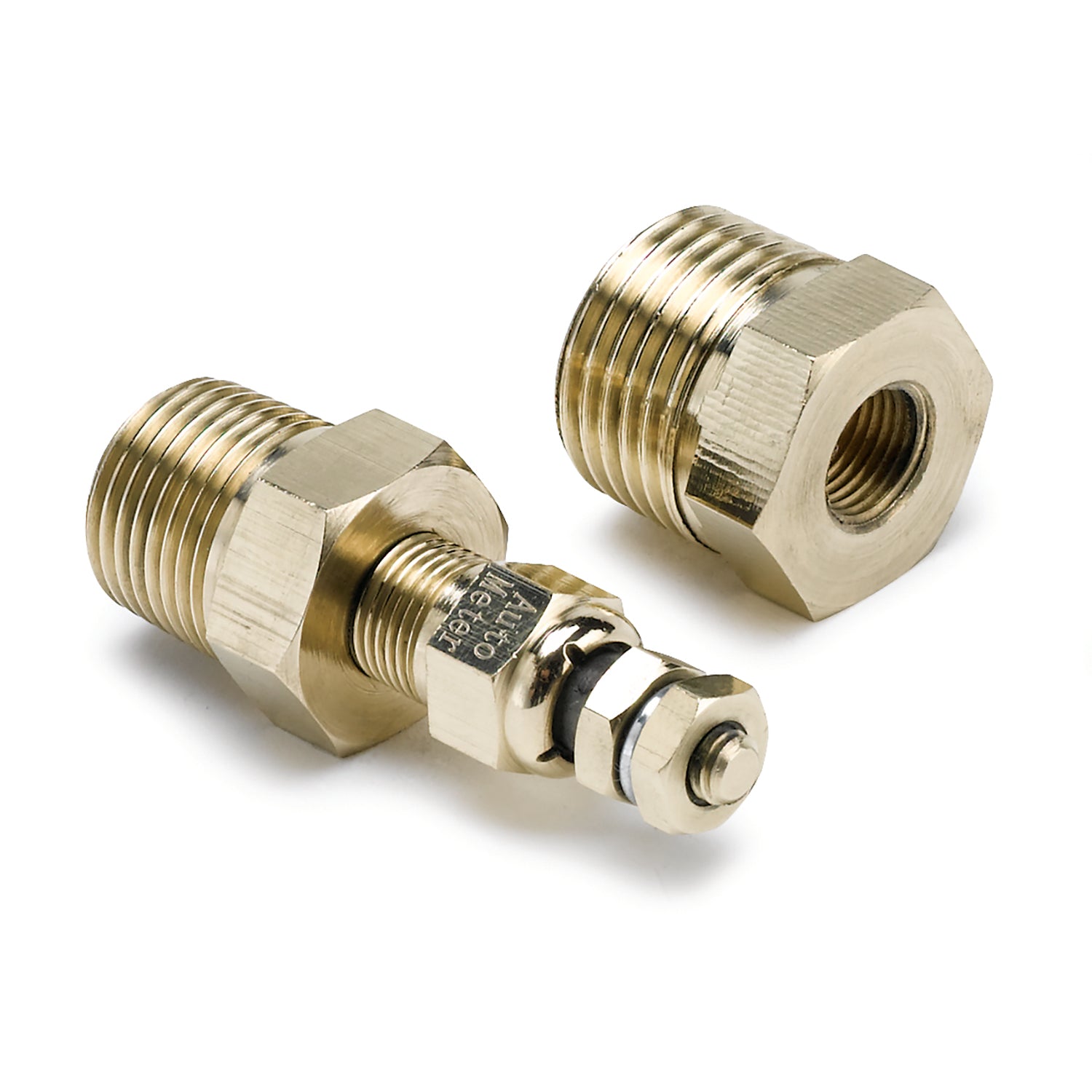

- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 100-250 °F |
| Includes Sensor Unit | 2258 |
| Cross Sell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Upsell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Series | AMERICAN MUSCLE |
| Bezel Color | Chrome |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Gauge Type | Water Temperature |
| Lighting Color | White |
Note: Sender and Harnesses
Short Description: GA 2" WTEMP ELEC AM
Invoice Description: 2-1/16" WATER TEMP, 100- 250`F, SSE, AM
Definition: Engine Coolant Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
