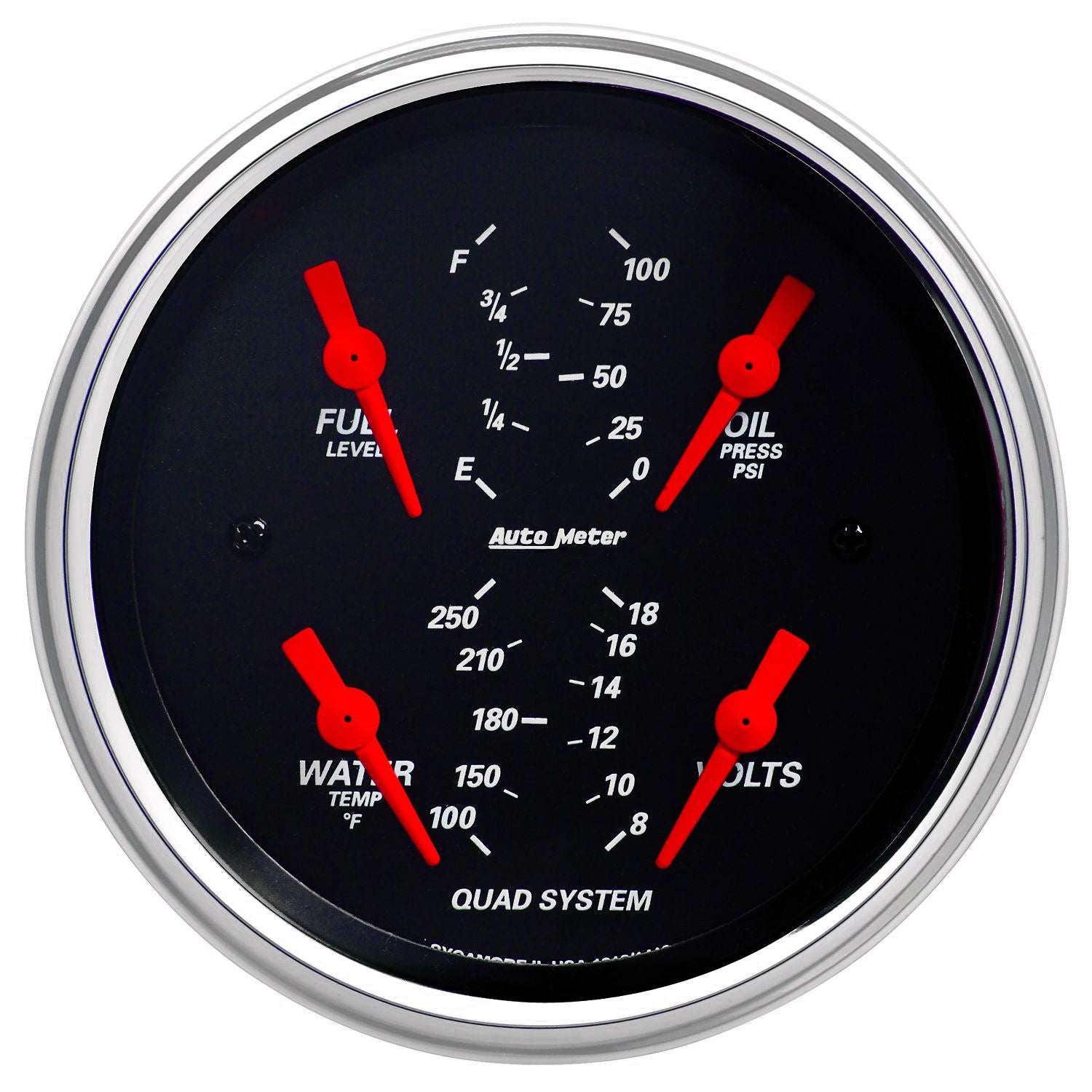

AutoMeter 1412 - GAUGE, QUAD, 3 3/8", 240OE-33OF, ELEC, DESIGNER BLACK
Product Availability Request
Fill the form and our team will contact you.
3-3/8" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, DESIGNER BLACK
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8β NPT temperature sender and a 1/8β NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeterβs 3262 fuel level sender).
Features
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeterβs race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 100 PSI/100-250 Β°F/8-18V/240OE-33OF |
| Related Item | 2160, BEX-1500, EP-800, 0423XL |
| Cross Sell | 2277, 2268, 2283, 2282, 2280, 3288 |
| Upsell | 2277, 2268, 2283, 2282, 2280, 3288 |
| Outer Bezel Diameter | 3-3/4" IN |
| Cup/Hole Size - Standard - IN | 3-3/8" IN |
| Outer Bezel Diameter - Standard | 3-3/8" IN |
| Size - Standard - IN | 3-3/8" IN |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3211 |
| Cup/Hole Size - Metric - MM | 85.7mm MM |
| Size - Metric - MM | 85.7mm MM |
| Dial Color | Black |
| Includes Mounting Hardware | Bracket Included |
| Bezel Color | Chrome |
| Series | DESIGNER BLACK |
| Lens Style | Domed, Clear |
| Movement | Electric, Air-Core |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Includes Sensor Unit | Oil Sender 2242 - Water Sender 2258 |
| Gauge Type | Quad Gauge |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Street Rod |
| Lighting Color | White Incandescent |
Short Description: GA 3.4" QD 240-33 DB
Invoice Description: 3-3/8" QUAD GAUGE, DESIGNER BLACK
Definition: Electronic Multi-Purpose Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
