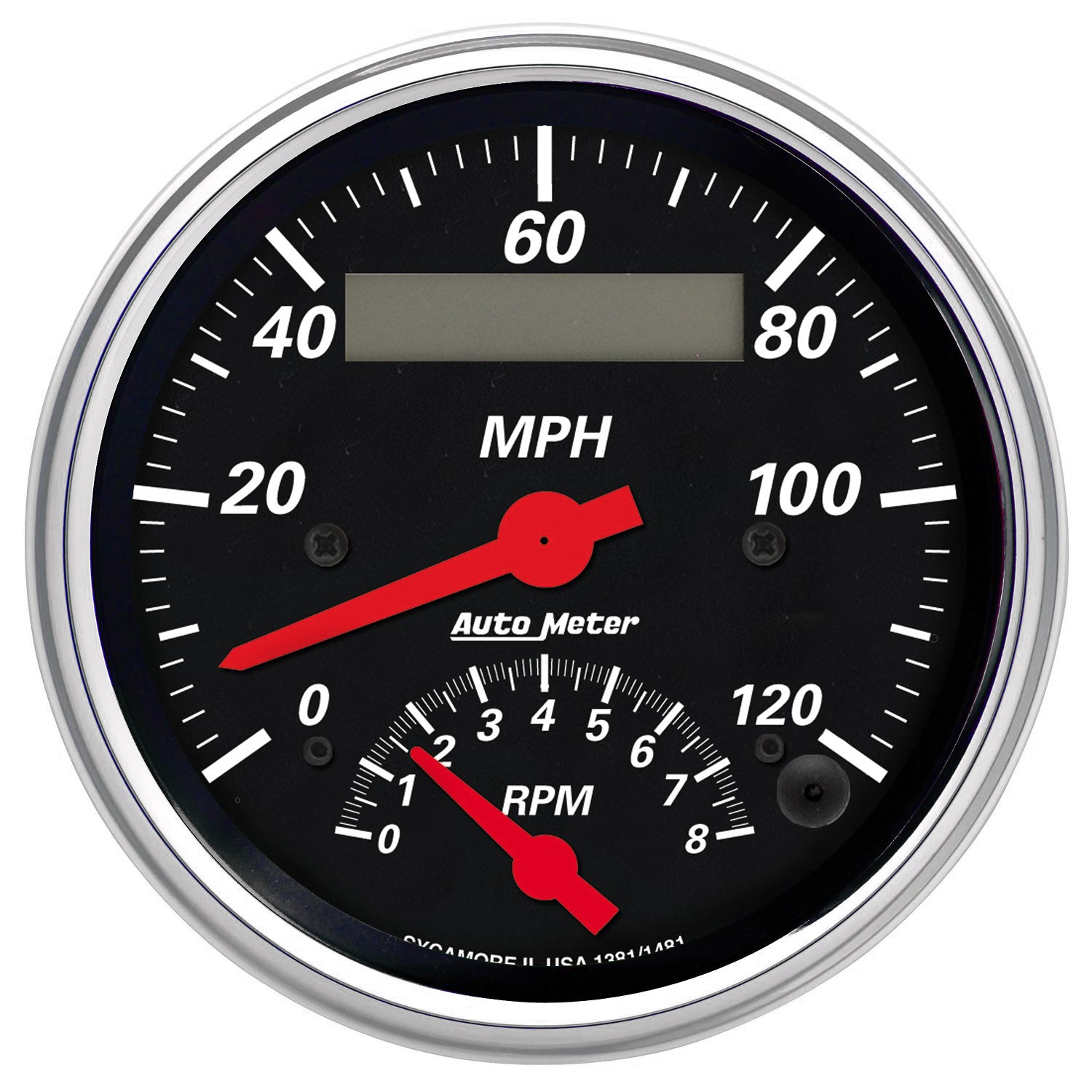

AutoMeter 1481 - GAUGE, TACH/SPEEDO, 3 3/8", 120MPH & 8K RPM, ELEC. PROGRAM., DESIGNER BLK

Designed to save dashboard space while maintaining accuracy, the AutoMeter 1481 Designer Black combines tachometer and speedometer functions into one gauge with air-core electric movement and fast response time. This combo unit is compatible with 1 to 12-cylinder engines and nearly any factory speed sender, using 0.5 to 6-pulse ignition signals with points, electronic, or 12-volt high-performance ignitions. The 3-3/8-inch chrome bezel with black dial and domed lens fits standard in-dash mounting holes of 85.7 millimeters, with simple push-button calibration via a 2-mile drive sequence for adjusting gear ratio or tire size changes.

• Gauge Type: Tachometer/Speedometer Combo
• Series: Designer Black
• Tachometer Range: 0-8,000 rpm
• Speedometer Range: 0-120 mph
• Compatible Cylinder Count: 1-12 cylinder
• Voltage Compatible: 12 volt
• Ignition Signal Compatibility: 0.5-6 pulse (points, electronic, 12V high-performance)
• Bezel Size Standard: 3-3/8 in
• Bezel Size Metric: 85.7 mm
• Bezel Style: Street Rod
• Bezel Color: Chrome
• Dial Color: Black
• Pointer Color: Fluorescent Red
• Movement Type: Electric, Air-Core
• Lens Style: Domed, Clear
• Lighting Type: Incandescent
• Lighting Color: White Incandescent
• Includes Bulb and Socket: 3212
• Includes Light Covers: Red 3214 & Green 3215
• Includes Mounting Hardware: Bracket Included
• Speedometer: Compatible with two-wire sine wave and three-wire hall effect speed sensors
• Calibration: Push-button with 2-mile drive sequence
• Includes: Installation instructions
• Outer Bezel Diameter: 3-3/4"
• Cup/Hole Size - Metric - MM: 85.7mm
• Size - Metric - MM: 85.7mm
