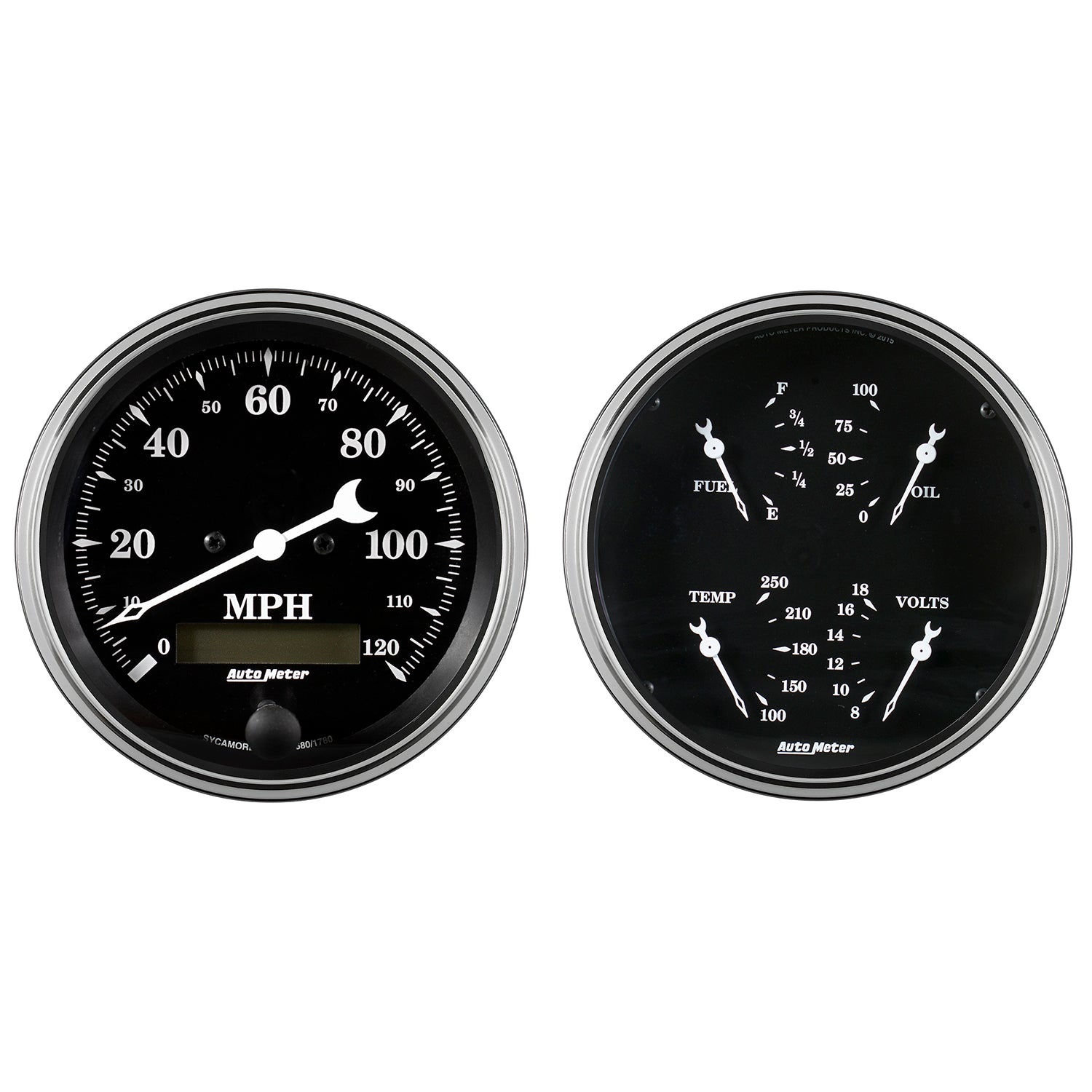

AutoMeter 1703 Gauge Set

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).

Features

• Traditional incandescent lighting illuminates around the perimeter of the dial
• oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
• sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
• bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• Kit includes fuel level sender (240E/33F)

Specifications

Note: OLD TYME BLACK

Short Description: 5" QUAD GAUGE & SPEE

Invoice Description: 5" QUAD GAUGE & SPEEDO, OLD TYME BLACK

Definition: Gauge Set

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
