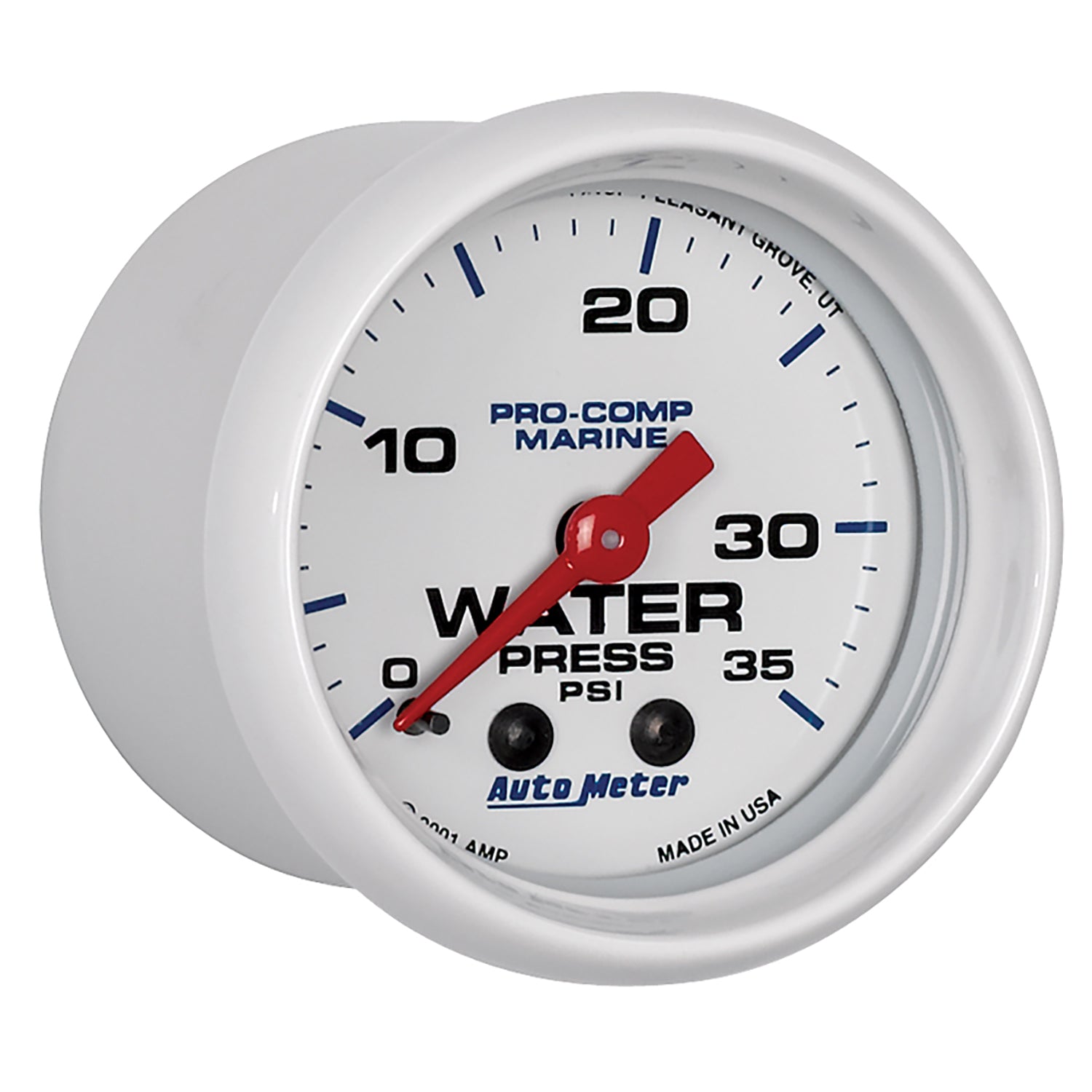

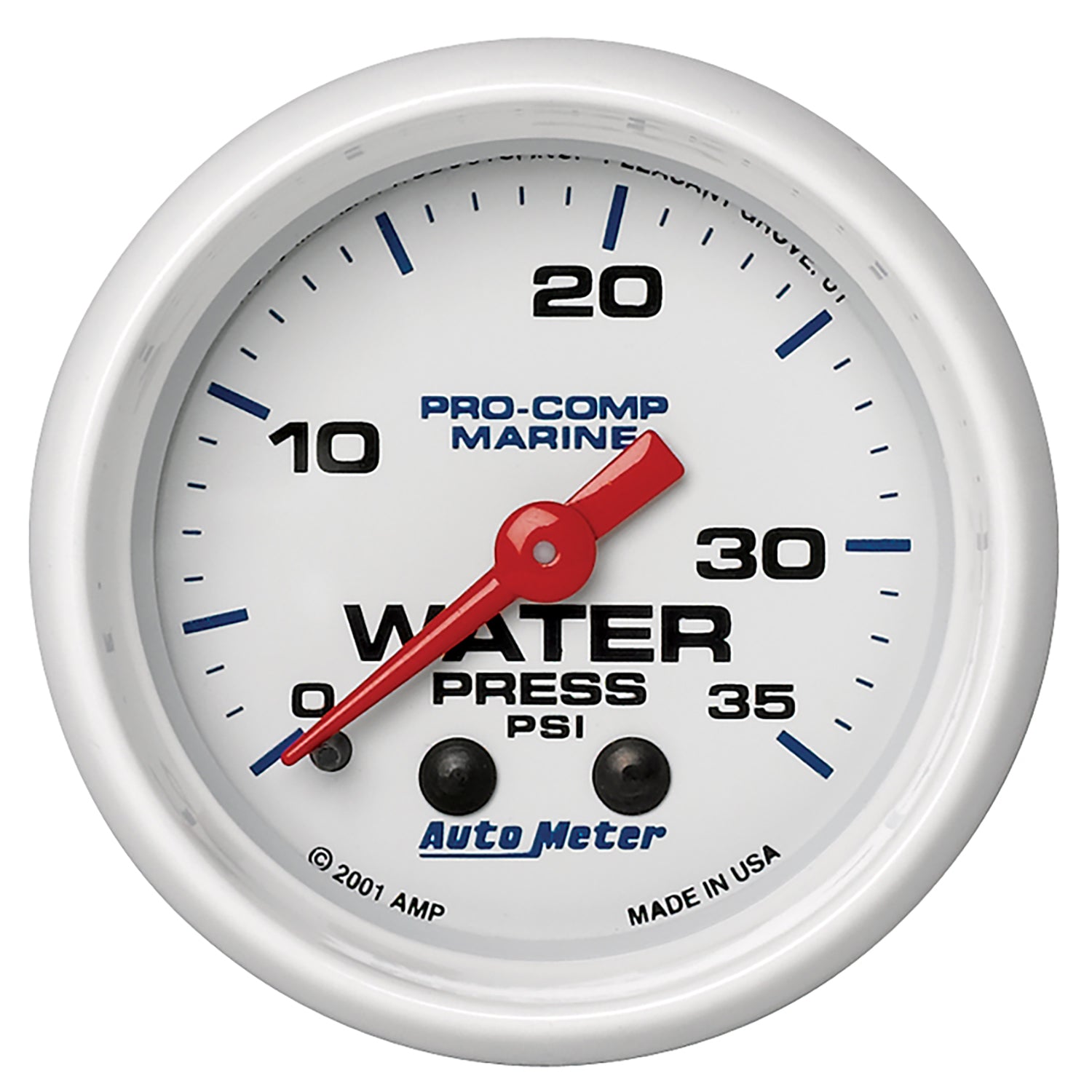

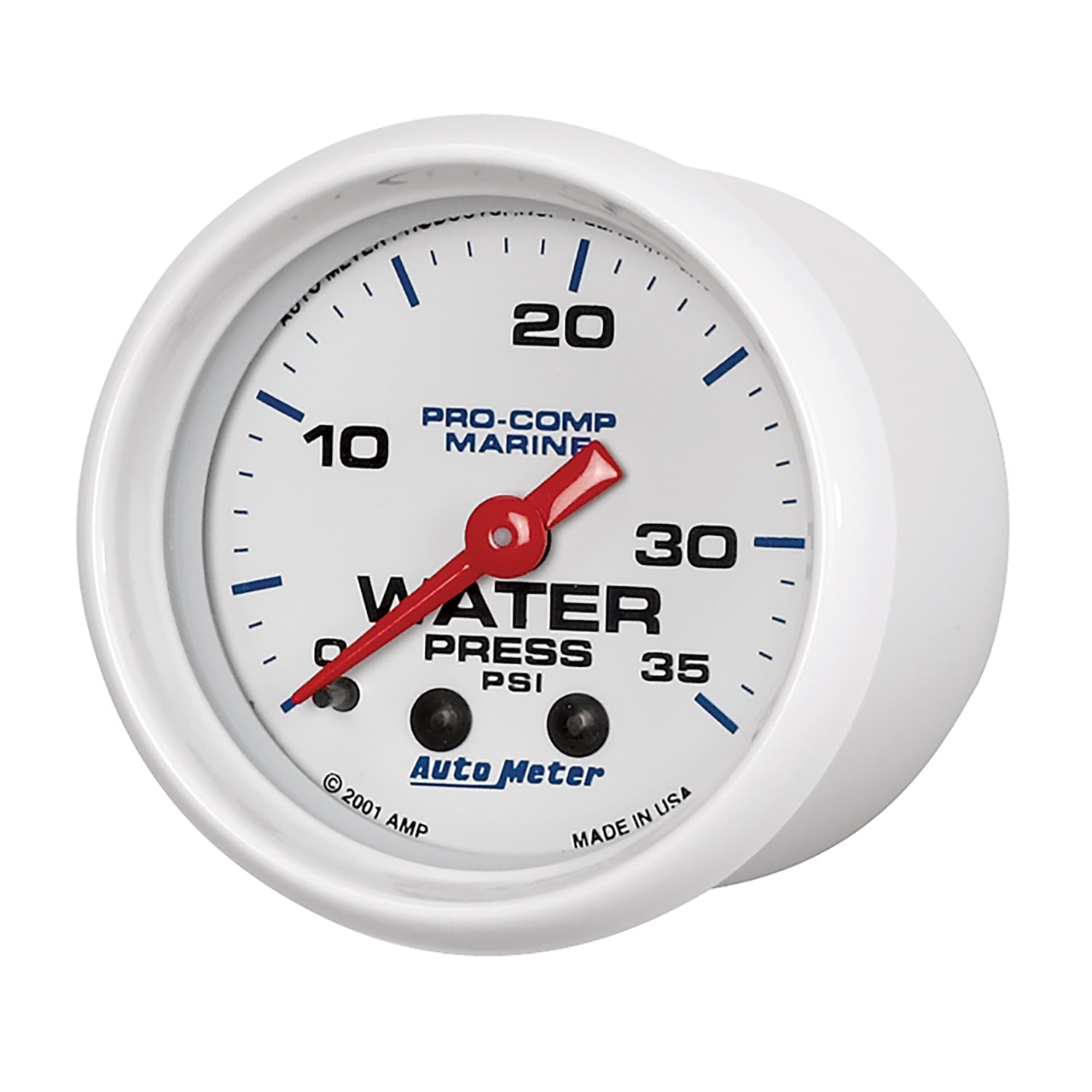

AutoMeter 200772 - GAUGE, WATER PRESS, 2 1/16", 35PSI, MECHANICAL, MARINE WHITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WATER PRESSURE, 0-35 PSI, MARINE WHITE
From high banked ovals to Saturday night 1/4 miles to high-performance boats, knowing that you’ve got proper cooling system pressure is critical in any application. AutoMeter’s Mechanical Water Pressure Gauge utilizes the most precise bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. An 1/8” NPT connection on the back makes for easy installation and nylon lines and fittings are available separately.
Features
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
Specifications
| Range | 0-35 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Includes Mounting Hardware | 2225 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3224, 3223, 3226, 3288, 3284 |
| Upsell | 3224, 3223, 3226, 3288, 3284 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Related Item | BEX-5000, 0447LXL, EP-800, 0423XL |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Series | MARINE WHITE |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Gauge Type | Water Pressure |
| Bezel Color | White |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: GA 2" WP 35PSI M MW
Invoice Description: PC MARINE, 2" WATER PRESS, 0-35 PSI
Definition: Water Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
