AutoMeter 2543 - GAUGE, OIL TEMP, 2 1/16", 140-300?F, ELECTRIC, TRADITIONAL CHROME
Product Availability Request
Fill the form and our team will contact you.

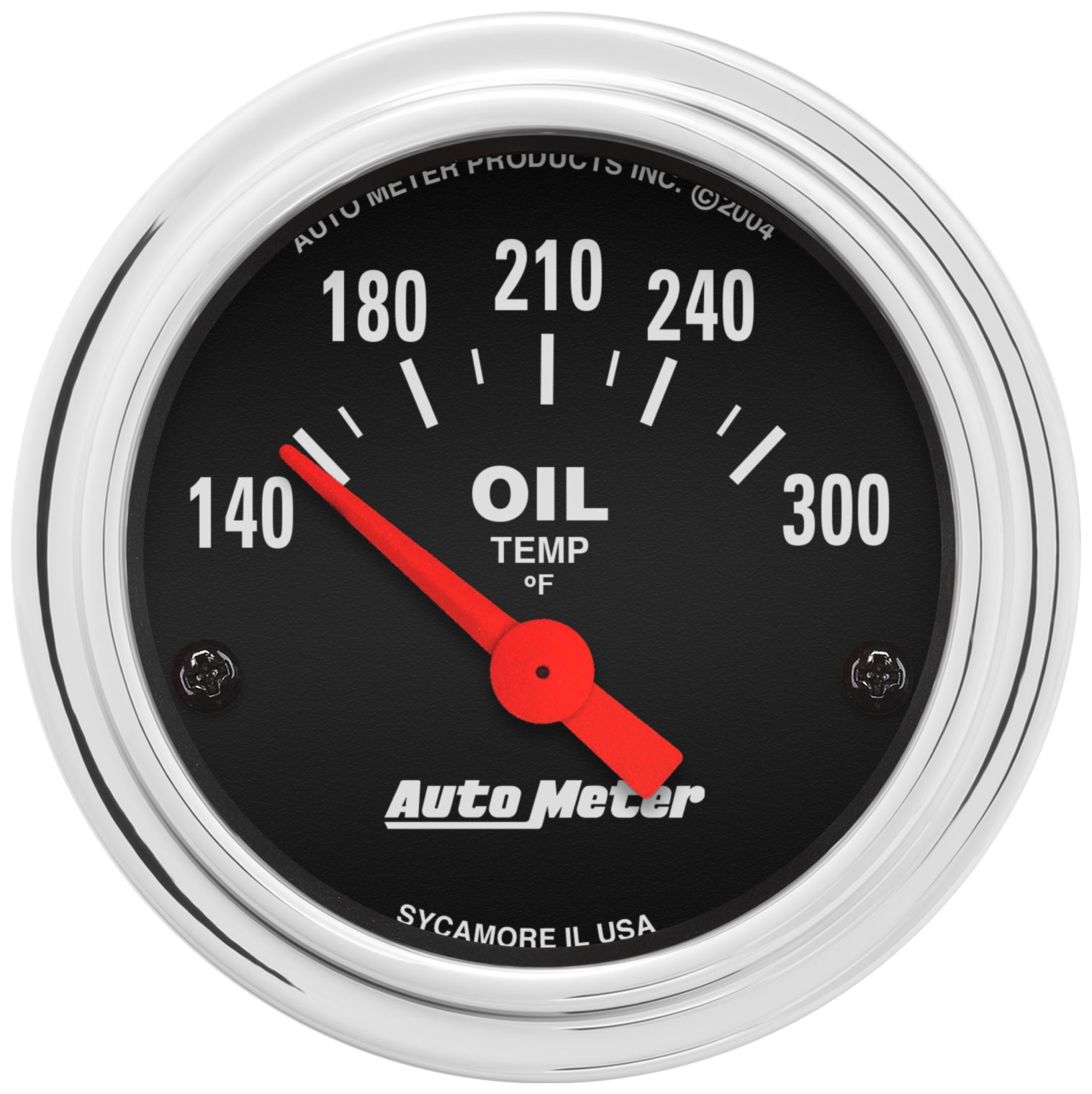

2-1/16" OIL TEMPERATURE, 140-300 F, TRADITIONAL CHROME
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.
Features
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 140-300 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-5/16" IN |
| Related Item | 2160, BEX-1500, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3288, 3286, 3284, 2268, 2266, 2267 |
| Upsell | 3288, 3286, 3284, 2268, 2266, 2267 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Dial Color | Black |
| Bezel Color | Chrome |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Gauge Type | Oil Temperature |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | SAE |
| Series | TRADITIONAL CHROME |
| Lighting Color | White Incandescent |
Short Description: 2" OIL TEMP
Invoice Description: 2" OIL TEMP, 140-300`F, SSE
Definition: Engine Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
