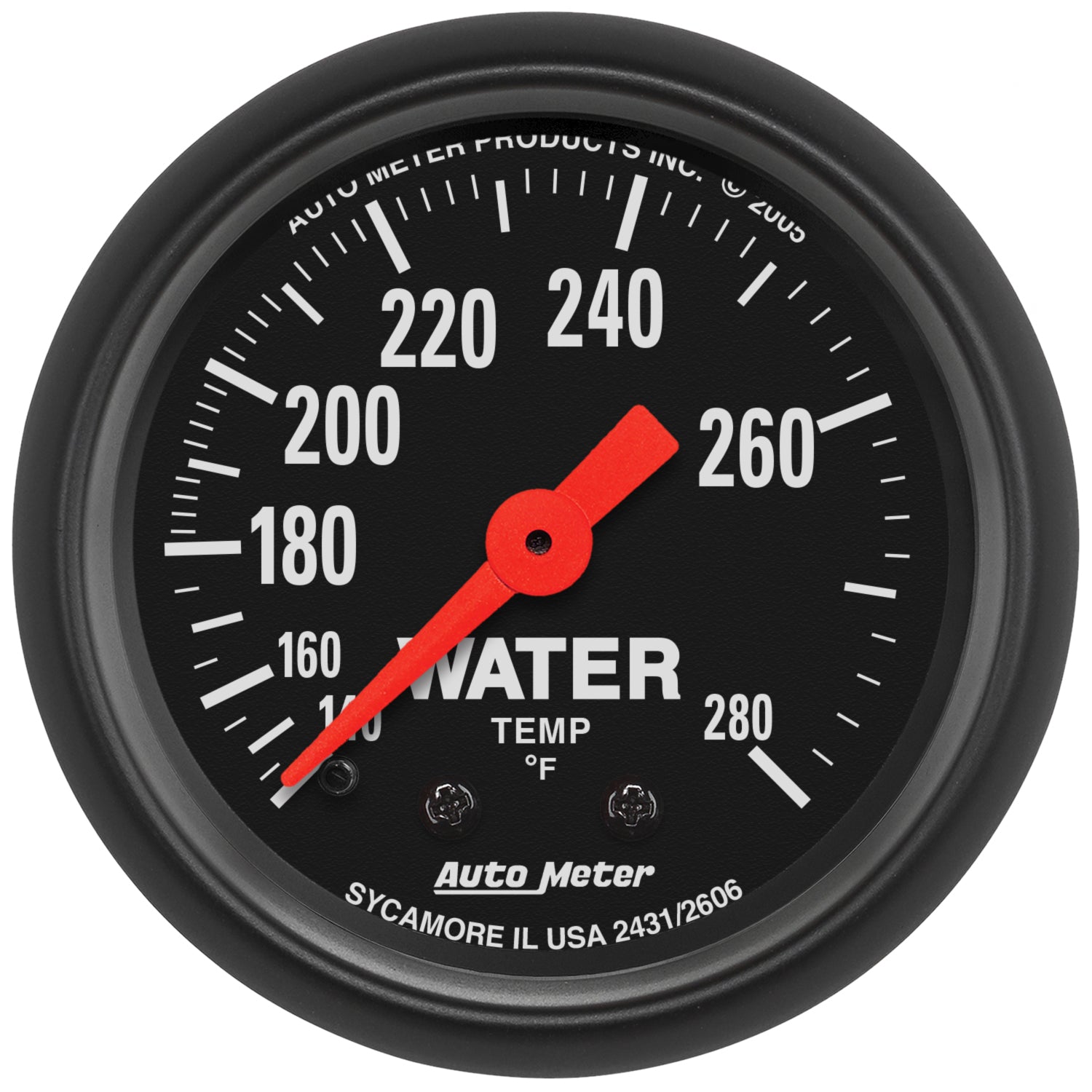

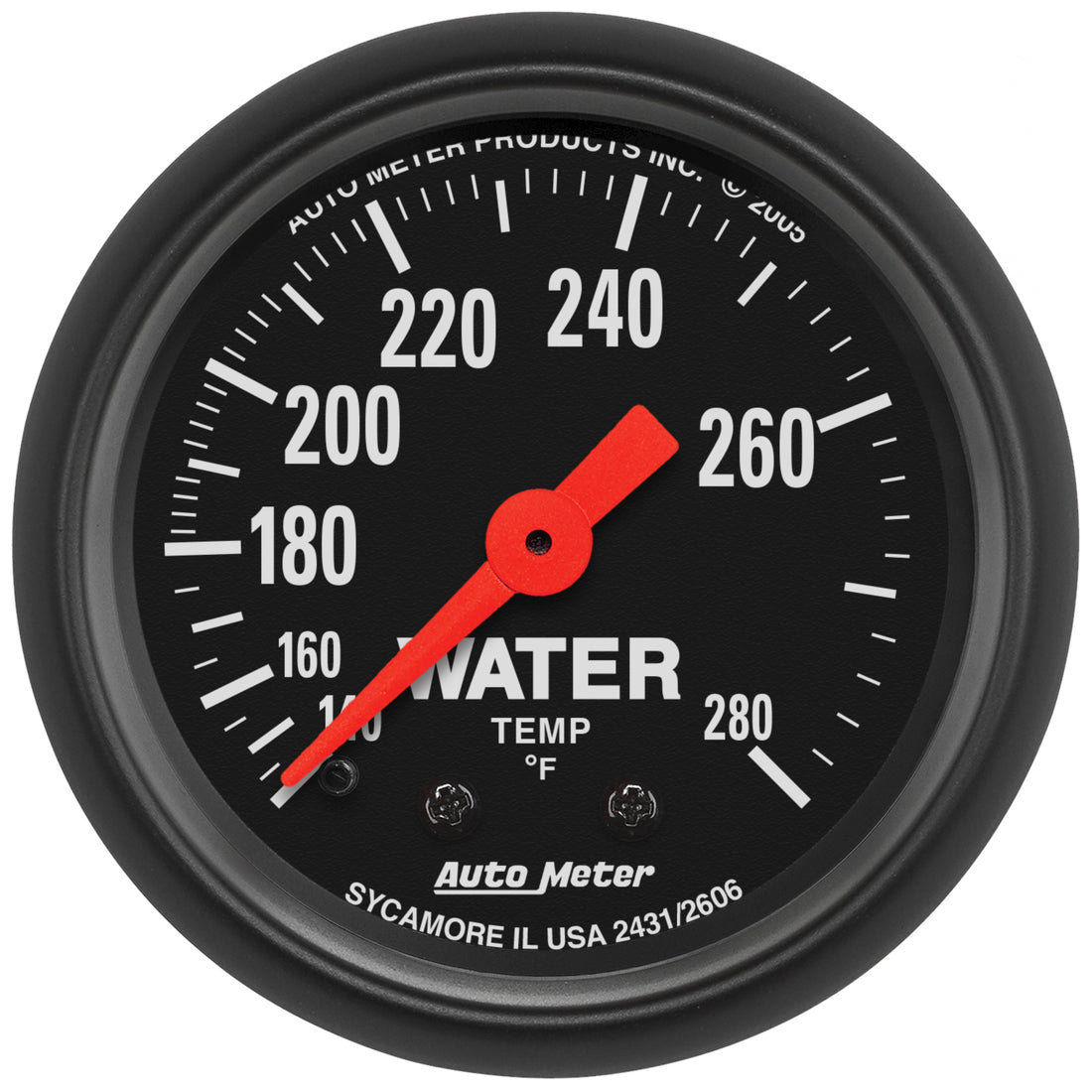

AutoMeter 2606 - GAUGE, WATER TEMP, 2 1/16", 140-280?F, MECHANICAL, Z-SERIES

This water temperature gauge measures engine coolant temperature on a mechanical bourdon tube movement. The AutoMeter model 2606 reads from 140 to 280 degrees Fahrenheit and mounts in a 2-1/16" opening. A 6 ft capillary tube connects the gauge to an engine sensor, and no electrical system is required for operation.

The kit includes a 1/2" NPT adapter fitting, bulb and socket assembly with white incandescent lighting, red and green bulb covers for the perimeter lights, and mounting hardware. The gauge features a black dial and bezel with a fluorescent red pointer, a flat clear lens, and a super bezel style.

• Type: Water temperature gauge
• Series: Z-Series
• Temperature range: 140-280 degrees Fahrenheit
• Mounting hole size: 2-1/16" (52.4mm)
• Outer bezel diameter: 2-1/4"
• Capillary tube length: 6 ft
• Adapter: 1/2" NPT
• Dial color: Black
• Pointer color: Fluorescent red
• Lens: Flat, clear
• Lighting: White incandescent
• Movement: Mechanical
• Includes: Mounting hardware, bulb and socket, red and green light covers
