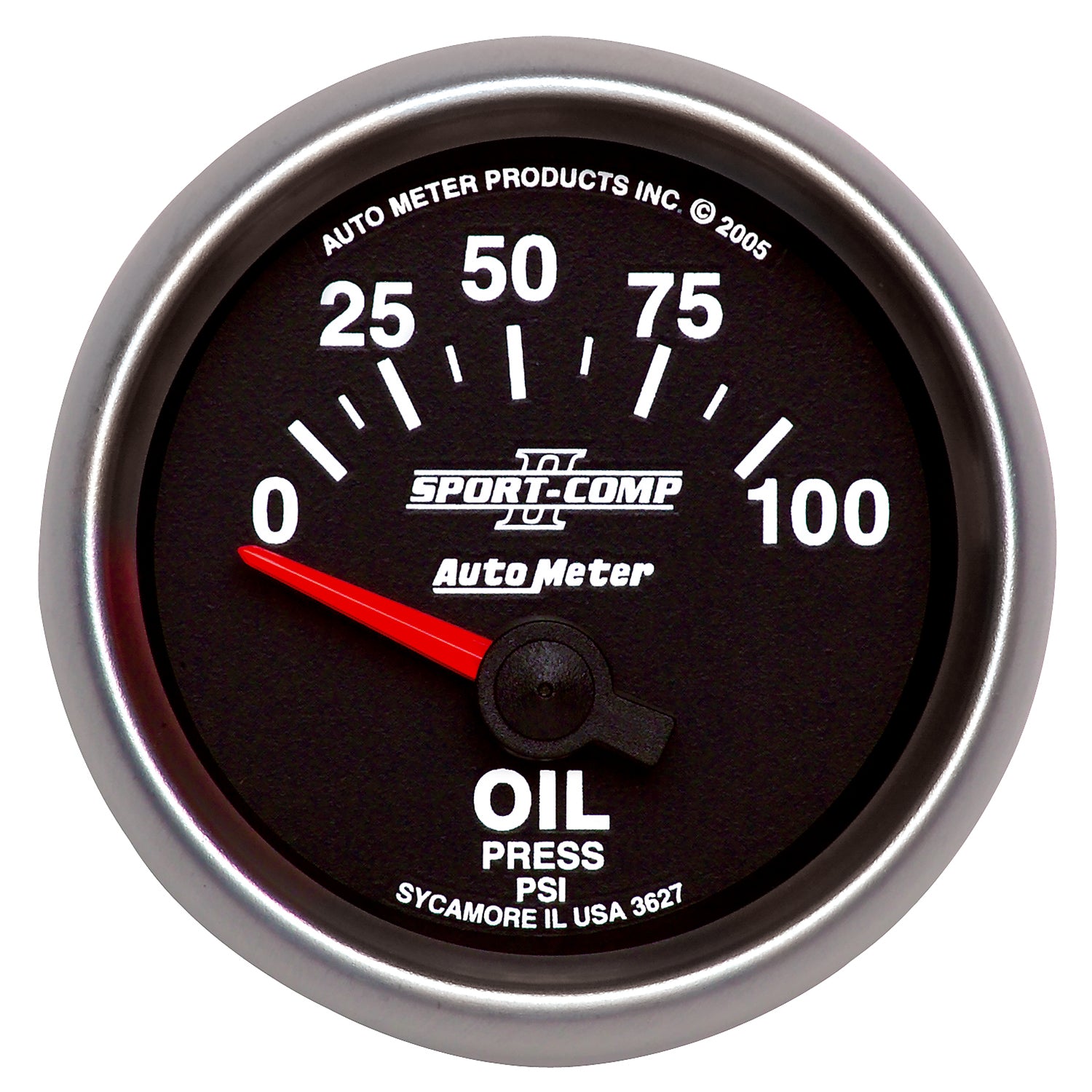

AutoMeter 3627 - GAUGE, OIL PRESSURE, 2 1/16", 100PSI, ELECTRIC, SPORT-COMP II
Product Availability Request
Fill the form and our team will contact you.
2-1/16" OIL PRESSURE, 0-100 PSI, SPORT-COMP II
Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8” NPT oil pressure sender is included.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 0-100 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Dial Color | Black |
| Bezel Color | Brushed Aluminum |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Gauge Type | Oil Pressure |
| Series | SPORT-COMP II |
| Bezel Style | Super Bezel |
| Lighting Color | White |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2242 |
| Cross Sell | 2268, 2269, 2265, 2266, 2267, 9114 |
| Upsell | 2268, 2269, 2265, 2266, 2267, 9114 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
Short Description: 2-1/16" OIL PRESS
Invoice Description: 2-1/16" OIL PRESS, 0-100 PSI, SSE
Definition: Engine Oil Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
