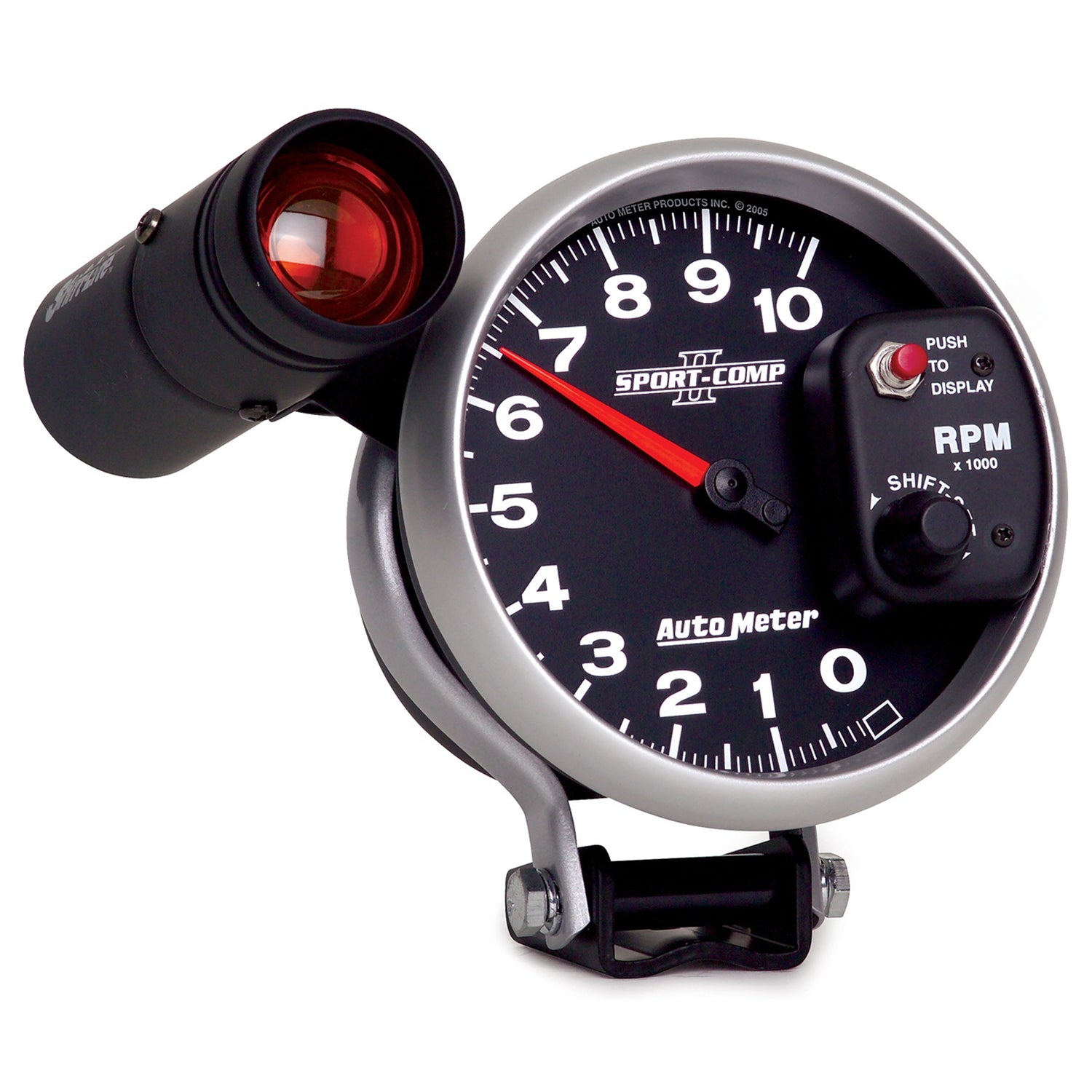

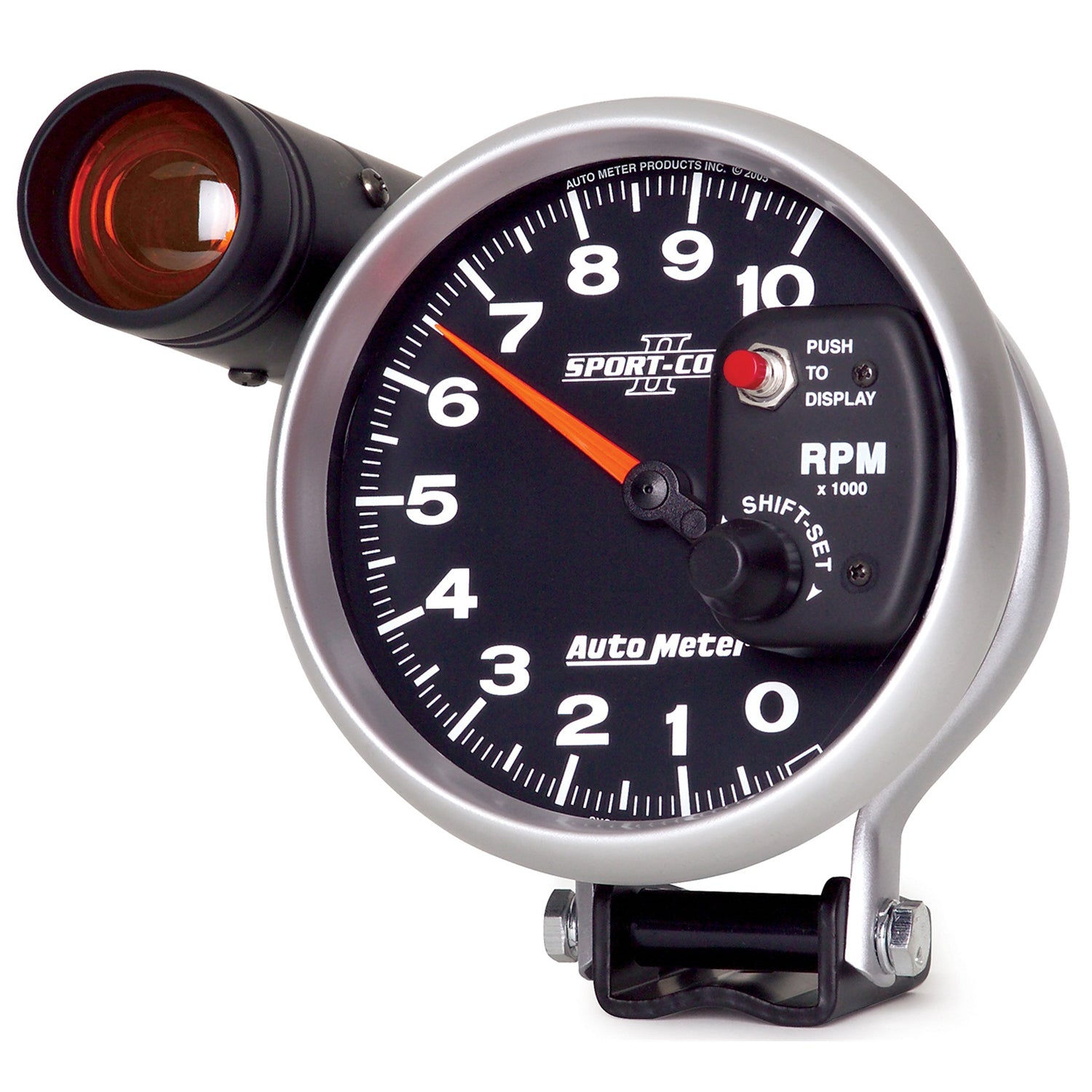

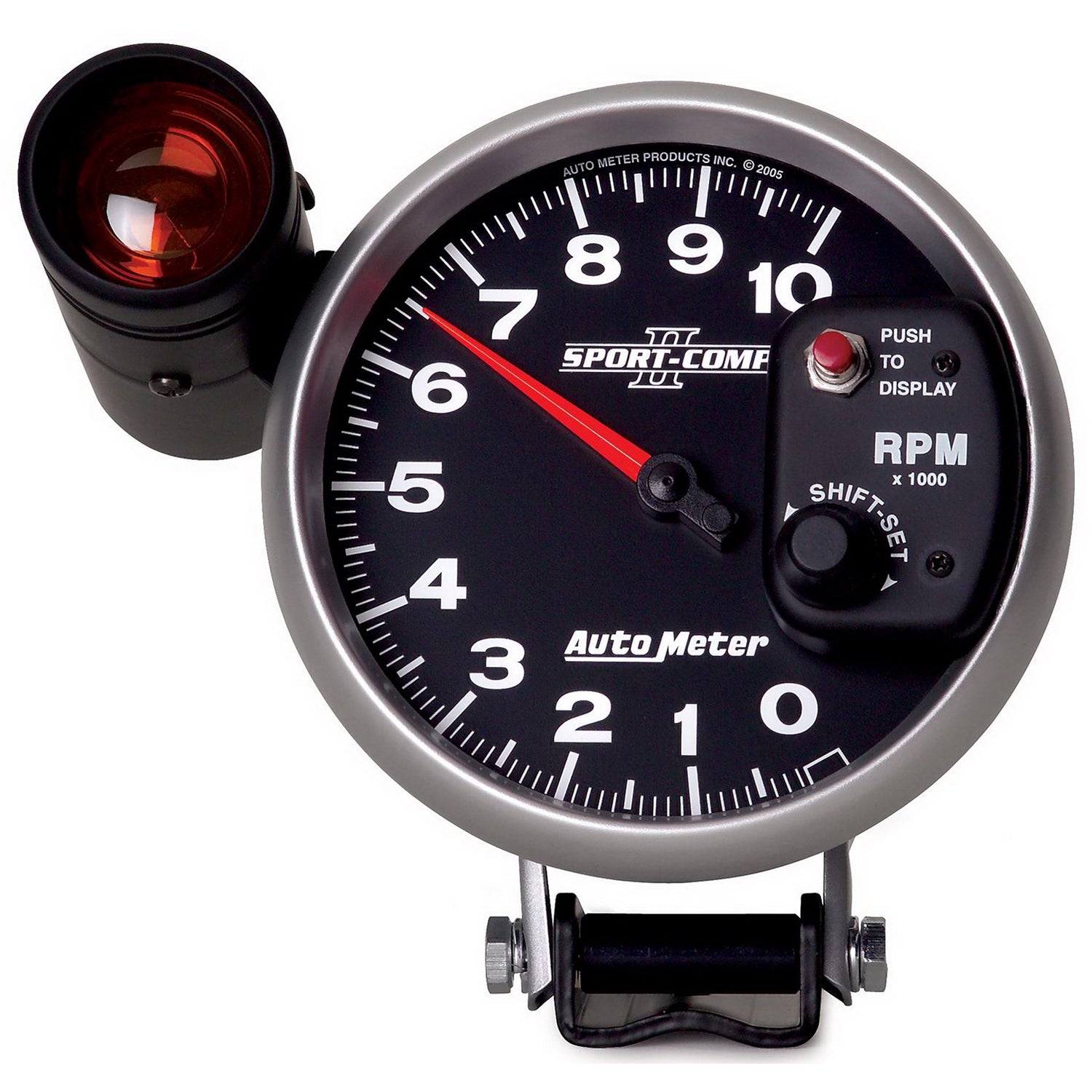

AutoMeter 3699 - GAUGE, TACHOMETER, 5", 10K RPM, PEDESTAL W/ EXT. SHIFT-LITE, SPORT-COMP II

A 5-inch pedestal tachometer with a range of 0-10,000 rpm, the AutoMeter 3699 Sport-Comp II features a patented air-core meter movement that responds in 333 milliseconds. The gauge is compatible with 1, 2, 3, and 4 pulse per revolution ignition signals for 2, 4, 6, and 8 cylinder engines with points, electronic, and most high-performance racing ignitions. Modern white LED lighting and a user-programmable shift light help optimize engine performance, and the gauge operates on 12v and 16 volt electrical systems.

• Range: 0-10,000 RPM
• Response Time: 333 milliseconds
• Compatible With: 1, 2, 3, & 4 pulse per revolution ignition RPM signals for 2, 4, 6, & 8 cylinder engines with points, electronic, and most high-performance racing ignitions
• Voltage: 12v
• Voltage: 16 volt
• Size - Standard - IN: 5"
• Cup/Hole Size - Standard - IN: 3-7/16"
• Outer Bezel Diameter - Standard: 3-7/16"
• Outer Bezel Diameter: 4-15/16"
• Cup/Hole Size - Metric - MM: 111.13mm
• Size - Metric - MM: 127mm
• Dial Color: Black
• Bezel Color: Brushed Aluminum
• Movement: Electric, Air-Core
• Lens Style: Flat, Clear
• Pointer Color: Fluorescent Red
• Lighting Type: LED
• Gauge Type: Pedestal Tachometer
• Series: SPORT-COMP II
• Bezel Style: Super Bezel
• Lighting Color: White
• Includes Mounting Hardware: 3209
• Includes Light Covers: 3251
