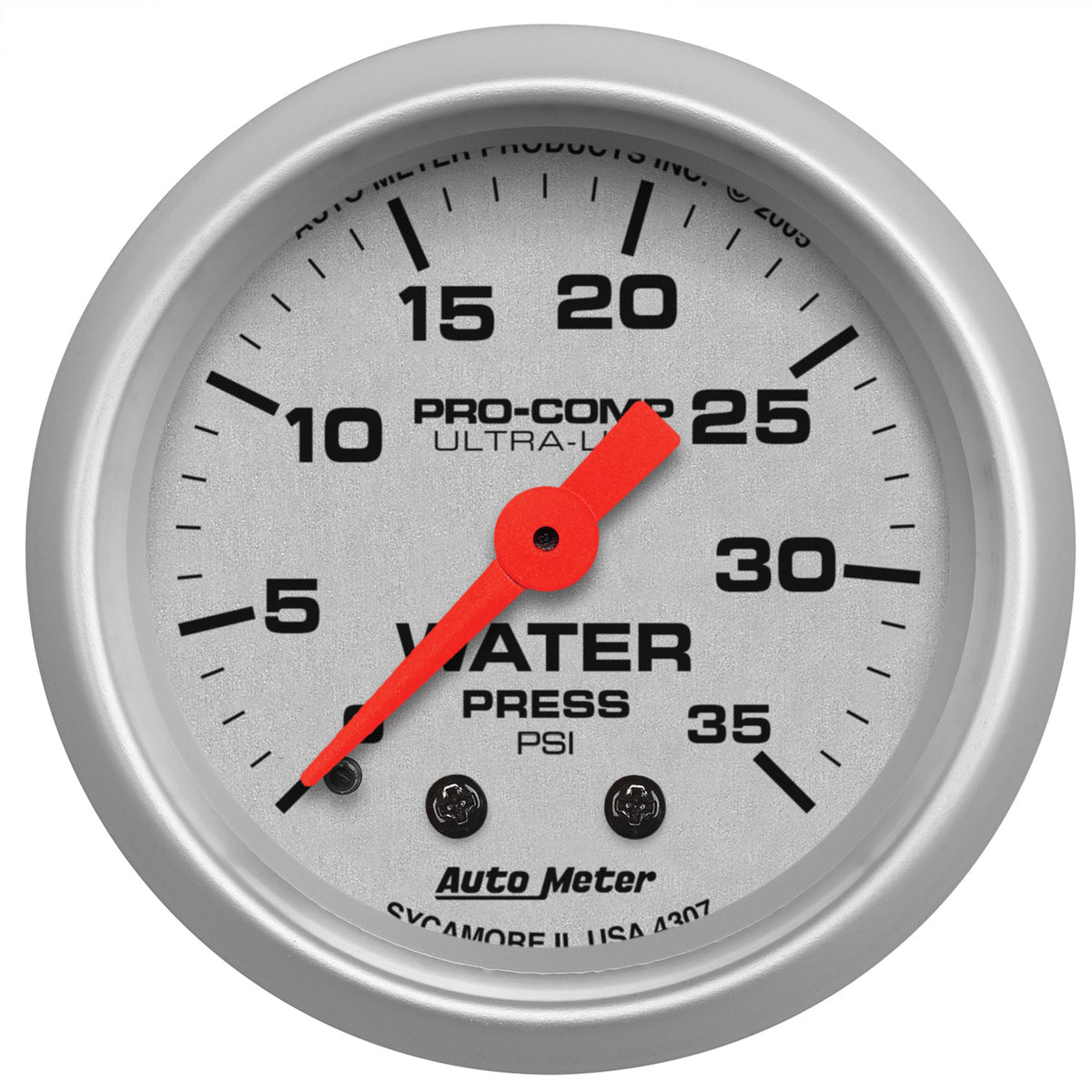

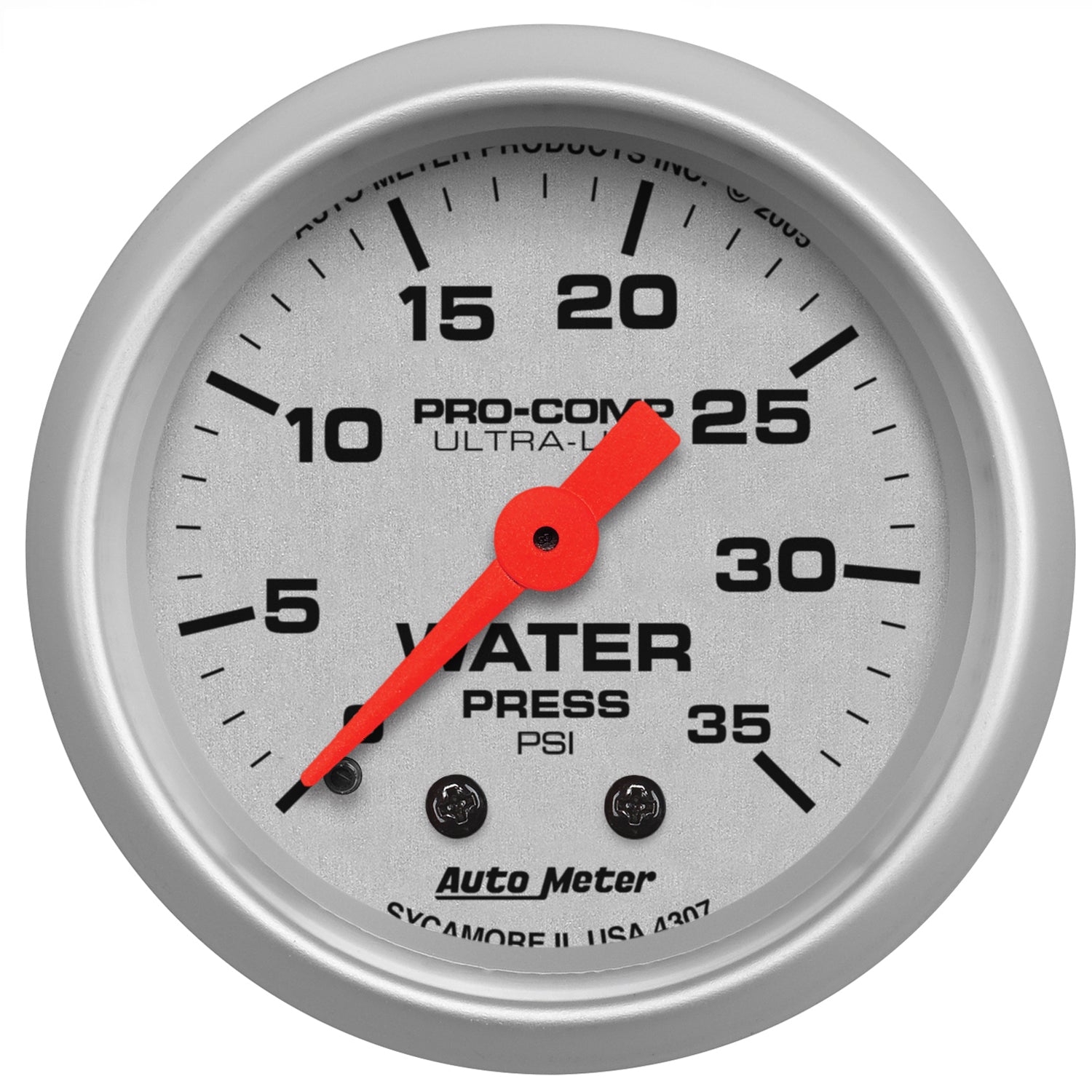

AutoMeter 4307 - GAUGE, WATER PRESS, 2 1/16", 35PSI, MECHANICAL, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WATER PRESSURE, 0-35 PSI, ULTRA-LITE
From high banked ovals to Saturday night 1/4 miles, knowing that you’ve got proper cooling system pressure is critical in any severe service application. AutoMeter’s Mechanical Water Pressure Gauge utilizes the most precise bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. An 1/8” NPT connection on the back makes for easy installation and nylon line and fittings are included.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-35 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Gauge Type | Water Pressure |
| Lighting Color | White Incandescent |
| Cross Sell | 3226, 3228, 2204, 3288, 3286, 4332 |
| Upsell | 3226, 3228, 2204, 3288, 3286, 4332 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
Note: Shift and Warning Lights
Short Description: 2" WATER PRESS
Invoice Description: 2" WATER PRESS 0-35 PSI MECH
Definition: Water Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
