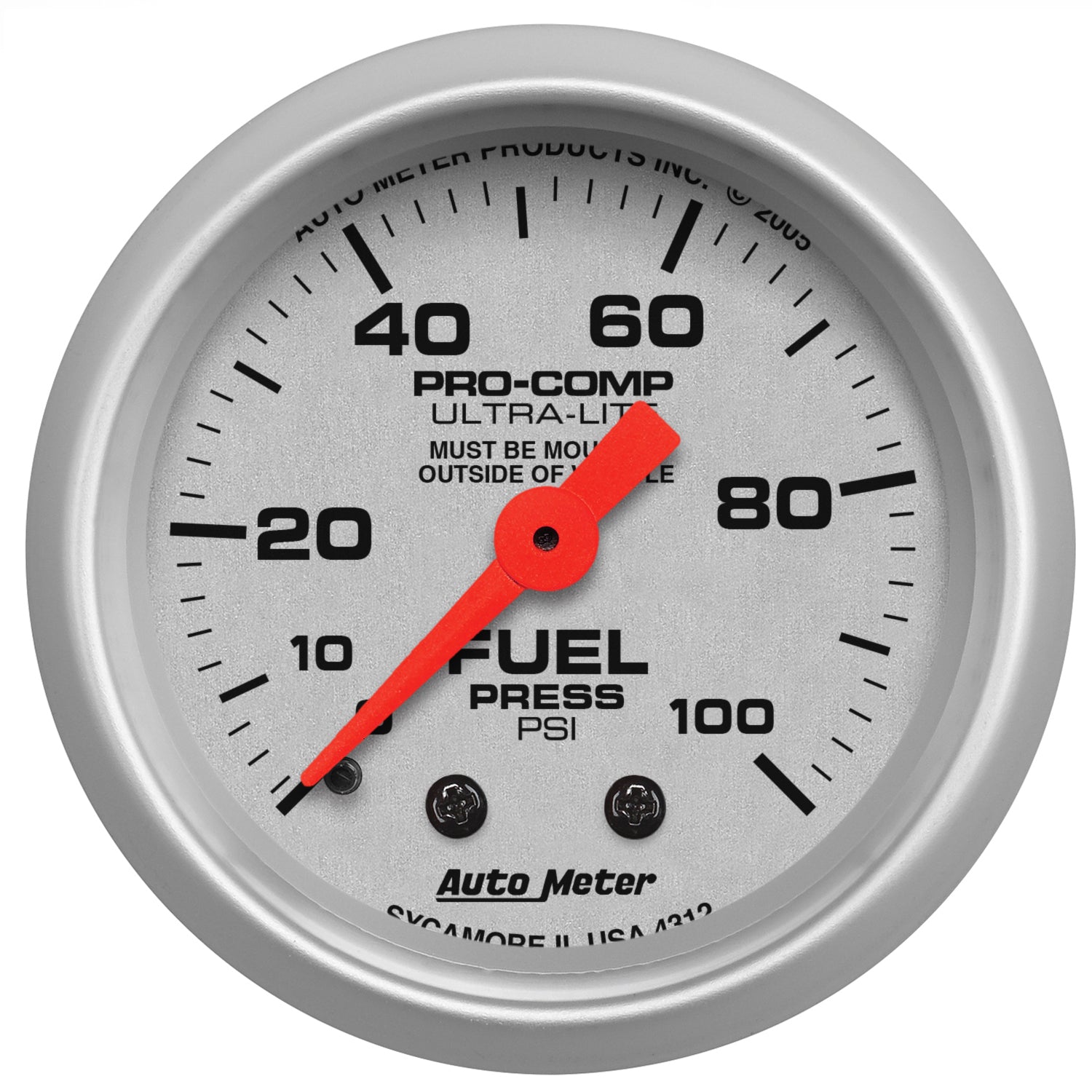

AutoMeter 4312 - GAUGE, FUEL PRESSURE, 2 1/16", 100PSI, MECHANICAL, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" FUEL PRESSURE, 0-100 PSI, ULTRA-LITE
Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter’s Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for fuel injected or carbureted applications, a simple -4an connection makes installation easy. Don’t take chances with your investment a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Gauge threaded for -4AN, allowing an easy installation into the fuel system
Specifications
| Range | 0-100 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3227, 3228, 3229, 3288, 3286, 4379 |
| Upsell | 3227, 3228, 3229, 3288, 3286, 4379 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
| Pointer Color | Fluorescent Red |
| Gauge Type | Fuel Pressure |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
Short Description: 2" FUEL PRESS
Invoice Description: 2" FUEL PRESS 0-100 PSI MECH
Definition: Fuel Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
