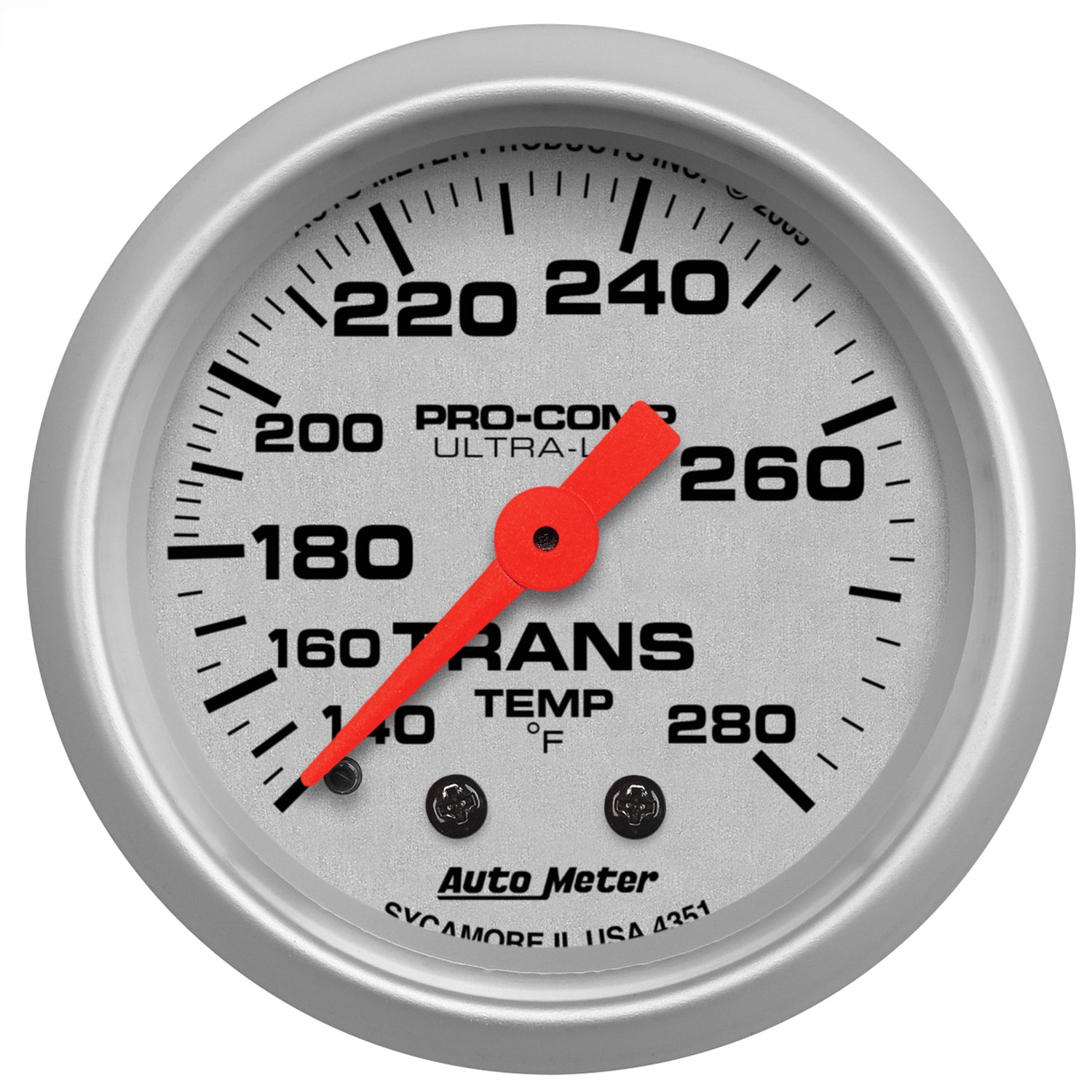

AutoMeter 4351 - GAUGE, TRANS TEMP, 2 1/16", 140-280?F, MECHANICAL, 8FT., ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" TRANSMISSION TEMPERATURE, 140-280 F, ULTRA-LITE
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8’ Capillary Tube with a 1/2” NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Mounting Hardware | 2230 |
| Cross Sell | 2261, 2286, 2287, 2204, 2236, 3288 |
| Upsell | 2261, 2286, 2287, 2204, 2236, 3288 |
| Includes Bulb & Socket | 3220 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Gauge Type | Transmission Temperature |
| Includes Adapter/Fitting | 1/2"" NPT adapter/fitting. |
| Includes Tubing | 10.5 ft. Capillary Tube |
| Range | 140-280 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
Short Description: 2" TRANS TEMP
Invoice Description: 2" TRANS TEMP, 140-280`F 8' LINE, MECH
Definition: Automatic Transmission Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
