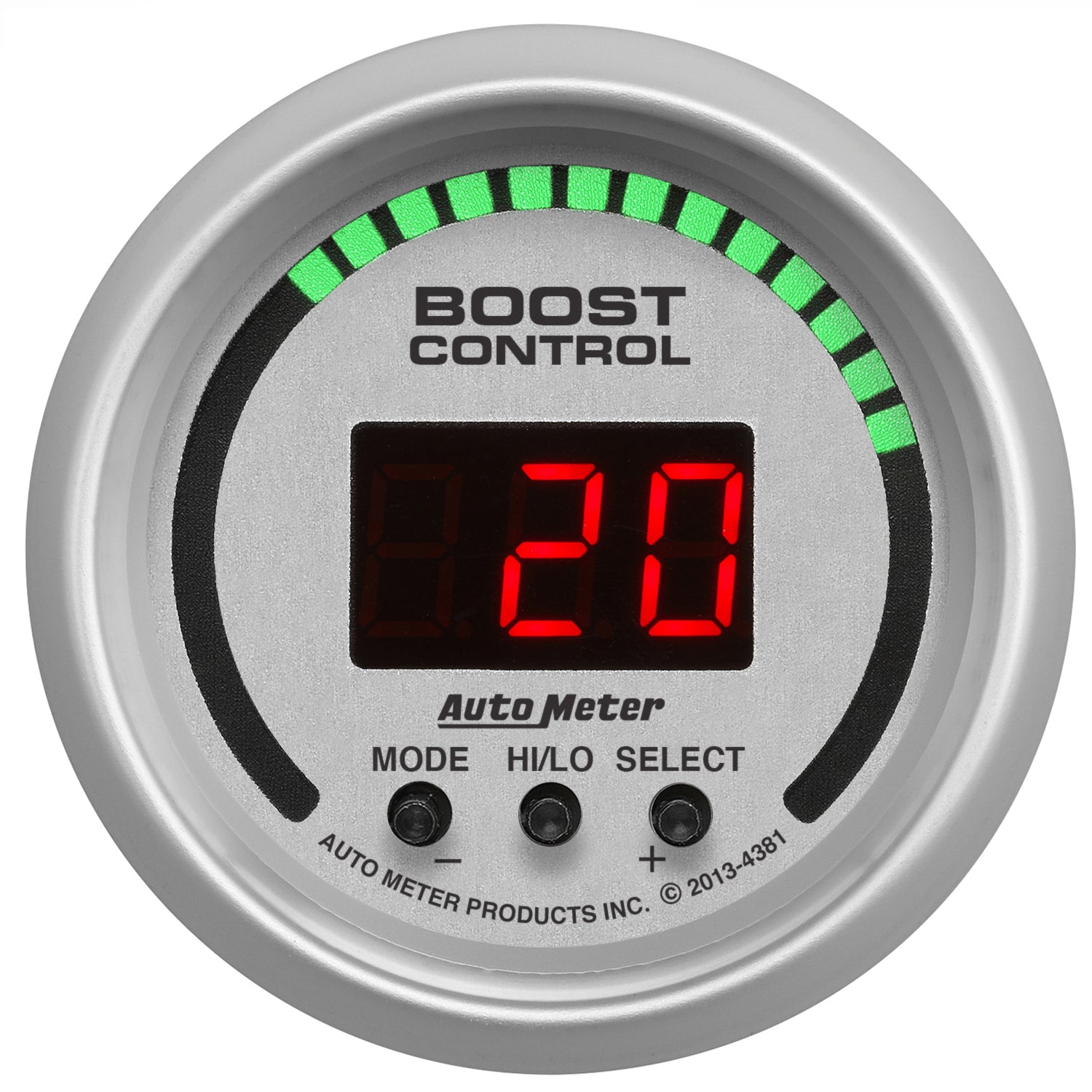

AutoMeter 4381 - GAUGE, BOOST CONTROLLER, 2 1/16", 30INHG-30PSI, INCL. SOLENOID, DIGITAL, UL
Product Availability Request
Fill the form and our team will contact you.
2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, ULTRA-LITE
Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.
Features
- User programmable high/low boost, boost by gear, and boost by RPM.
- EZ™ On-Controller Programming - No Need for External Modules
- Exclusive Progressive Overboost Warning System and Peak Recall
- Patented Pro-Control™ Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control™ Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
- Configurable Data Logger Output for Easy ECU or Data Logger Integration.
- Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups
- Display readings in PSI, kPa, or BAR
- Includes 6ft. Wire harness, MAP sensor, Boost Control Valve
- Programmable high boost warning and shut down modes.
Specifications
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2249 |
| Range | 30 IN HG/30 PSI |
| Cross Sell | 4397, 2204, 2236, 2121, 4397, 4371 |
| Upsell | 4397, 2204, 2236, 2121, 4397, 4371 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Gauge Type | Boost Controller |
| Bezel Color | Brushed Aluminum |
| Movement | Digital |
| Lighting Type | Digital LED |
| Lens Style | Flat, Clear |
| Lighting Color | Red LED/Red Yellow Green Segments |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
Short Description: 2-1/16 BOOST
Invoice Description: 2-1/16" BOOST CONTROLLER ULTRA-LITE
Definition: Turbocharger Electronic Boost Controller
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
