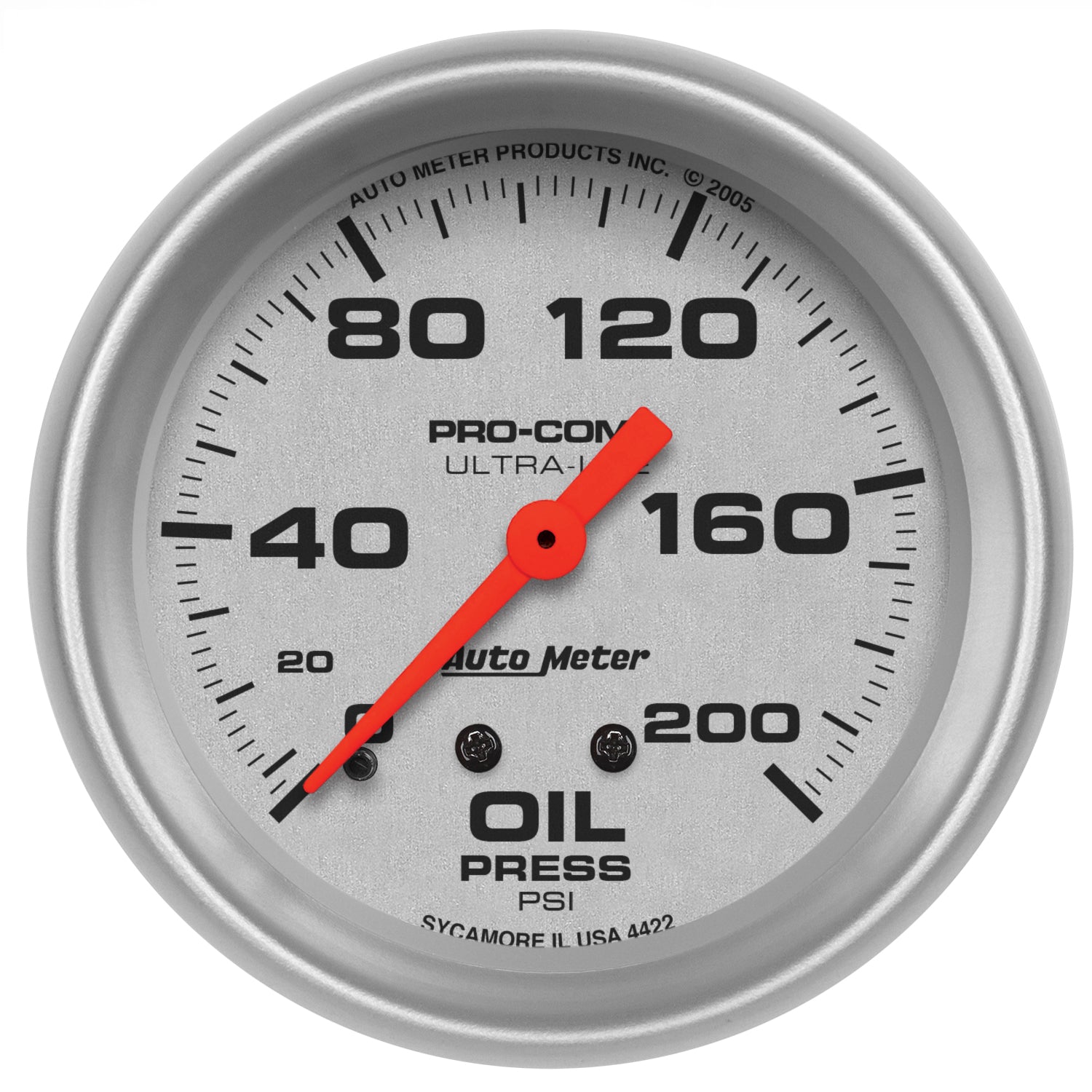

AutoMeter 4422 - GAUGE, OIL PRESSURE, 2 5/8", 200PSI, MECHANICAL, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-5/8" OIL PRESSURE, 0-200 PSI, ULTRA-LITE
The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. A simple 1/8” NPT connection makes installation easy. Fittings and nylon tube are included and optional braided stainless line kits are available.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-200 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3224, 3227, 3228, 3229, 3226, 3204 |
| Upsell | 3224, 3227, 3228, 3229, 3226, 3204 |
| Includes Mounting Hardware | 3245 |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Gauge Type | Oil Pressure |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
Short Description: 2-5/8" OIL PRESS
Invoice Description: 2-5/8" OIL PRESS, 0-200 PSI, MECH
Definition: Engine Oil Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
