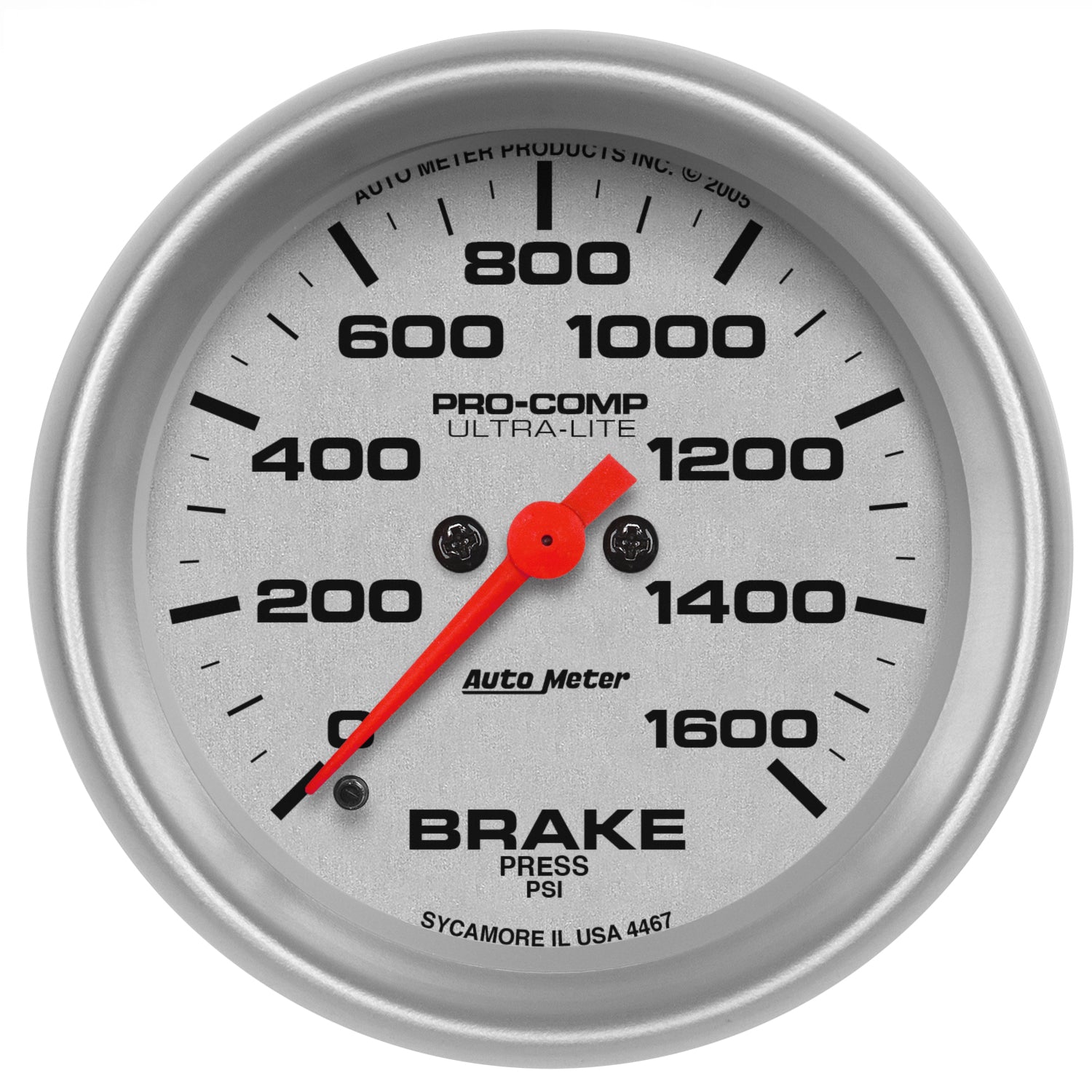

AutoMeter 4467 - GAUGE, BRAKE PRESS, 2 5/8", 1600PSI, DIGITAL STEPPER MOTOR, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-5/8" BRAKE PRESSURE, 0-1600 PSI, ULTRA-LITE
High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter’s Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 0-1600 PSI |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Sensor Unit | 2240 |
| Includes Bulb & Socket | 3220 |
| Includes Mounting Hardware | 3245 |
| Cross Sell | 3284, 3285, 3286, 3287, 3288, 3202 |
| Upsell | 3284, 3285, 3286, 3287, 3288, 3202 |
| Includes Wire Harness | 5227 |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Gauge Type | Brake Pressure |
| Bezel Color | Brushed Aluminum |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
Short Description: 2-5/8" BRAKE
Invoice Description: 2-5/8" BRAKE, 0-1600 PSI FSE, ULTRA-LITE
Definition: Brake Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
