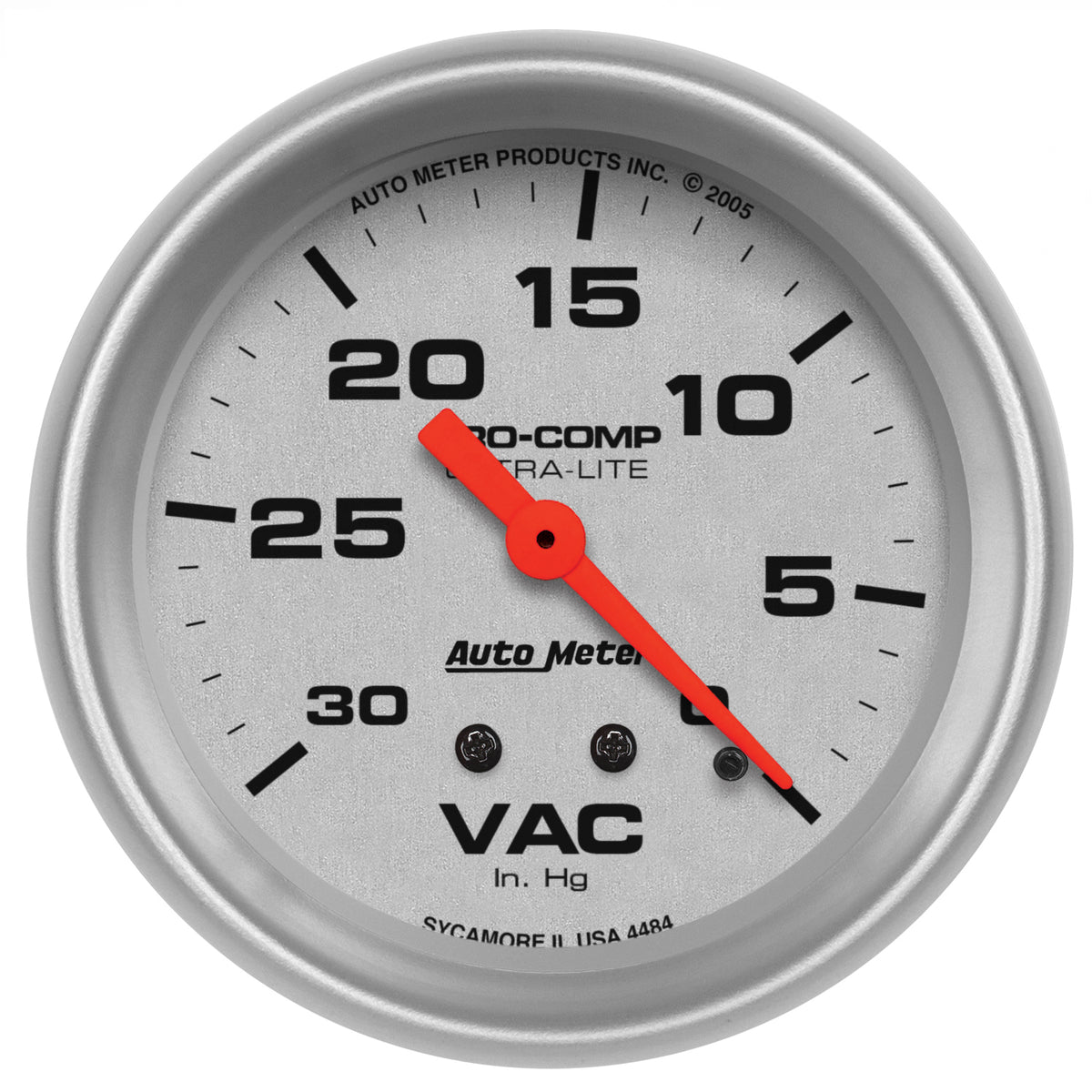

AutoMeter 4484 2-5/8" VACUUM, 0-30 IN HG, ULTRA-LITE

Monitoring engine vacuum for tuning or fuel economy analysis is the role of this mechanical vacuum gauge from AutoMeter, part 4484. The gauge features an ultra-precise bourdon tube meter movement that provides the accuracy and durability needed in performance applications. A 2-5/8 inch dial displays a 0-30 inch mercury range, and a 1/8 inch NPT fitting on the back accepts the included 10 foot nylon tubing with T-fitting and compression fittings for connection to engine vacuum ports. Traditional incandescent lighting illuminates the dial with white light, and the gauge includes a bulb and socket assembly, red and green bulb covers, and mounting hardware. The brushed aluminum bezel features a super bezel style with a flat clear lens, silver dial, and fluorescent red pointer. No electrical system is required for operation. Warranty is 12 months.

• Type: Mechanical Vacuum Gauge
• Series: ULTRA-LITE
• Range: 0-30 IN HG
• Size: 2-5/8"
• Cup/Hole Size (Metric): 66.7mm
• Fitting: 1/8" NPT
• Tubing Included: 10 ft. nylon
• Fittings Included: NPT to compression, T-fitting, NPT to NPT bushing
• Bezel Color: Brushed Aluminum
• Bezel Style: Super Bezel
• Lens Style: Flat, Clear
• Dial Color: Silver
• Pointer Color: Fluorescent Red
• Lighting: Incandescent, White
• Movement: Mechanical, Bourdon Tube
• Includes: Bulb and socket assembly, mounting hardware
• Includes Light Covers: Red 3214 & Green 3215
• Outer Bezel Diameter: 2-7/8"
• Includes Tubing: 10 ft. nylon tubing
• Includes Bulb & Socket: 3220
• Includes Mounting Hardware: 3245
• Lighting Color: White Incandescent
• Cup/Hole Size - Metric - MM: 66.7mm
• Size - Metric - MM: 66.7mm
