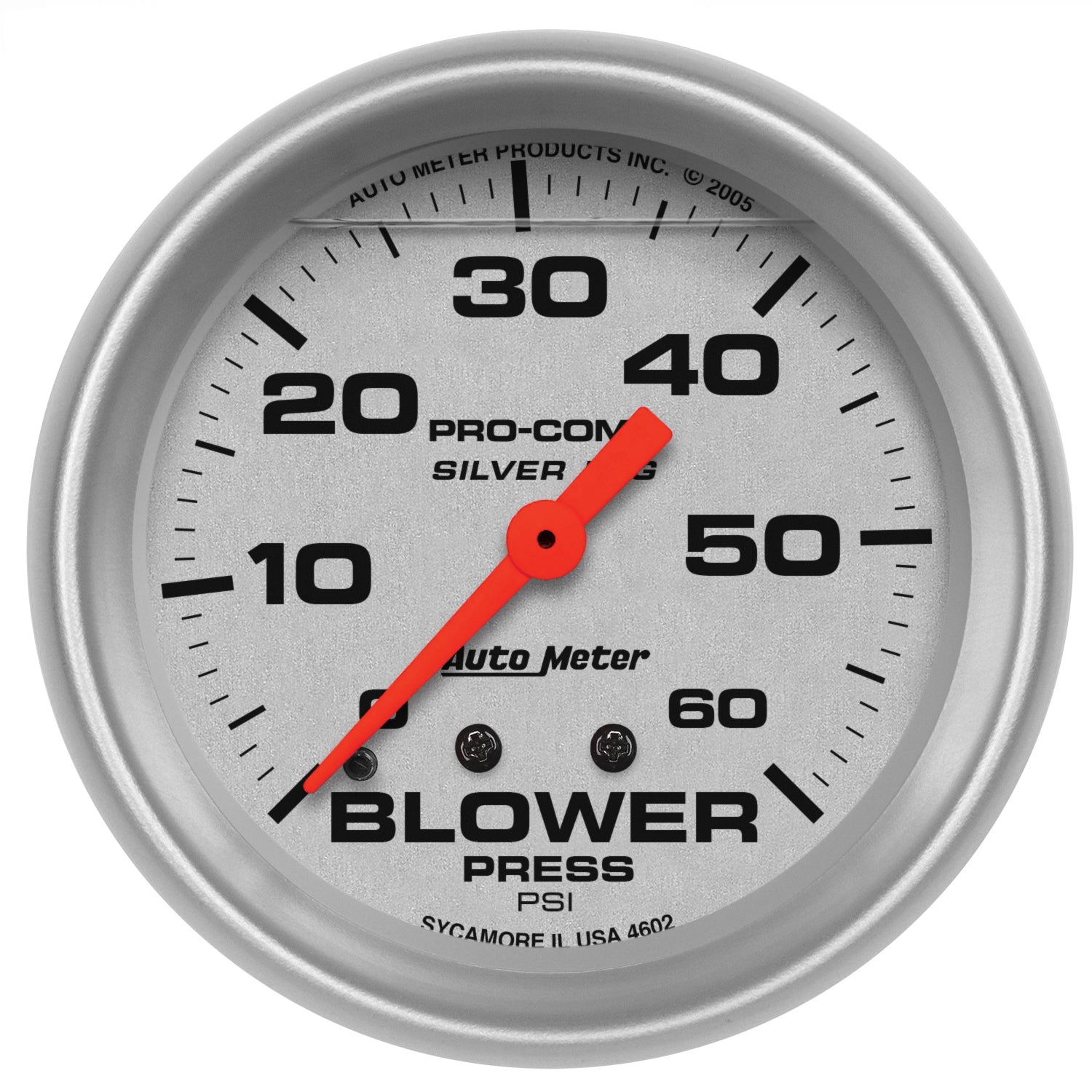

AutoMeter 4602 - GAUGE, BLOWER PRESS, 2 5/8", 60PSI, LIQUID FILLED MECH, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-5/8" BLOWER PRESSURE, 0-60 PSI, LIQUID FILLED, ULTRA-LITE
Know your exact blower pressure with AutoMeter’s ultra-precise bourdon tube meter movement, the standard for accuracy and durability in the industry for generations. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. An optional blower memory kit provides a one way check valve for peak recall after your run.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-60 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2163, BEX-5000, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Bulb & Socket | 3211 |
| Cross Sell | 3230, 3227, 3228, 3229, 5202, 3288 |
| Upsell | 3230, 3227, 3228, 3229, 5202, 3288 |
| Includes Mounting Hardware | 3245 |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Gauge Type | Blower Pressure |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
Short Description: 2-5/8" BLOWER PRESS
Invoice Description: 2-5/8" BLOWER PRESS, 0- 60 PSI, MECH
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
