AutoMeter 4704 - GAUGE, BOOST, 2 1/16", 35PSI, MECHANICAL, CARBON FIBER
Product Availability Request
Fill the form and our team will contact you.

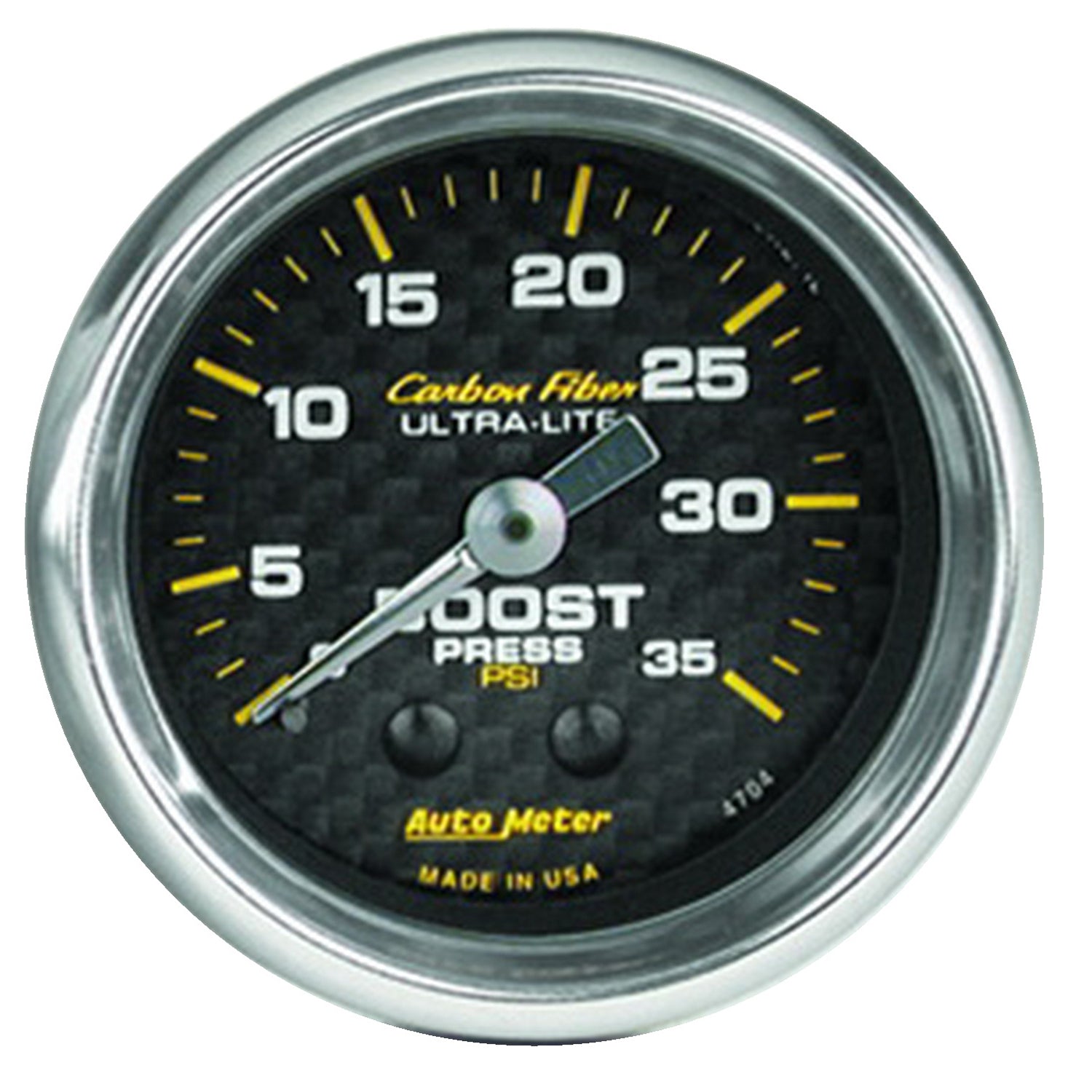

2-1/16" BOOST, 0-35 PSI, CARBON FIBER
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments

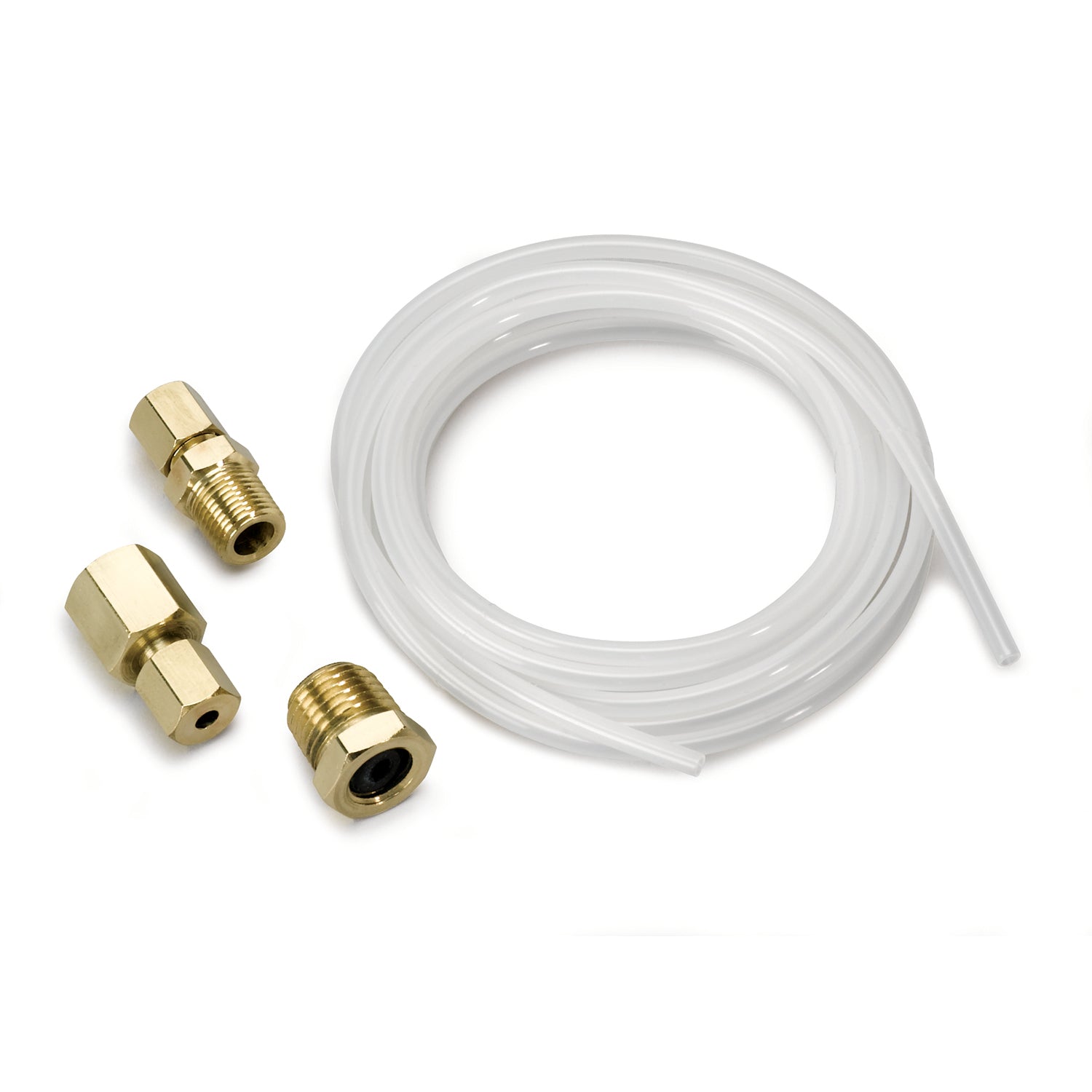

- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-35 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3224, 3227, 3228, 3229, 3226, 2204 |
| Upsell | 3224, 3227, 3228, 3229, 3226, 2204 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Gauge Type | Boost |
| Bezel Color | Bright Anodized |
| Dial Color | Carbon Fiber |
| Series | CARBON FIBER |
| Lens Style | Flat, Clear |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Pointer Color | Silver |
| Bezel Style | Super Bezel |
| Lighting Color | White Incandescent |
Short Description: GA 2" BST 35PSI M CF
Invoice Description: 2" BOOST, 0-35 PSI, MECH CARBON FIBER
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
