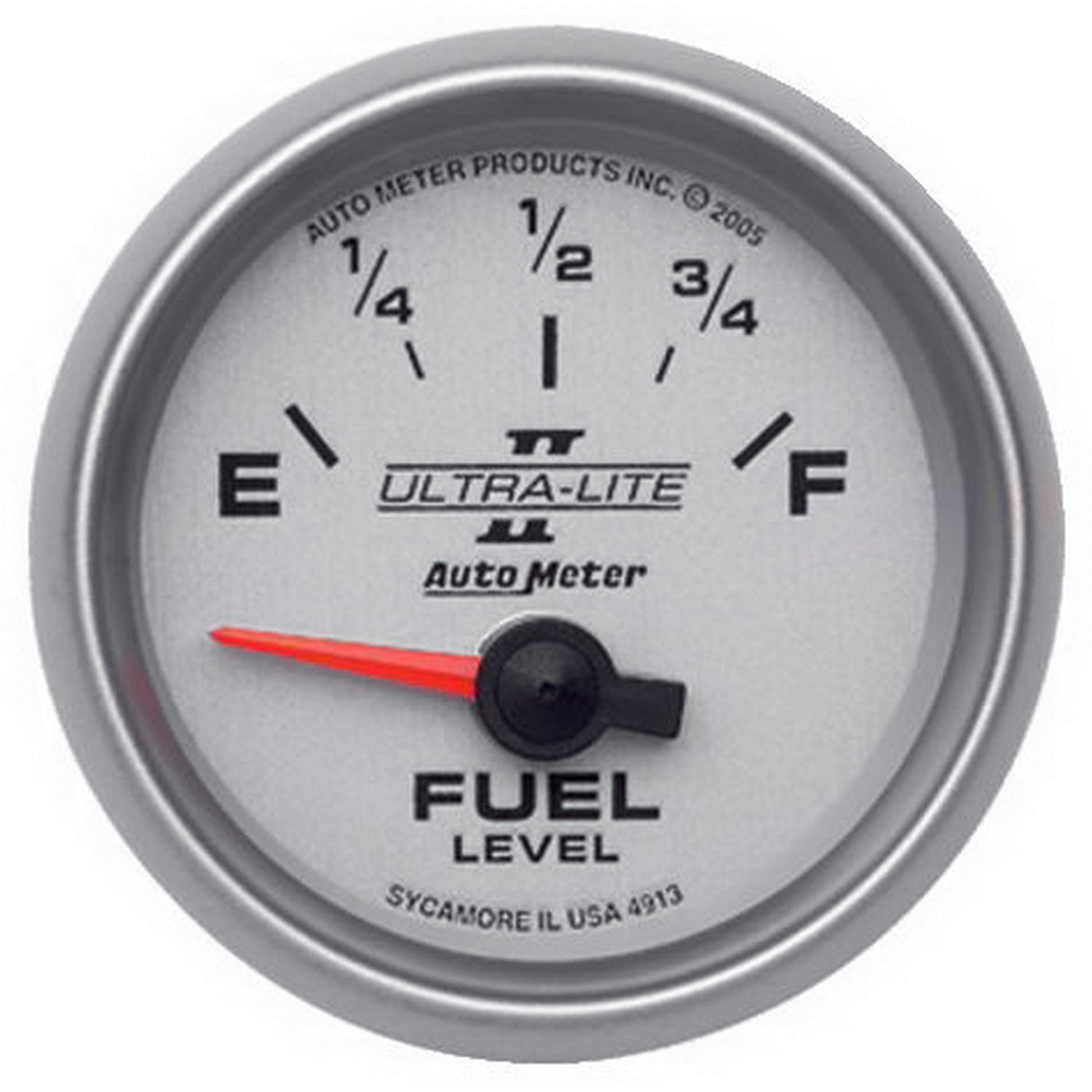

AutoMeter 4913 - GAUGE, FUEL LEVEL, 2 1/16", 0OE TO 90OF, ELEC, ULTRA-LITE II

Name: AutoMeter 4913 - GAUGE, FUEL LEVEL, 2 1/16", 0OE TO 90OF, ELEC, ULTRA-LITE II
Brand: AutoMeter
SKU: 4913
Price: 109.91 USD
Availability: InStock

$109.91 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

2-1/16" FUEL LEVEL, 0-90 Ohm, SSE, ULTRA-LITE II

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Features

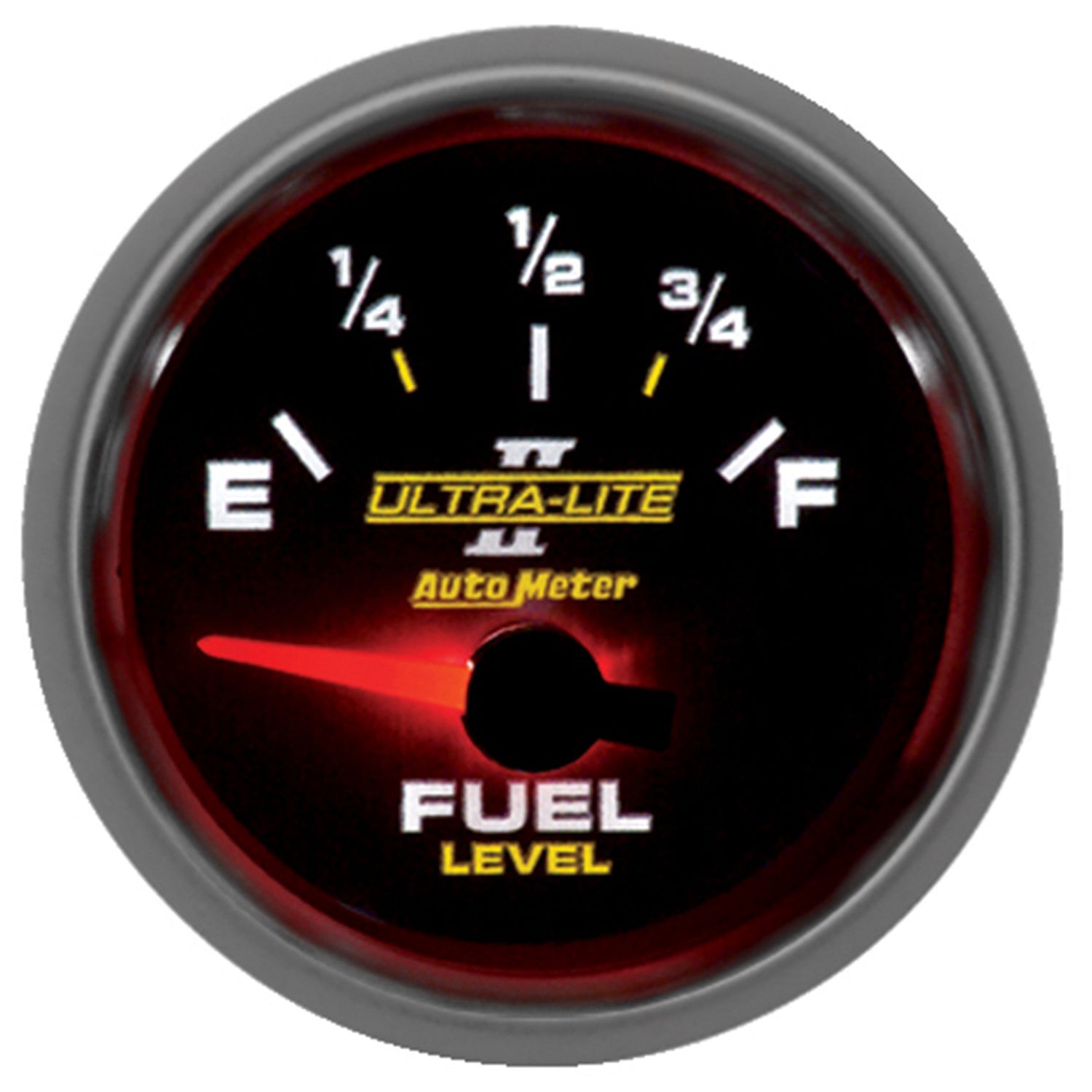

Modern white LED through-the-dial lighting provides clear visibility during nighttime use
Works with most 1965 to 1997 Chevrolet/GM senders
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes mounting hardware and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Specifications

Range	0 O Empty / 90 O Full
Cup/Hole Size - Standard - IN	2-1/16" IN
Outer Bezel Diameter - Standard	2-1/16" IN
Size - Standard - IN	2-1/16" IN
Outer Bezel Diameter	2-1/4" IN
Related Item	2160, BEX-3000, EP-800
Includes Mounting Hardware	2230
Cross Sell	3298, 2204, 9114, 2236
Upsell	3298, 2204, 9114, 2236
Cup/Hole Size - Metric - MM	52.4mm MM
Size - Metric - MM	52.4mm MM
Bezel Color	Brushed Aluminum
Movement	Electric, Air-Core
Lens Style	Flat, Clear
Pointer Color	Fluorescent Red
Gauge Type	Fuel Level
Lighting Type	LED
Dial Color	Silver
Bezel Style	Super Bezel
Series	ULTRA-LITE II
Lighting Color	White
