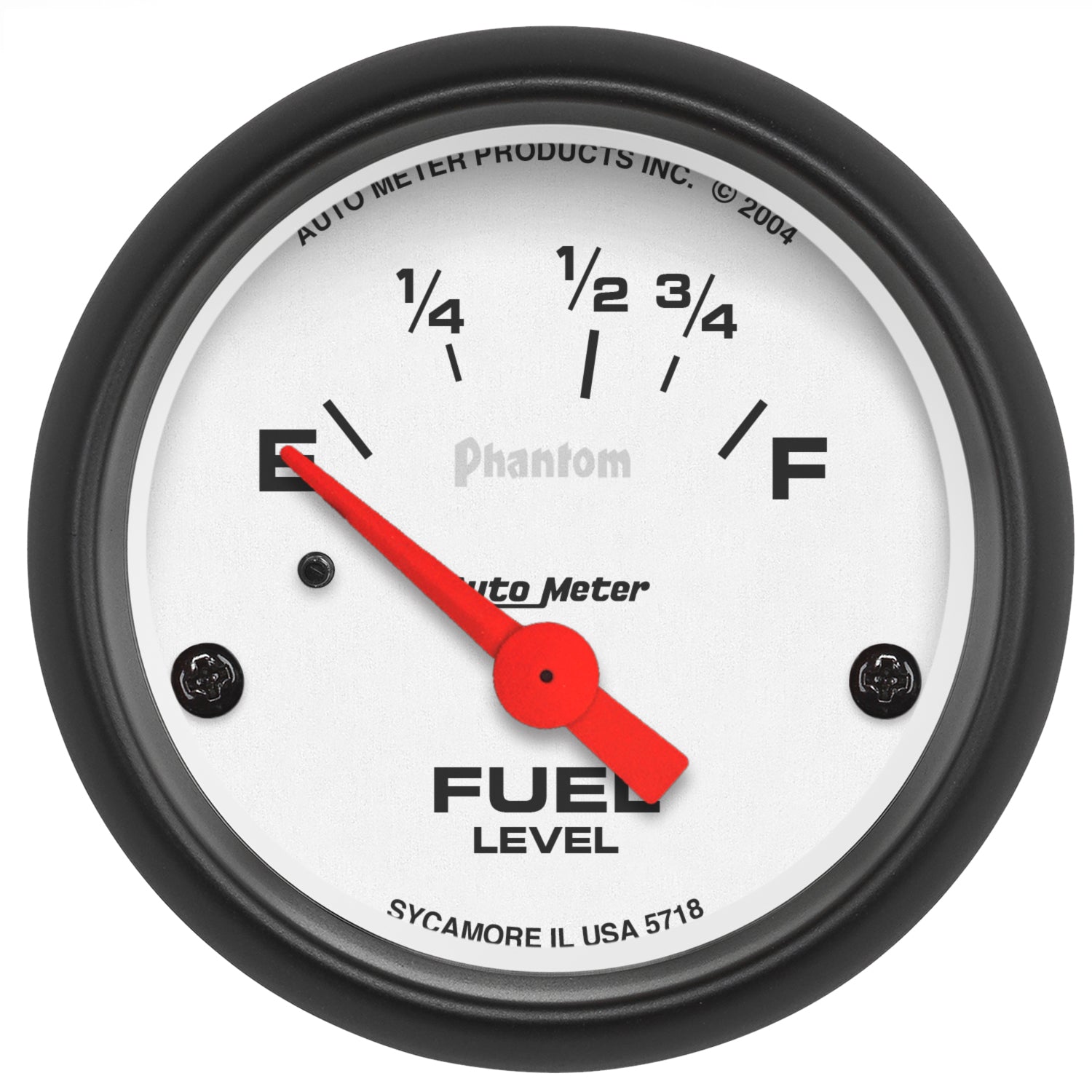

AutoMeter 5718 - GAUGE, FUEL LEVEL, 2 1/16", 16OE TO 158OF, ELEC, PHANTOM
Product Availability Request
Fill the form and our team will contact you.
2-1/16" FUEL LEVEL, 16-158 Ohm, PHANTOM
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1989 (1987 Mustang) and later Ford
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Specifications
| Range | 16 O Empty / 158 O Full |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3288, 3286, 3285, 3284, 3287 |
| Upsell | 3288, 3286, 3285, 3284, 3287 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Gauge Type | Fuel Level |
| Lighting Type | Incandescent |
| Series | PHANTOM |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: 2" FUEL LEVEL
Invoice Description: 2" FUEL LEVEL, 16 E/158F SSE, PHANTOM
Definition: Fuel Level Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
