AutoMeter 5720 - GAUGE, AIR PRESS, 2 1/16", 150PSI, MECHANICAL, PHANTOM
Product Availability Request
Fill the form and our team will contact you.

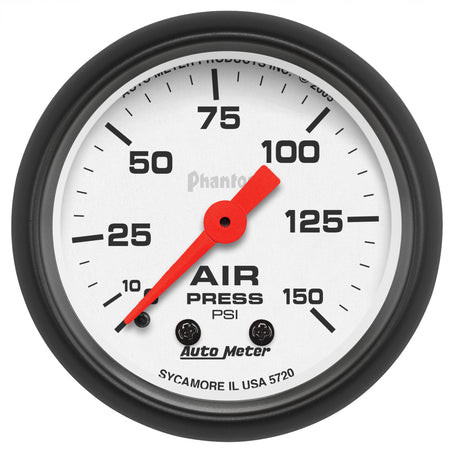

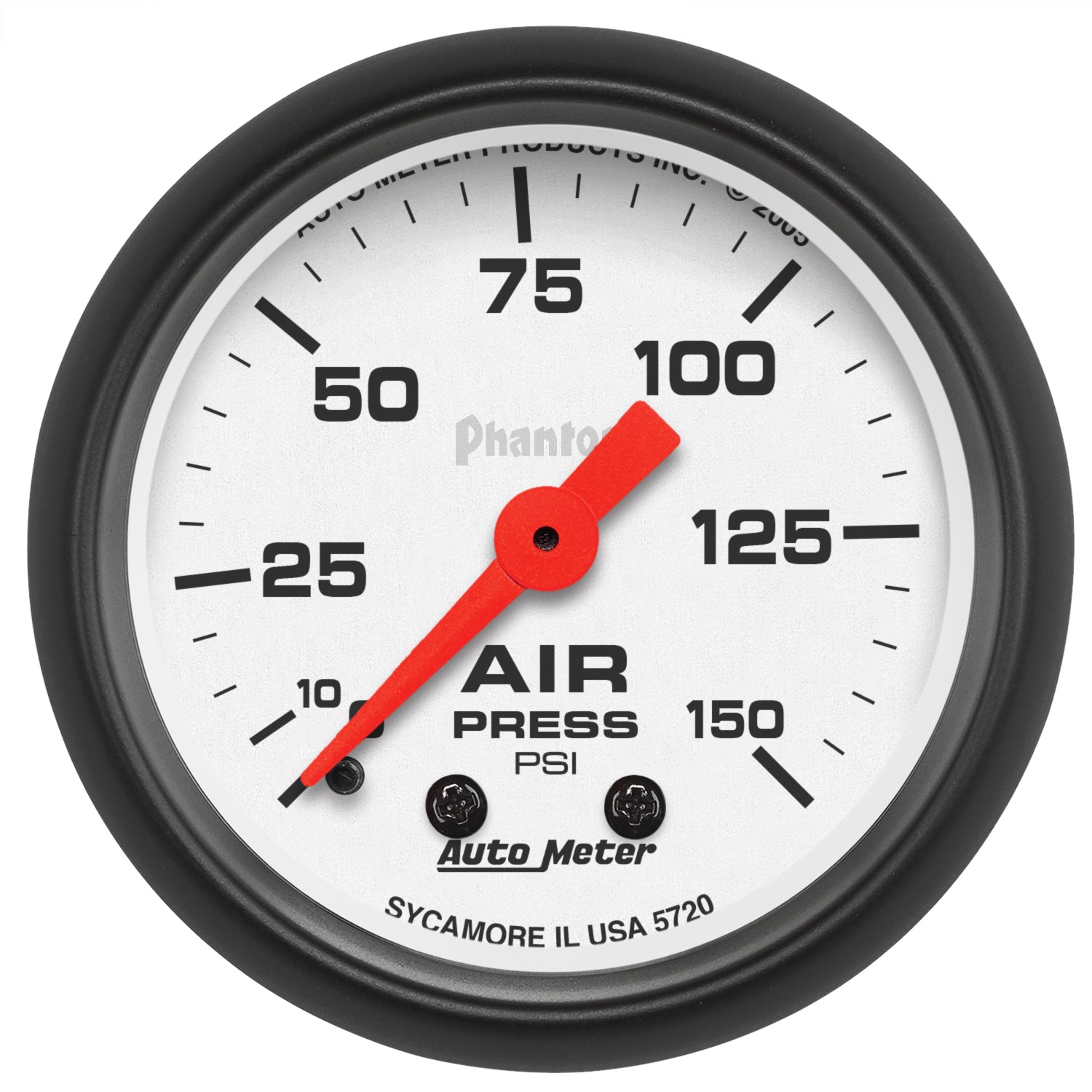

2-1/16" AIR PRESSURE, 0-150 PSI, PHANTOM
Keep tabs on the system pressure in your airbag system with AutoMeter ultra precise Mechanical Air Pressure Gauge. Engineered with the world’s most accurate and durable bourdon tube meter movement, this is a gauge that is built to last under even the harshest conditions. Includes 1/8” NPT connections and nylon tubing for installation.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-150 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3284, 3285, 3286, 3287, 3288 |
| Upsell | 3284, 3285, 3286, 3287, 3288 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Gauge Type | Air Pressure |
| Bezel Color | Black |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Series | PHANTOM |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: 2" AIR PRESS
Invoice Description: 2" AIR PRESS, 0-150 PSI, MECH, PHANTOM
Definition: Air Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
