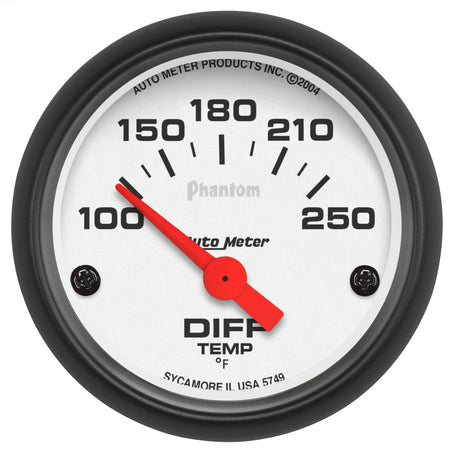

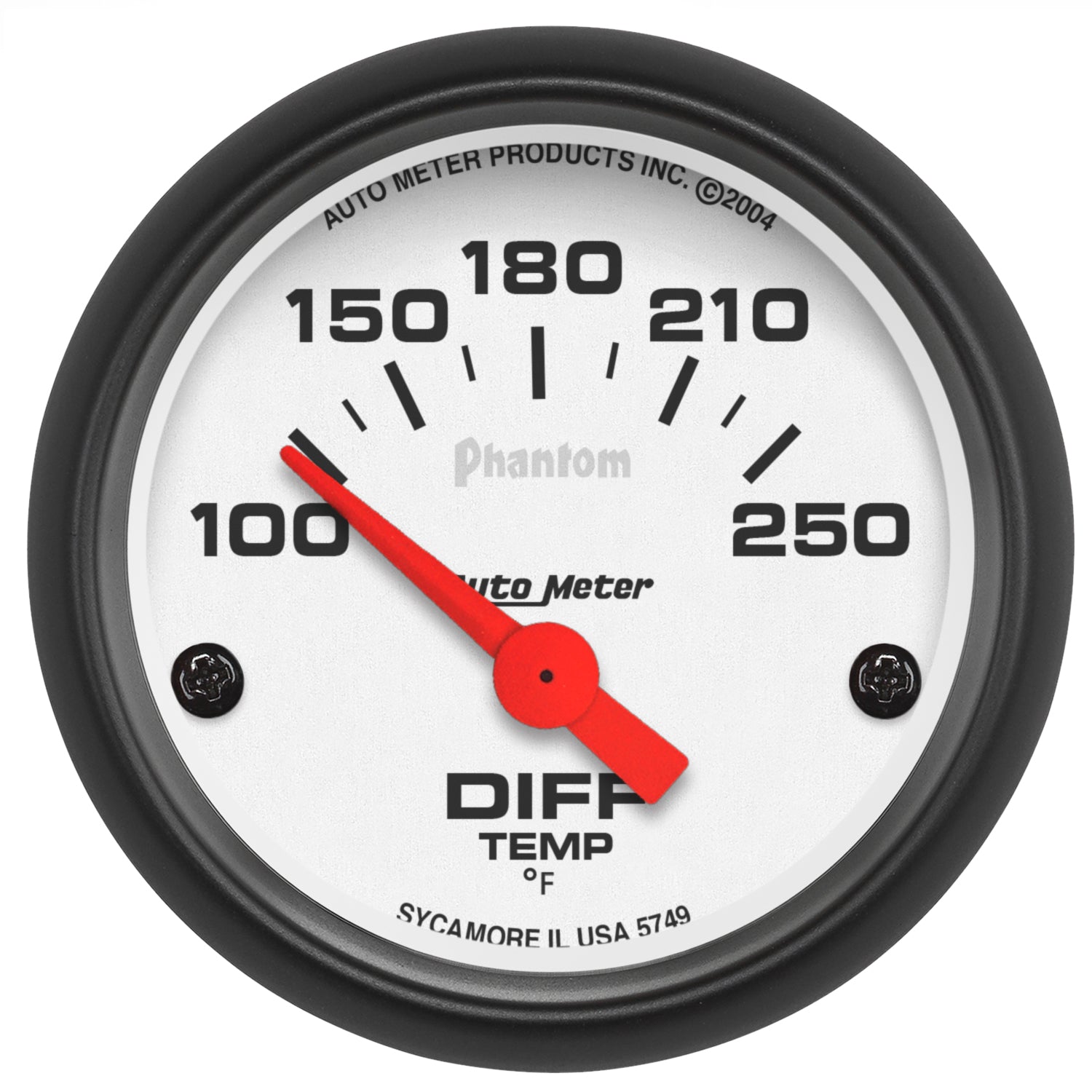

AutoMeter 5749 - GAUGE, DIFFERENTIAL TEMP, 2 1/16", 100-250?F, ELECTRIC, PHANTOM
Product Availability Request
Fill the form and our team will contact you.
2-1/16" DIFFERENTIAL TEMPERATURE, 100-250 F, PHANTOM
When your vehicle leaves the pavement, the importance of differential temp can’t be understated. Make sure your vehicle will make it safely back to the pavement and ensure the long life of your differential with AutoMeter’s Short Sweep Electronic Diff Temp Gauge. Built with the same attention to quality and detail as every AutoMeter gauge, you can be assured of top notch accuracy and durability thanks to AutoMeter’s patented air core meter movement.. A single wire 1/8” NPT temperature sender is included.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 100-250 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3284, 3285, 3286, 3287, 3288 |
| Upsell | 3284, 3285, 3286, 3287, 3288 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Gauge Type | Differential Temperature |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Series | PHANTOM |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: 2" DIFF TEMP
Invoice Description: 2" DIFF TEMP, 100-250`F, SSE, PHANTOM
Definition: Differential Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
