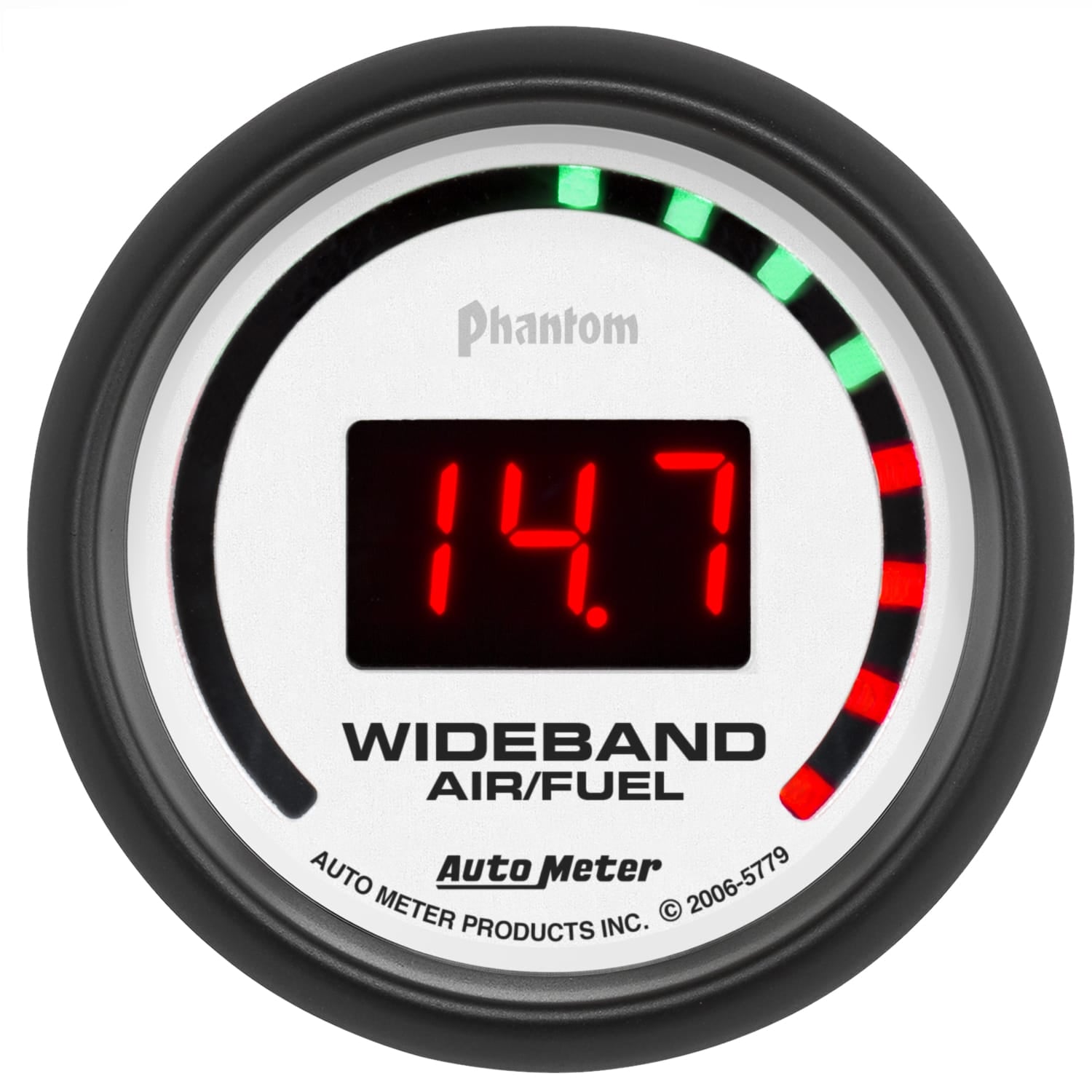

AutoMeter 5779 - GAUGE, AIR/FUEL RATIO-WIDEBAND, STREET, 2 1/16", 10:1-17:1, DIGITAL, PHANTOM
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WIDEBAND STREET AIR/FUEL RATIO, 10:1-17:1 AFR, PHANTOM
Taking the core features from AutoMeter’s Pro Wideband, the Street Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.
Features
- Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
- 0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
- Suitable for use with gasoline powered engines
- Digital segment display and LED radial bar graph display
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 10:1-17:1 AFR |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2243 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Lens Style | Flat, Clear |
| Includes Adapter/Fitting | M18X1.5 Fitting and Plug |
| Series | PHANTOM |
| Lighting Color | Red LED/Red Yellow Green Segments |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Gauge Type | Wideband Air/Fuel Ratio (AFR) |
| Cross Sell | 5252 |
| Upsell | 5252 |
| Includes Wire Harness | 5298 |
| Bezel Color | Black |
| Movement | Digital |
| Lighting Type | Digital LED |
Short Description: 2-1/16" WIDEBAND A/F
Invoice Description: 2-1/16" WIDEBAND A/F, STREET, PHANTOM
Definition: Air / Fuel Ratio Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
